F032110048 - Alternator

Trade number 110048

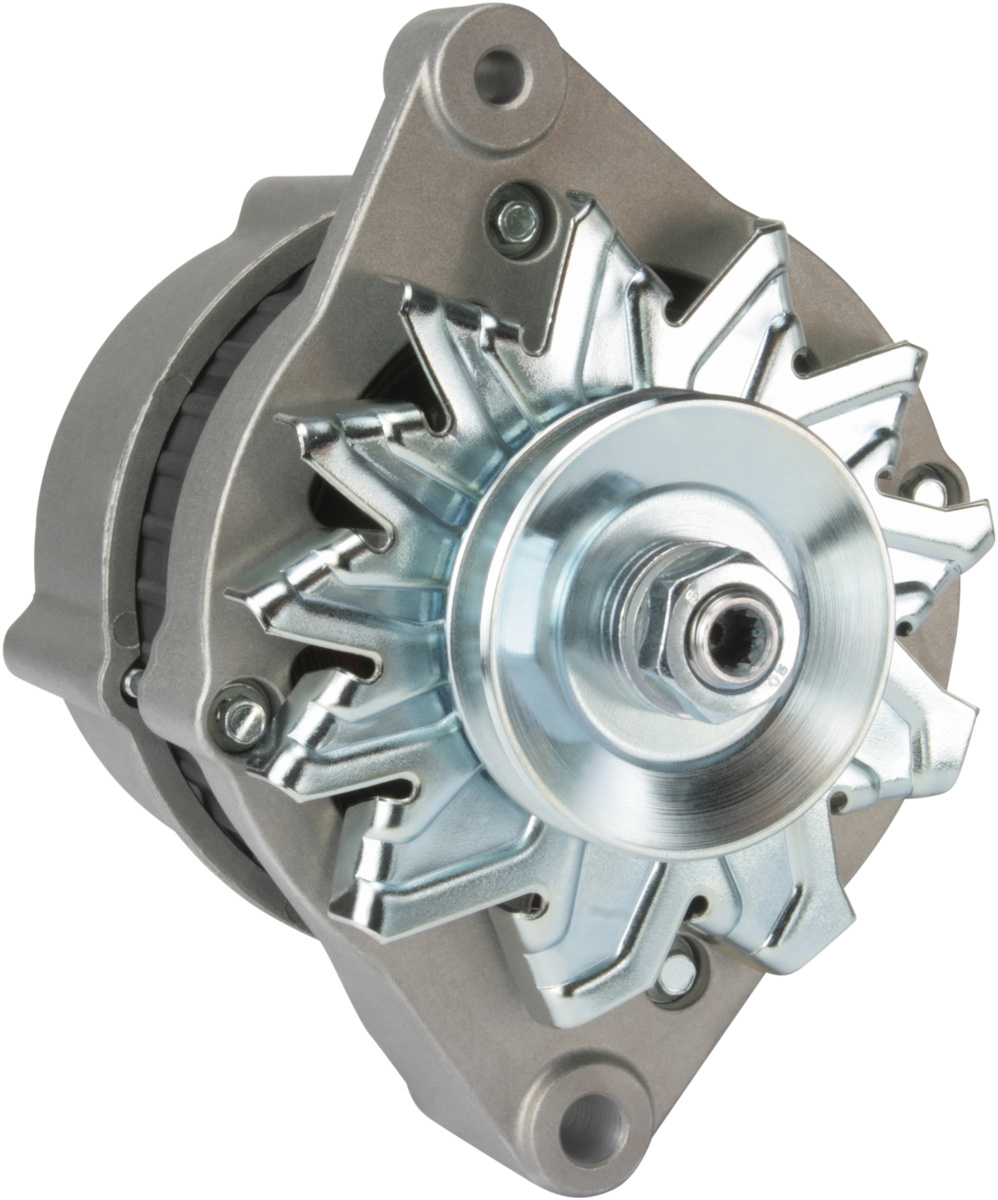

Product image - main
Trade number 110048

Details & description

Insulated return Yes, Voltage 14, Amp 70, Terminal W, Pulley SP, W plug type 6.30, Pulley Diameter 73.00, Prod. info BN/OE, D+ Position 25, Pulley Distance 72.00, Source Mahle Letrika, Radius 84.50, Belt Adjustment Bracket Hole 1 8.00, Grooves/pulley 1, Regulator type IR, Bracket Hole Size 1 11.00, D+ Size M5, Holder Arm Width 51.00, B+ M6, Fan EF, Radius 2 83.50, Rotation CW, Position 60, B+ Position 40, Belt Adjustment Bracket Hole Position 56, Total Length 180.00

Product information

Insulated return:Yes
Voltage:14
Amp:70
Terminal:W
Pulley:SP
W plug type:6.30
Pulley Diameter:73.00
Prod. info:BN/OE
D+ Position:25
Pulley Distance:72.00
Source:Mahle Letrika
Radius:84.50
Belt Adjustment Bracket Hole 1:8.00
Grooves/pulley:1
Regulator type:IR
Bracket Hole Size 1:11.00
D+ Size:M5
Holder Arm Width:51.00
B+:M6
Fan:EF
Radius 2:83.50
Rotation:CW
Position:60
B+ Position:40
Belt Adjustment Bracket Hole Position:56
Total Length:180.00

Replacing and BOMs

OEM number

2871A453PERKINS
241959VOLVO

Competitor References

DRA1193AC DELCO
30742RIAD KÜHNER
0120400618BOSCHBOM
2014CEVAM
815019070CV PSH
DRA1193DELCO REMY
500101352DRI
500109352DRI
538002352DRI
270631ELSTOCK
280683ELSTOCK
281946ELSTOCK
110048HC-CARGO
8EL730040001HELLA
32510816HERTH U. BUSS
IA0723ISKRA
MG58ISKRA
11203670ISKRA
AAK1818ISKRA
MG499ISKRA
13128LESTER
12407LESTER
14052LESTER
LEA0478LUCAS
LRA01029LUCAS
LRA01192LUCAS
LRA01439LUCAS
510834MOTOROLA
714739022SEV MARCHAL (=<gt/> VALEO)
70229002SEV MARCHAL (=<gt/> VALEO)BOM
71273402SEV MARCHAL (=<gt/> VALEO)BOM
71427002SEV MARCHAL (=<gt/> VALEO)BOM
71427012SEV MARCHAL (=<gt/> VALEO)
71470402SEV MARCHAL (=<gt/> VALEO)BOM
71470602SEV MARCHAL (=<gt/> VALEO)
71473802SEV MARCHAL (=<gt/> VALEO)BOM
5225SPIDAN
75779SUDEST
75780SUDEST
2927750VALEOBOM
A13N57MVALEOBOM
A13N3MVALEO
13068RWAI
12407NWAI
20721NWAI
ALT14051WOOD AUTO SUPPL
