F032110052 - Alternator

Trade number 110052

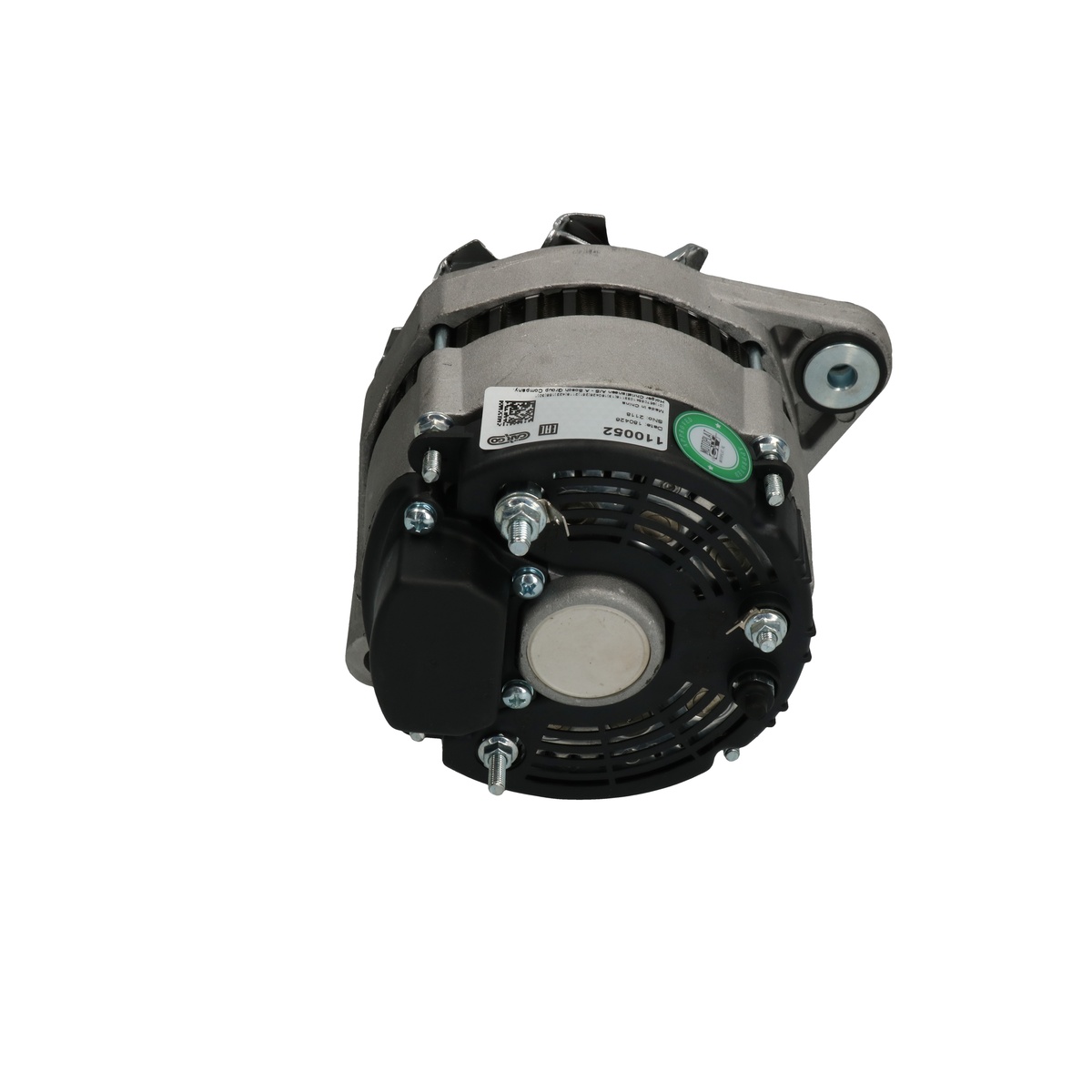

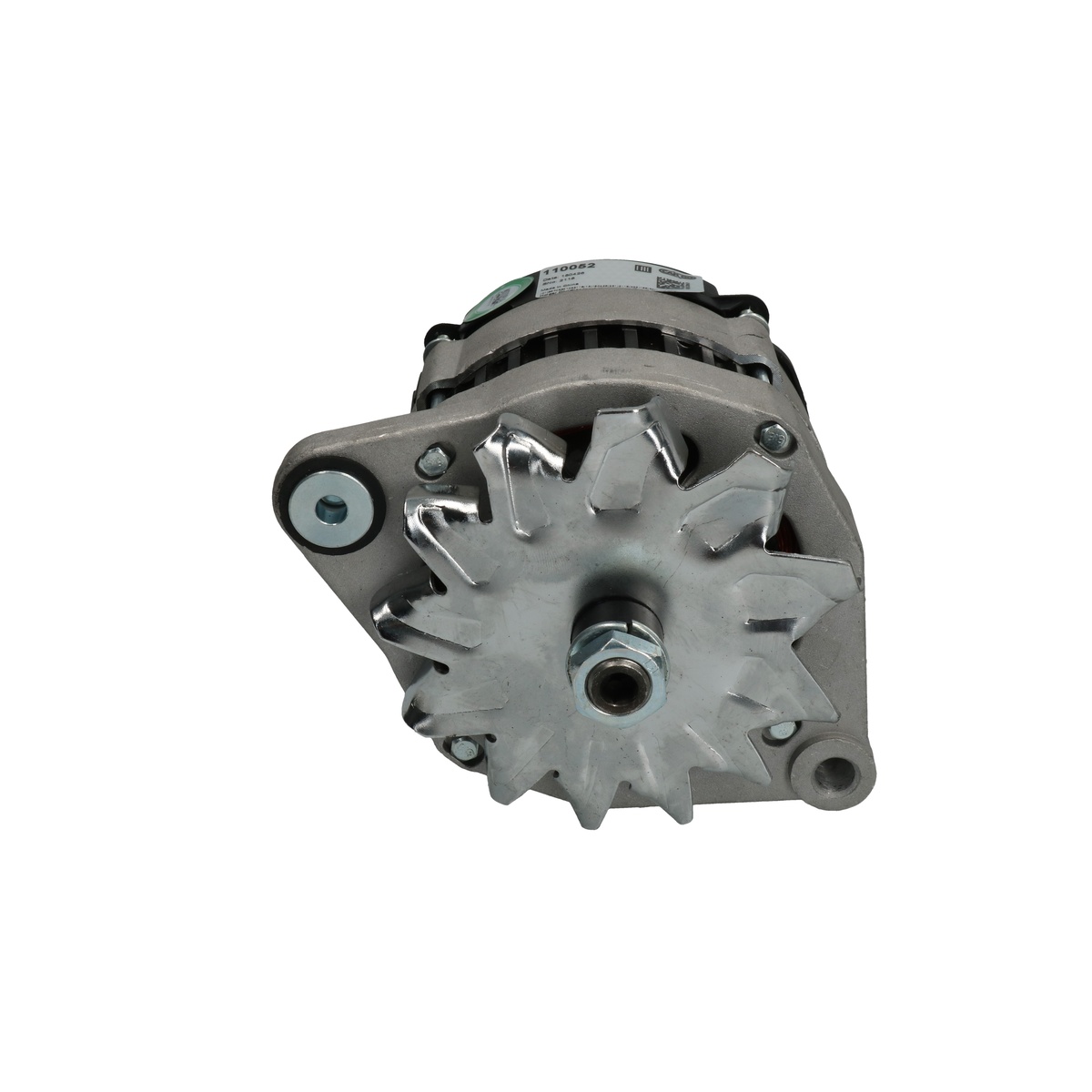

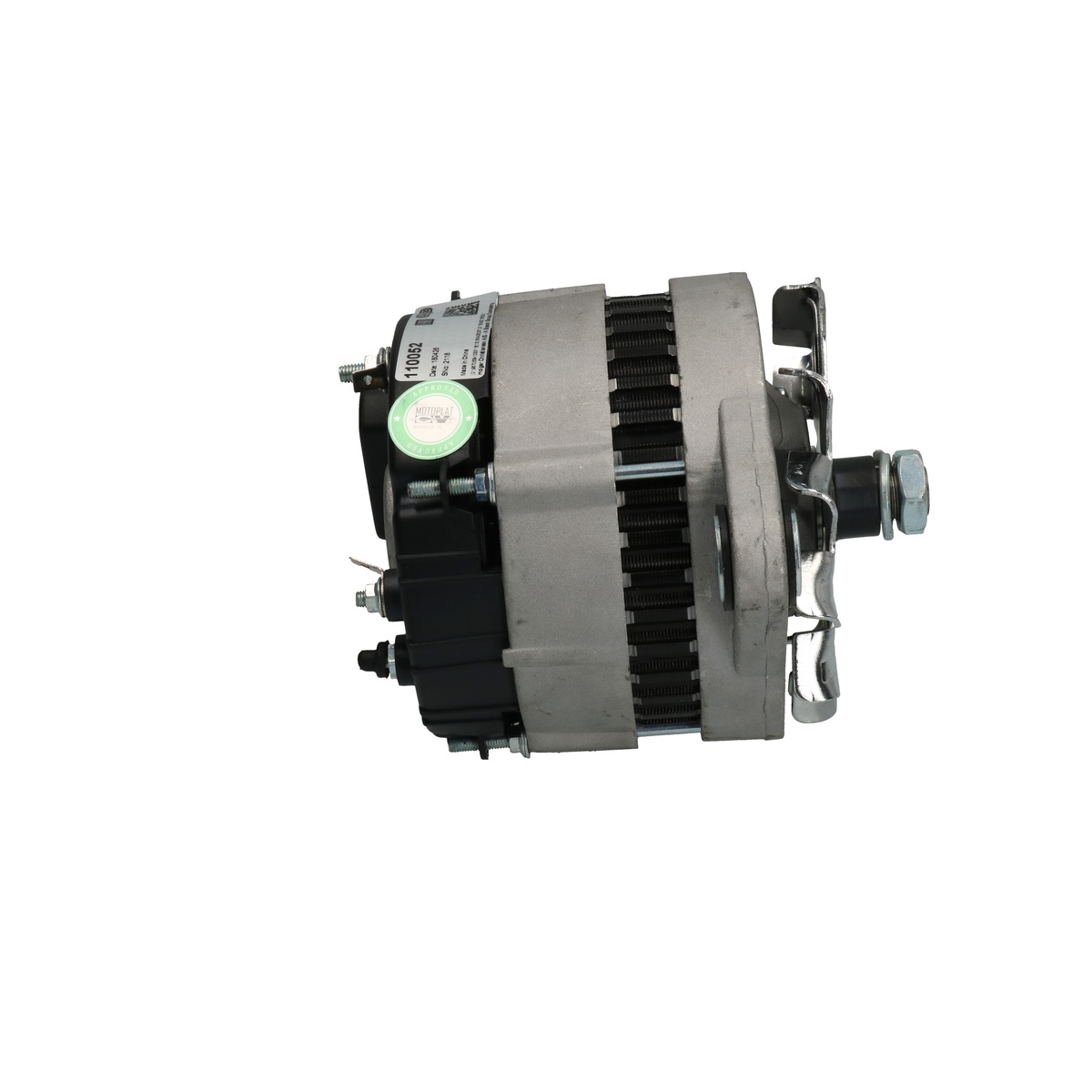

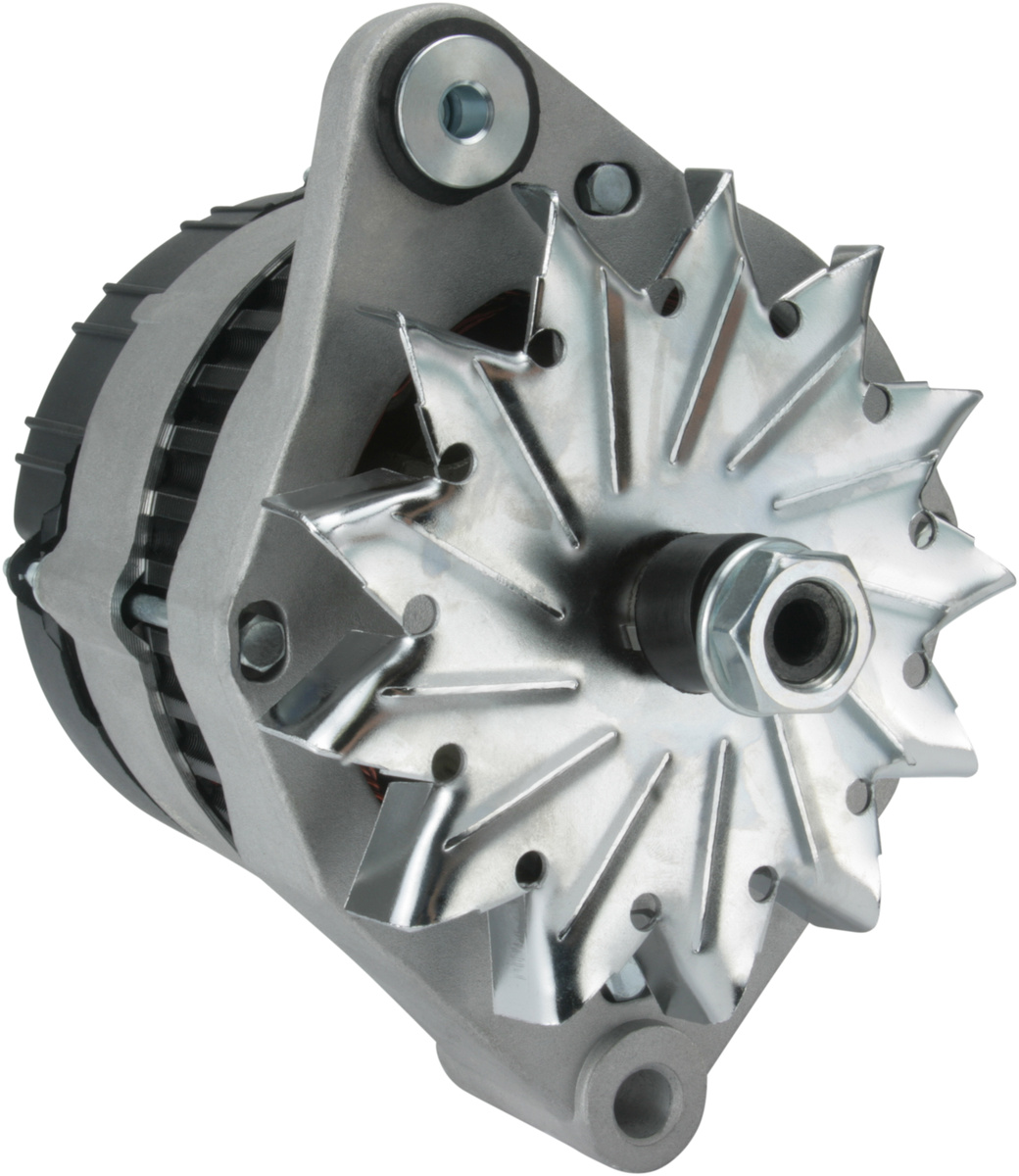

Product image - main
Trade number 110052

Details & description

Terminal W, Insulated return Yes, Voltage 28, Amp 40, Pulley w/o, W plug type 6.30, Bracket Hole Size 1 11.00, Prod. info BN, Bracket Hole Size Rear 14.00, D+ Size M5, D+ Position 5, Holder Arm Width 50.00, B+ M6, Fan EF, Radius 2 82.00, Radius 84.00, Rotation CW, Belt Adjustment Bracket Hole 1 8.20, Regulator type IR, Position 38, B+ Position 50, Belt Adjustment Bracket Hole Position 55, Total Length 177.00

Product information

Electrical information

  • TerminalW
  • Insulated returnYes
  • Voltage28
  • Amp40

Catalogue information

  • Prod. infoBN

Physical information

  • Pulleyw/o
  • W plug type6.30
  • Bracket Hole Size 111.00
  • Bracket Hole Size Rear14.00
  • D+ SizeM5
  • D+ Position5
  • Holder Arm Width50.00
  • B+M6
  • FanEF

    • Suggested Products

    Replacing and BOMs

    Competitor References

    • 30132RIAD KÜHNER
    • 30744RIAD KÜHNER
    • 816019040CV PSH
    • 816027045CV PSH
    • 238010354DRI
    • 500009254DRI
    • 500109404DRI
    • 470605ELSTOCK
    • 470872ELSTOCK

    • Compatible products
