F032110075 - Alternator

Trade number 110075

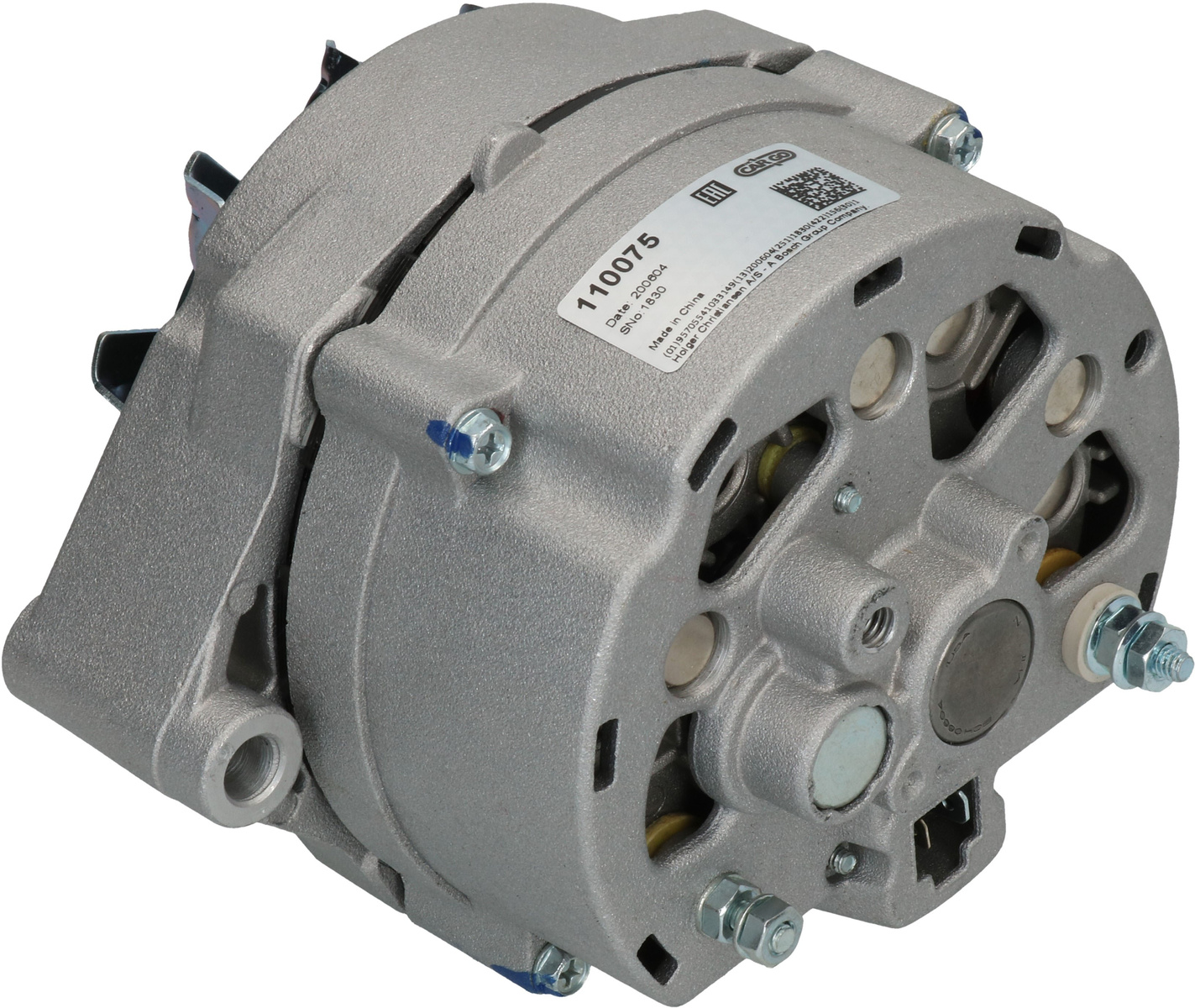

Product image - main
Trade number 110075

Details & description

Voltage 14, Amp 60, Pulley P, Pulley Diameter 67.70, Prod. info BN, D+ Position 50, Pulley Distance 75.00, Servicing American Motors, Buick, Cadillac, Chevrolet, GMC, Jeep, International, Oldsmobile, Pontiac, Radius 82.50, Regulator w/o, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 1, Bracket Hole Size 1 10.00, D+ Size Plug, Holder Arm Width 51.00, B+ M6, Radius 2 81.50, Plug no. 1 PL35, Rotation CW, Position 15, B+ Position 5, Belt Adjustment Bracket Hole Position 60, Total Length 176.00, Remarks Regulator: HC-CARGO 130505.

Product information

Electrical information

  • Voltage14
  • Amp60

Catalogue information

  • Prod. infoBN
  • ServicingAmerican Motors, Buick, Cadillac, Chevrolet, GMC, Jeep, International, Oldsmobile, Pontiac
  • Regulatorw/o
  • RemarksRegulator: HC-CARGO 130505.

Physical information

  • PulleyP
  • Pulley Diameter67.70
  • D+ Position50
  • Pulley Distance75.00
  • Radius82.50
  • Belt Adjustment Bracket Hole 1M8
  • Grooves/pulley1
  • Bracket Hole Size 110.00
  • D+ SizePlug

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 7007010010005AGRALE
    • 7007010018008AGRALE
    • 7100AGRALE
    • 71009AGRALE
    • 71010AGRALE
    • 2S945CATERPILLAR
    • 86385CATERPILLAR

    Competitor References

    • DRZ0102AC DELCO
    • 301446RIAD KÜHNER
    • 50916AD KÜHNER
    • F042A00033BOSCH
    • F042300033BOSCH
    • AL523XBOSCH
    • AL530XBOSCH
    • BAO3080BOWERS
    • CAL10243CASCO SRL

    • Compatible products
