F032110173 - Alternator

Trade number 110173

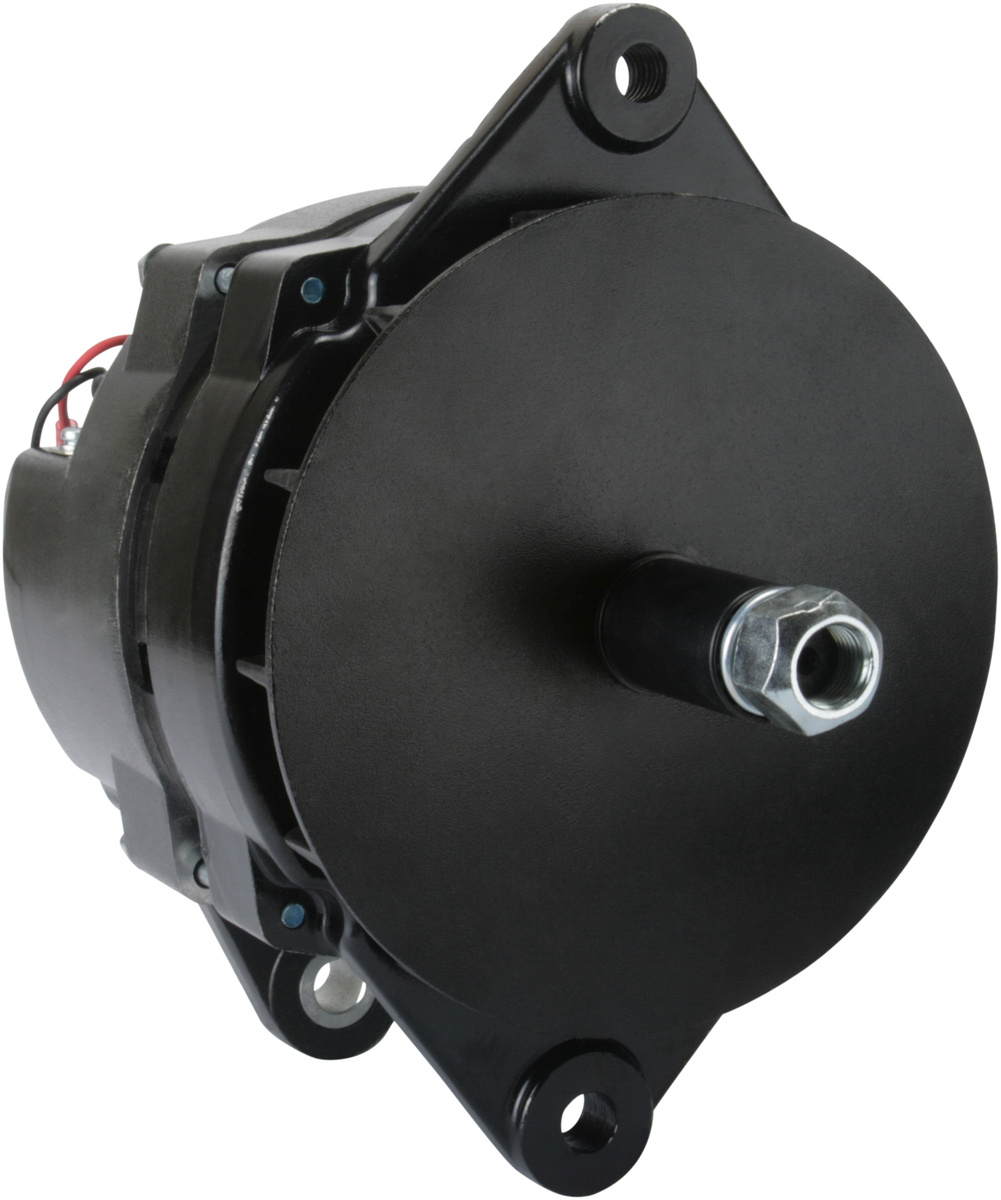

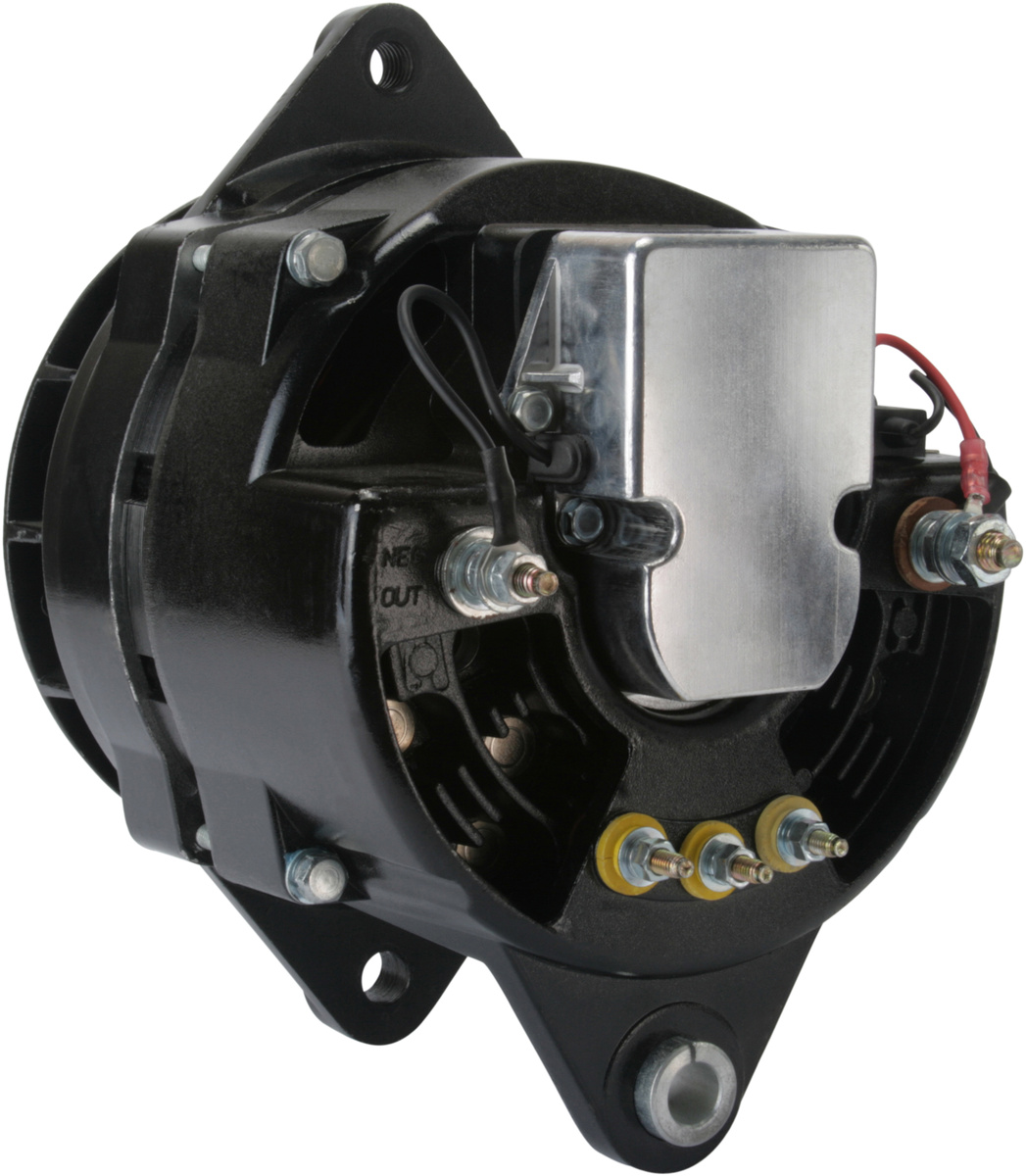

Product image - main
Trade number 110173

Details & description

Voltage 28, Amp 75, Pulley w/o, Bracket Hole Size 1 12.50, Prod. info BN, Bracket Hole Size Rear 12.50, D+ Size M6, D+ Position 45, Holder Arm Width 14.50, Servicing DAF, Clark, B+ M8, Radius 2 107.00, Info NOTE! NOT with insulated return, Mounting Bracket Distance 101.50, Radius 105.00, Rotation CW, Belt Adjustment Bracket Hole 1 1/2" UNC, Regulator type IR, Position 60, B+ Position 15, Belt Adjustment Bracket Hole Position 60, Total Length 246.00

Product information

Voltage:28
Amp:75
Pulley:w/o
Bracket Hole Size 1:12.50
Prod. info:BN
Bracket Hole Size Rear:12.50
D+ Size:M6
D+ Position:45
Holder Arm Width:14.50
Servicing:DAF, Clark
B+:M8
Radius 2:107.00
Info:NOTE! NOT with insulated return
Mounting Bracket Distance:101.50
Radius:105.00
Rotation:CW
Belt Adjustment Bracket Hole 1:1/2" UNC
Regulator type:IR
Position:60
B+ Position:15
Belt Adjustment Bracket Hole Position:60
Total Length:246.00

Replacing and BOMs

OEM number

30000347CUMMINS

Competitor References

50919RIAD KÜHNER
553239RIAD KÜHNER
BAO3261BOWERS
859866ZBUTEC
LNA75241BUTEC
LNA7524BUTEC
CAL11628CASCO SRL
CAL60602CASCO SRL
646001060CV PSH
996001075CV PSH
646047075CV PSH
500142604DRI
500122754DRI
480636ELSTOCK
110173HC-CARGO
8EL730135001HELLA
7585LESTER
7392LESTER
8391LESTER
8421LESTER
LRA02419LUCAS
8LHA3025MOTOROLA
8LHA3025PMOTOROLABOM
8LHA3025PAMOTOROLA
8LHA3071PMOTOROLABOM
8LHA3073PSMOTOROLABOM
8SA3005PMOTOROLABOM
8SA3006PMOTOROLABOM
110124MOTOROLA
110128MOTOROLA
110276MOTOROLA
110296MOTOROLA
110297MOTOROLA
110440MOTOROLA
110446MOTOROLA
8LHA2012NOMOTOROLA
8SA3065PMOTOROLABOM
110466MOTOROLA
8LHA2095RMOTOROLA
8LHA3025RMOTOROLABOM
860053PRESTOLITE ELECTRIC
5491SPIDAN
75829SUDEST
7197RWAI
8367RWAI
LNV110446WAI
ALT32031WOOD AUTO SUPPL
ALT32036WOOD AUTO SUPPL
