Details & description

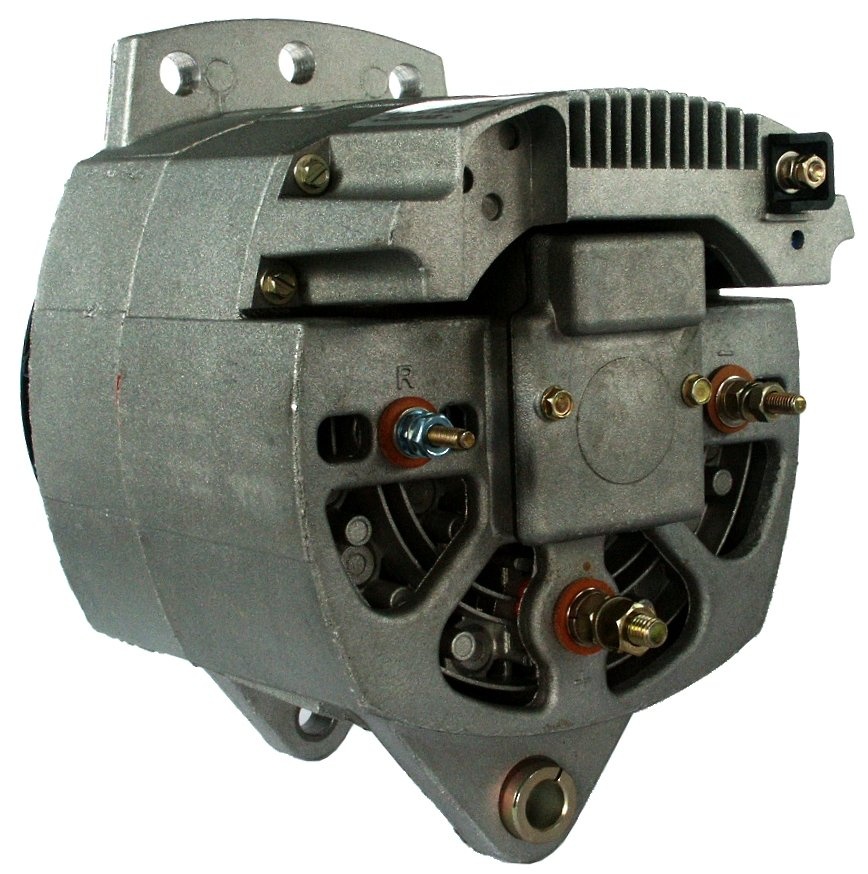

Insulated return Yes, Voltage 28, Amp 100, Pulley w/o, Radius 4 107.50, Prod. info BN, Bracket Hole Size Rear 13.00, D+ Position 5, Servicing Volvo, Radius 3 106.50, Belt Adjustment Bracket Hole 3 1/2" UNC, Mounting Bracket Distance 103.00, Radius 108.00, Belt Adjustment Bracket Hole 1 1/2" UNC, Regulator type IR, Bracket Hole Size 1 13.00, Belt Adjustment Bracket Hole 2 1/2" UNC, D+ Size M5, Holder Arm Width 14.70, B+ M8, Fan EF, Radius 2 107.00, Rotation CW, Position 60, B+ Position 30, Belt Adjustment Bracket Hole Position 56;60;4, Total Length 249.00, Remarks Fan: HC-CARGO 134317. Pulley: HC-CARGO 131176.
