F032110216 - Starter
Trade number 110216
Replacing and BOMs
OEM number
5032703MERCURY MARINE
5045120MERCURY MARINE
5012177A2MERCURY MARINE
5077328A1MERCURY MARINE
5099418A2MERCURY MARINE
984456OMC
Competitor References
DRZ5111AC DELCO
DRZ5114AC DELCO
DRZ5144AC DELCO
60877AD KÜHNER
SDR0032AKS DASIS
SDR0032ARROWHEAD
F042S03017BOSCH
F042003017BOSCH
F042S03018BOSCH
F042003018BOSCH
SR515XBOSCH
SR518XBOSCH
SR526XBOSCH
SR547XBOSCH
SR531XBOSCH
BSO7089BOWERS
CST60127CASCO SRL
CST60102CASCO SRL
8196CEVAM
830516092CV PSH
830538092CV PSH
DRZ5111DELCO REMY
DRZ5114DELCO REMY
DRZ5144DELCO REMY
S1281DIXIE ELECTRIC
628101092DRI
628118092DRI
628106092DRI
628008092DRI
250246ELSTOCK
251499ELSTOCK
252125ELSTOCK
110722HC-CARGO
111869HC-CARGO
110216HC-CARGO
8EA726545001HELLA
42017260HERTH U. BUSS
42992814HERTH U. BUSS
42992815HERTH U. BUSS
3681LESTER
3631NPGLESTER
6425LESTER
6423LESTER
3508LESTER
3508MLESTER
3510LESTER
3510MLESTER
4249LESTER
LRS01284LUCAS
LRS01331LUCAS
1108480REMY
1998246REMY
1955603REMY
33613SUDEST
33759SUDEST
STR2522UNIPOINT
STR2521UNIPOINT
460216VALEO
201039VALEO
3838NWAI
3510MNWAI
3510MRWAI
3510NWAI
3510NPGWAI
3629RWAI
3631NPGWAI
3686NWAI
3733NWAI
3838RWAI
21593DRWAI
21593DR2WAI
21604DRWAI
21607DRWAI
21594DRWAI
21605DRWAI
50185WAI
91014308WILSON
91013839WILSON
STR80134WOOD AUTO SUPPL
STR2518WOOD AUTO SUPPL
STR2522WOOD AUTO SUPPL
STR80034WOOD AUTO SUPPL
F032110216 - Starter
Details & description

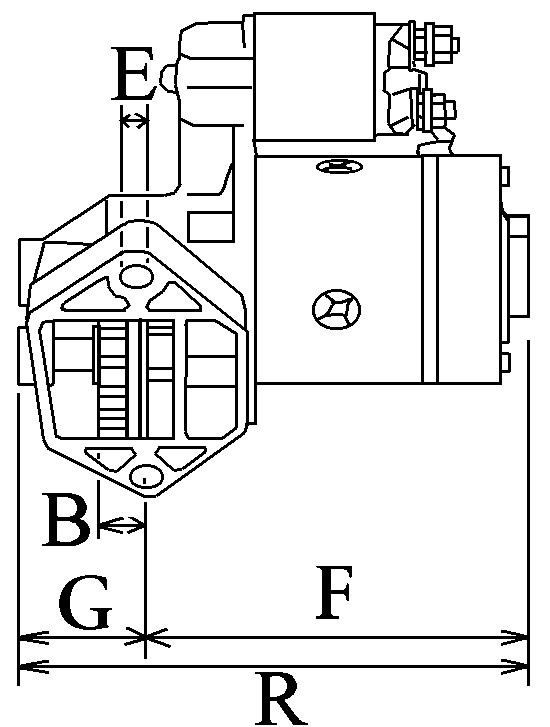

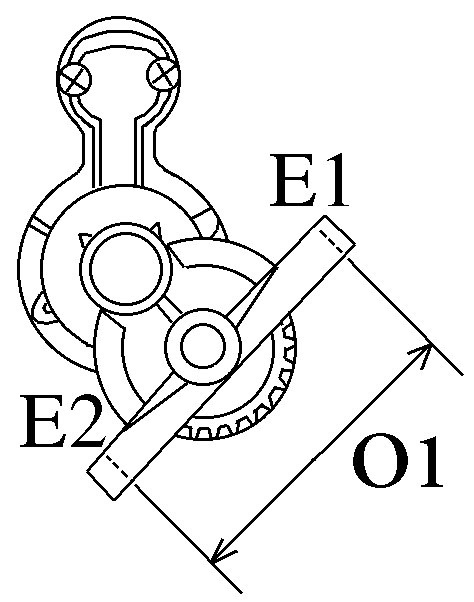

kW 1.4, Voltage 12, Drive type Steel, No./mount. holes 2 (0), Mounting Hole 2 9.80, Rear Distance 180.00, Gear type GR, Prod. info BN, Waterproof No, Front Distance 54.00, Drive Distance 18.50, No./teeth 9,11, B+ M8, Terminal 15a M5, Terminal 50 M5, Distance 83.00, Oil sealed No, Rotation CW, Remarks Replacing: 10MT., Position 40;10, Mounting Hole 1 9.80, Amount of Mounting Holes 2 (0), Total Length 234.00
Product information
kW:1.4
Voltage:12
Drive type:Steel
No./mount. holes:2 (0)
Mounting Hole 2:9.80
Rear Distance:180.00
Gear type:GR
Prod. info:BN
Waterproof:No
Front Distance:54.00
Drive Distance:18.50
No./teeth:9,11
B+:M8
Terminal 15a:M5
Terminal 50:M5
Distance:83.00
Oil sealed:No
Rotation:CW
Remarks:Replacing: 10MT.
Position:40;10
Mounting Hole 1:9.80
Amount of Mounting Holes:2 (0)
Total Length:234.00
