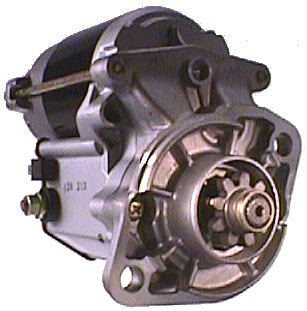

F032110356 - Starter
Trade number 110356Details & description
kW 1.4, Voltage 12, Drive type Steel, No./mount. holes 2 (0), Mounting Hole 2 11.00, Rear Distance 118.50, Gear type GR, Prod. info BN, Waterproof No, Front Distance 38.00, Drive Distance 25.00, No./teeth 9, B+ M8, Terminal 50 6.30, Mounting Flange 82.50, Distance 105.00, Oil sealed No, Rotation CW, Position 10, Mounting Hole 1 11.00, Amount of Mounting Holes 2 (0), Total Length 190.00
Product information
kW:1.4
Voltage:12
Drive type:Steel
No./mount. holes:2 (0)
Mounting Hole 2:11.00
Rear Distance:118.50
Gear type:GR
Prod. info:BN
Waterproof:No
Front Distance:38.00
Drive Distance:25.00
No./teeth:9
B+:M8
Terminal 50:6.30
Mounting Flange:82.50
Distance:105.00
Oil sealed:No
Rotation:CW
Position:10
Mounting Hole 1:11.00
Amount of Mounting Holes:2 (0)
Total Length:190.00
Replacing and BOMs
OEM number
253986800CARRIER
1666163015KUBOTA
1961663011KUBOTA
1961663012KUBOTA
1666163011KUBOTA
Competitor References
DRS3233AC DELCO
20677AD KÜHNER
20749AD KÜHNER
20678AD KÜHNER
CST40175CASCO SRL
CST40179CASCO SRL
690504092CV PSH
DRS3233DELCO REMY
2280001052DENSO
683006092DRI
600224092DRI
252126ELSTOCK
251097ELSTOCK
103860FACROM
104143FACROM
110356HC-CARGO
8EA730266001HELLA
18277LESTER
18147LESTER
18146LESTER
LRS01332LUCAS
LRS01137LUCAS
4249SPIDAN
18277NWAI
18146NWAI
STR8019WOOD AUTO SUPPL
STR30015WOOD AUTO SUPPL
