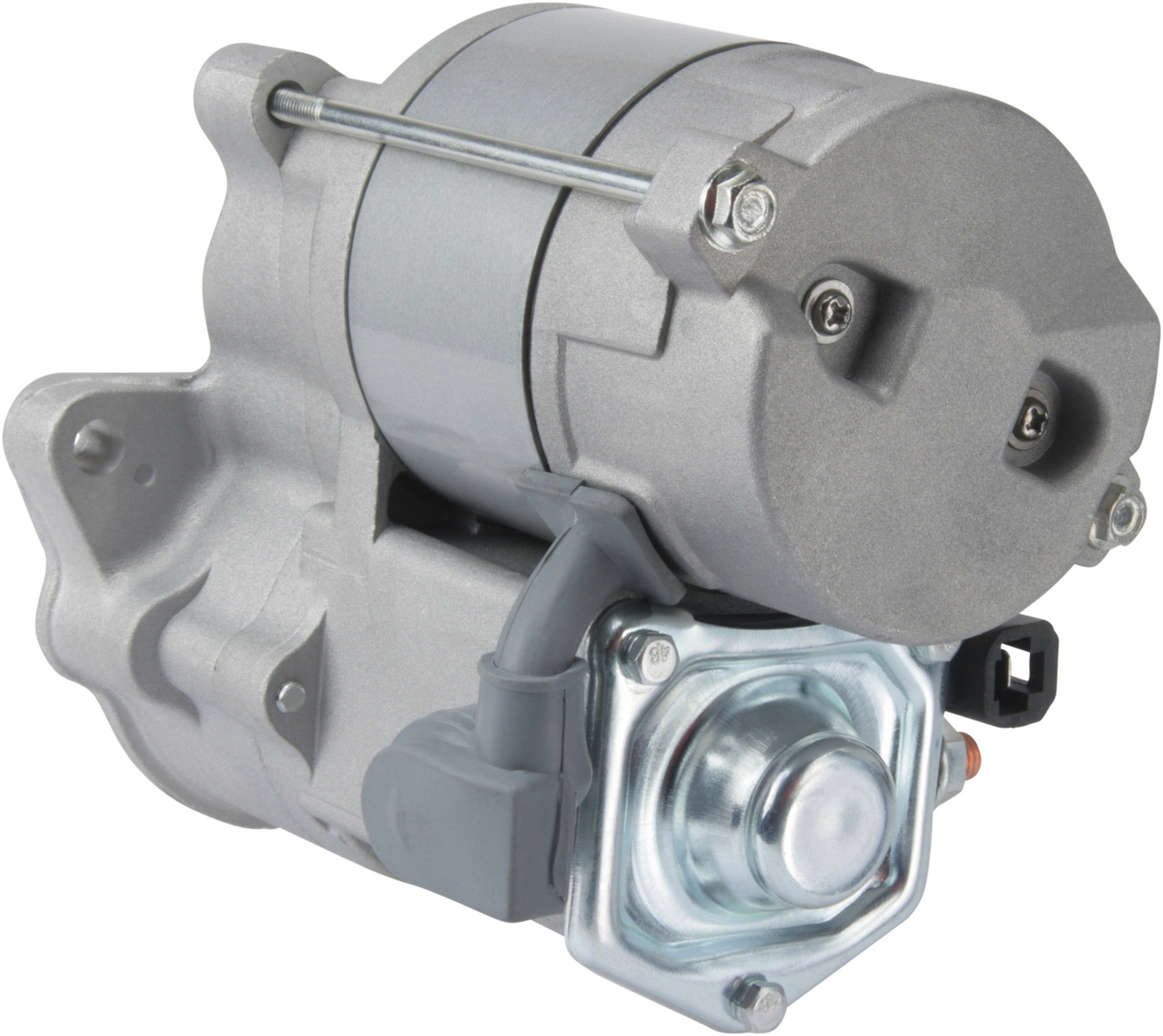

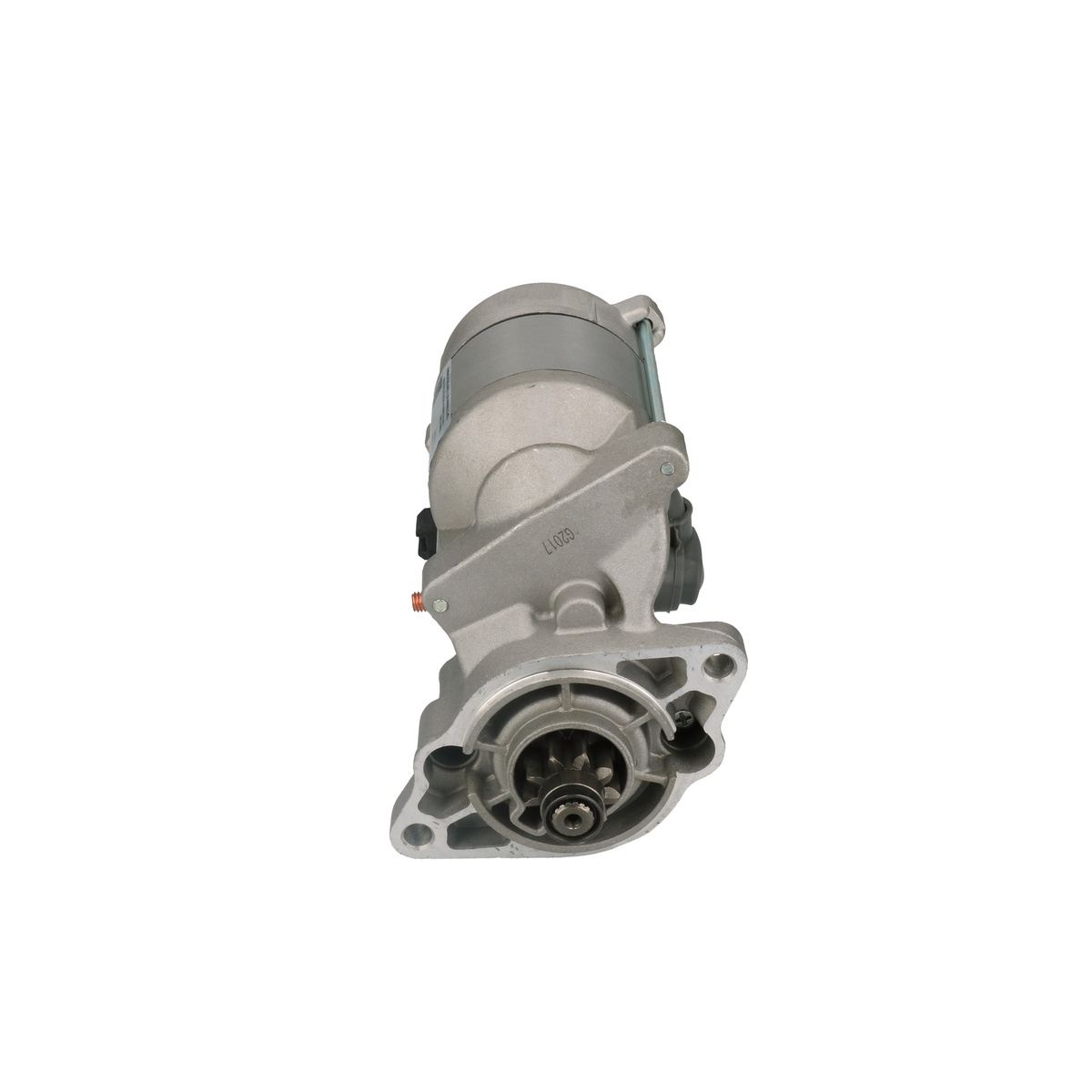

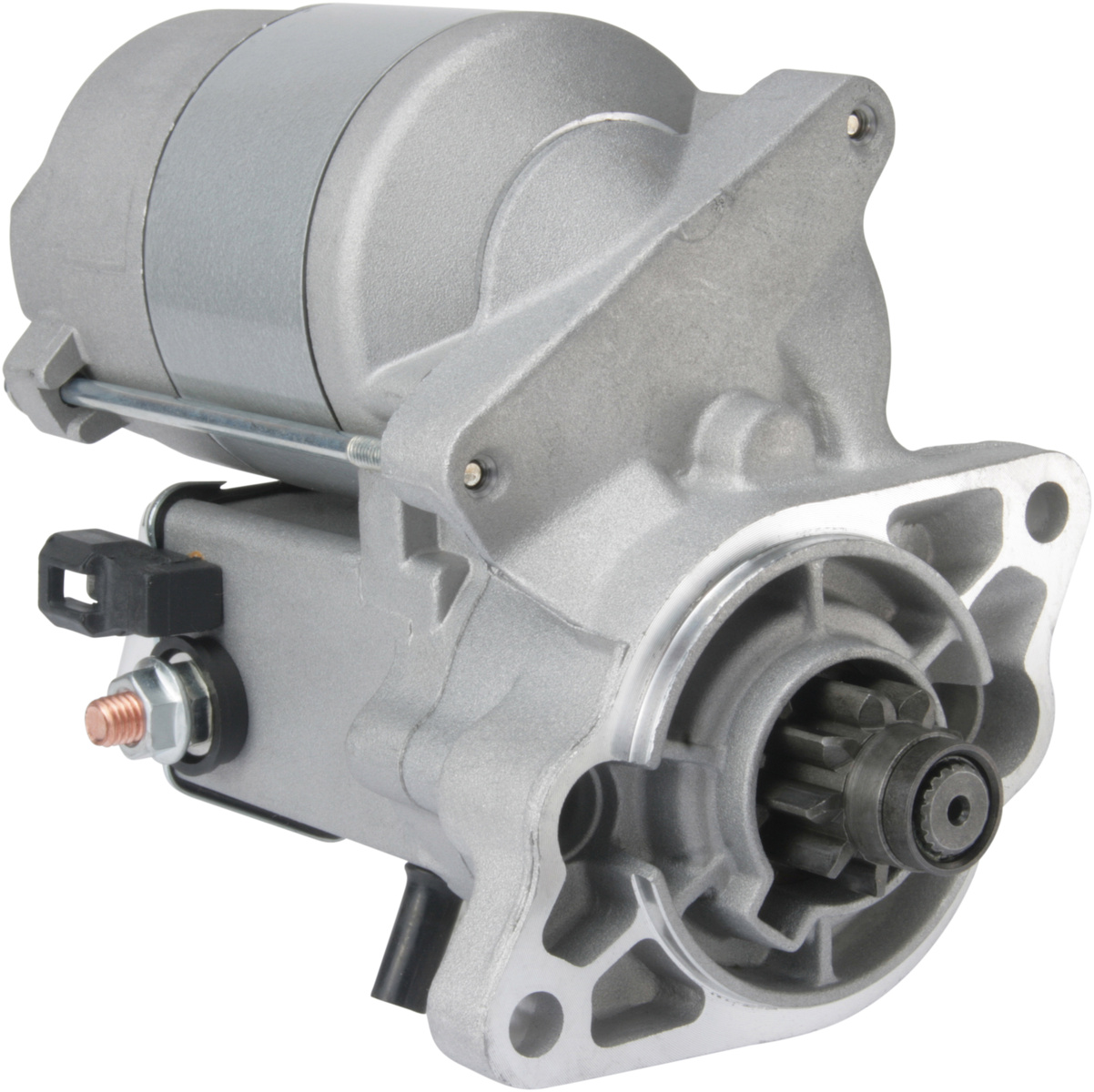

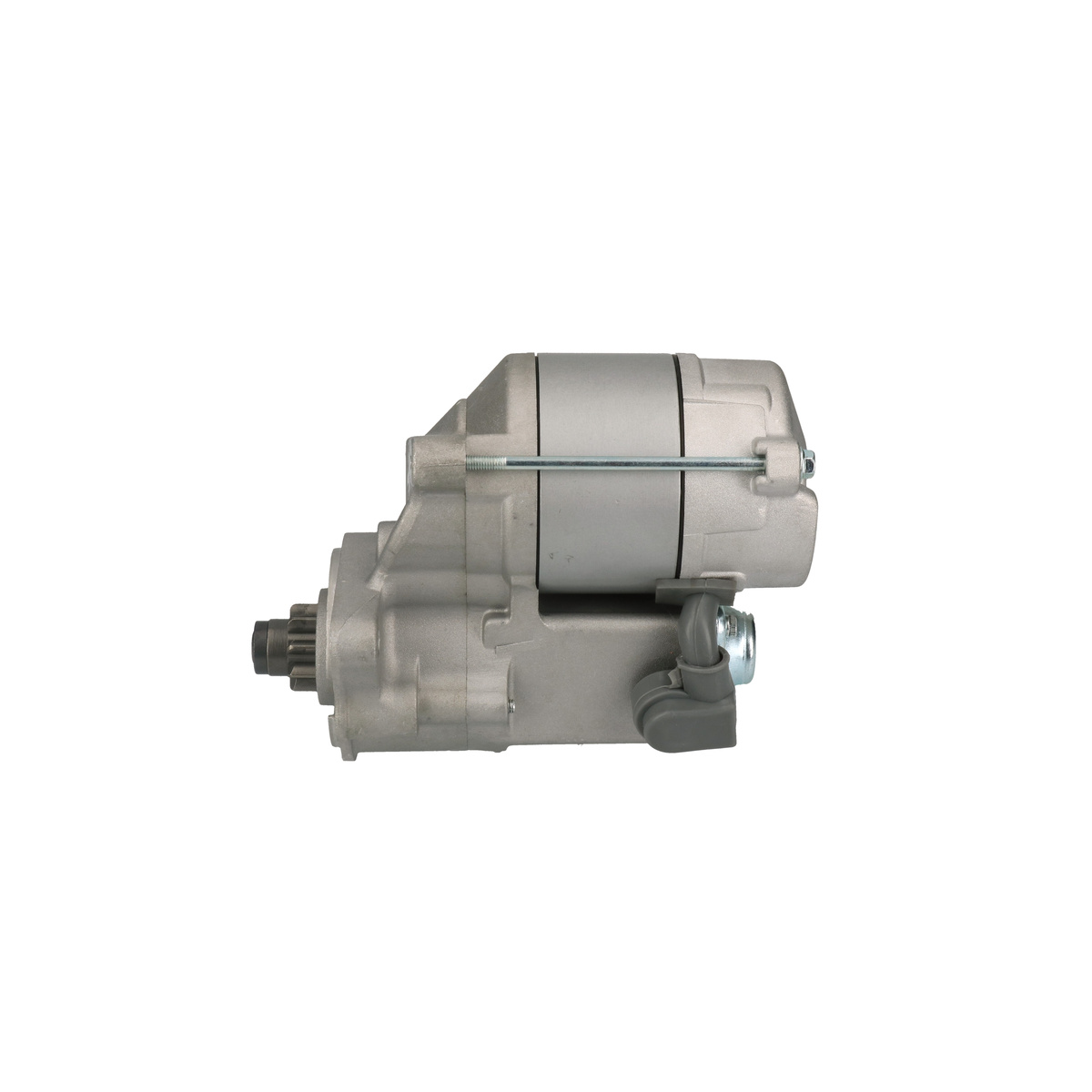

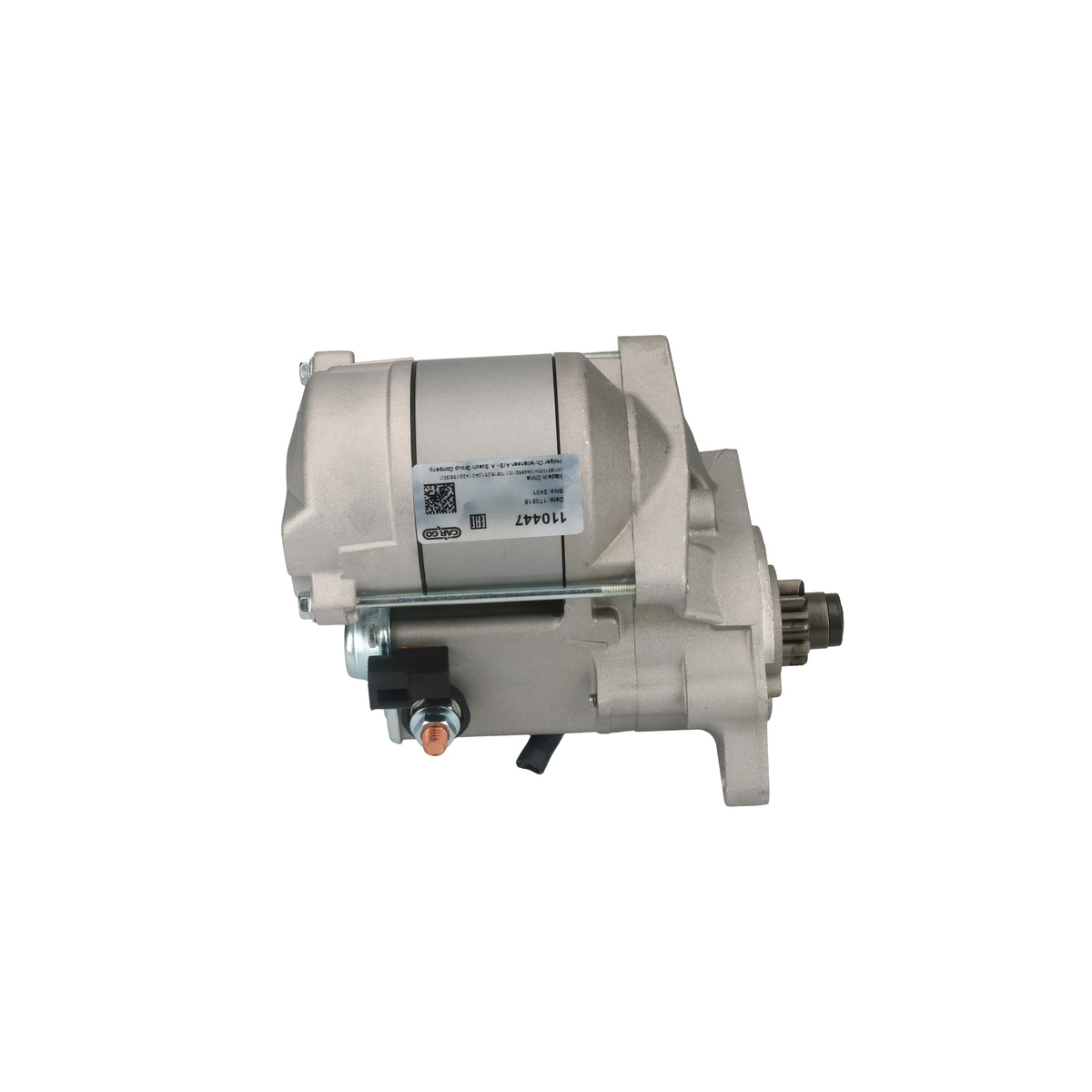

F032110447 - Starter
Trade number 110447
Replacing and BOMs
OEM number
1959380C1CASE
1547163011KUBOTA
1627163013KUBOTA
1628563010KUBOTA
1661263010KUBOTA
1687163012KUBOTA
1574163010KUBOTA
1574163011KUBOTA
1669563011KUBOTA
1687163010KUBOTA
1687163011KUBOTA
3756063010KUBOTA
K351181410KUBOTA
K757196810KUBOTA
K757196800KUBOTA
Competitor References
DRS3229AC DELCO
DRS3966AC DELCO
20730AD KÜHNER
20908AD KÜHNER
S6045AUTOSTARTER POLAND
0986023460BOSCH
F042S00195BOSCH
F042000195BOSCH
F042S01127BOSCH
F042001127BOSCH
CST40133CASCO SRL
CST40143CASCO SRL
CST40144CASCO SRL
CST40185CASCO SRL
CST40166CASCO SRL
690513092CV PSH
690531082CV PSH
690509092CV PSH
690546092CV PSH
DRS3229DELCO REMY
DRS3966DELCO REMY
1280003591DENSO
1280009958DENSO
0280008322DENSO
4280002640DENSO
DSN2079DENSO
683010092DRI
683031092DRI
683034092DRI
251164ELSTOCK
253157ELSTOCK
253471ELSTOCK
252194ELSTOCK
253001ELSTOCK
255267ELSTOCK
11040508EUROTEC
103762FACROM
110447HC-CARGO
JS730HC-PARTS
8EA730270001HELLA
8EA012527111HELLA
42118808HERTH U. BUSS
18400LESTER
17028LESTER
18414LESTER
LES0281LUCAS
LRS01629LUCAS
LRS01526LUCAS
LRS01169LUCAS
LRS02300LUCAS
9141327MAGNETON
4253SPIDAN
STR3569UNIPOINT
STR8110UNIPOINT
17098NWAI
22036NDWAI
17028NWAI
18400NWAI
18400RWAI
18414NWAI
18417NWAI
18419NWAI
STR30012WOOD AUTO SUPPL
F032110447 - Starter
Details & description
Voltage 12, kW 1.0, Drive type Steel, Mounting Hole 2 9.00, Rear Distance 126.00, Prod. info BN, Waterproof No, Drive Distance 17.00, Mounting Flange 66.00, Distance 109.50, Oil sealed No, No./mount. holes 2 (0), Gear type GR, Front Distance 30.00, No./teeth 9, B+ M8, Terminal 50 6.30, Clutch type Dry, Rotation CW, Position 10, Mounting Hole 1 9.00, B+ Position 15, Total Length 200.00, Amount of Mounting Holes 2 (0)
Product information
Voltage:12
kW:1.0
Drive type:Steel
Mounting Hole 2:9.00
Rear Distance:126.00
Prod. info:BN
Waterproof:No
Drive Distance:17.00
Mounting Flange:66.00
Distance:109.50
Oil sealed:No
No./mount. holes:2 (0)
Gear type:GR
Front Distance:30.00
No./teeth:9
B+:M8
Terminal 50:6.30
Clutch type:Dry
Rotation:CW
Position:10
Mounting Hole 1:9.00
B+ Position:15
Total Length:200.00
Amount of Mounting Holes:2 (0)
