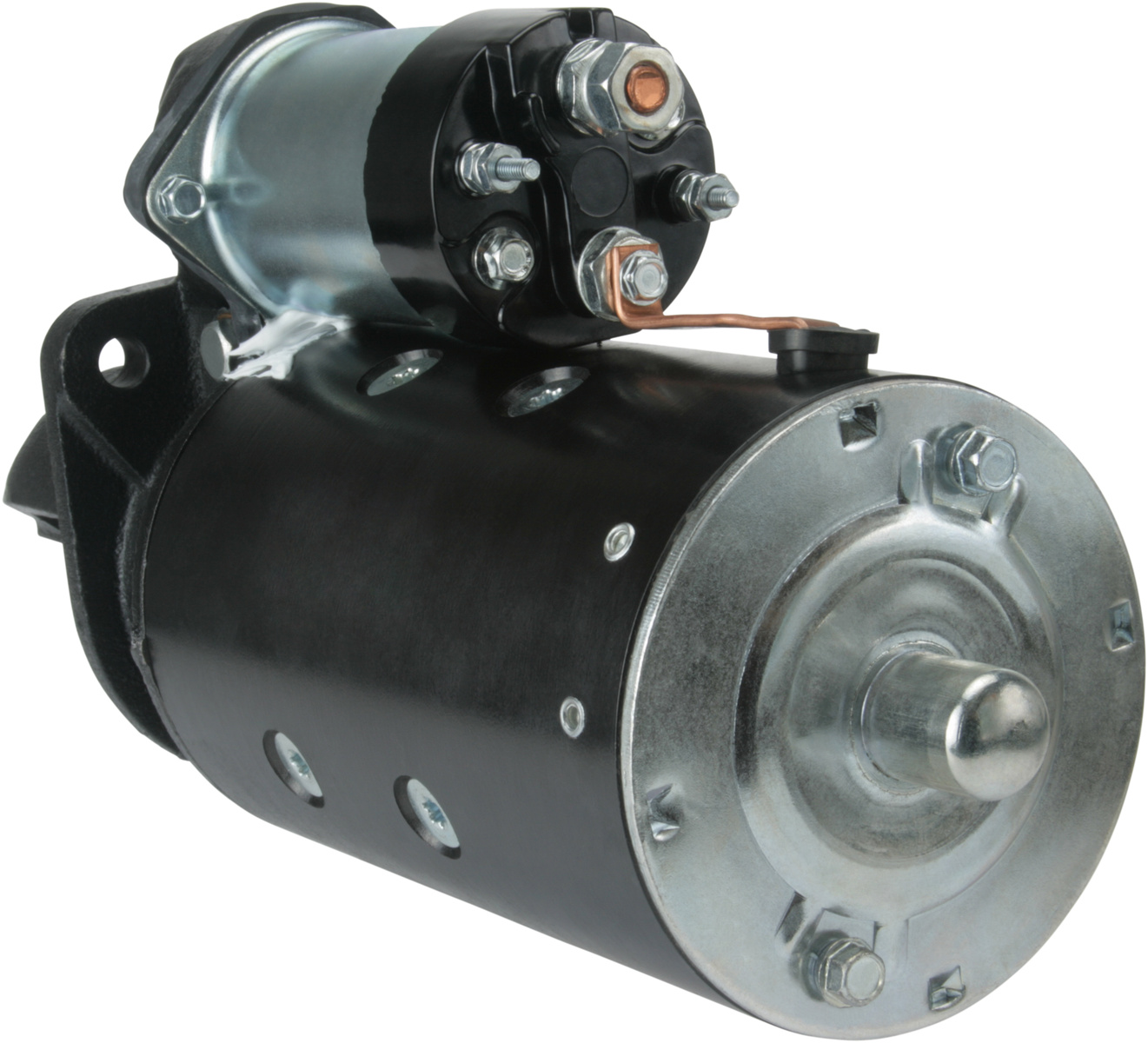

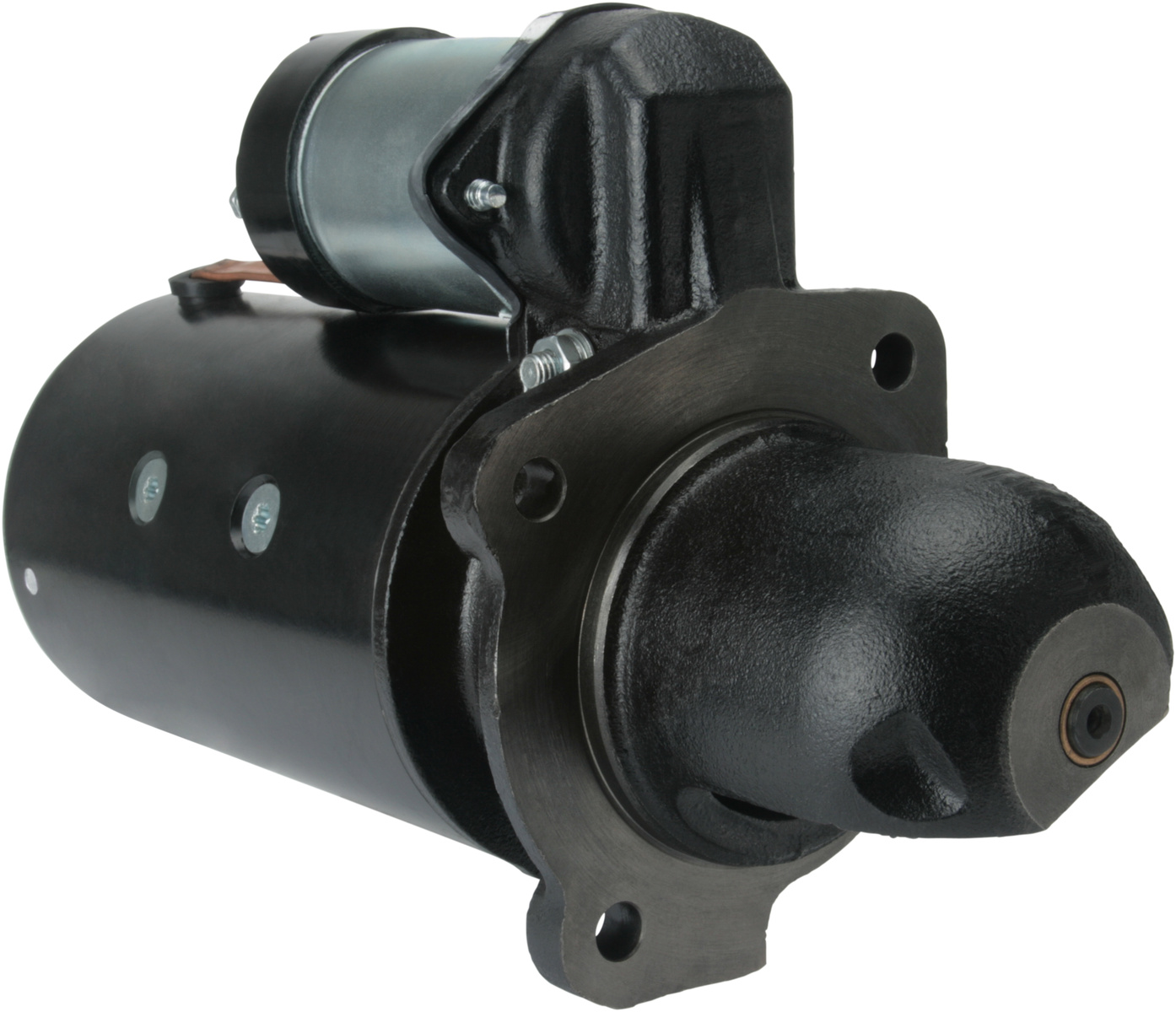

F032110472 - Starter
Trade number 110472Details & description
Voltage 12, kW 2.5, Drive type Steel, Mounting Hole 2 11.00, Rear Distance 235.00, Prod. info BN, Waterproof No, Distance 3 91.00, Drive Distance 47.50, Distance 2 91.00, Mounting Flange 89.00, Distance 127.50, Mounting Hole 3 10.50, Oil sealed Yes, No./mount. holes 3 (0), Gear type DD, Front Distance 88.50, No./teeth 10, B+ 3/8" UNC, Terminal 15a M4, Terminal 50 M4, Clutch type Wet, Rotation CW, Position 50;20, Mounting Hole 1 11.00, Total Length 346.00, Remarks Replacing: 20MT., Amount of Mounting Holes 3 (0)
Product information
Voltage:12
kW:2.5
Drive type:Steel
Mounting Hole 2:11.00
Rear Distance:235.00
Prod. info:BN
Waterproof:No
Distance 3:91.00
Drive Distance:47.50
Distance 2:91.00
Mounting Flange:89.00
Distance:127.50
Mounting Hole 3:10.50
Oil sealed:Yes
No./mount. holes:3 (0)
Gear type:DD
Front Distance:88.50
No./teeth:10
B+:3/8" UNC
Terminal 15a:M4
Terminal 50:M4
Clutch type:Wet
Rotation:CW
Position:50;20
Mounting Hole 1:11.00
Total Length:346.00
Remarks:Replacing: 20MT.
Amount of Mounting Holes:3 (0)
Replacing and BOMs
Competitor References
DRZ5125AC DELCO
60835AD KÜHNER
BSO7308BOWERS
BSX1440013BOWERS
CST60108CASCO SRL
CST60147CASCO SRL
8536RCEVAM
640011103CV PSH
DRZ5125DELCO REMY
692018102DRI
251223ELSTOCK
110472HC-CARGO
US835HC-PARTS
8EA730313001HELLA
42992582HERTH U. BUSS
4398LESTER
LRS01188LUCAS
4376SPIDAN
33626SUDEST
STR20009WOOD AUTO SUPPL
