F032110502 - Alternator
Trade number 110502
Replacing and BOMs
Competitor References
- DRZ0131AC DELCO
- DRZ0161AC DELCO
- 50941RIAD KÜHNER
- 50958RIAD KÜHNER
- AL551XBOSCH
- AL650XBOSCH
- F042A00113BOSCH
- F042300113BOSCH
- 835034105CV PSH
Trade number 110502
Details & description

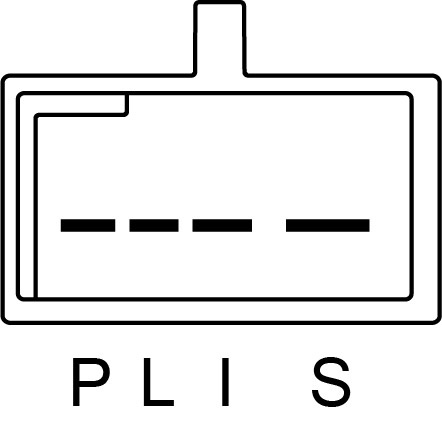

Voltage 14, Amp 100/105, Pulley SP, Pulley Diameter 55.50, Prod. info BN, D+ Position 60, Pulley Distance 73.00, Servicing Buick, Chevrolet, GMC, Oldsmobile, Pontiac, Jeep, Radius 83.00, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.00, D+ Size Plug, Holder Arm Width 50.50, B+ M6, Radius 2 83.00, Plug no. 1 PL24, Rotation CW, Position 60, B+ Position 15, Belt Adjustment Bracket Hole Position 60, Total Length 170.00, Remarks Replacing: CS130.
Product information
Electrical information
- Voltage14
- Amp100/105
Catalogue information
- Prod. infoBN
- ServicingBuick, Chevrolet, GMC, Oldsmobile, Pontiac, Jeep
- RemarksReplacing: CS130.
Physical information
- PulleySP
- Pulley Diameter55.50
- D+ Position60
- Pulley Distance73.00
- Radius83.00
- Belt Adjustment Bracket Hole 1M8
- Grooves/pulley6
- Regulator typeIR
- Bracket Hole Size 110.00
