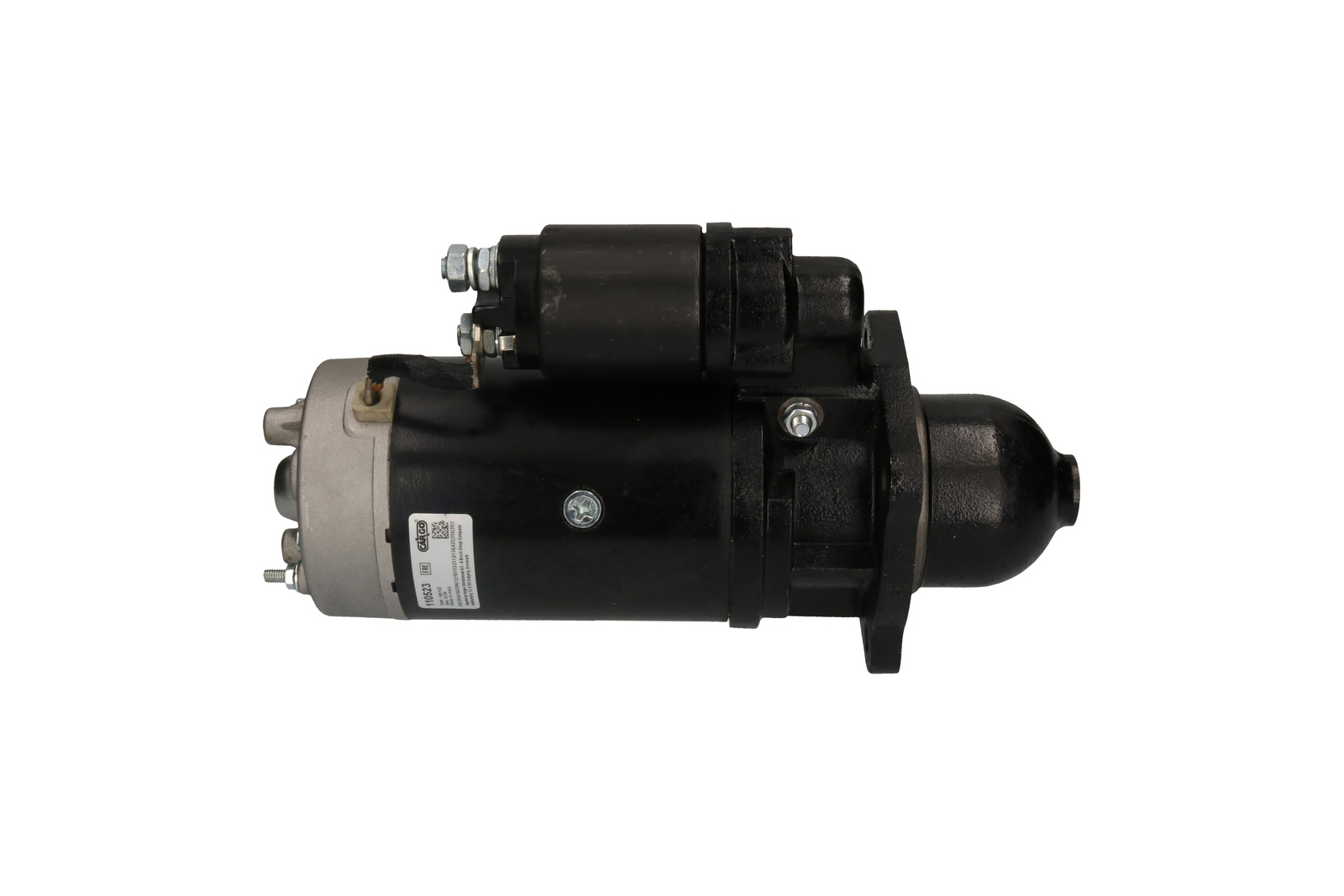

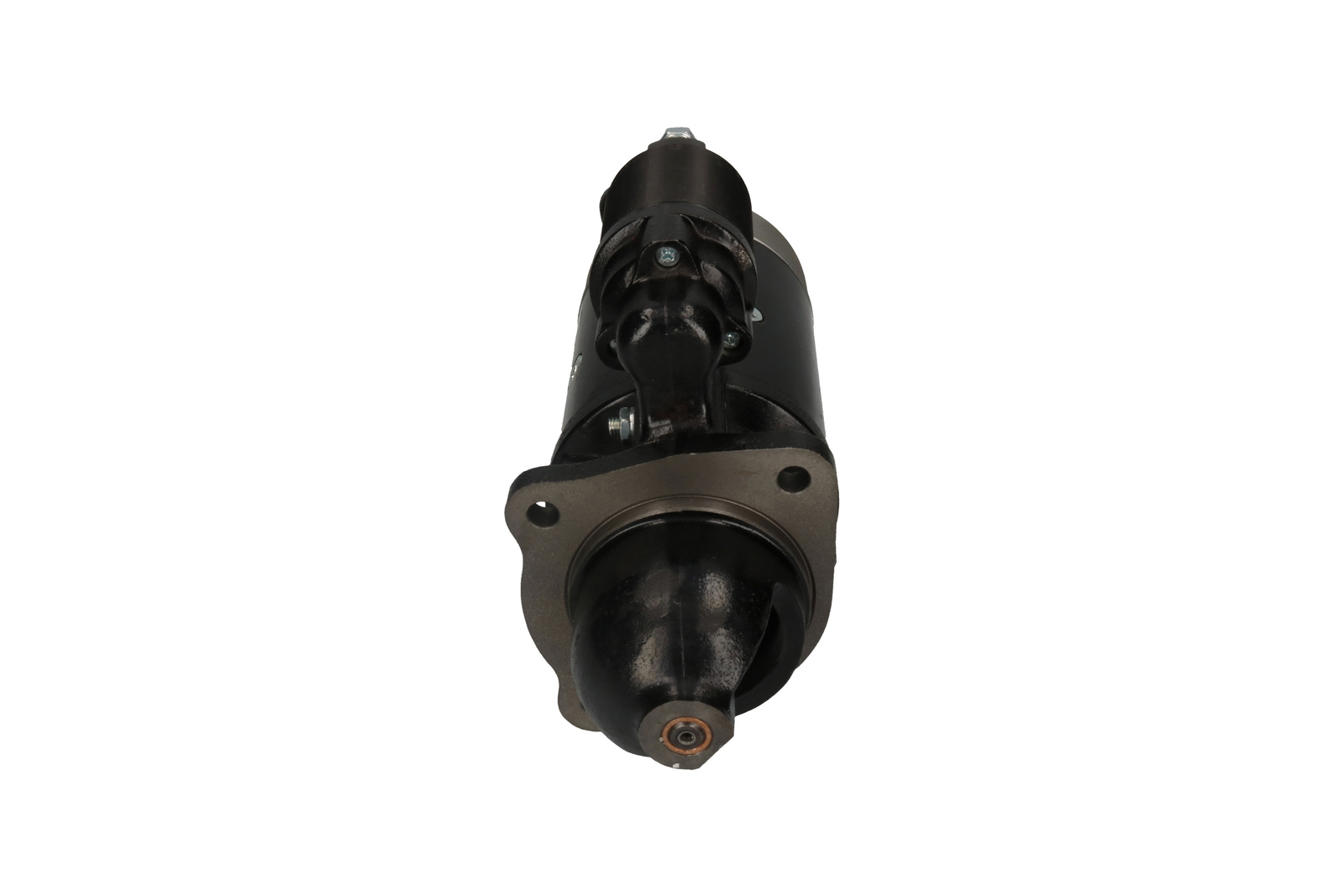

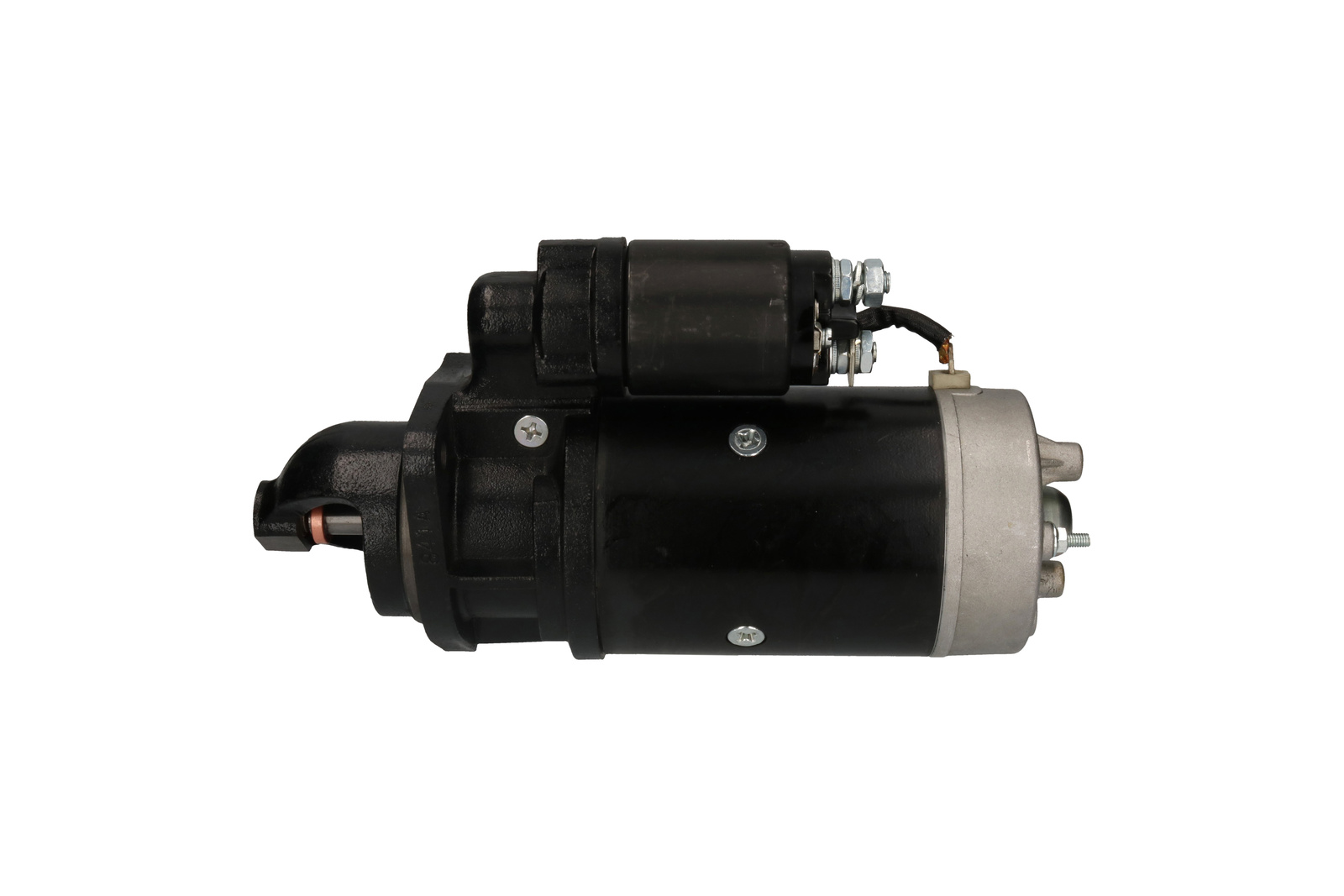

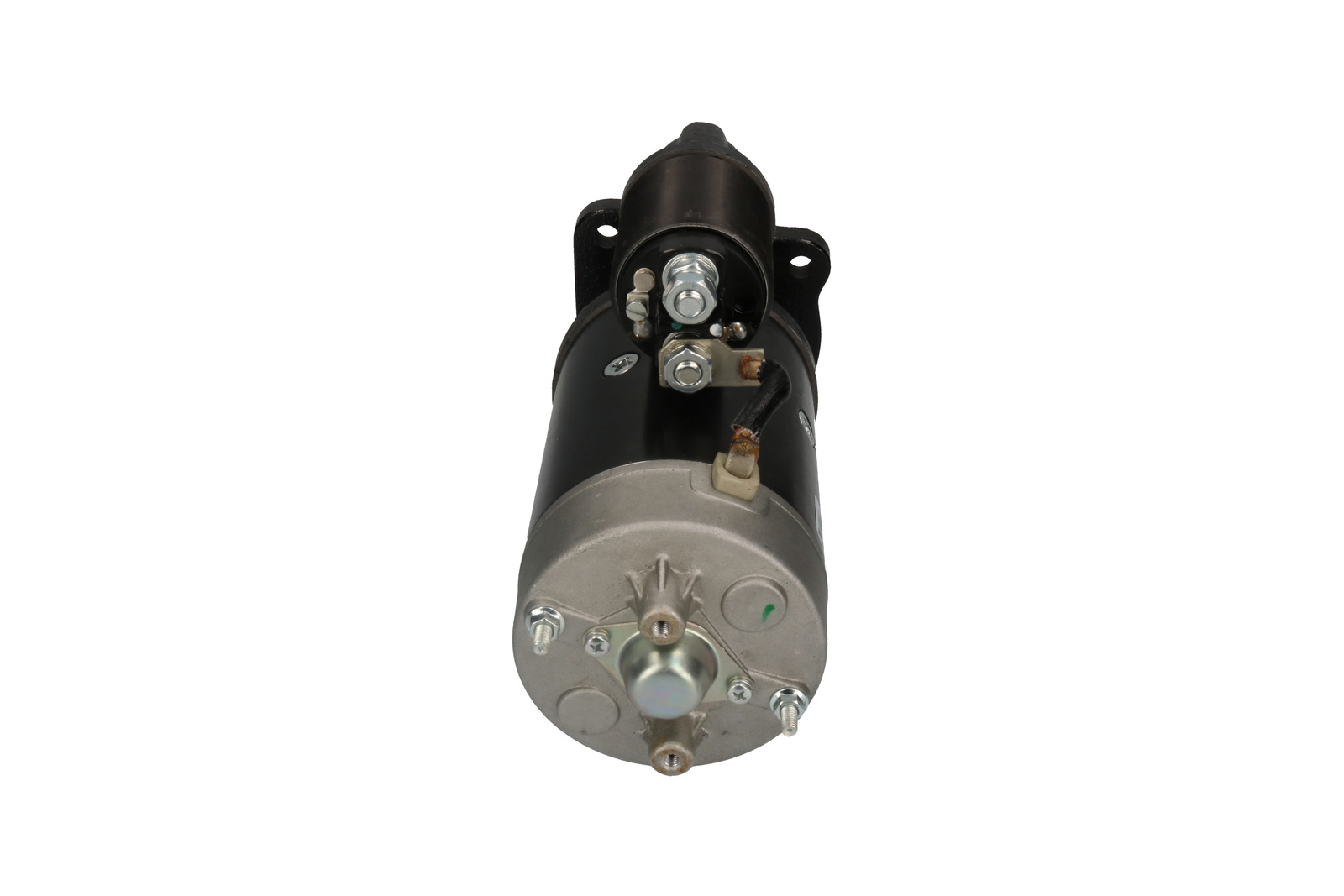

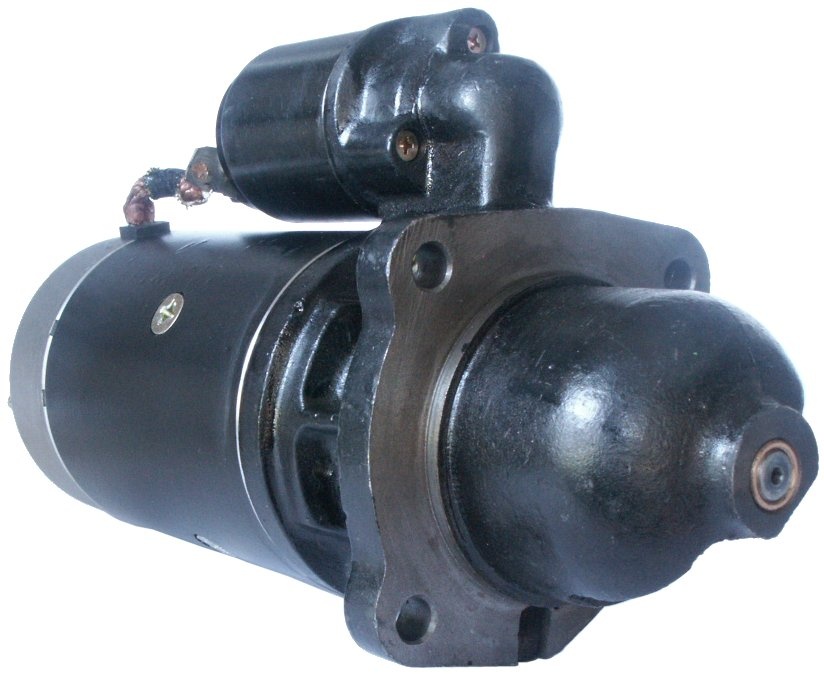

F032110523 - Starter
Trade number 110523
Replacing and BOMs
OEM number
- 05710903BOMAG
- E41565EXCASE
- 1516768RDAF
- 1701065FAUN
- 42522942FIAT
- 114939702HANOMAG (RHEINSTAHL AG)
- 42522641IVECO
- 42498135IVECO
- 42522653IVECO
Trade number 110523
Details & description
kW 4.0, Voltage 24, Drive type Steel, Mounting Hole 2 11.00, Rear Distance 253.00, Prod. info BN, Waterproof No, Distance 3 89.00, Drive Distance 27.50, Distance 2 89.00, Mounting Flange 89.00, Distance 127.00, Mounting Hole 3 11.00, Oil sealed No, No./mount. holes 3 (0), Front Distance 76.00, B+ M10, Terminal 50 M4, Rotation CW, Mounting Holes with Thread 0, Position 45, Mounting Hole 1 11.00, Gear type DD, No./teeth 9, Amount of Mounting Holes 3
Product information
Electrical information
- kW4.0
- Voltage24
Catalogue information
- Prod. infoBN
- WaterproofNo
- Oil sealedNo
Physical information
- Drive typeSteel
- Mounting Hole 211.00
- Rear Distance253.00
- Distance 389.00
- Drive Distance27.50
- Distance 289.00
- Mounting Flange89.00
- Distance127.00
- Mounting Hole 311.00
Replacing and BOMs
OEM number
- 05710903BOMAG
- E41565EXCASE
- 1516768RDAF
- 1701065FAUN
- 42522942FIAT
- 114939702HANOMAG (RHEINSTAHL AG)
- 42522641IVECO
- 42498135IVECO
- 42522653IVECO
