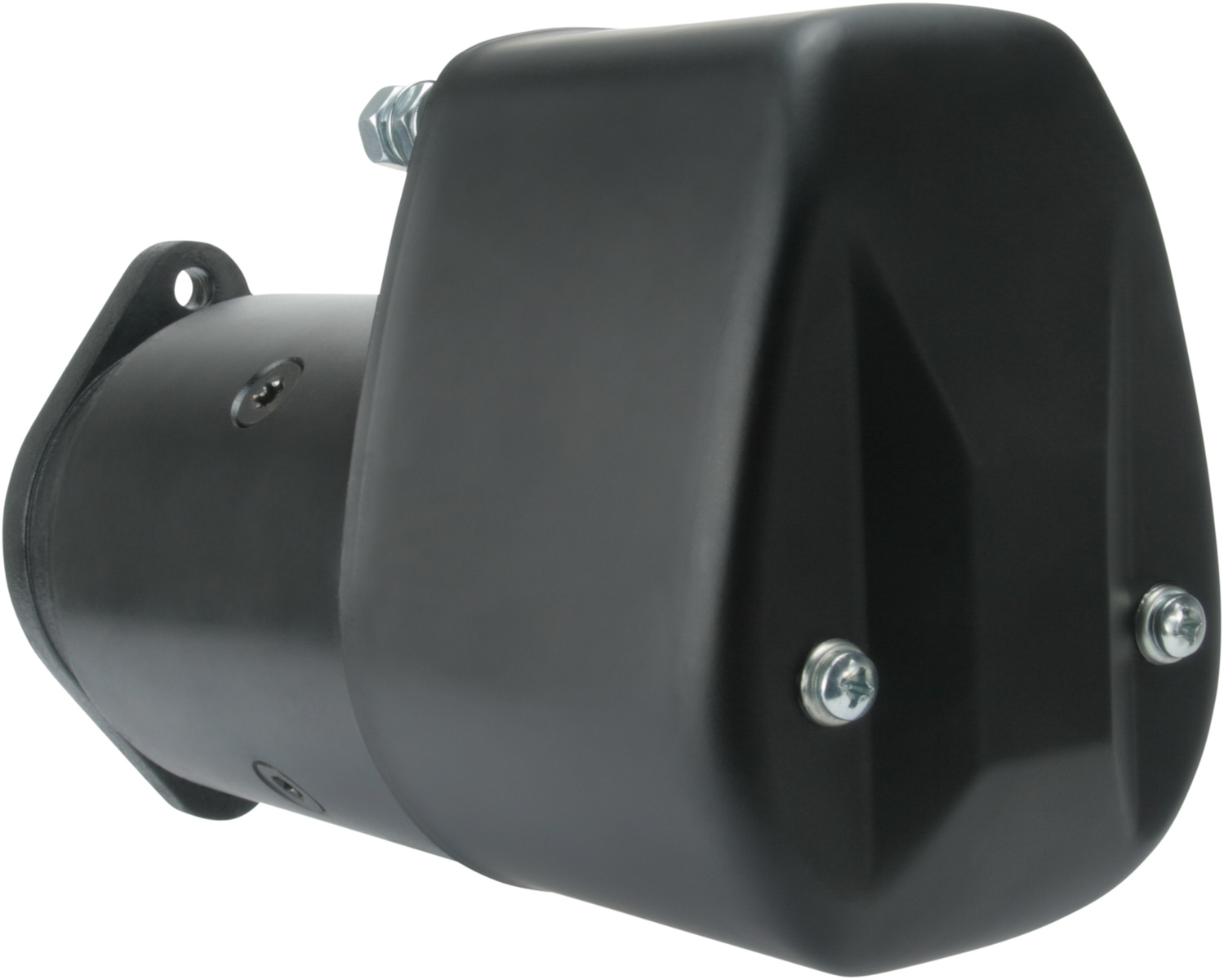

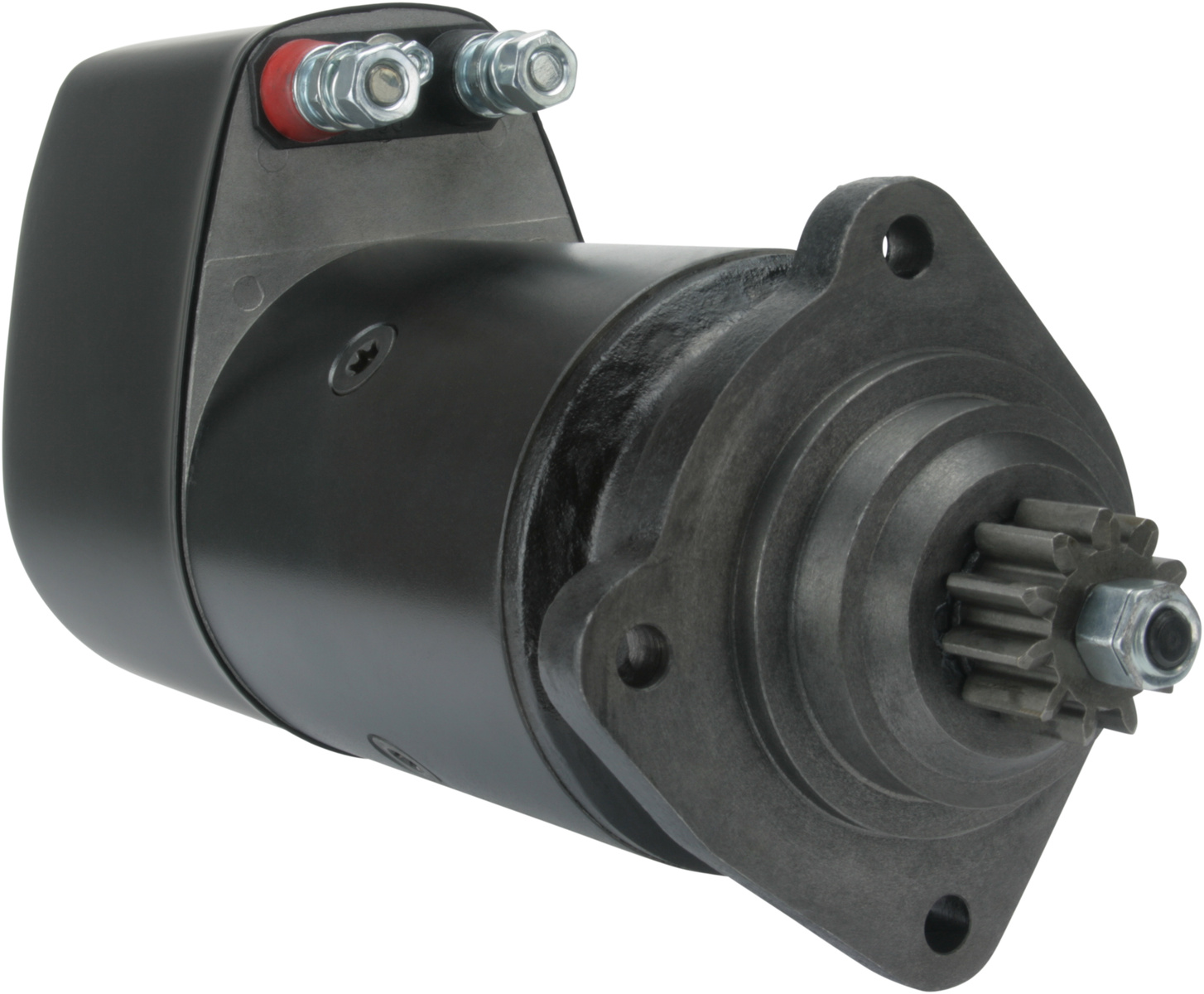

F032110535 - Starter
Trade number 110535Details & description
Voltage 24, kW 5.4, Drive type Steel, Mounting Hole 2 11.00, Rear Distance 324.50, Prod. info BN, Waterproof No, Distance 3 90.00, Drive Distance 47.00, Distance 2 90.00, Mounting Flange 89.00, Distance 127.00, Mounting Hole 3 11.00, Oil sealed No, No./mount. holes 3 (0), Gear type DD, B- M10, Front Distance 62.00, No./teeth 11, B+ M10, Terminal 50 M6, Rotation CW, Position 60;60, Mounting Hole 1 11.00, Total Length 384.00, Amount of Mounting Holes 3 (0)
Product information
Voltage:24
kW:5.4
Drive type:Steel
Mounting Hole 2:11.00
Rear Distance:324.50
Prod. info:BN
Waterproof:No
Distance 3:90.00
Drive Distance:47.00
Distance 2:90.00
Mounting Flange:89.00
Distance:127.00
Mounting Hole 3:11.00
Oil sealed:No
No./mount. holes:3 (0)
Gear type:DD
B-:M10
Front Distance:62.00
No./teeth:11
B+:M10
Terminal 50:M6
Rotation:CW
Position:60;60
Mounting Hole 1:11.00
Total Length:384.00
Amount of Mounting Holes:3 (0)
Replacing and BOMs
OEM number
2913103700ATLAS COPCO
2913121300ATLAS COPCO
1516756RDAF
03040680DEUTZ-FAHR
1701063FAUN
C9JF11350AFORD
D6PZ11350CFORD
1174645HEULIEZ
1174645IVECO
42498250IVECO
42522680IVECO
0000042522680IVECO
01171955KHD
01174645KHD
1171955KHD
1174645KHD
Competitor References
DRS2730AC DELCO
10383AD KÜHNER
10384AD KÜHNER
S0011AUTOSTARTER POLAND
IM536AVF
IM328AVF
0986012730BOSCH
F042S02107BOSCH
F042002107BOSCH
860115BUTEC
860655BUTEC
CST10628CASCO SRL
561201113CV PSH
561209113CV PSH
DRS2730DELCO REMY
688008114DRI
22620EFEL
R2321ELMOT
6210000ELMOT
451370ELSTOCK
220322ERA SPA
220318ERA SPA
220318AERA SPA
220322AERA SPA
11012730EUROTEC
103473FACROM
8812730FRIESEN
110535HC-CARGO
CS384HC-PARTS
8EA726132001HELLA
42012730HERTH U. BUSS
IS0429ISKRA
IS9013ISKRA
MS566ISKRA
MS701ISKRA
18379LESTER
LRS00960LUCAS
LRS01862LUCAS
9125400MAGNETON
943252220010MARELLI
943252220MARELLI
MSR708MARELLI
81466036MONARK
8812730QUINTON HAZELL
19024035REMY
1572SPIDAN
33631SUDEST
33633SUDEST
STR23804UNIPOINT
438036VALEO
455616VALEO
STR22018WOOD AUTO SUPPL
