F032110882 - Alternator

Trade number 110882

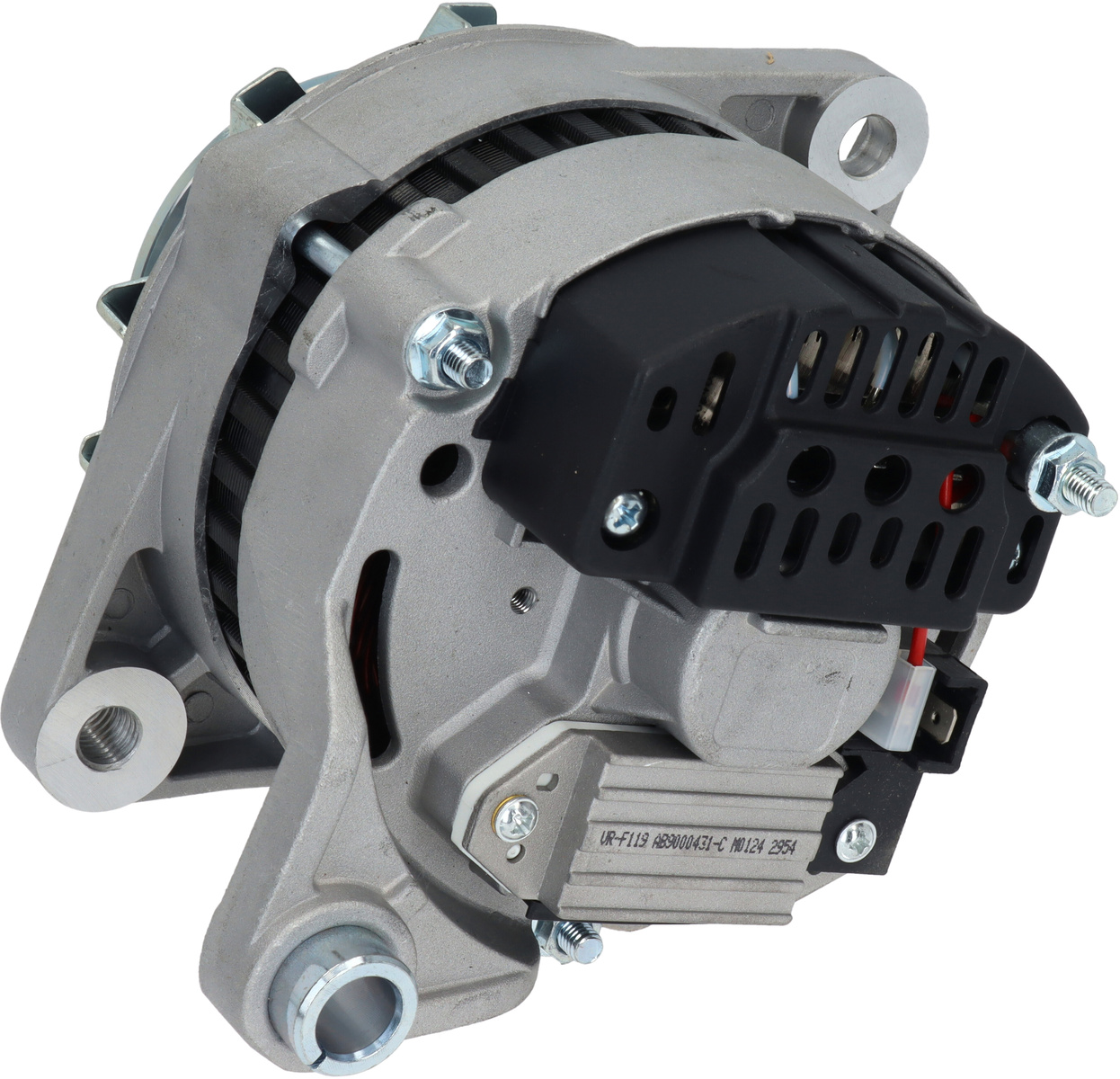

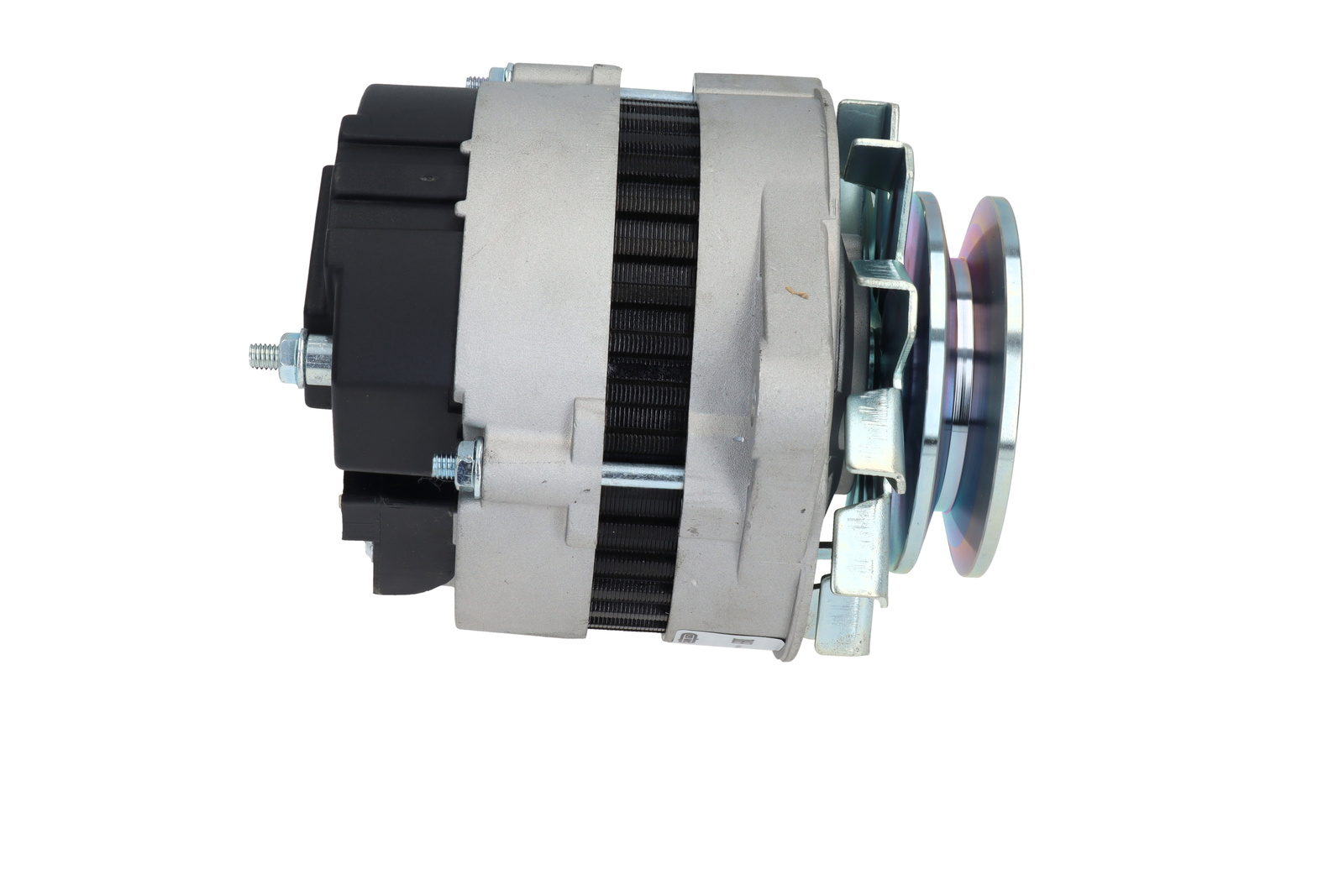

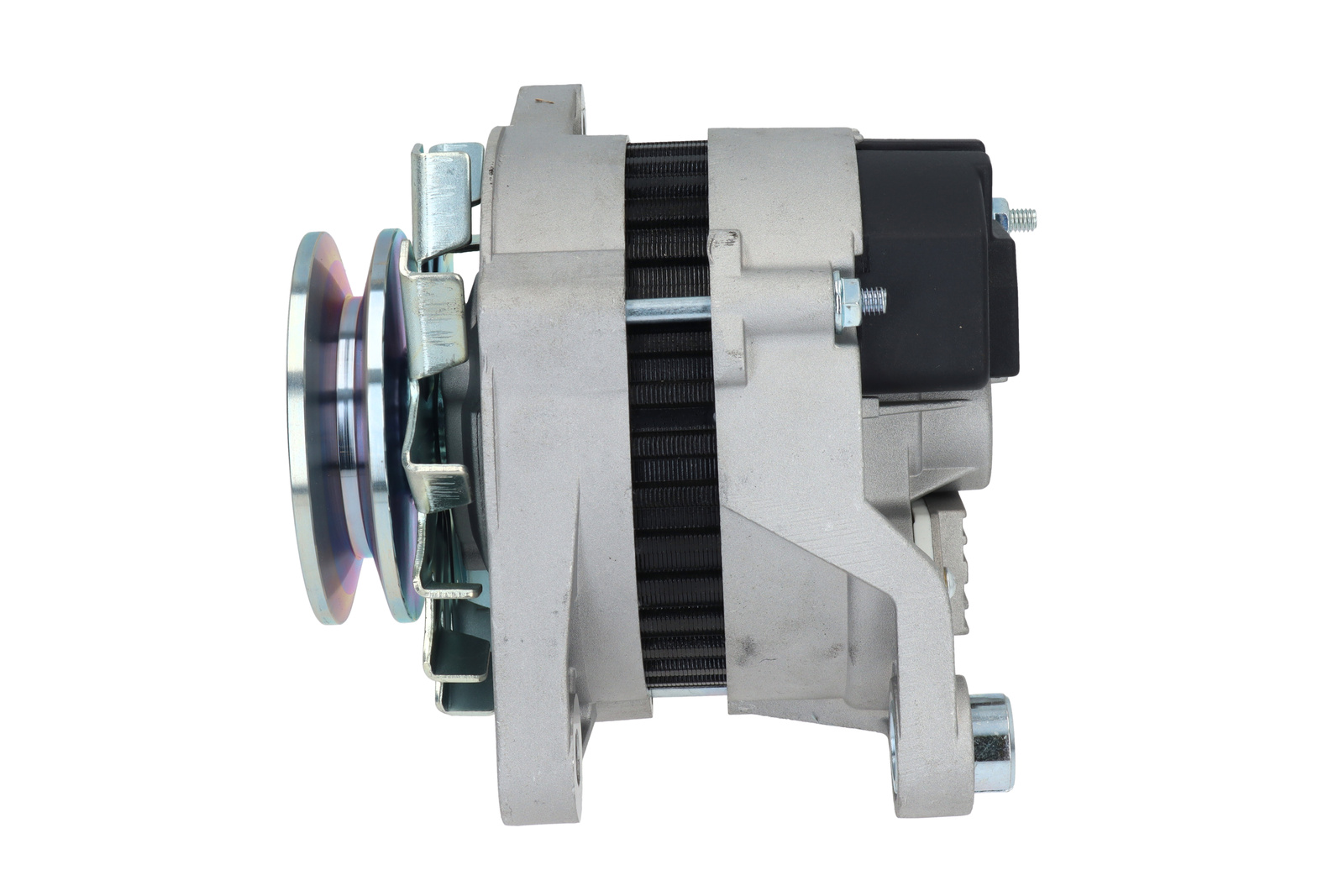

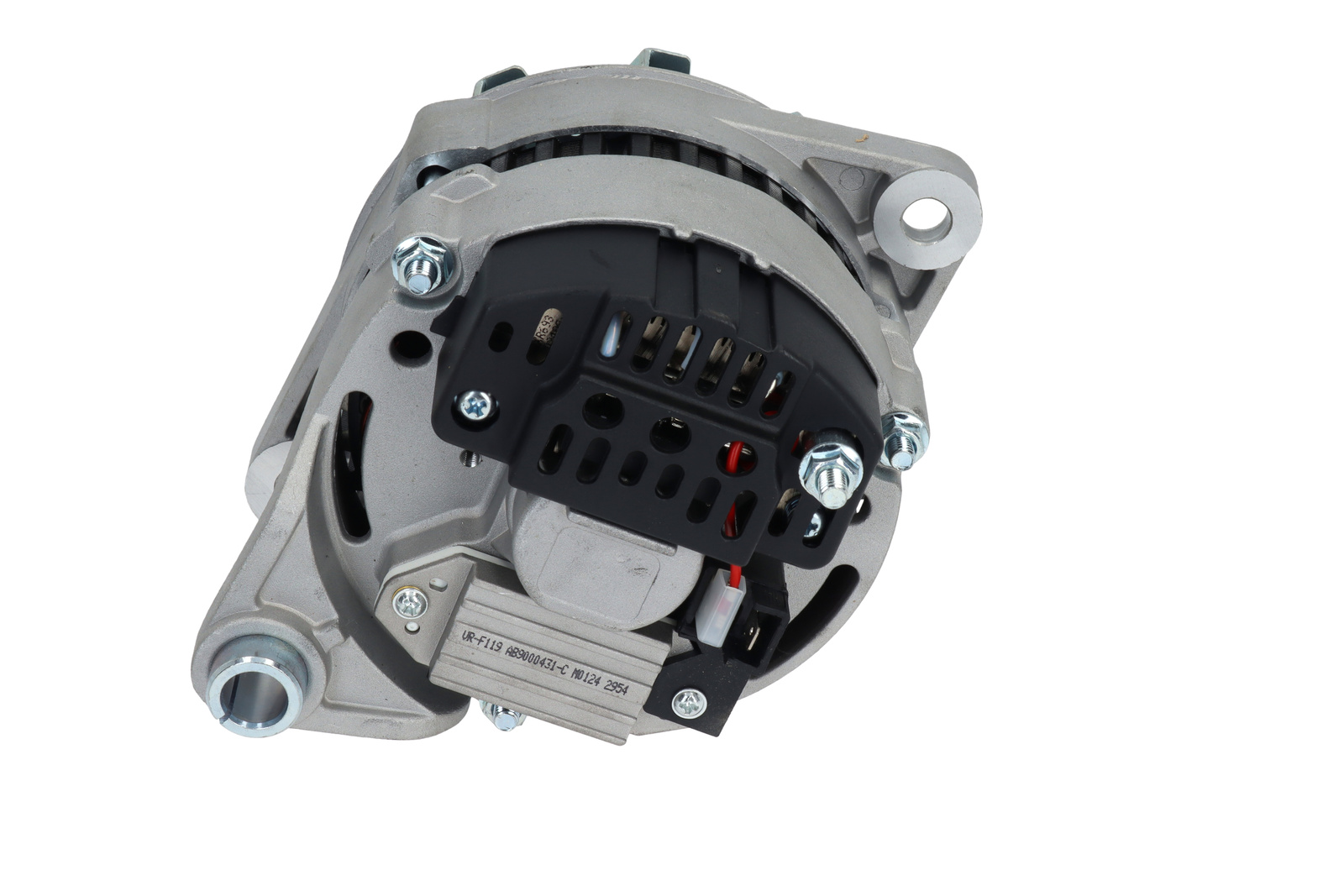

Product image - main
Trade number 110882

Details & description

Voltage 14, Amp 45, Pulley P, Pulley Diameter 71.30, Prod. info BN/OE, Bracket Hole Size Rear 12.00, D+ Position 25, Pulley Distance 47.00, Servicing Alfa Romeo, Fiat, Iveco, Lamborghini, Seat, Same, Mounting Bracket Distance 63.00, Radius 84.00, Belt Adjustment Bracket Hole 1 10.50, Grooves/pulley 1, Regulator type IR, Bracket Hole Size 1 12.20, D+ Size 6.30, Holder Arm Width 16.20, B+ M6, Fan EF, Radius 2 81.00, Rotation CW, Position 25, B+ Position 10, Belt Adjustment Bracket Hole Position 60, Total Length 181.50, Remarks Connection 67 = D+ terminal.

Product information

Electrical information

  • Voltage14
  • Amp45

Catalogue information

  • Prod. infoBN/OE
  • ServicingAlfa Romeo, Fiat, Iveco, Lamborghini, Seat, Same
  • RemarksConnection 67 = D+ terminal.

Physical information

  • PulleyP
  • Pulley Diameter71.30
  • Bracket Hole Size Rear12.00
  • D+ Position25
  • Pulley Distance47.00
  • Mounting Bracket Distance63.00
  • Radius84.00
  • Belt Adjustment Bracket Hole 110.50
  • Grooves/pulley1

    • Suggested Products

    Replacing and BOMs

    OEM number

    • C000900010030AGCO (DEUTZ-ALLIS)
    • C000900010070AGCO (DEUTZ-ALLIS)
    • AT050600108ALFA ROMEO
    • 1516538RDAF
    • 46231751FIATBOM
    • 4711700FIAT
    • 4720501FIAT
    • 4720502FIAT
    • 4721587FIAT

    • Competitor References

    • DRA5760AC DELCO
    • DRA3880AC DELCO
    • 30255RIAD KÜHNER
    • 30316RIAD KÜHNER
    • 0120489106BOSCHBOM
    • 0120489145BOSCHBOM
    • 0120489761BOSCHBOM
    • 0120489762BOSCHBOM
    • 0120489765BOSCHBOM

    • Compatible products
