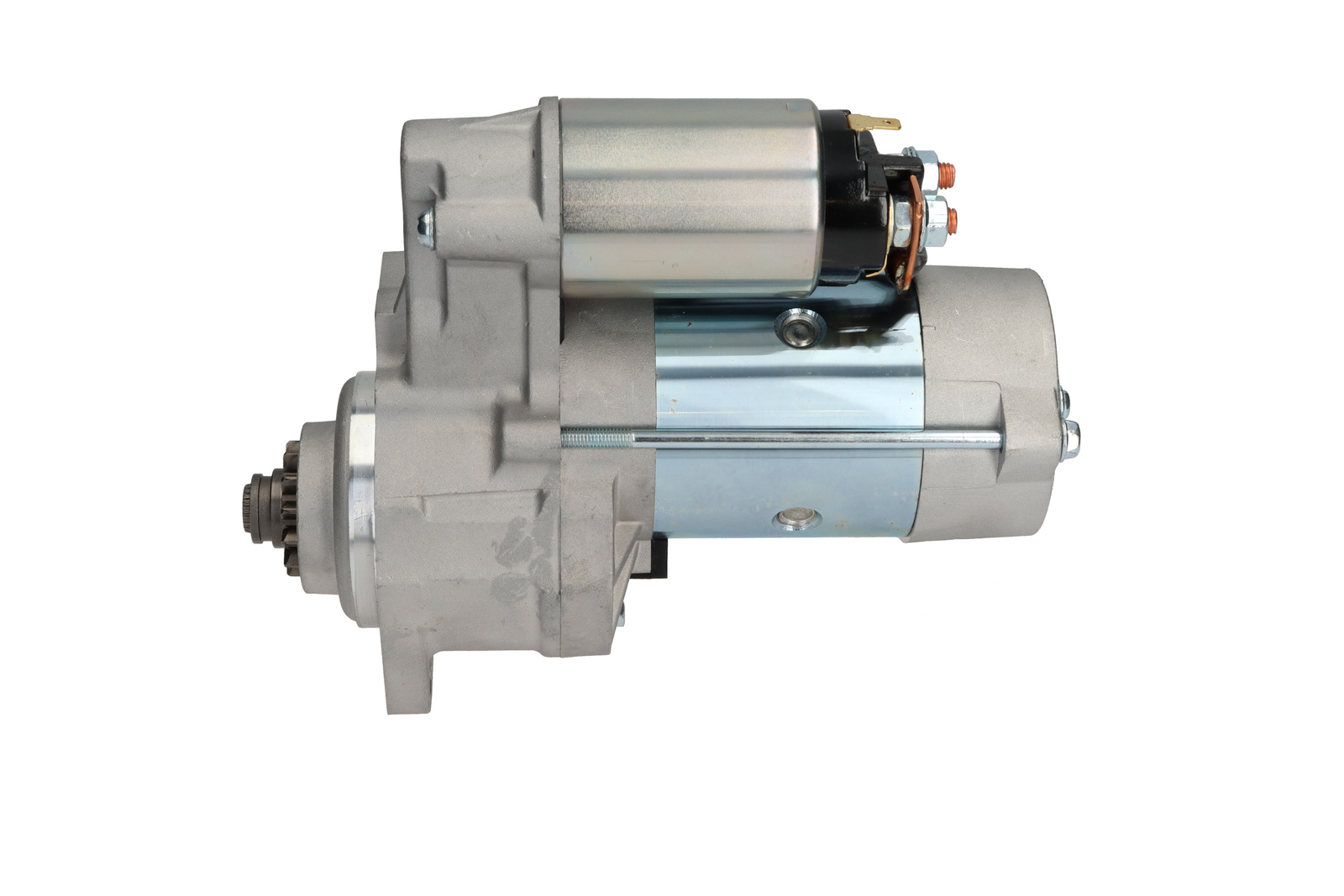

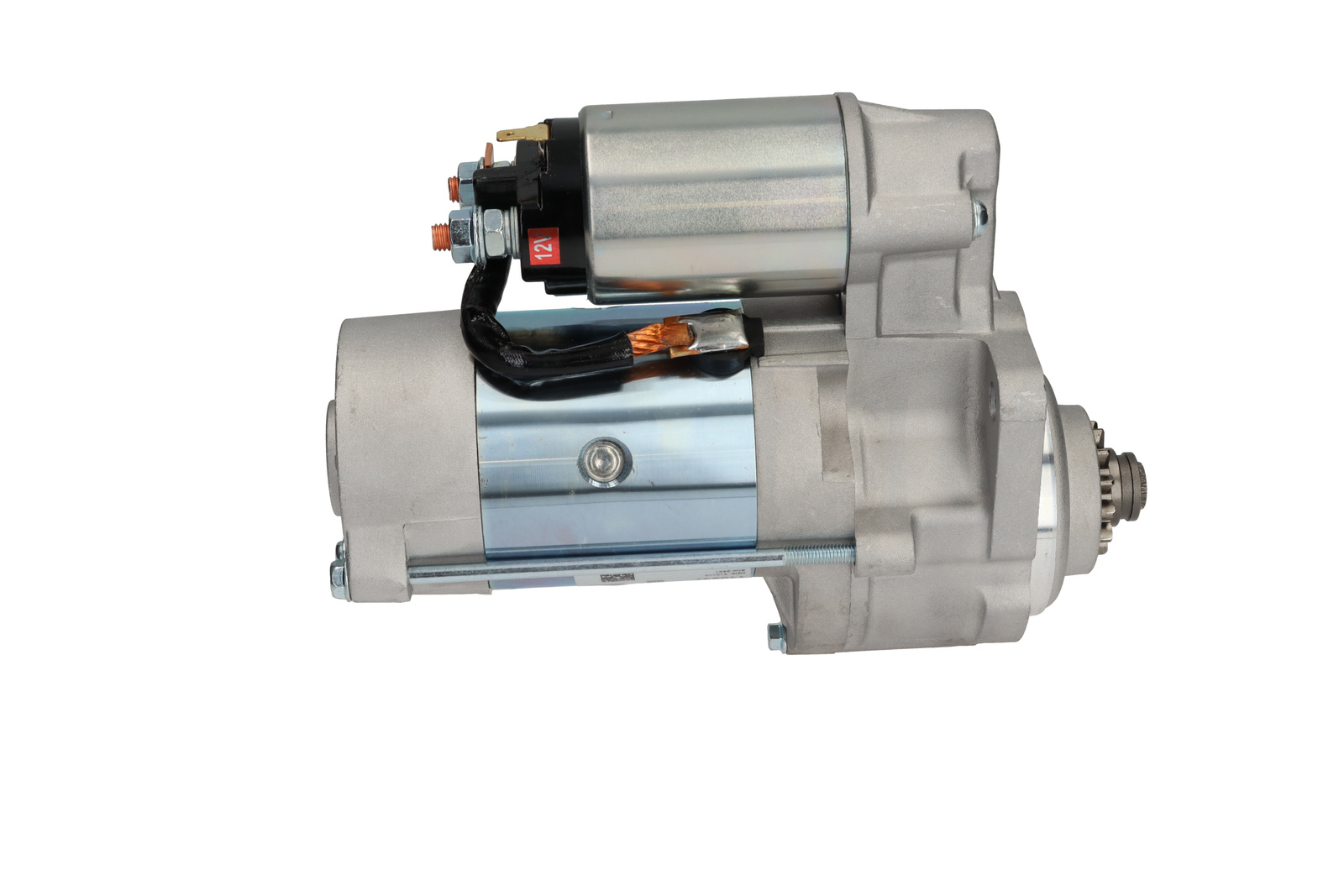

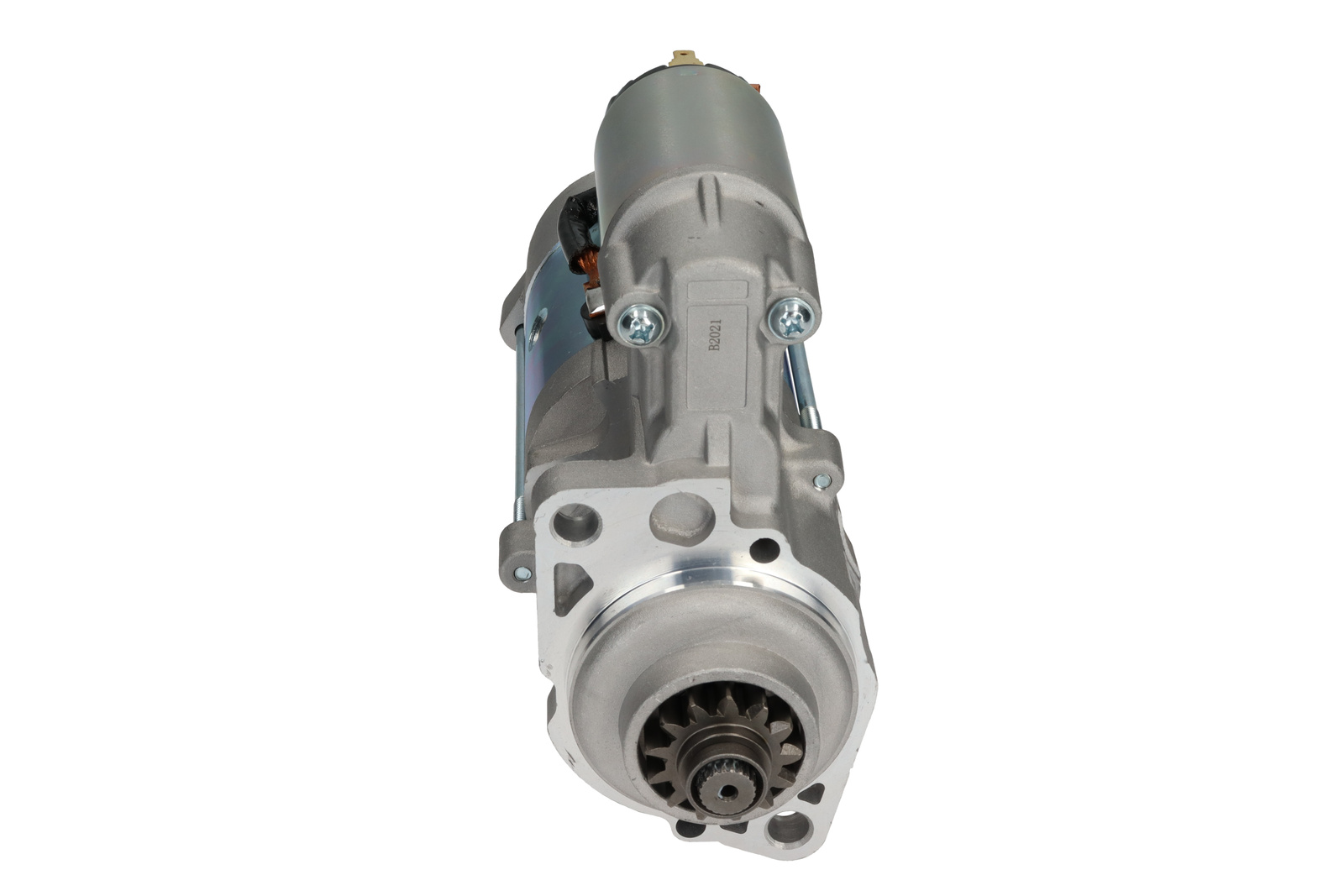

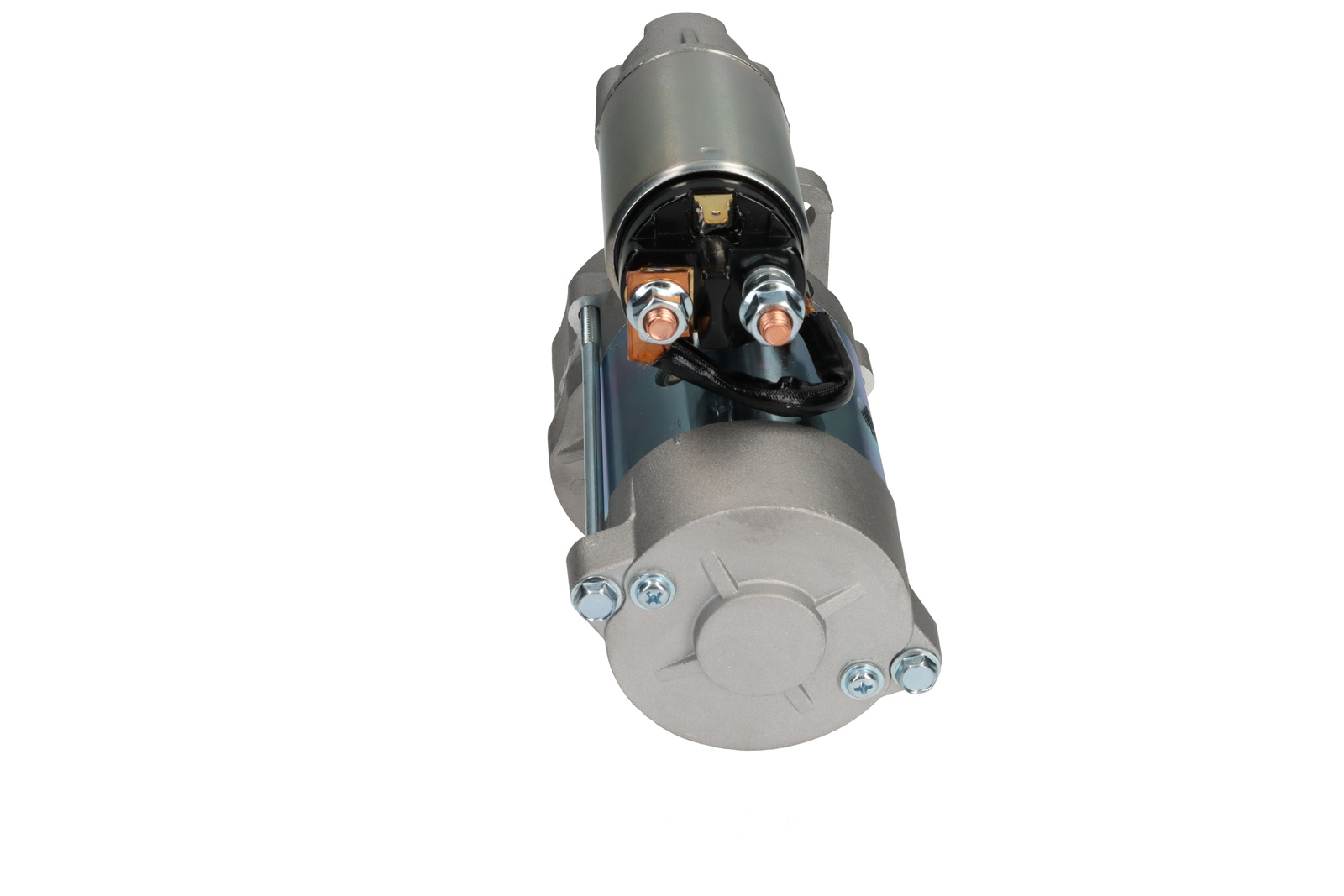

F032110947 - Starter
Trade number 110947Details & description
Voltage 12, kW 2.0, Drive type Steel, Mounting Hole 2 11.00, Rear Distance 199.50, Prod. info BN, Waterproof No, Drive Distance 30.00, Servicing Weidemann, Mounting Flange 77.00, Distance 117.00, Oil sealed No, No./mount. holes 2 (0), Gear type GR, Front Distance 43.50, No./teeth 13,15, B+ M8, Terminal 50 6.30, Rotation CW, Position 60, Mounting Hole 1 11.00, B+ Position 15, Total Length 243.00, Amount of Mounting Holes 2 (0)
Product information
Voltage:12
kW:2.0
Drive type:Steel
Mounting Hole 2:11.00
Rear Distance:199.50
Prod. info:BN
Waterproof:No
Drive Distance:30.00
Servicing:Weidemann
Mounting Flange:77.00
Distance:117.00
Oil sealed:No
No./mount. holes:2 (0)
Gear type:GR
Front Distance:43.50
No./teeth:13,15
B+:M8
Terminal 50:6.30
Rotation:CW
Position:60
Mounting Hole 1:11.00
B+ Position:15
Total Length:243.00
Amount of Mounting Holes:2 (0)
Replacing and BOMs
OEM number
SM00225RAIM
807950CLARK
911410CLARK
Competitor References
DRS3598AC DELCO
201014AD KÜHNER
254895AD KÜHNER
SMT0009AKS DASIS
SMT0009ARROWHEAD
S5153AUTOSTARTER POLAND
S5171AUTOSTARTER POLAND
CST35164CASCO SRL
150525132CV PSH
DRS3598DELCO REMY
S8560DIXIE ELECTRIC
626006132DRI
626005152DRI
626050132DRI
251224ELSTOCK
220764ERA SPA
220764AERA SPA
11040334EUROTEC
103623FACROM
103949FACROM
106328FACROM
110947HC-CARGO
JS1014HC-PARTS
8EA737268001HELLA
42001116HERTH U. BUSS
17096LESTER
LRS01189LUCAS
88213094POWER MAX
20513021PRESTOLITE ELECTRIC
4474SPIDAN
33806SUDEST
21781MIWAI
91273096WILSON
STR28007WOOD AUTO SUPPL
