Details & description

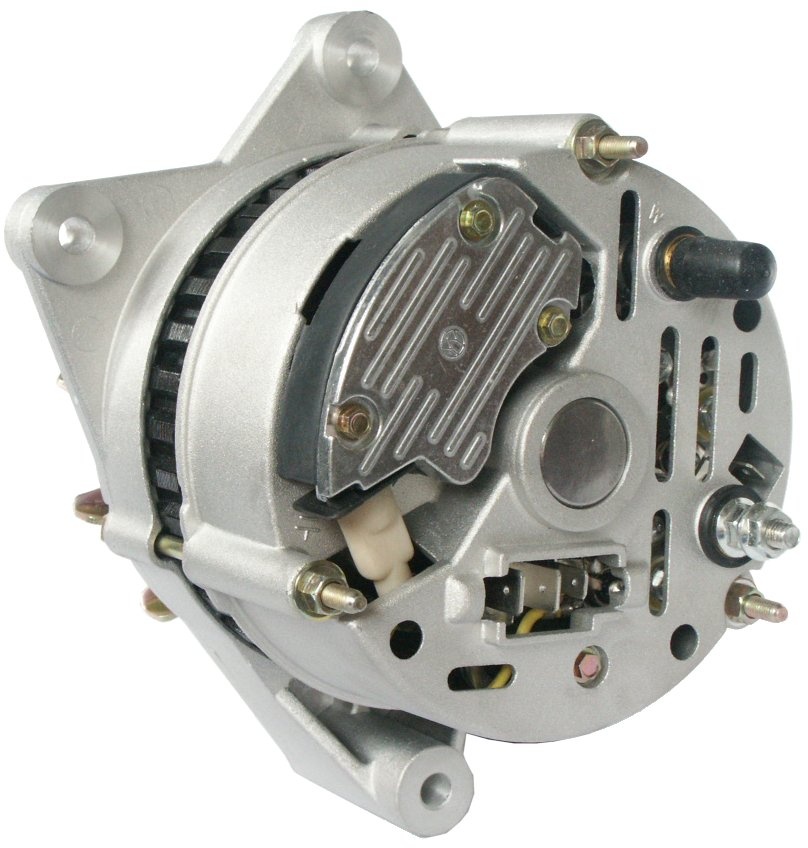

Voltage 14, Amp 65, Terminal W, Pulley P, W plug type M5, Radius 4 86.50, Prod. info BN, D+ Position 30, Radius 3 86.00, Belt Adjustment Bracket Hole 3 8.30, Info Not Insulated return, Radius 85.00, Belt Adjustment Bracket Hole 1 8.30, Grooves/pulley 1, Regulator type IR, Bracket Hole Size 1 8.30, Belt Adjustment Bracket Hole 2 8.30, D+ Size Plug, Holder Arm Width 56.00, B+ M6, Radius 2 86.50, Plug no. 1 PL22, Rotation CW, Position 50, B+ Position 22, Belt Adjustment Bracket Hole Position 50;60;10, Total Length 168.00, Remarks w/ mounting bearing bracket for left and right engine side. Universal Alternator.
