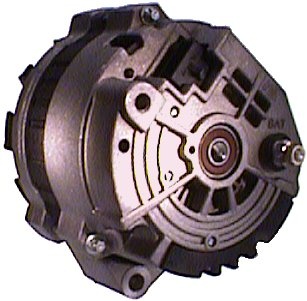

F032110986 - Alternator
Trade number 110986
Replacing and BOMs
OEM number
JR775126CHRYSLER
53002898CHRYSLER
Competitor References
DRZ0109AC DELCO
50923RIAD KÜHNER
AL653XBOSCH
F042A00105BOSCH
F042300105BOSCH
CAL60100CASCO SRL
835008105CV PSH
835049100CV PSH
DRZ0109DELCO REMY
5701021002DRI
5700021002DRI
570102852DRI
282604ELSTOCK
284530ELSTOCK
12090014EUROTEC
9090036FRIESEN
110986HC-CARGO
UA923IRHC-PARTS
8EL730139001HELLA
32118508HERTH U. BUSS
789711LESTER
790211LESTER
LRA02090LUCAS
LRA01525LUCAS
10463041REMY
10463035REMY
10463036REMY
10463037REMY
5495SPIDAN
56257SUDEST
56356SUDEST
ALT1315CUNIPOINT
7873WAI
7902NWAI
1164531DRWAI
1164631DRWAI
20170311WAI
2017030WAI
2017031WAI
7902RWAI
ALT1315CWOOD AUTO SUPPL
ALT40020WOOD AUTO SUPPL
F032110986 - Alternator
Details & description
Voltage 14, Amp 100/105, Pulley SP, Pulley Diameter 55.70, Prod. info BN, D+ Position 55, Pulley Distance 73.00, Servicing Jeep, MG, Radius 78.00, Belt Adjustment Bracket Hole 1 8.00, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.20, D+ Size Plug, Holder Arm Width 50.80, B+ M6, Radius 2 78.00, Plug no. 1 PL24, Rotation CW, Position 5, B+ Position 15, Belt Adjustment Bracket Hole Position 50, Total Length 174.00, Remarks Replacing: CS130.
Product information
Voltage:14
Amp:100/105
Pulley:SP
Pulley Diameter:55.70
Prod. info:BN
D+ Position:55
Pulley Distance:73.00
Servicing:Jeep, MG
Radius:78.00
Belt Adjustment Bracket Hole 1:8.00
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:10.20
D+ Size:Plug
Holder Arm Width:50.80
B+:M6
Radius 2:78.00
Plug no. 1:PL24
Rotation:CW
Position:5
B+ Position:15
Belt Adjustment Bracket Hole Position:50
Total Length:174.00
Remarks:Replacing: CS130.
