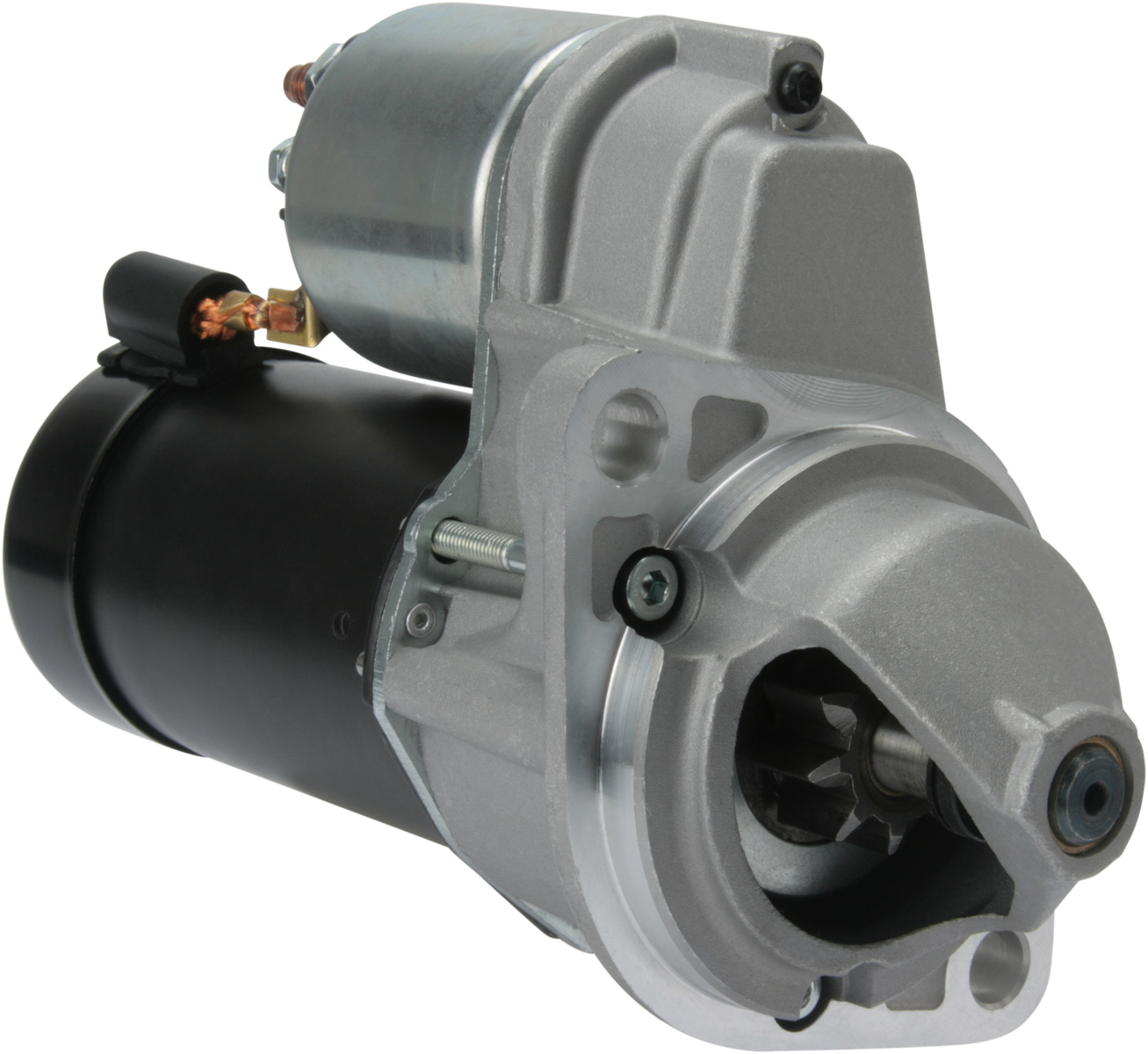

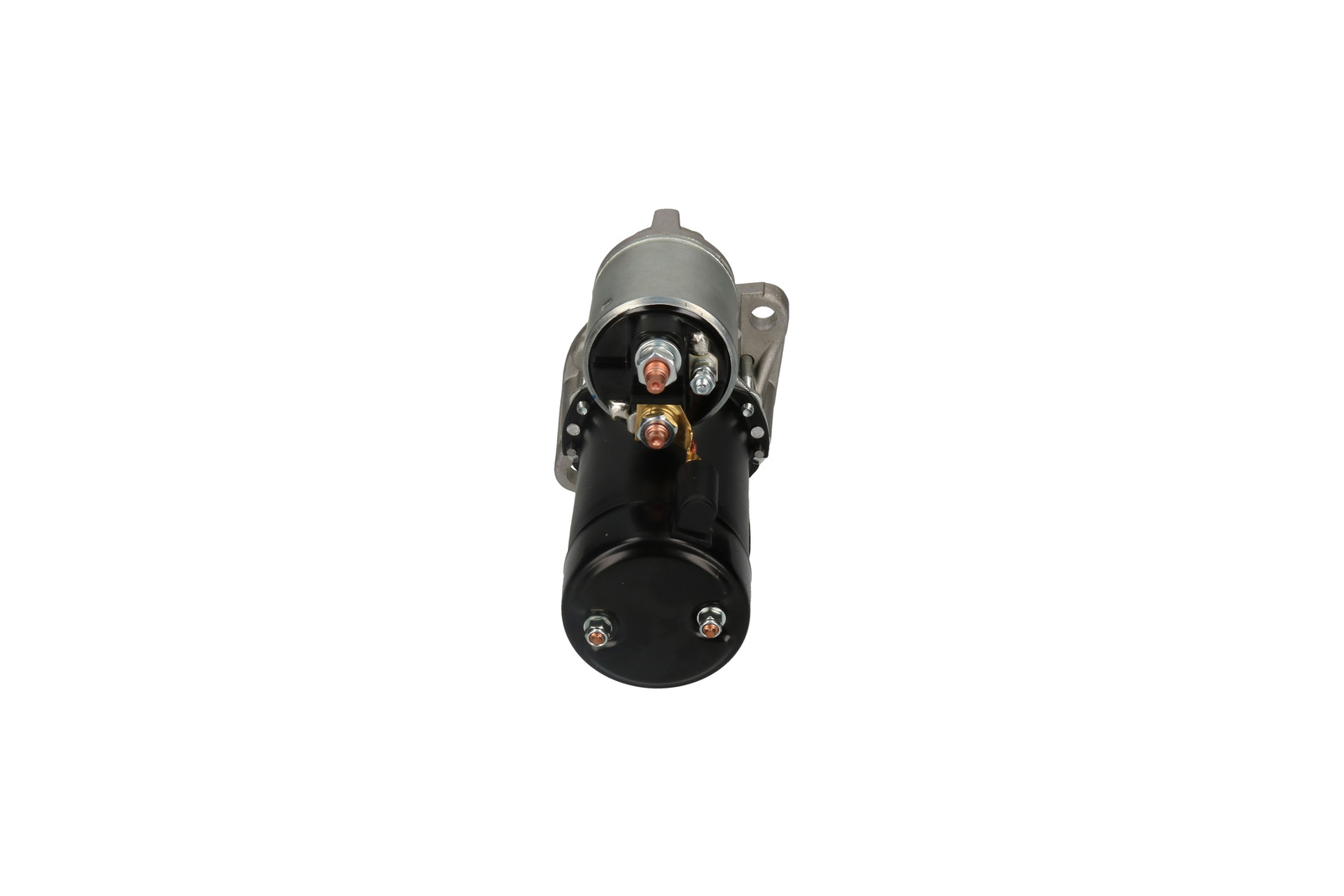

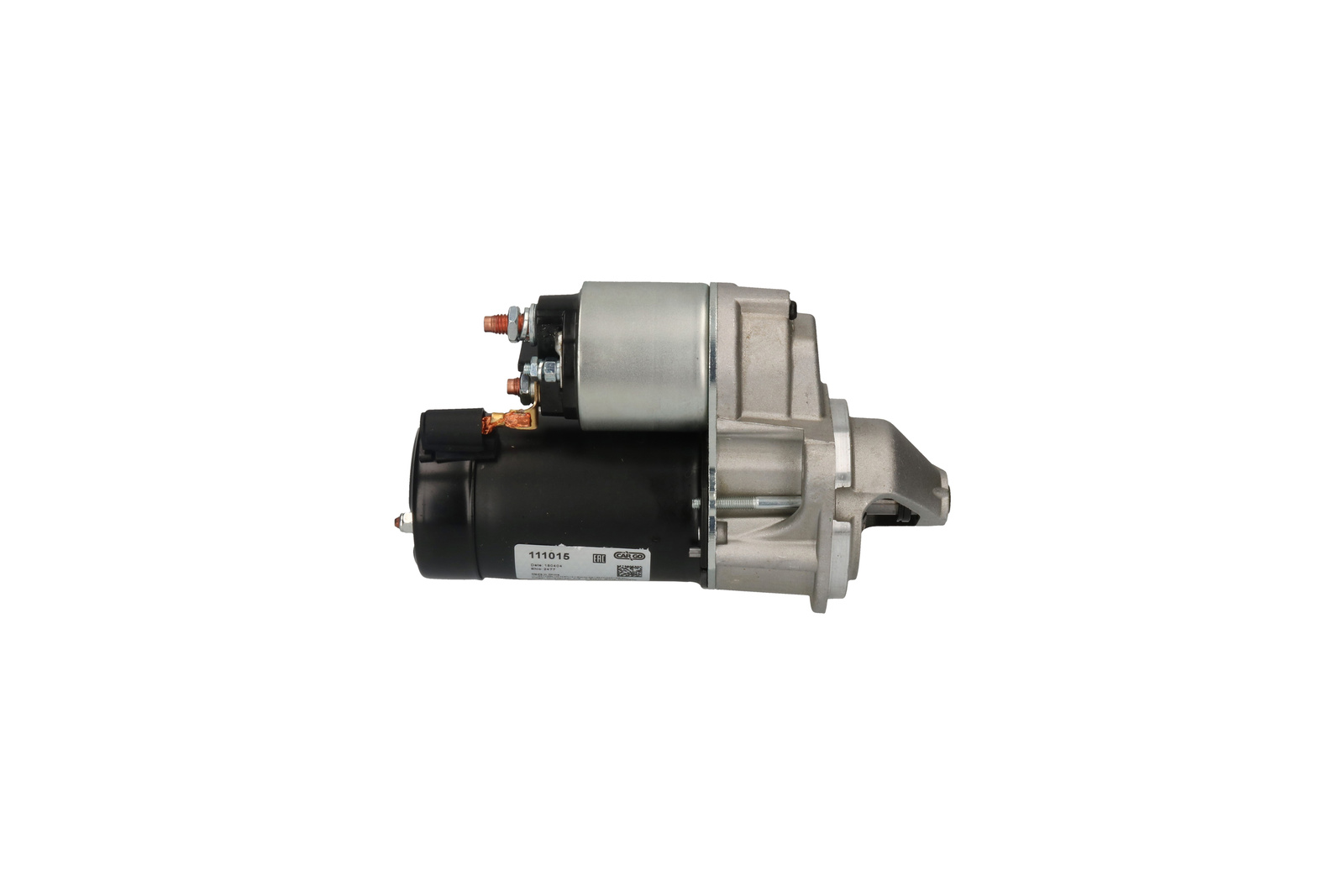

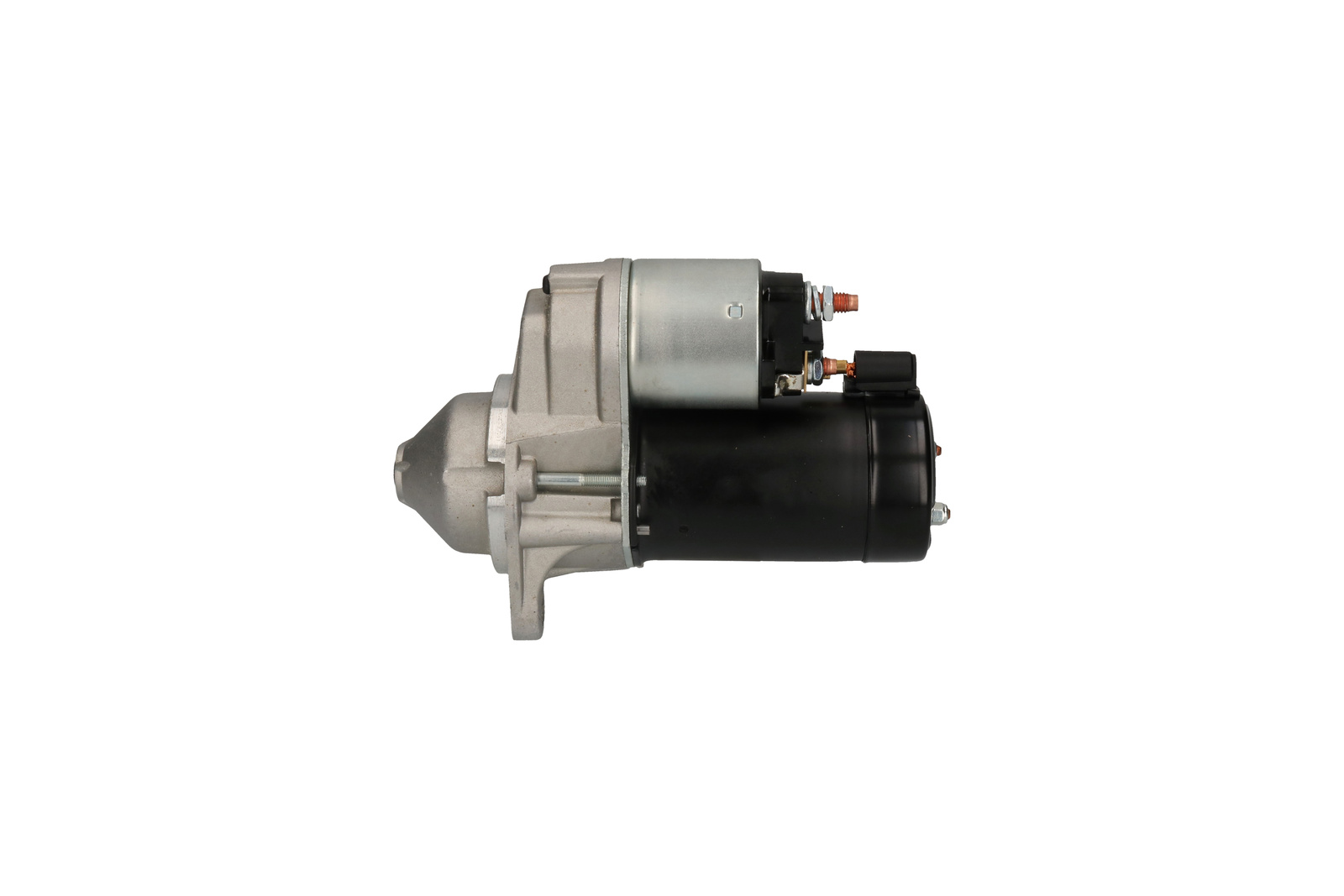

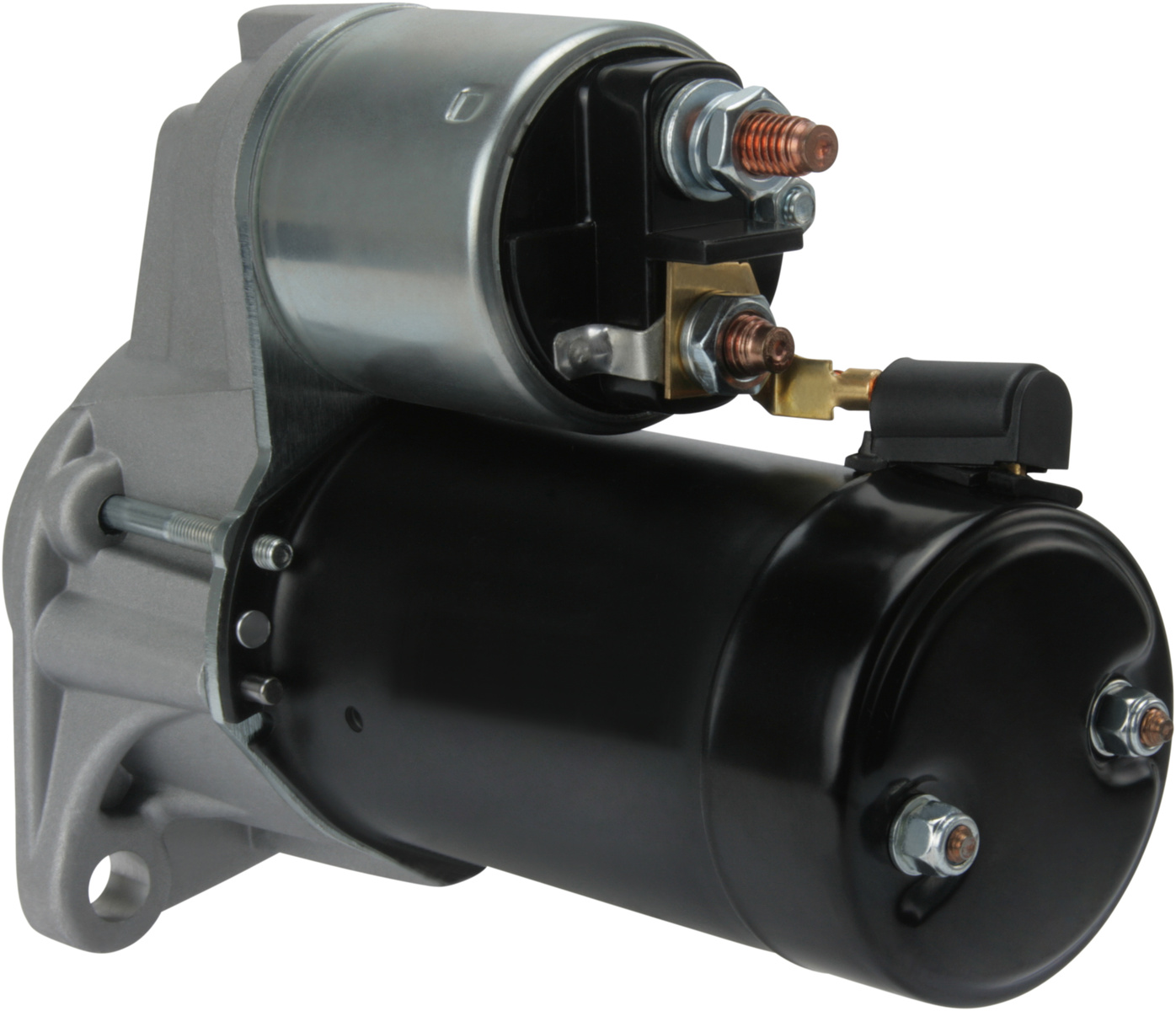

F032111015 - Starter
Trade number 111015
Replacing and BOMs
OEM number
- 12850029DEUTZ-FAHR
- 12851306KHD
- 58101330LOMBARDINI
- 58401940LOMBARDINI
- 0058401940LOMBARDINI
- 58401330LOMBARDINI
Trade number 111015
Details & description
kW 1.1, Voltage 12, Drive type Steel, Mounting Hole 2 11.00, Rear Distance 162.00, Prod. info BN, Waterproof No, Drive Distance 15.00, Mounting Flange 76.20, Distance 105.00, Oil sealed No, No./mount. holes 2 (0), Front Distance 47.00, B+ M8, Terminal 50 M5, Clutch type Dry, Rotation CW, Mounting Holes with Thread 0, Position 15, Mounting Hole 1 11.00, B+ Position 60, Total Length 209.00, Gear type GR, No./teeth 9, Amount of Mounting Holes 2
Product information
Electrical information
- kW1.1
- Voltage12
Catalogue information
- Prod. infoBN
- WaterproofNo
- Oil sealedNo
- Clutch typeDry
Physical information
- Drive typeSteel
- Mounting Hole 211.00
- Rear Distance162.00
- Drive Distance15.00
- Mounting Flange76.20
- Distance105.00
- No./mount. holes2 (0)
- Front Distance47.00
- B+M8
Replacing and BOMs
OEM number
- 12850029DEUTZ-FAHR
- 12851306KHD
- 58101330LOMBARDINI
- 58401940LOMBARDINI
- 0058401940LOMBARDINI
- 58401330LOMBARDINI
