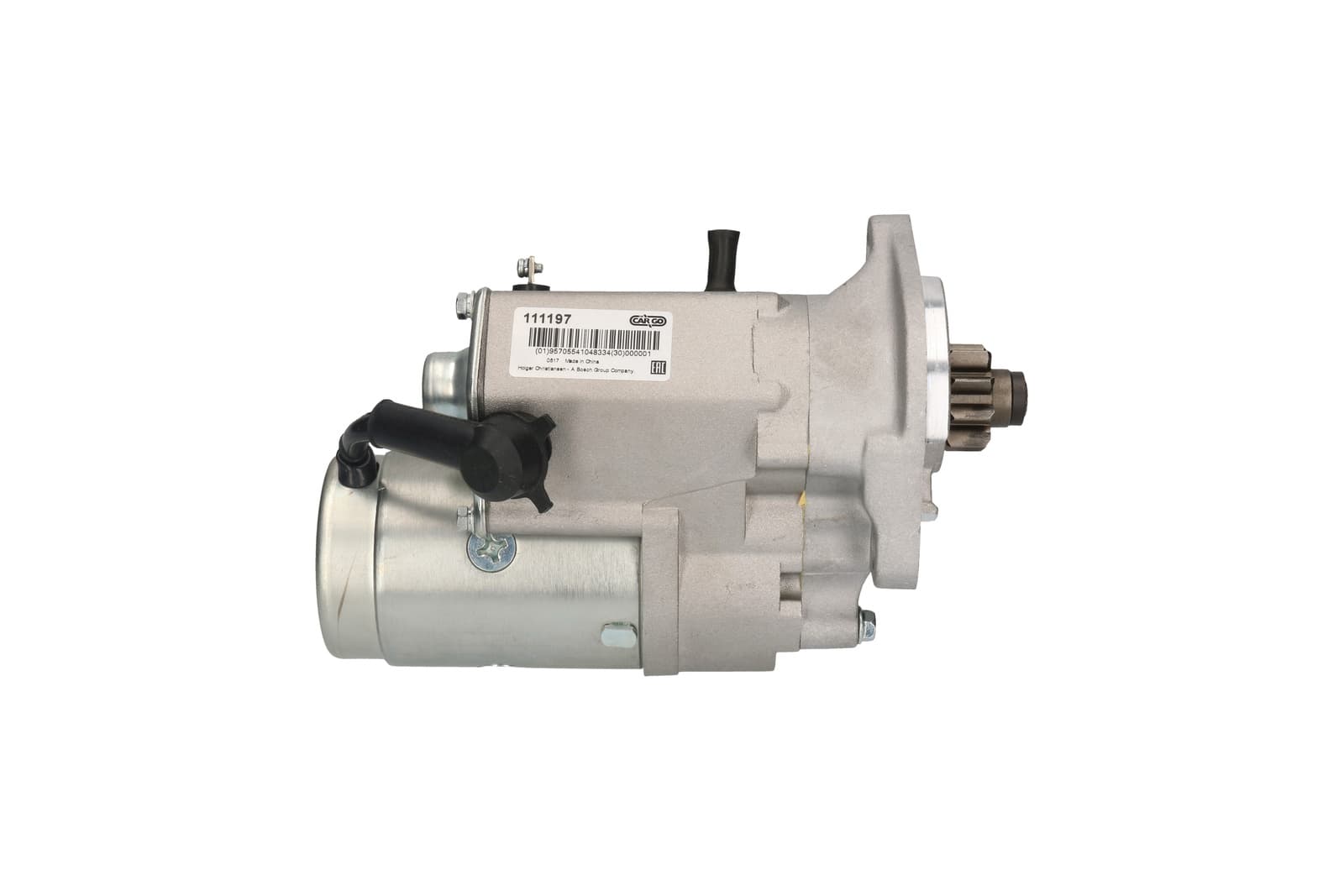

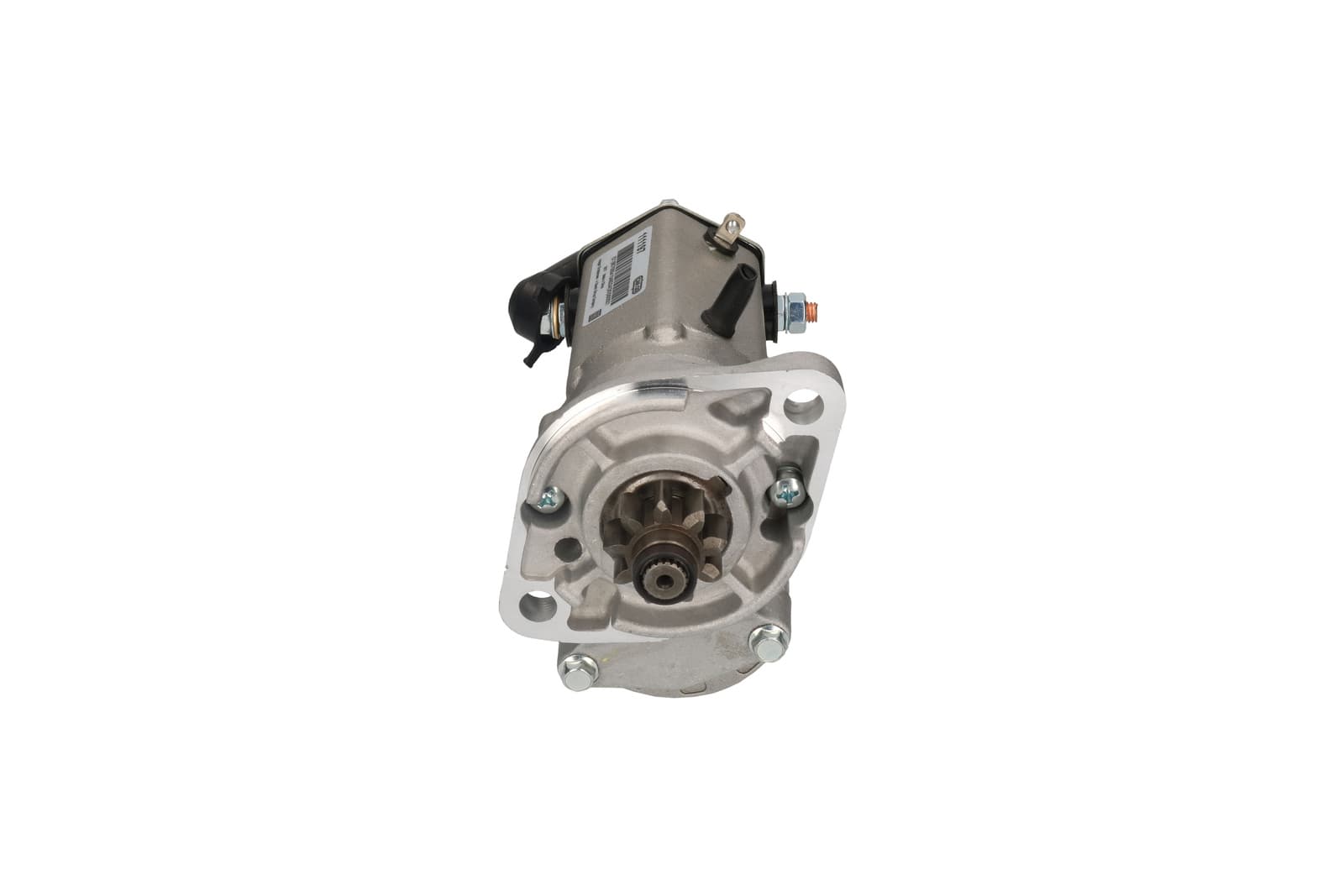

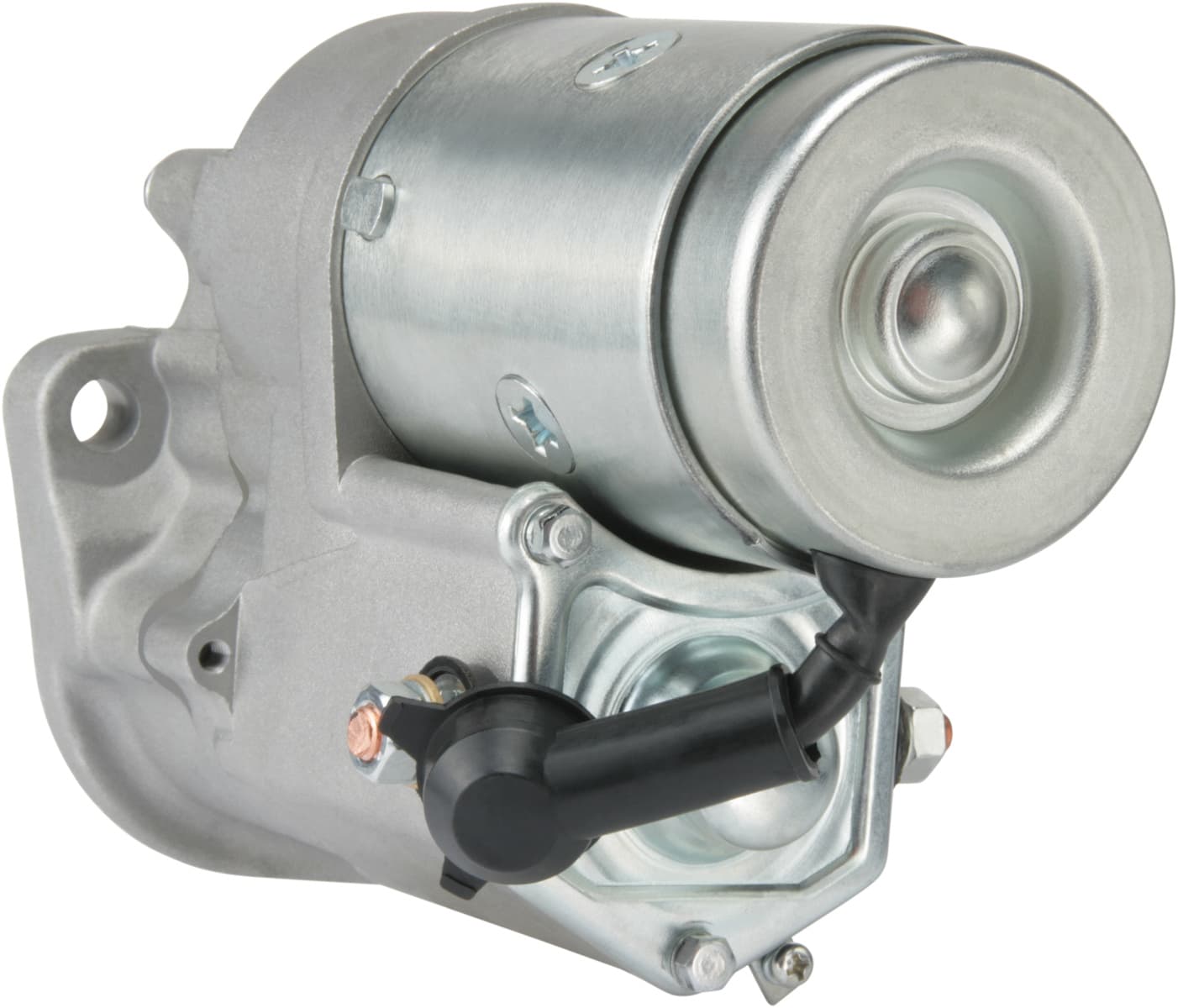

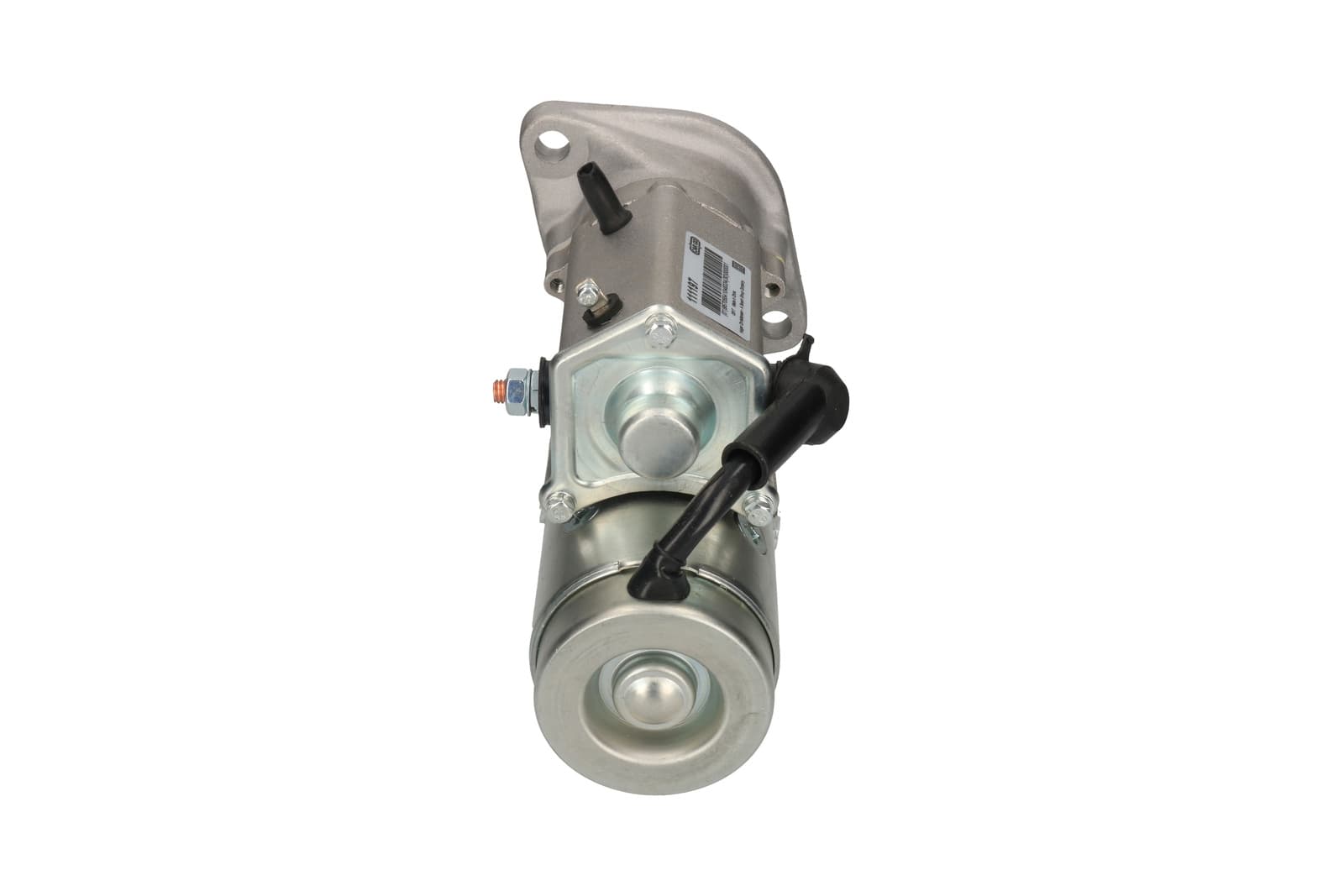

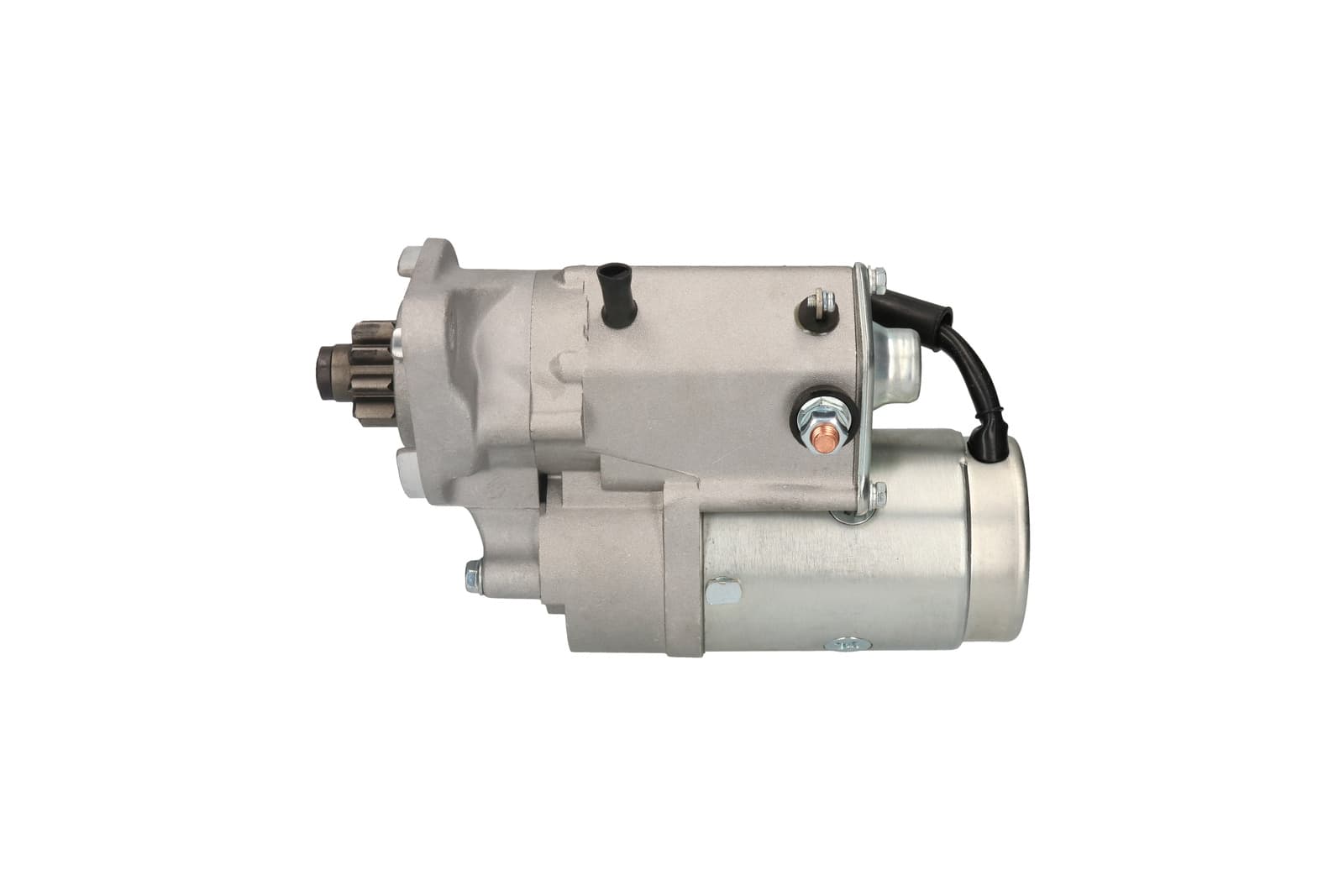

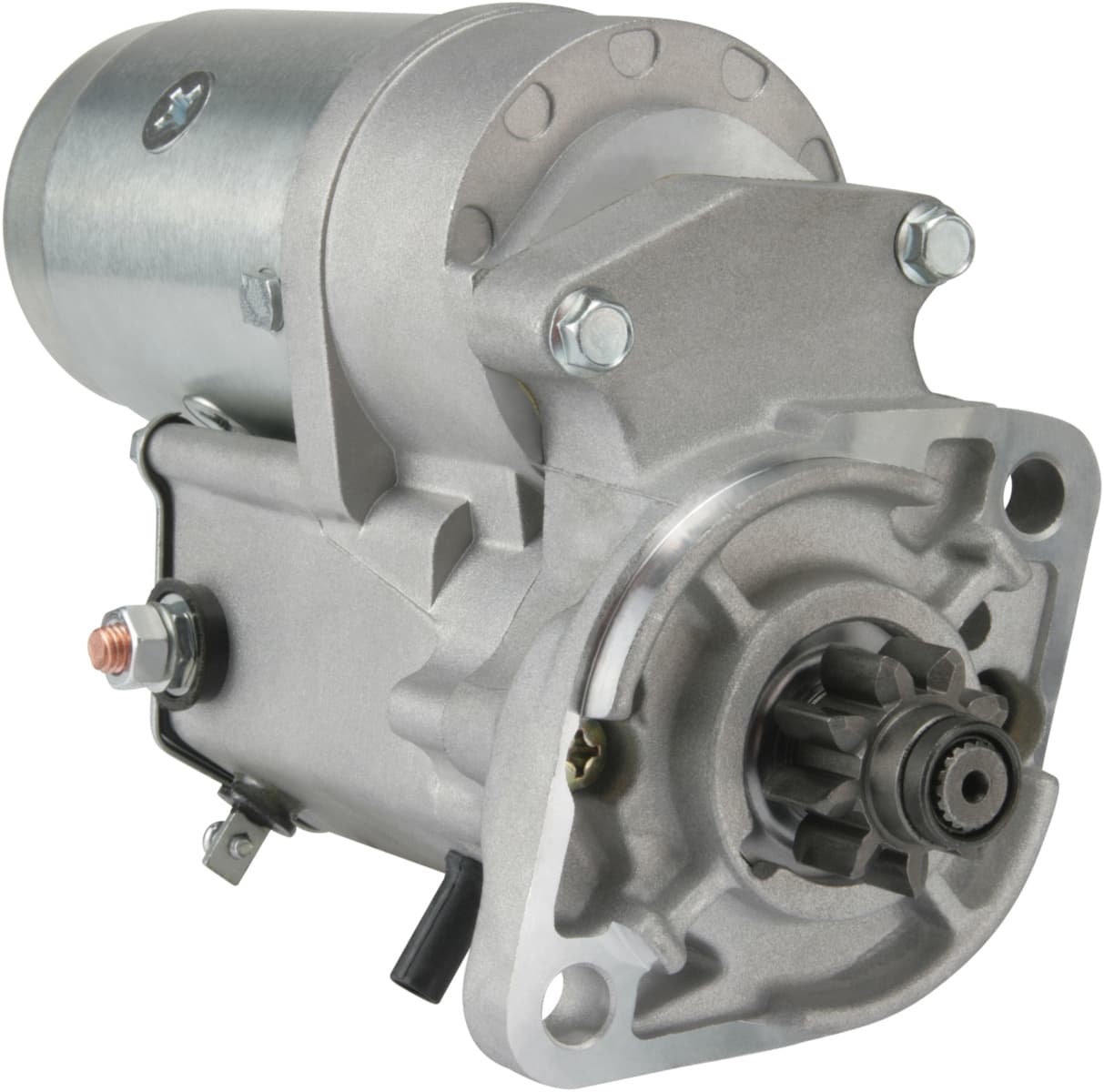

F032111197 - Starter
Trade number 111197Details & description
kW 2.0, Voltage 12, Drive type Steel, No./mount. holes 2 (0), Mounting Hole 2 12.20, Rear Distance 148.00, Gear type GR, Prod. info BN, Waterproof No, Front Distance 38.50, Drive Distance 26.00, No./teeth 9, B+ M8, Terminal 50 M4, Mounting Flange 82.50, Distance 105.00, Oil sealed No, Rotation CW, Position 25, Mounting Hole 1 12.20, Amount of Mounting Holes 2 (0), Total Length 232.50
Product information
kW:2.0
Voltage:12
Drive type:Steel
No./mount. holes:2 (0)
Mounting Hole 2:12.20
Rear Distance:148.00
Gear type:GR
Prod. info:BN
Waterproof:No
Front Distance:38.50
Drive Distance:26.00
No./teeth:9
B+:M8
Terminal 50:M4
Mounting Flange:82.50
Distance:105.00
Oil sealed:No
Rotation:CW
Position:25
Mounting Hole 1:12.20
Amount of Mounting Holes:2 (0)
Total Length:232.50
Replacing and BOMs
OEM number
1542563012KUBOTA
1542563016KUBOTA
1K37163011KUBOTA
1665263012KUBOTA
1665263013KUBOTA
1712363016KUBOTA
1749063014KUBOTA
1K37163010KUBOTA
1712163010KUBOTA
1542563010KUBOTA
1542563011KUBOTA
1542563013KUBOTA
1542563014KUBOTA
Competitor References
20780AD KÜHNER
S6334DENSOAUTOSTARTER POLAND
S6096AUTOSTARTER POLAND
CST40129CASCO SRL
CST40184CASCO SRL
CST40311CASCO SRL
690519092CV PSH
690518092CV PSH
690539092CV PSH
2280004593DENSO
2280005270DENSO
4280002030DENSO
2280004573DENSO
2280004590DENSO
2280004591DENSO
2280004592DENSO
2280004750DENSO
2280005273DENSO
2280004571DENSO
2280004572DENSO
DSN2064DENSO
2280005272DENSO
683025092DRI
683032092DRI
251084ELSTOCK
252109ELSTOCK
252086ELSTOCK
254244ELSTOCK
255170ELSTOCK
11040524EUROTEC
11040920EUROTEC
103941FACROM
111197HC-CARGO
8EA732665001HELLA
42118816HERTH U. BUSS
18411LESTER
18154LESTER
18275LESTER
18004LESTER
LRS01130LUCAS
LRS01325LUCAS
LRS01316LUCAS
LRS02572LUCAS
4300SPIDAN
22209NDWAI
18004NWAI
18154NWAI
18411NWAI
91295183WILSON
STR30039WOOD AUTO SUPPL
