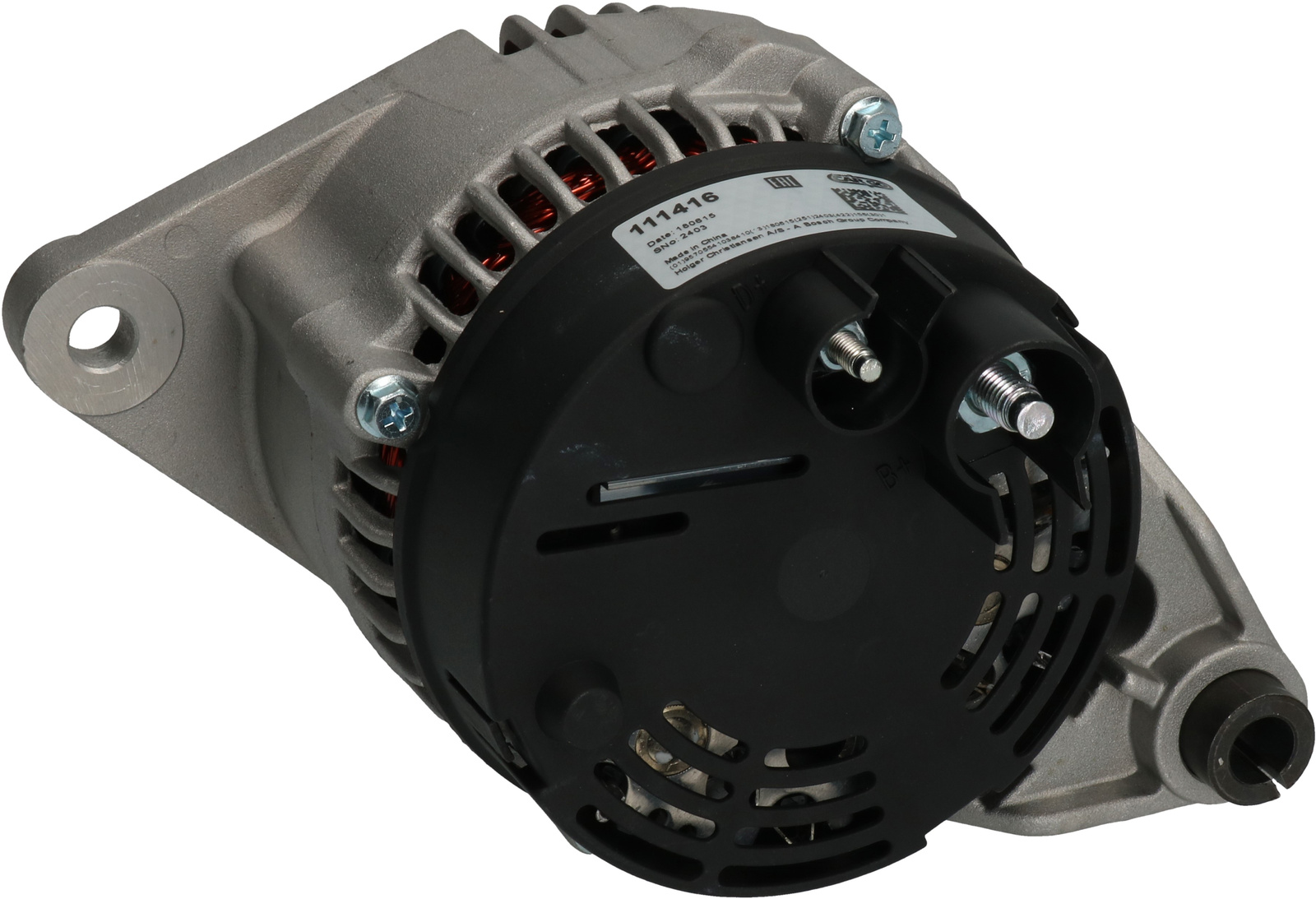

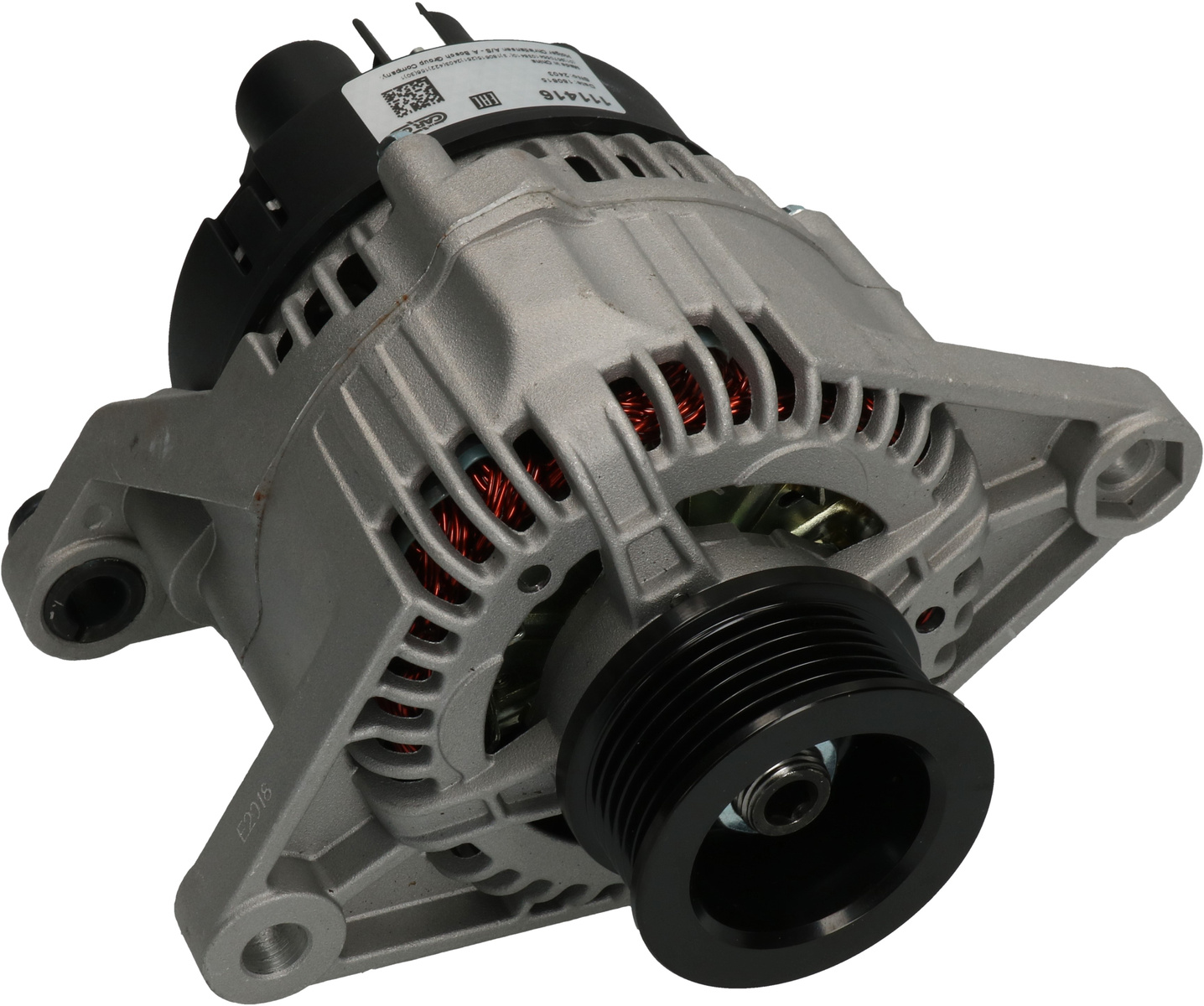

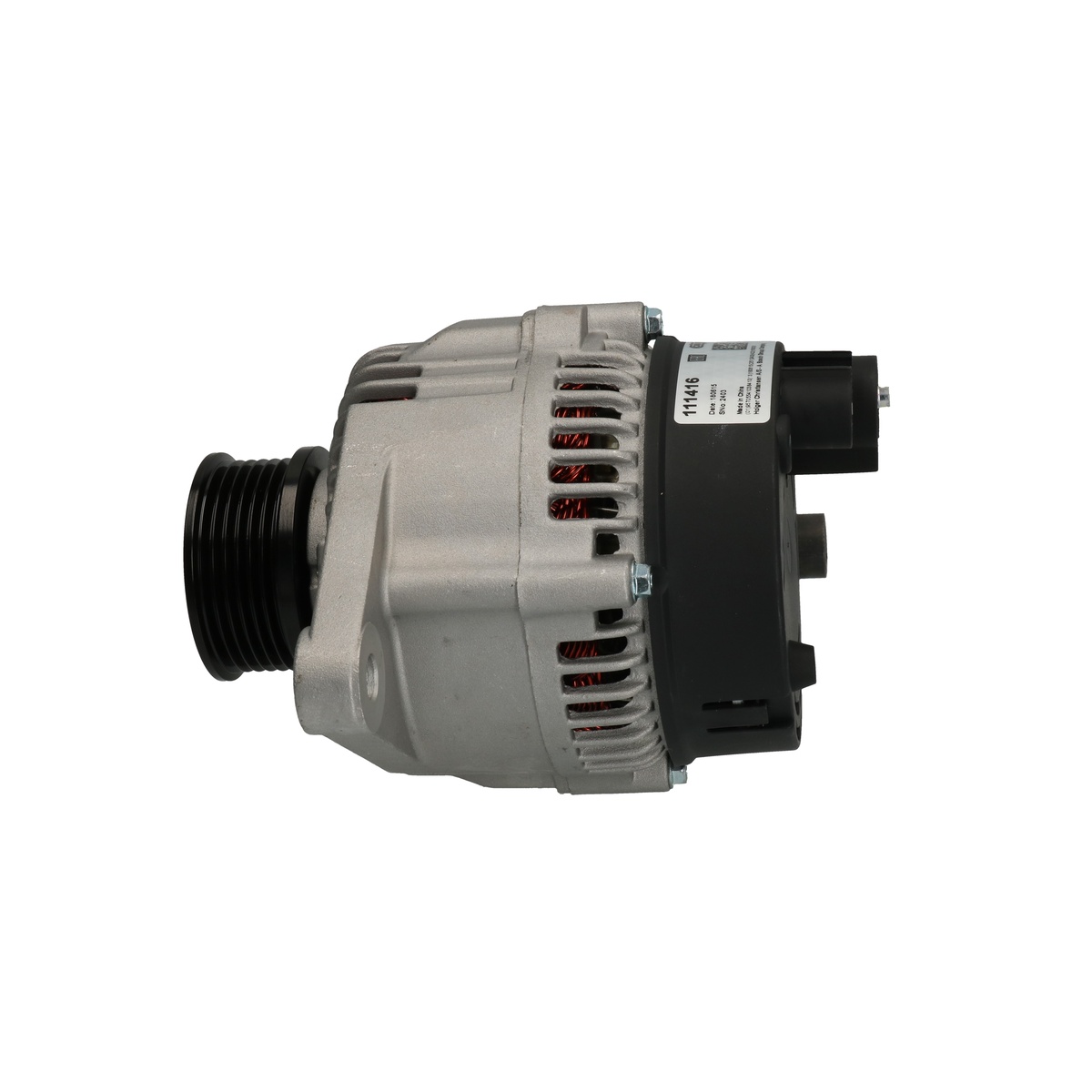

F032111416 - Alternator
Trade number 111416
Replacing and BOMs
OEM number
46231699FIAT
46407645FIAT
46420964FIAT
46420965FIAT
46434932FIAT
46434935FIAT
46464275FIAT
46464276FIAT
46540293FIAT
5895029FIAT
7721122FIAT
7778020FIAT
Competitor References
DRA3406AC DELCO
DRA3406XAC DELCO
301084RIAD KÜHNER
A4007AUTOSTARTER POLAND
A4123PRAUTOSTARTER POLAND
A4007PRAUTOSTARTER POLAND
0986049420BOSCH
F042A07007BOSCH
F042307007BOSCH
BAO3201BOWERS
CAL30102CASCO SRL
505515075CV PSH
505515065CV PSH
505514065CV PSH
DRA3406DELCO REMY
DRA3406XDELCO REMY
218159652DRI
218158652DRI
282706ELSTOCK
283657ELSTOCK
210251ERA SPA
210252ERA SPA
210251AERA SPA
210252AERA SPA
12049420EUROTEC
119076FACROM
9090066FRIESEN
9090067FRIESEN
111416HC-CARGO
CA1084IRHC-PARTS
8EL011360801HELLA
8EL011710111HELLA
LRA01771LUCAS
LRA01572LUCAS
063321615MARELLI
063321615010MARELLI
944390900MARELLI
944390900670MARELLI
MAN807MARELLI
63321820MARELLI
943321615MARELLI
943321661MARELLI
9212947POWER MAX
9090067QUINTON HAZELL
FRA857QUINTON HAZELL
QA1096QUINTON HAZELL
ALT4214UNIPOINT
437815VALEO
21216NWAI
ALT4214WOOD AUTO SUPPL
ALT12009WOOD AUTO SUPPL
F032111416 - Alternator
Details & description
Voltage 14, Amp 65, Pulley SP, Bracket Hole Size 1 12.30, Pulley Diameter 60.00, Prod. info BN, Bracket Hole Size Rear 12.50, D+ Size M5, D+ Position 10, Holder Arm Width 17.00, Pulley Distance 41.00, Servicing Fiat, Citroen, B+ M8, Radius 2 90.00, Mounting Bracket Distance 82.00, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 11.00, Grooves/pulley 6, Regulator type IR, B+ Position 15, Belt Adjustment Bracket Hole Position 4, Total Length 199.00
Product information
Voltage:14
Amp:65
Pulley:SP
Bracket Hole Size 1:12.30
Pulley Diameter:60.00
Prod. info:BN
Bracket Hole Size Rear:12.50
D+ Size:M5
D+ Position:10
Holder Arm Width:17.00
Pulley Distance:41.00
Servicing:Fiat, Citroen
B+:M8
Radius 2:90.00
Mounting Bracket Distance:82.00
Radius:90.00
Rotation:CW
Belt Adjustment Bracket Hole 1:11.00
Grooves/pulley:6
Regulator type:IR
B+ Position:15
Belt Adjustment Bracket Hole Position:4
Total Length:199.00
Replacing and BOMs
OEM number
46231699FIAT
46407645FIAT
46420964FIAT
46420965FIAT
46434932FIAT
46434935FIAT
46464275FIAT
46464276FIAT
46540293FIAT
5895029FIAT
7721122FIAT
7778020FIAT
Competitor References
DRA3406AC DELCO
DRA3406XAC DELCO
301084RIAD KÜHNER
A4007AUTOSTARTER POLAND
A4123PRAUTOSTARTER POLAND
A4007PRAUTOSTARTER POLAND
0986049420BOSCH
F042A07007BOSCH
F042307007BOSCH
BAO3201BOWERS
CAL30102CASCO SRL
505515075CV PSH
505515065CV PSH
505514065CV PSH
DRA3406DELCO REMY
DRA3406XDELCO REMY
218159652DRI
218158652DRI
282706ELSTOCK
283657ELSTOCK
210251ERA SPA
210252ERA SPA
210251AERA SPA
210252AERA SPA
12049420EUROTEC
119076FACROM
9090066FRIESEN
9090067FRIESEN
111416HC-CARGO
CA1084IRHC-PARTS
8EL011360801HELLA
8EL011710111HELLA
LRA01771LUCAS
LRA01572LUCAS
063321615MARELLI
063321615010MARELLI
944390900MARELLI
944390900670MARELLI
MAN807MARELLI
63321820MARELLI
943321615MARELLI
943321661MARELLI
9212947POWER MAX
9090067QUINTON HAZELL
FRA857QUINTON HAZELL
QA1096QUINTON HAZELL
ALT4214UNIPOINT
437815VALEO
21216NWAI
ALT4214WOOD AUTO SUPPL
ALT12009WOOD AUTO SUPPL
