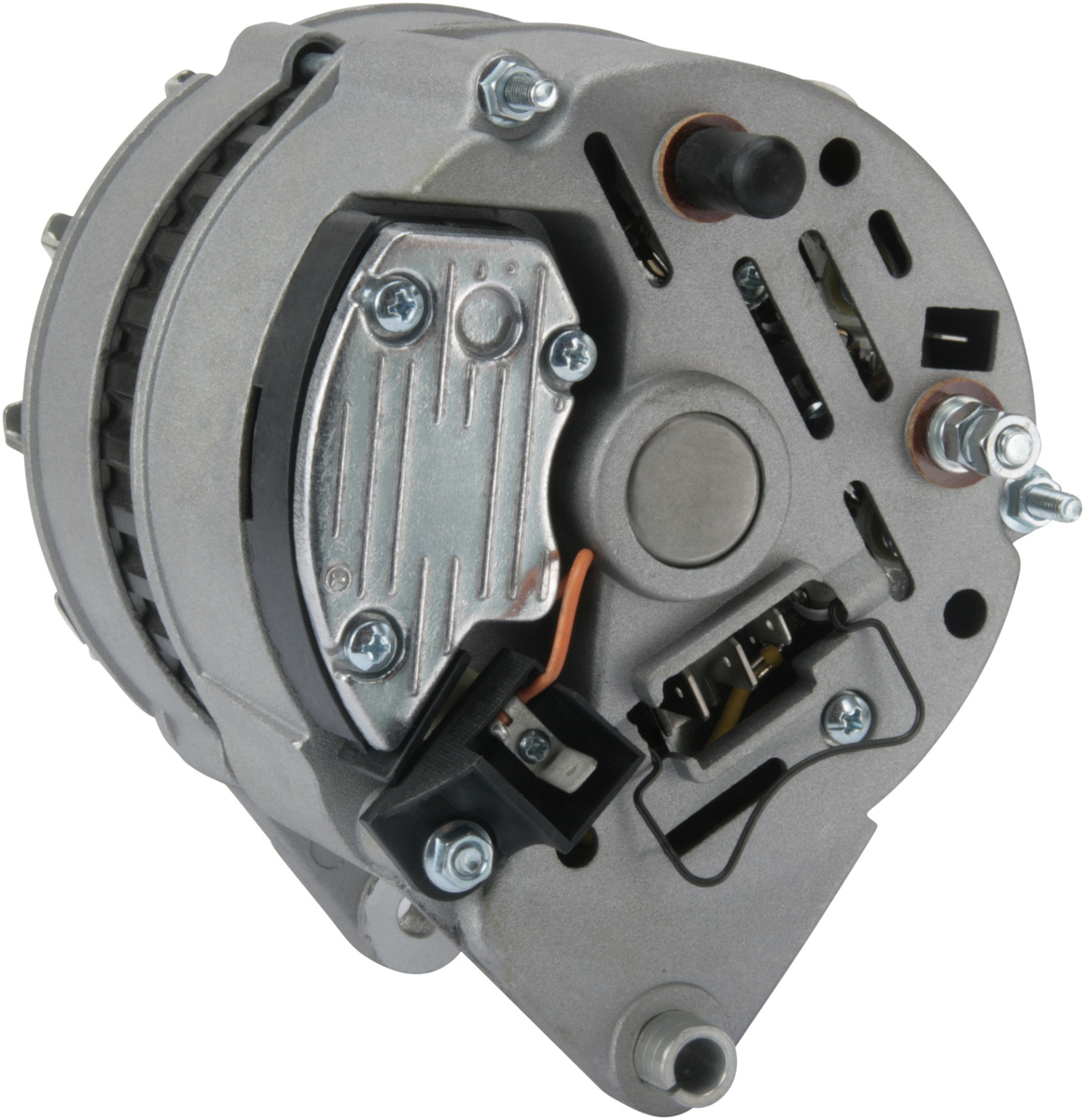

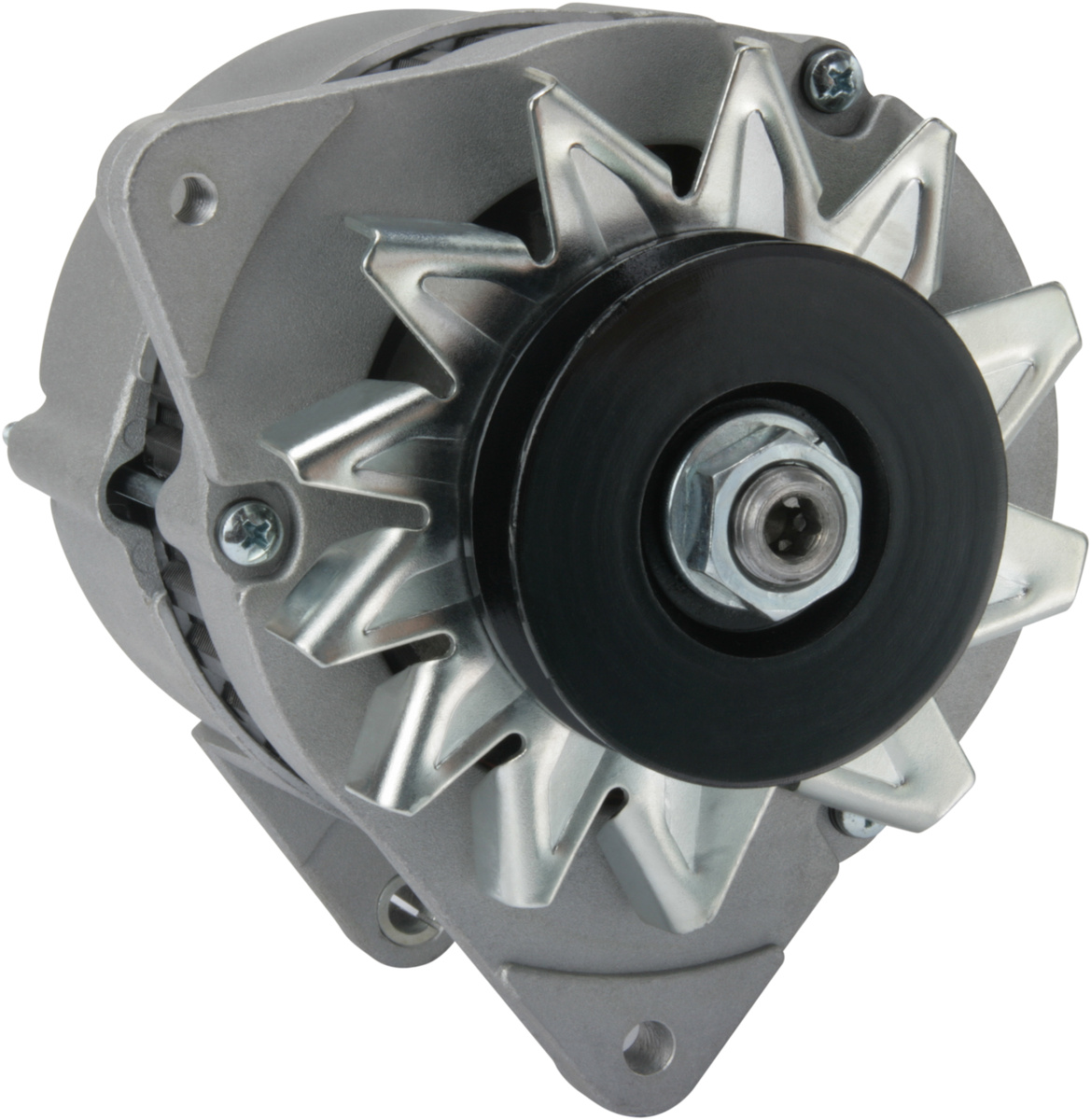

F032111740 - Alternator
Trade number 111740
Replacing and BOMs
OEM number
6005706653CLAAS
CT6005706653CLAAS
E4NN10B376AAFORD
E4NN10B376ABFORD
E7NN10B376AAFORD
E7NN10B376ABFORD
E7NN10B376BAFORD
E7NN10B376BBFORD
STC1753LAND ROVER GROUP
81863039NEW HOLLAND
81868798NEW HOLLAND
E3NN10B376ABNEW HOLLAND
E3NN10B376AANEW HOLLAND
2871A159PERKINS
PRC5449ROVER
RTC5053ROVER
835339189VALMET
Competitor References
DRA3837AC DELCO
DRA3434AC DELCO
301330RIAD KÜHNER
30707RIAD KÜHNER
A4040AUTOSTARTER POLAND
0986044751BOSCH
F042306029BOSCH
F042A06032BOSCH
F042306032BOSCH
595024070CV PSH
DRA3434DELCO REMY
DRA3837DELCO REMY
214102752DRI
220101702DRI
283757ELSTOCK
281602ELSTOCK
12044750EUROTEC
119138FACROM
111426FACROM
118226FACROM
119127FACROM
111740HC-CARGO
CA1330IRHC-PARTS
8EL737507001HELLA
32469572HERTH U. BUSS
IA0504ISKRA
MG283ISKRA
12047LESTER
12091LESTER
LEA0280LUCAS
LEA0432LUCAS
24250BLUCAS
LEA0282LUCAS
LEA0435LUCAS
24400LUCAS
LRA00522LUCAS
LEA0121LUCAS
LRA01303LUCAS
LEA0111LUCAS
LEA121LUCAS
24448LUCAS
24186DLUCAS
063324274MARELLI
MAN142MARELLI
943324274MARELLI
FRA718QUINTON HAZELL
QA1425QUINTON HAZELL
5982SPIDAN
ALT4039UNIPOINT
12090NWAI
13436RWAI
ALT16027WOOD AUTO SUPPL
ALT16034WOOD AUTO SUPPL
ALT4034SWOOD AUTO SUPPL
F032111740 - Alternator
Details & description
Voltage 14, Amp 70, Terminal BS/W, Pulley P, W plug type M5, Pulley Diameter 80.00, Prod. info BN, Bracket Hole Size Rear 8.40, D+ Position 22, Pulley Distance 36.00, Servicing Ford, Mounting Bracket Distance 82.70, Radius 86.00, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 1, Regulator type IR, Bracket Hole Size 1 8.50, D+ Size 6.30, Holder Arm Width 11.00, B+ M6, Radius 2 86.00, Plug no. 1 PL22, Rotation CW, Position 45, B+ Position 14, Belt Adjustment Bracket Hole Position 50, Total Length 167.00, Remarks w/ battery temp. sensor terminal. Make sure battery temp. sensor circuit is present, for correct function !!
Product information
Voltage:14
Amp:70
Terminal:BS/W
Pulley:P
W plug type:M5
Pulley Diameter:80.00
Prod. info:BN
Bracket Hole Size Rear:8.40
D+ Position:22
Pulley Distance:36.00
Servicing:Ford
Mounting Bracket Distance:82.70
Radius:86.00
Belt Adjustment Bracket Hole 1:M8
Grooves/pulley:1
Regulator type:IR
Bracket Hole Size 1:8.50
D+ Size:6.30
Holder Arm Width:11.00
B+:M6
Radius 2:86.00
Plug no. 1:PL22
Rotation:CW
Position:45
B+ Position:14
Belt Adjustment Bracket Hole Position:50
Total Length:167.00
Remarks:w/ battery temp. sensor terminal. Make sure battery temp. sensor circuit is present, for correct function !!
