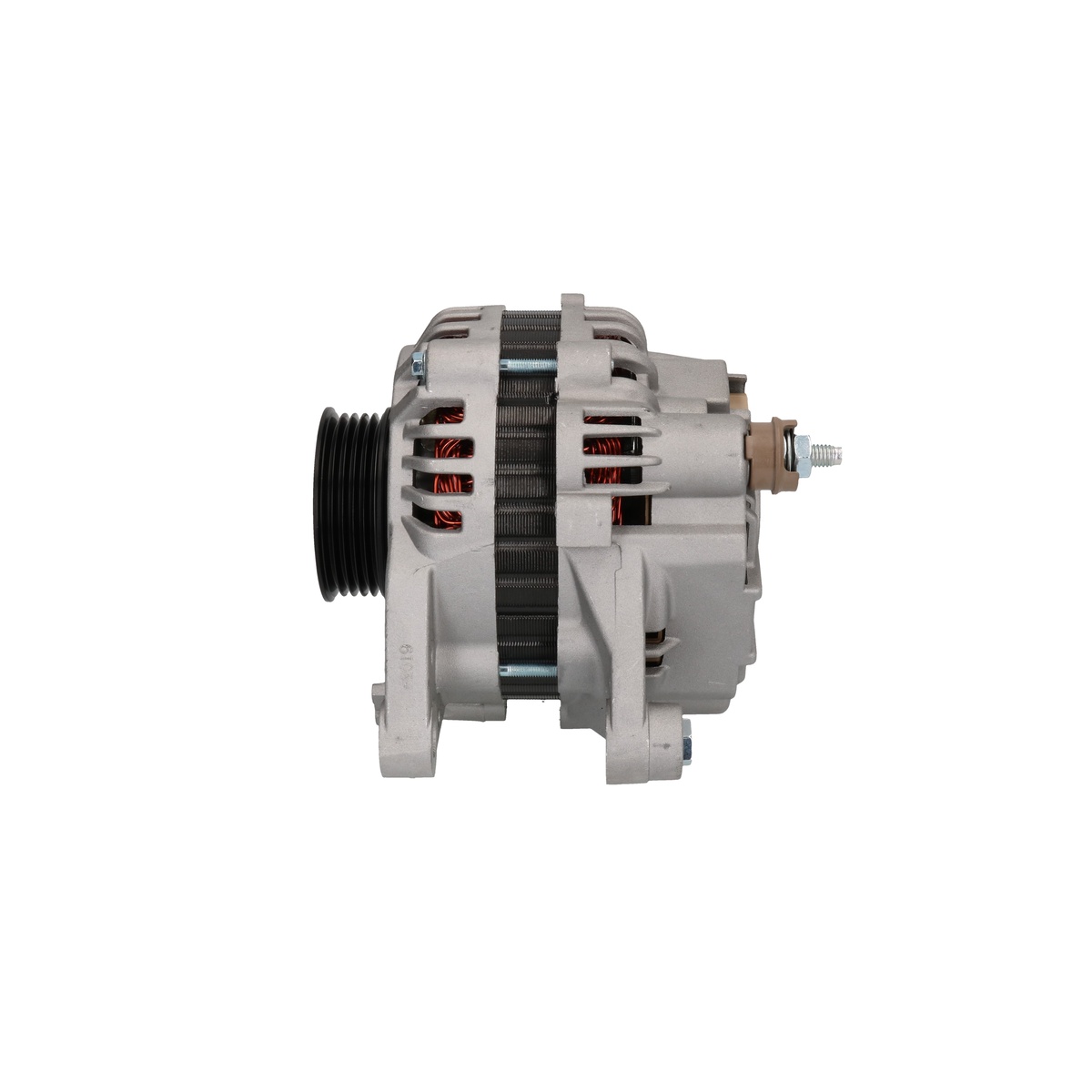

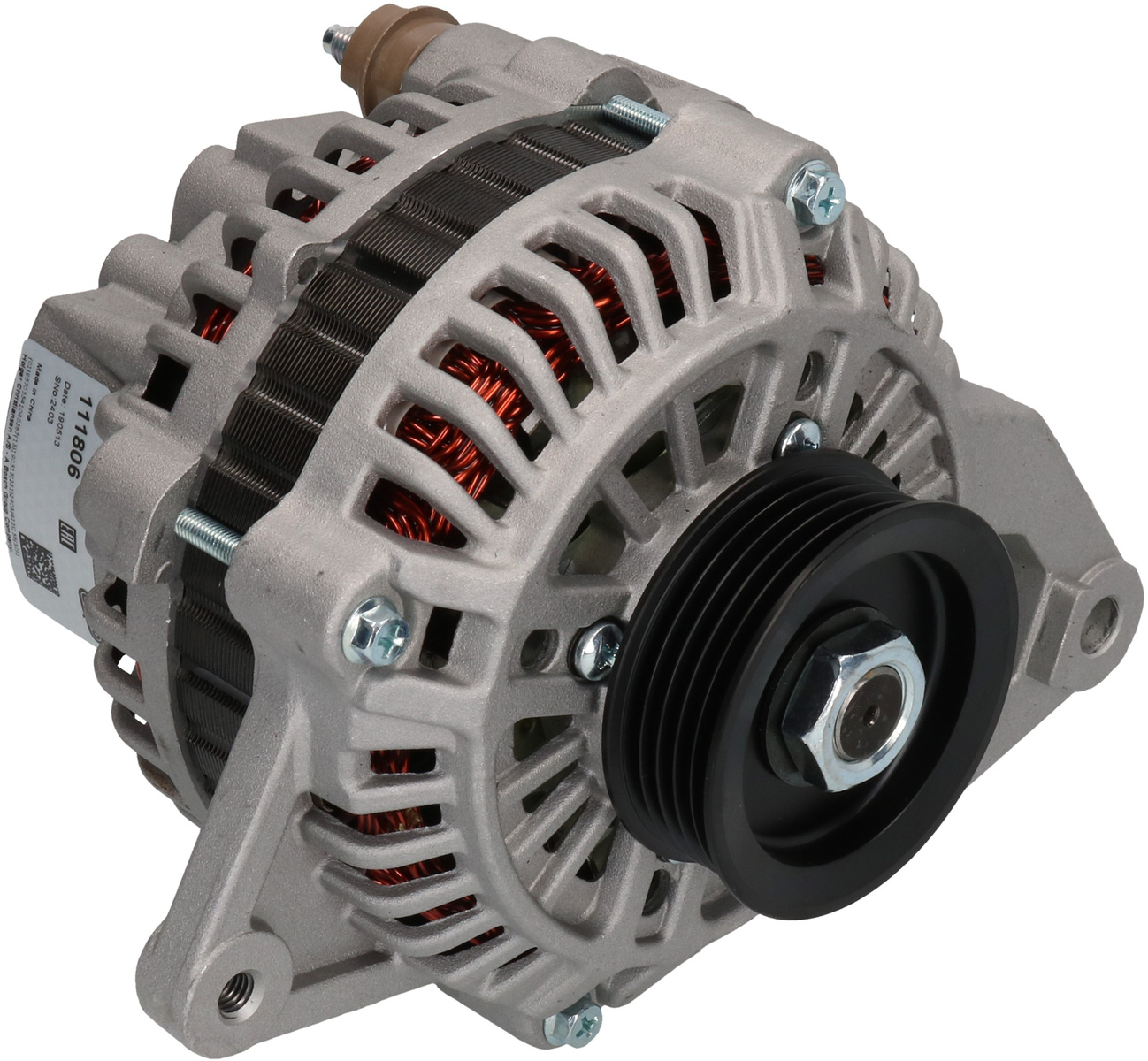

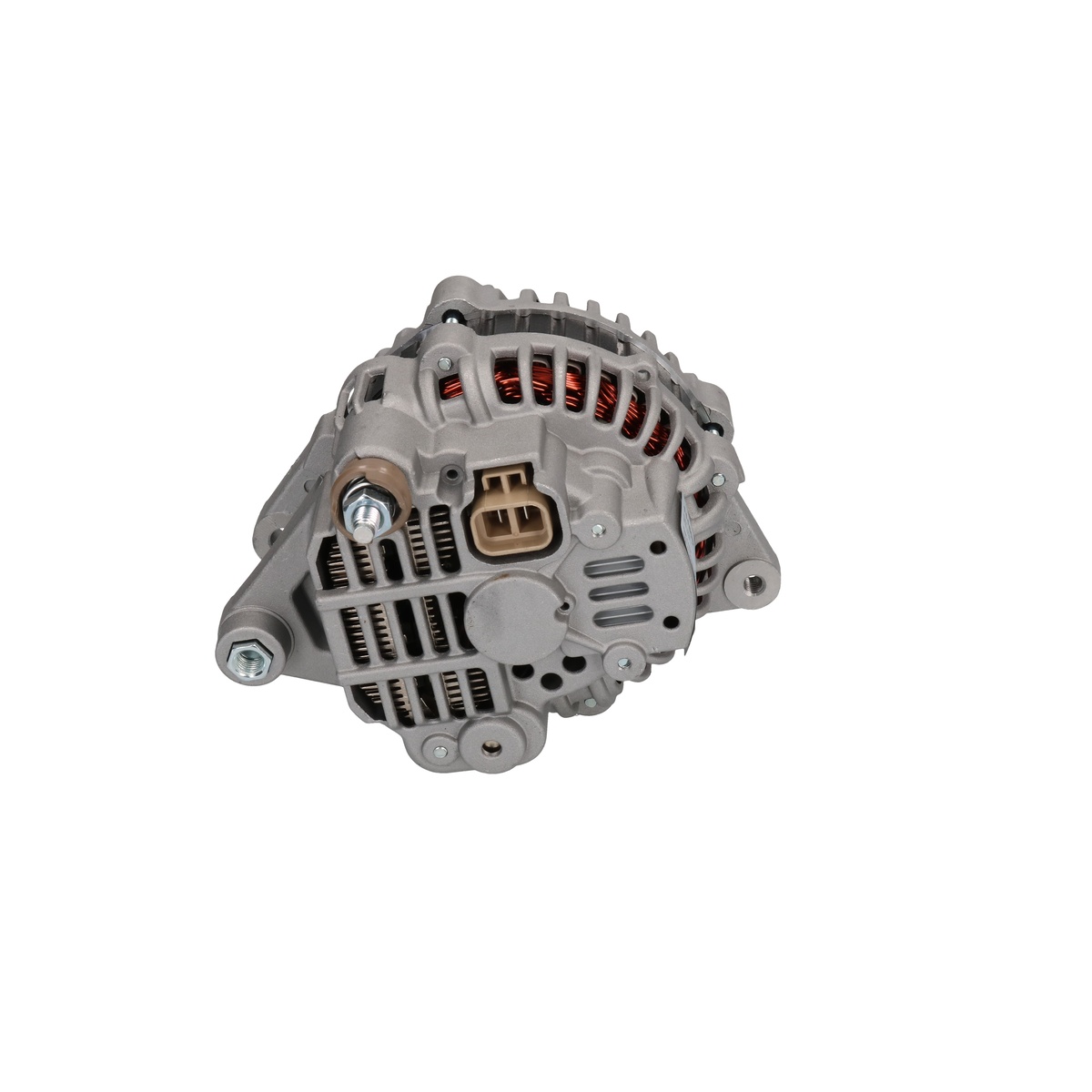

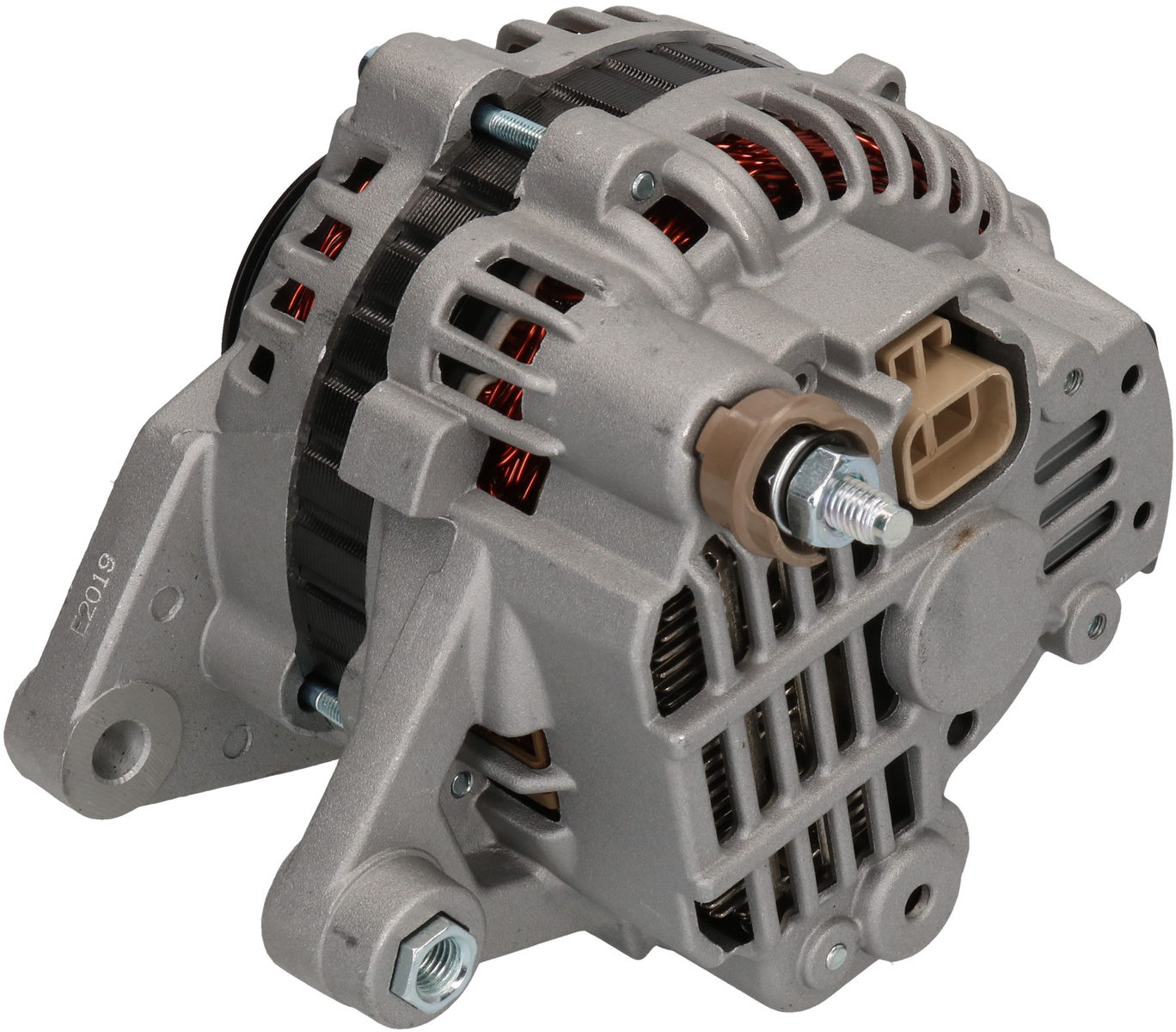

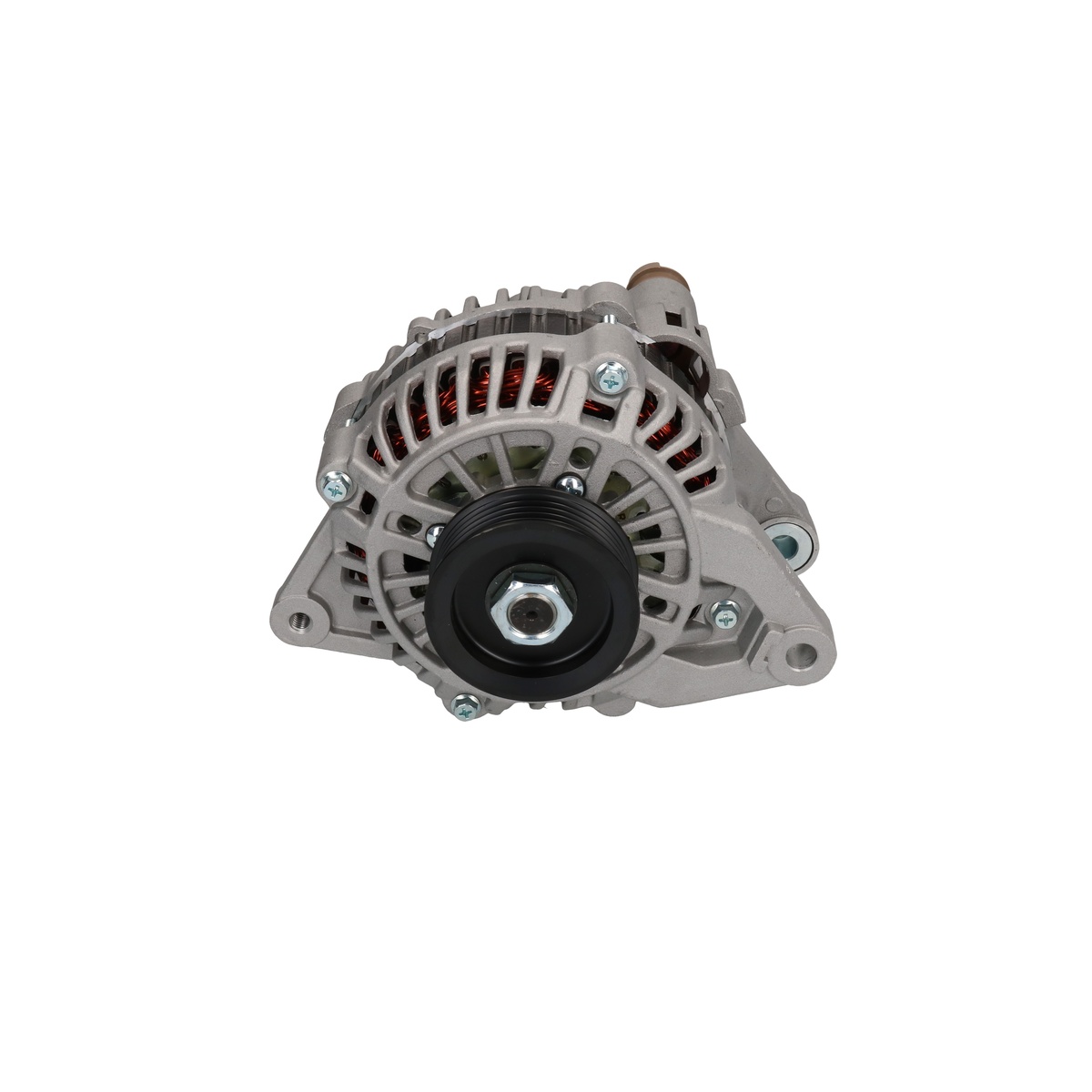

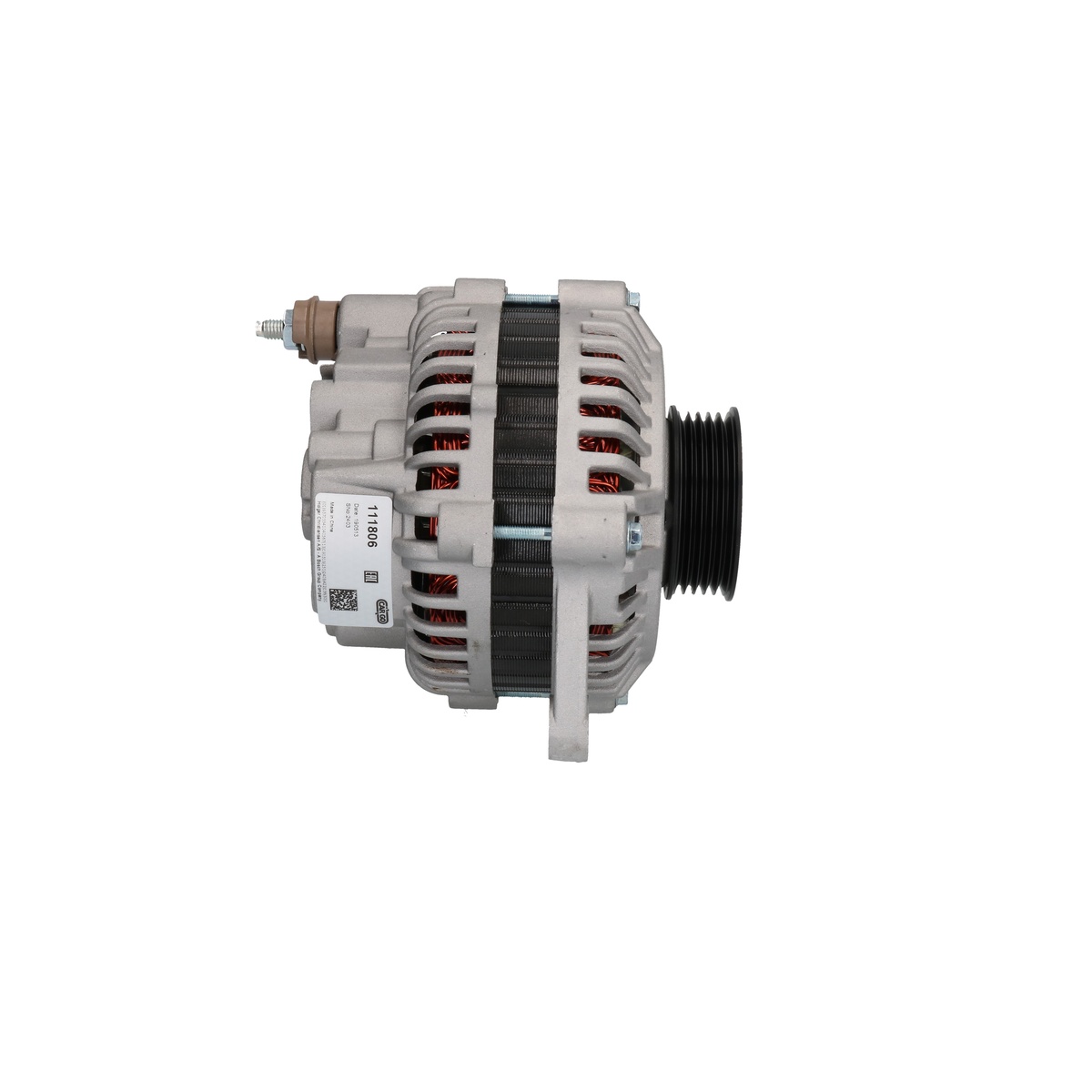

F032111806 - Alternator
Trade number 111806
Replacing and BOMs
OEM number
Competitor References
DRA3696AC DELCO
401180RIAD KÜHNER
A5016AUTOSTARTER POLAND
AL4018XBOSCH
F042A03069BOSCH
F042303069BOSCH
BAO3249BOWERS
CAL35214CASCO SRL
155546090CV PSH
DRA3696DELCO REMY
226143902DRI
283548ELSTOCK
210623ERA SPA
210623AERA SPA
12060204EUROTEC
119703FACROM
9051556FRIESEN
9051560FRIESEN
111806HC-CARGO
JA1180IRHC-PARTS
8EL737324001HELLA
J5115056HERTH U. BUSS
13692LESTER
LEA0390LUCAS
LRB00234LUCAS
LRA02743LUCAS
944390515MARELLI
944390515560MARELLI
944390515600MARELLI
9212702POWER MAX
20110234PRESTOLITE ELECTRIC
9051560QUINTON HAZELL
FRA956QUINTON HAZELL
QA4212QUINTON HAZELL
5668SPIDAN
ALT3508UNIPOINT
1214701MIWAI
13692NWAI
13692RWAI
ALT10017WOOD AUTO SUPPL
ALT3508WOOD AUTO SUPPL
F032111806 - Alternator
Details & description
Voltage 14, Amp 90, Pulley SP, Pulley Diameter 65.00, Prod. info BN, Bracket Hole Size Rear M10, D+ Position 45, Pulley Distance 25.00, Mounting Bracket Distance 54.80, Radius 97.00, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 5, Regulator type IR, Bracket Hole Size 1 10.50, D+ Size Plug, Holder Arm Width 17.00, B+ M8, Radius 2 92.00, Plug no. 1 PL07, Rotation CW, Position 60, B+ Position 40, Belt Adjustment Bracket Hole Position 53, Total Length 168.00
Product information
Voltage:14
Amp:90
Pulley:SP
Pulley Diameter:65.00
Prod. info:BN
Bracket Hole Size Rear:M10
D+ Position:45
Pulley Distance:25.00
Mounting Bracket Distance:54.80
Radius:97.00
Belt Adjustment Bracket Hole 1:M8
Grooves/pulley:5
Regulator type:IR
Bracket Hole Size 1:10.50
D+ Size:Plug
Holder Arm Width:17.00
B+:M8
Radius 2:92.00
Plug no. 1:PL07
Rotation:CW
Position:60
B+ Position:40
Belt Adjustment Bracket Hole Position:53
Total Length:168.00
