F032111921 - Starter

Trade number 111921

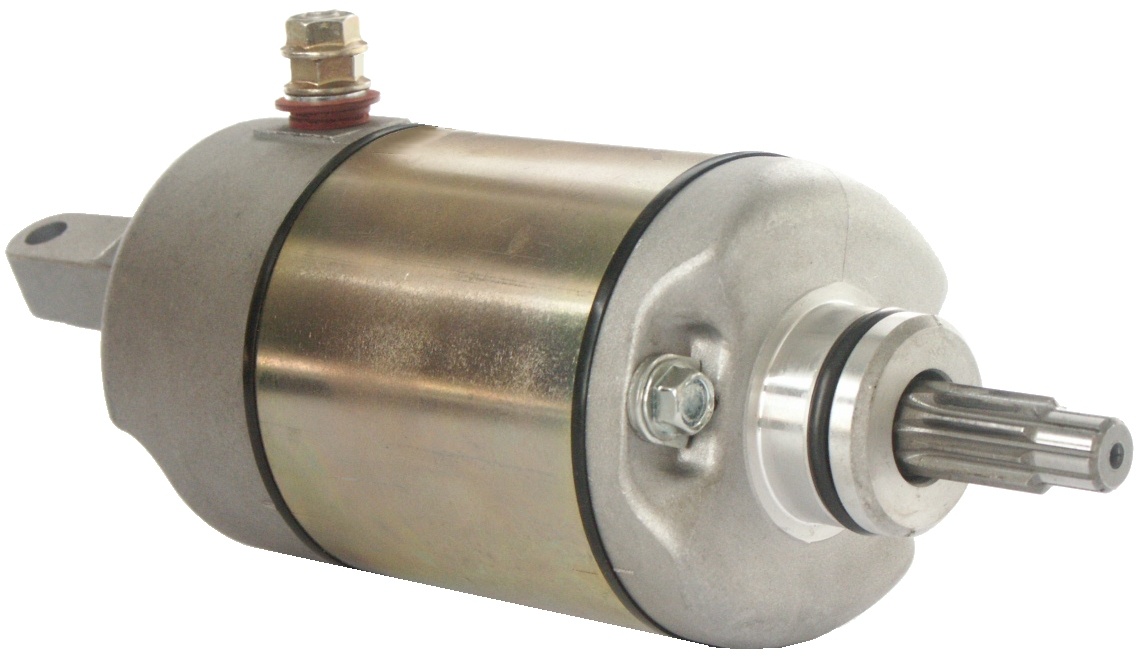

Product image - main
Trade number 111921

Details & description

kW 0.6, Voltage 12, Drive type Steel, No./mount. holes 2 (0), Mounting Hole 2 6.50, Rear Distance 147.00, Gear type DD, Prod. info BN, Waterproof No, Front Distance 46.00, Drive Distance 36.00, No./teeth 10, B+ M6, Mounting Flange 30.00, Distance 34.50, Info Please control rotational direction. This starter is counterclockwise., Oil sealed No, Rotation CCW, Amount of Mounting Holes 2 (0), Total Length 193.00

Product information

kW:0.6
Voltage:12
Drive type:Steel

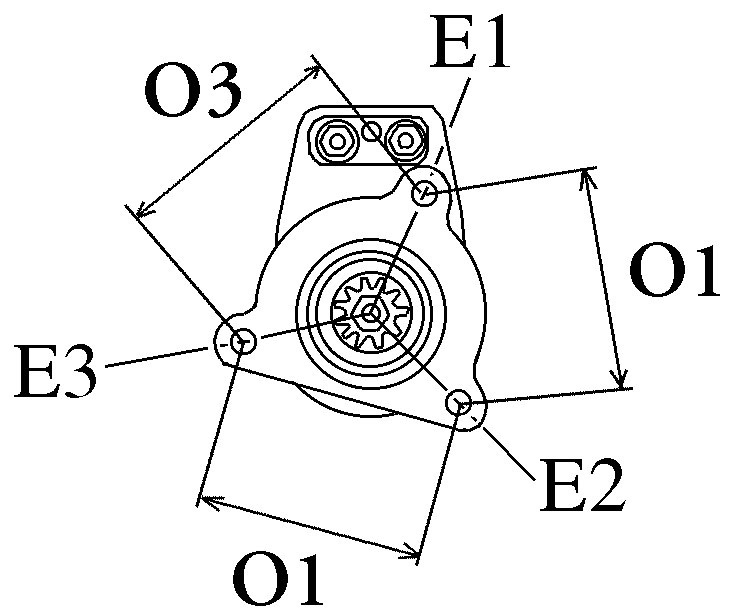

No./mount. holes:2 (0)
Mounting Hole 2:6.50

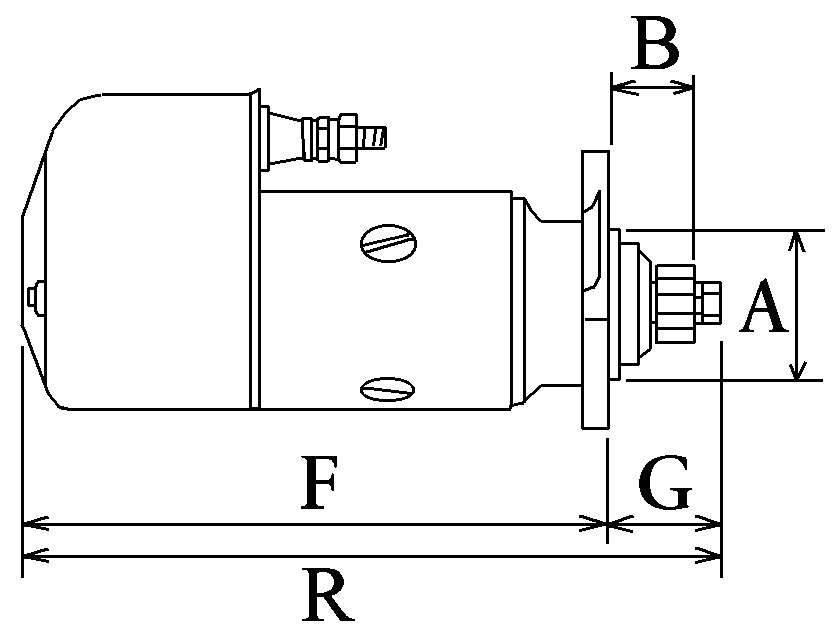

Rear Distance:147.00
Gear type:DD
Prod. info:BN
Waterproof:No
Front Distance:46.00
Drive Distance:36.00
No./teeth:10
B+:M6
Mounting Flange:30.00
Distance:34.50
Info:Please control rotational direction. This starter is counterclockwise.
Oil sealed:No
Rotation:CCW
Amount of Mounting Holes:2 (0)
Total Length:193.00

Replacing and BOMs

OEM number

31200HA6774HONDA
31200HA0773HONDA
31200HA0774HONDA
31200HC4023HONDA

Competitor References

254936AD KÜHNER
254937AD KÜHNER
SMU0028AKS DASIS
SMU0028ARROWHEAD
CST40363CASCO SRL
400025100CV PSH
104504FACROM
111921HC-CARGO
18337LESTER
SM13213MITSUBA ELECTRIC
22181MTWAI
22181MT9WAI
18337NWAI
STR75402WOOD AUTO SUPPL
