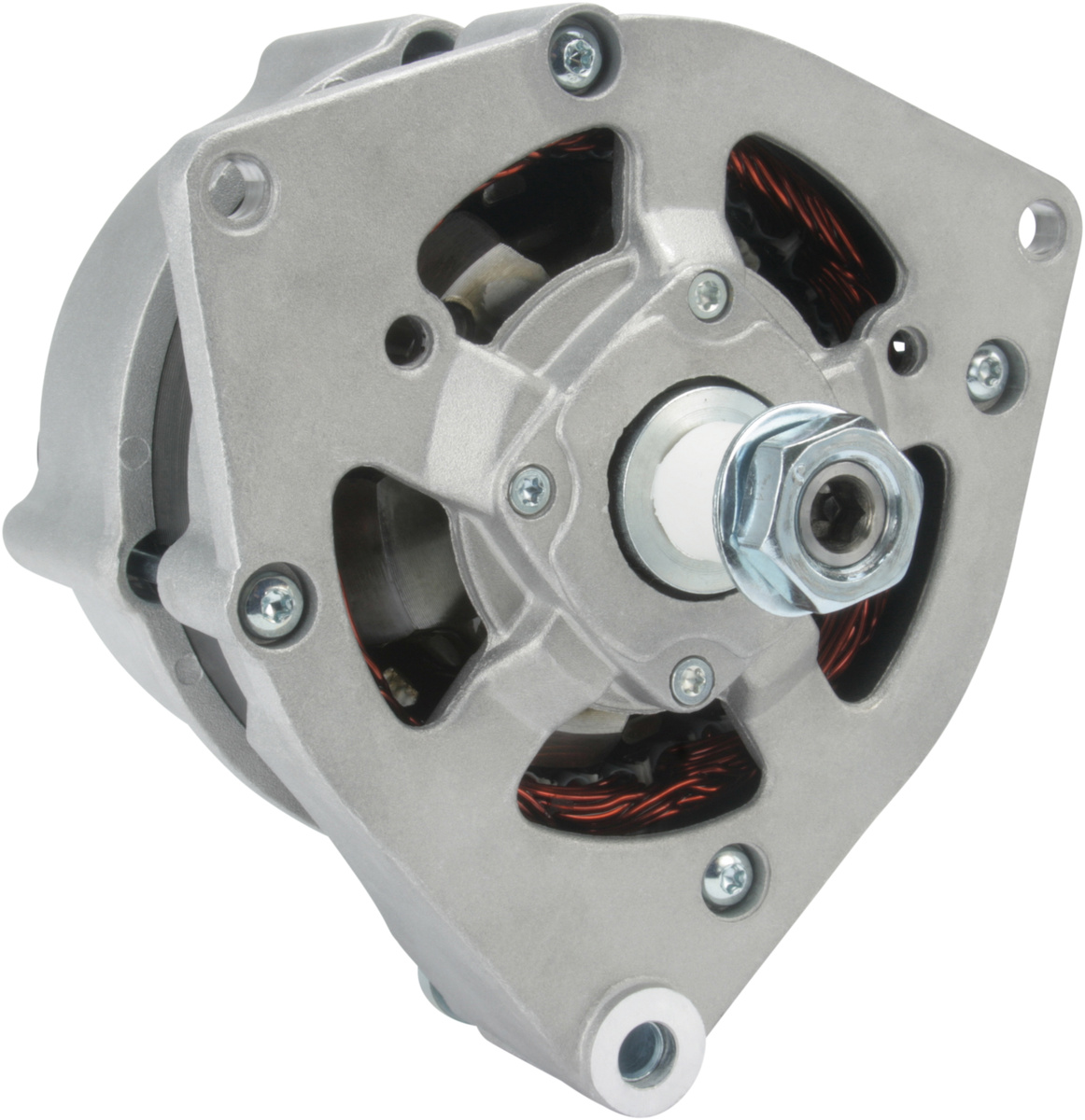

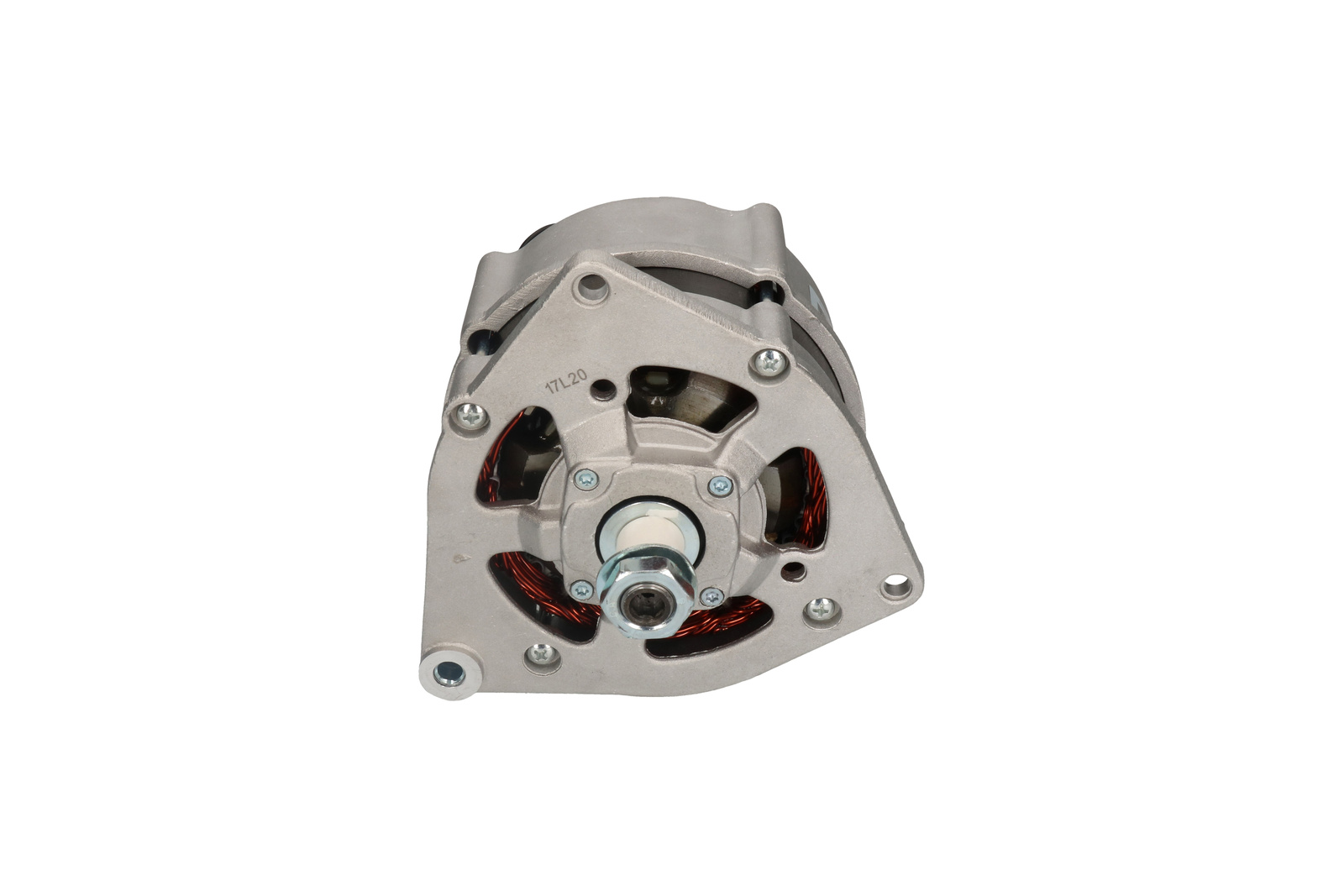

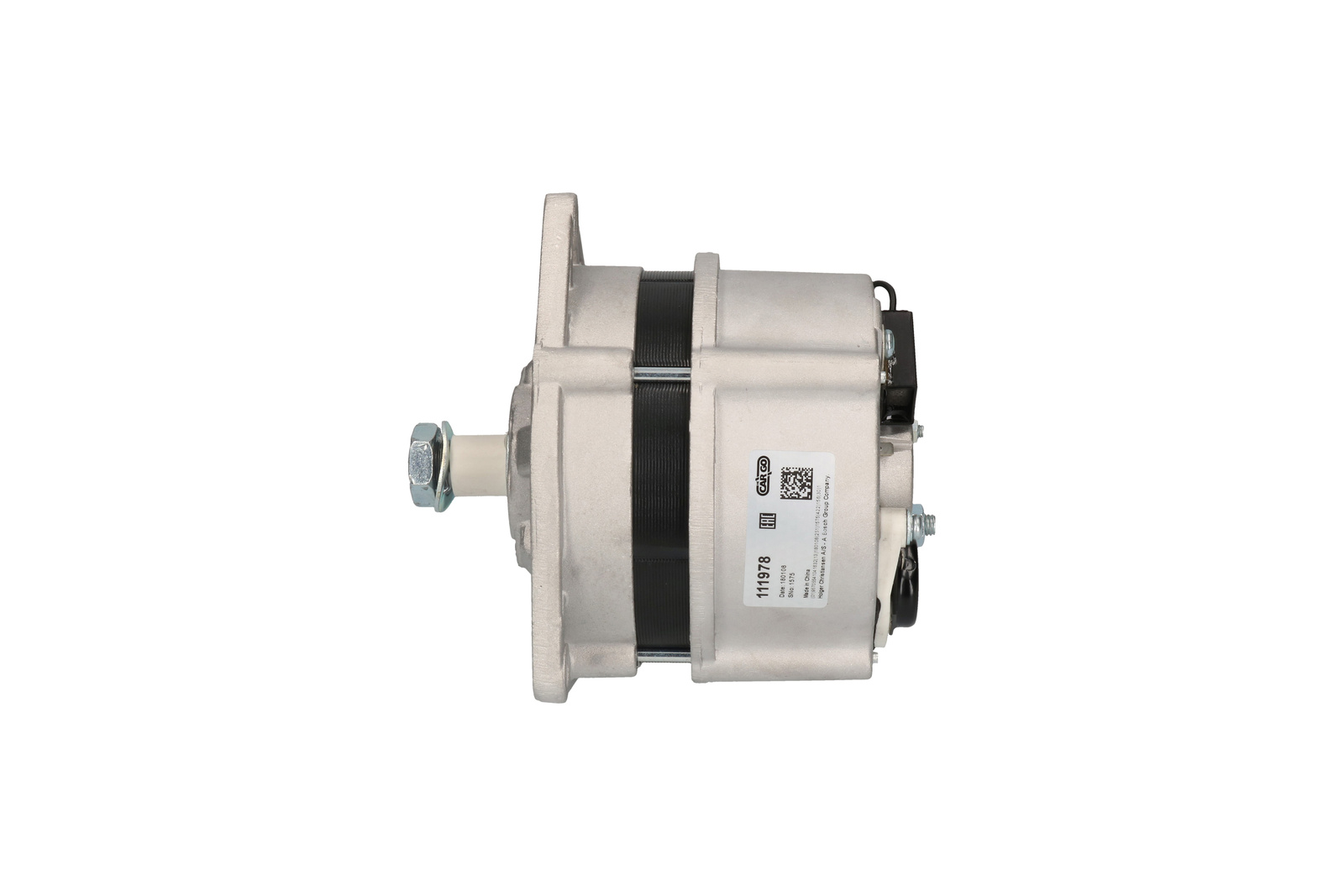

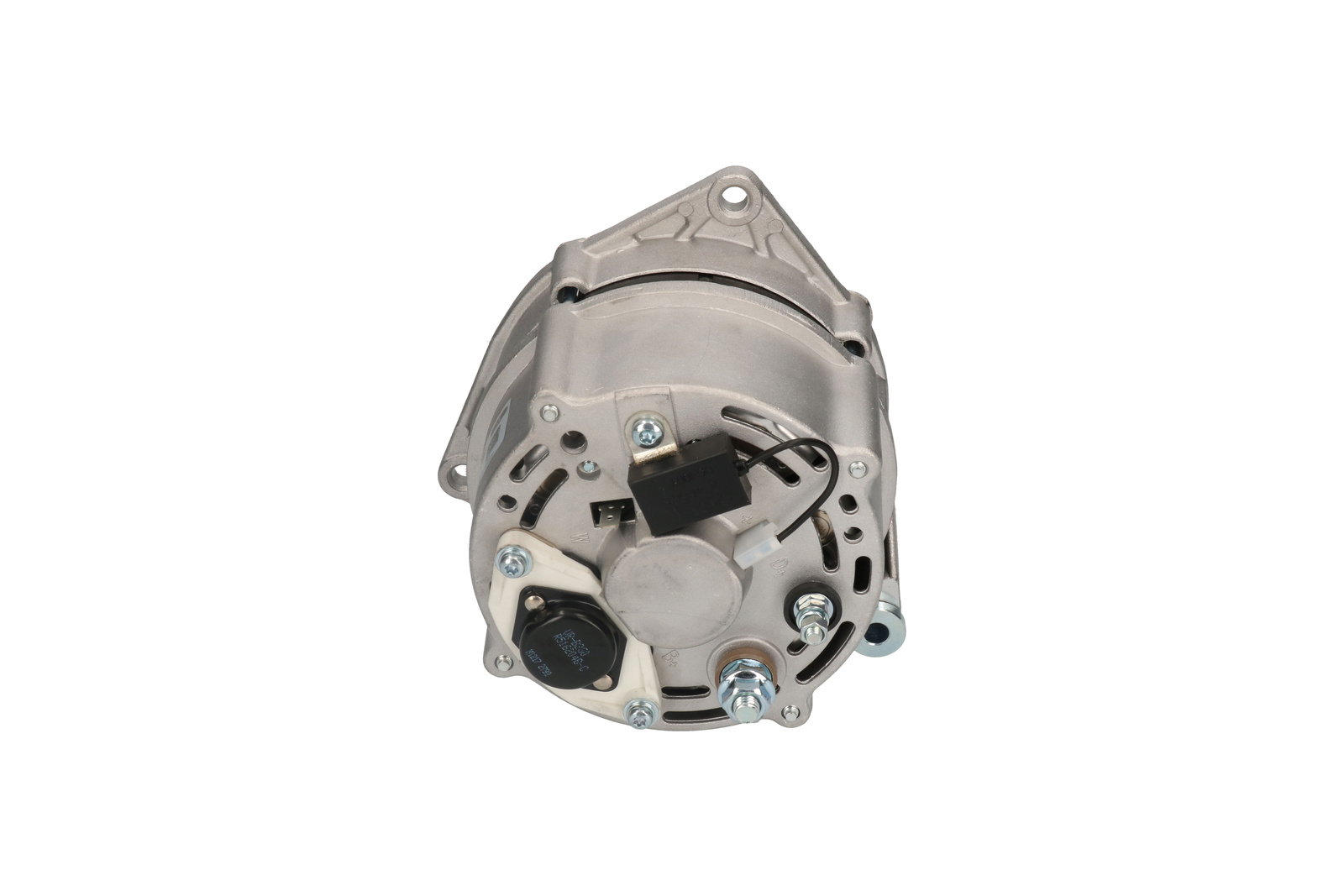

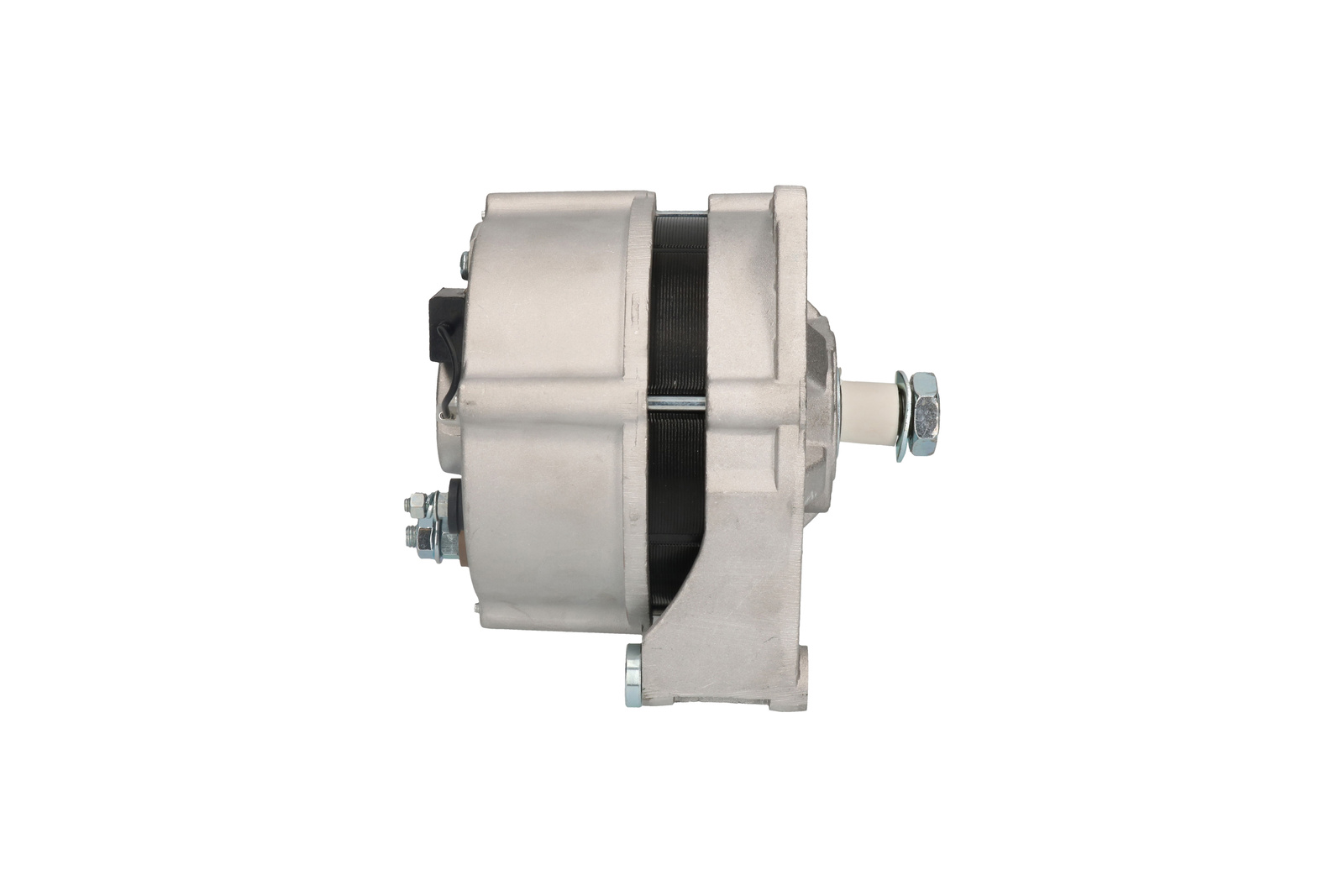

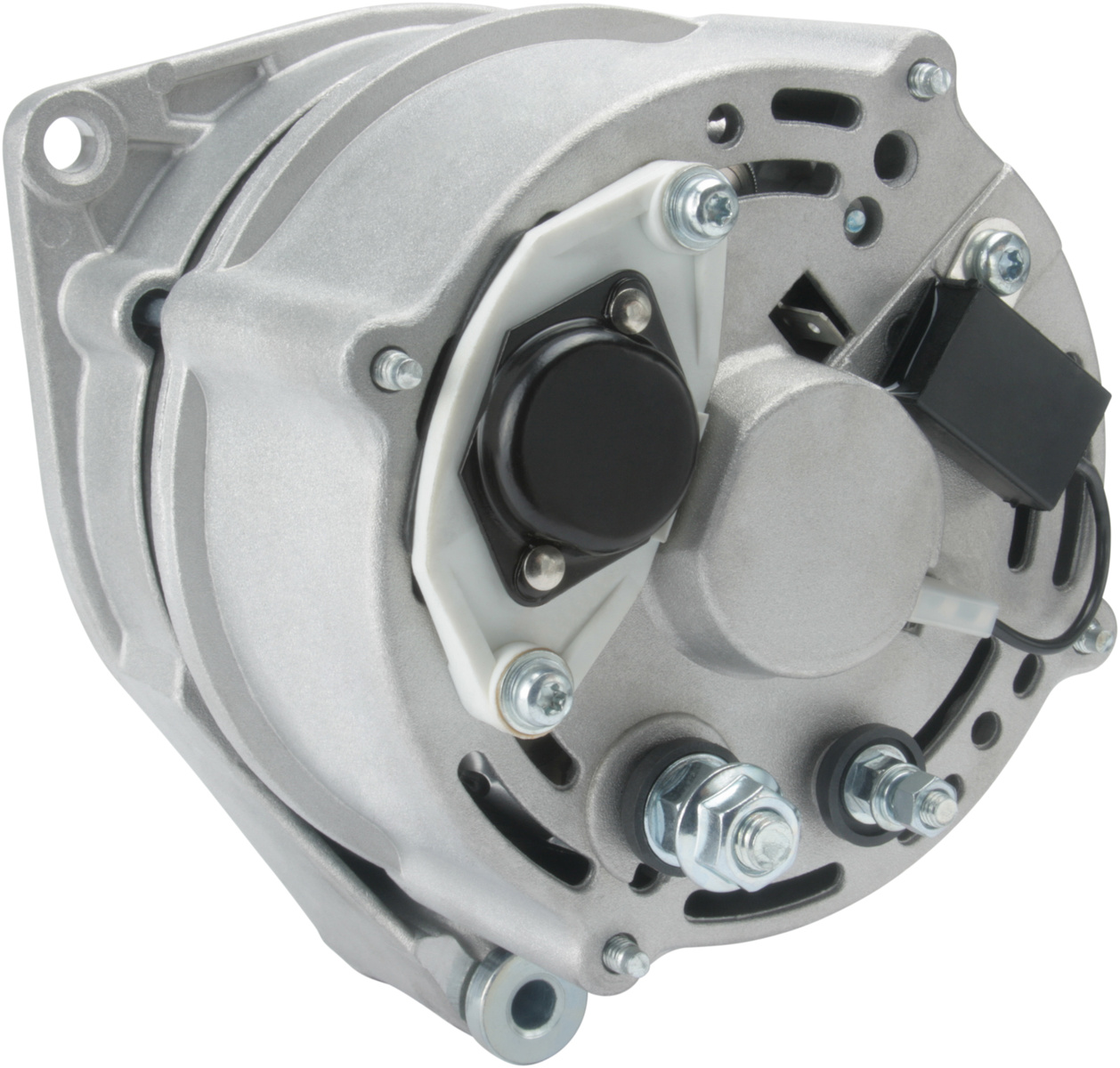

F032111978 - Alternator
Trade number 111978
Replacing and BOMs
OEM number
- G210902010010AGCO (DEUTZ-ALLIS)
- C000900010210AGCO (DEUTZ-ALLIS)
- 130100090006CASE
- G198902011010FENDT
- 01181250KHD
- 1181250KHD
- 012270187KHD
- 012270612KHD
- 12270187KHD
Trade number 111978
Details & description
Terminal W, Voltage 14, Amp 120, Pulley w/o, W plug type 6.30, Bracket Hole Size 1 8.20, Belt Adjustment Bracket Hole 2 8.30, Prod. info BN, D+ Size M5, D+ Position 20, Holder Arm Width 56.00, Servicing Claas, Fendt, Radius 3 80.00, B+ M8, Radius 2 80.00, Radius 85.00, Belt Adjustment Bracket Hole 1 8.30, Regulator type IR, Position 43, B+ Position 27, Belt Adjustment Bracket Hole Position 10;50, Total Length 170.00
Product information
Electrical information
- TerminalW
- Voltage14
- Amp120
Catalogue information
- Prod. infoBN
- ServicingClaas, Fendt
Physical information
- Pulleyw/o
- W plug type6.30
- Bracket Hole Size 18.20
- Belt Adjustment Bracket Hole 28.30
- D+ SizeM5
- D+ Position20
- Holder Arm Width56.00
- Radius 380.00
- B+M8
Replacing and BOMs
OEM number
- G210902010010AGCO (DEUTZ-ALLIS)
- C000900010210AGCO (DEUTZ-ALLIS)
- 130100090006CASE
- G198902011010FENDT
- 01181250KHD
- 1181250KHD
- 012270187KHD
- 012270612KHD
- 12270187KHD
