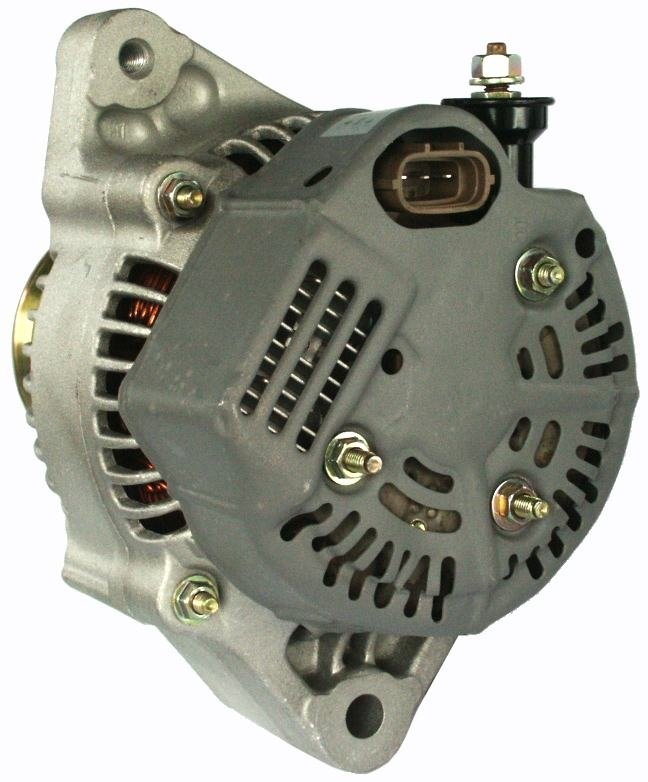

F032112360 - Alternator
Trade number 112360
Trade number 112360
Details & description
Voltage 14, Amp 60, Pulley DP, Bracket Hole Size 1 10.30, Pulley Diameter 71.40, Prod. info Reman, D+ Size Plug, D+ Position 60, Holder Arm Width 58.30, Pulley Distance 93.50, Servicing Toyota, B+ M6, Radius 2 83.00, Plug no. 1 PL42, Radius 79.50, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 2, Regulator type IR, Position 50, B+ Position 4, Belt Adjustment Bracket Hole Position 4, Total Length 164.50
Product information
Electrical information
- Voltage14
- Amp60
Catalogue information
- Prod. infoReman
- ServicingToyota
Physical information
- PulleyDP
- Bracket Hole Size 110.30
- Pulley Diameter71.40
- D+ SizePlug
- D+ Position60
- Holder Arm Width58.30
- Pulley Distance93.50
- B+M6
- Radius 283.00
