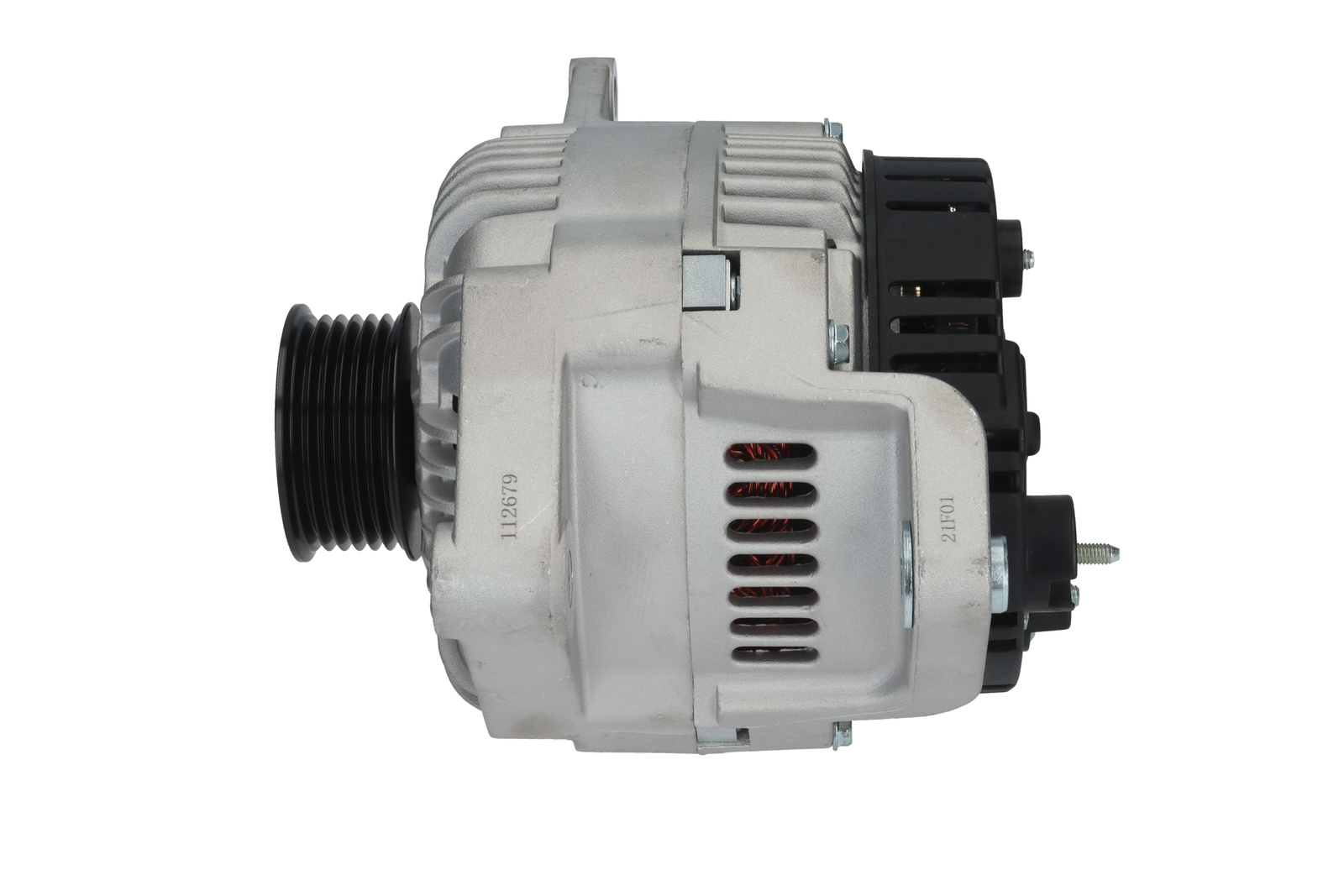

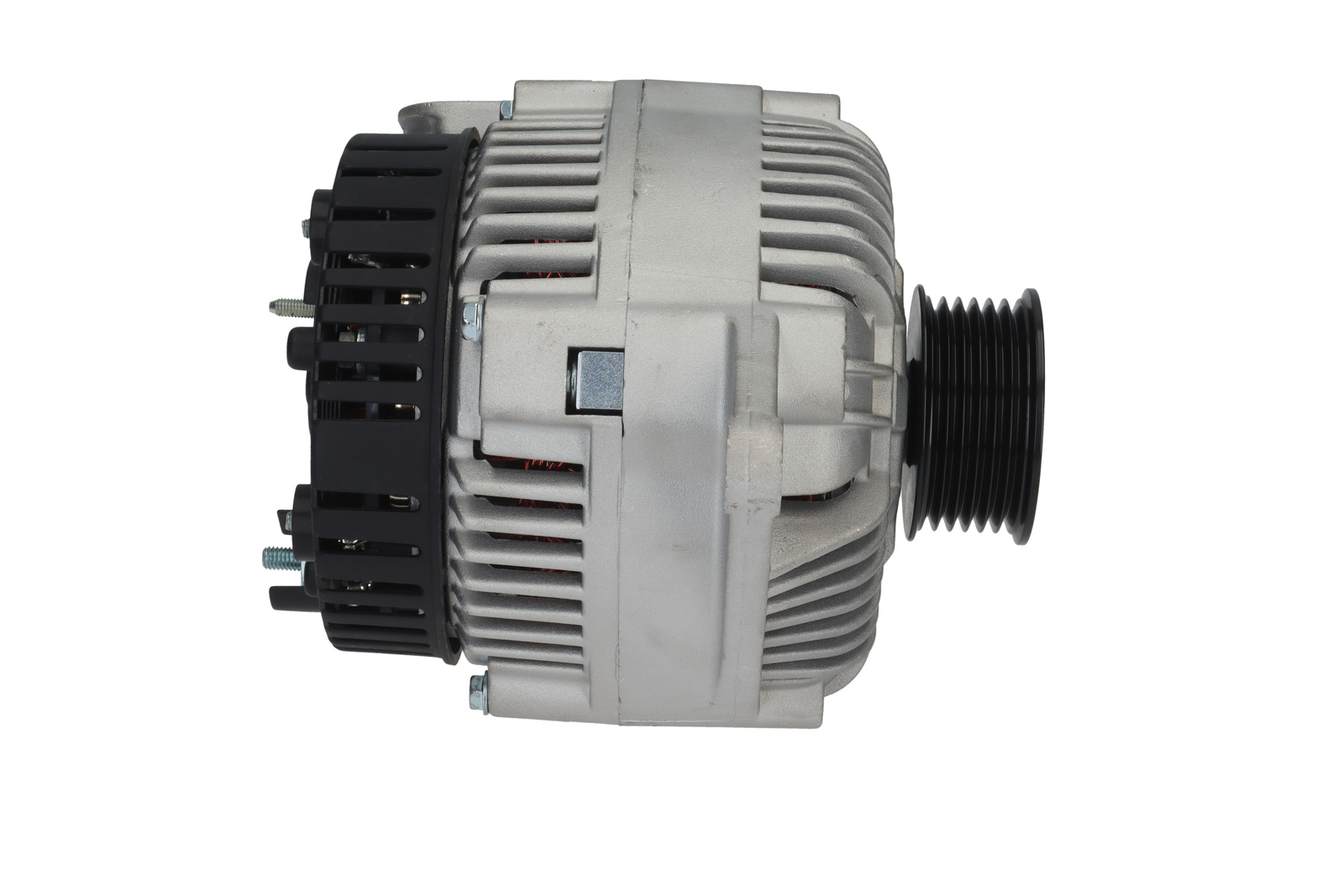

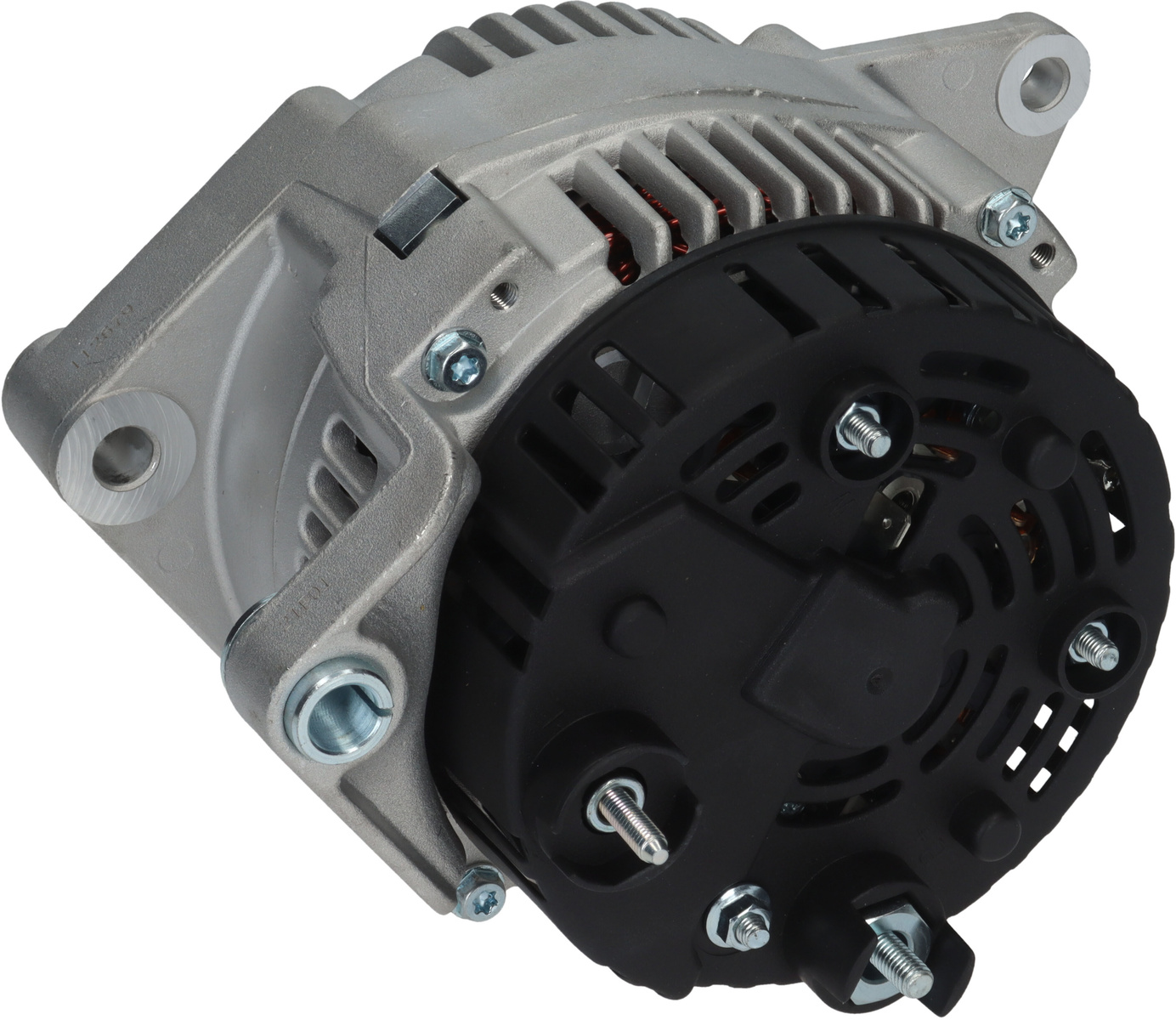

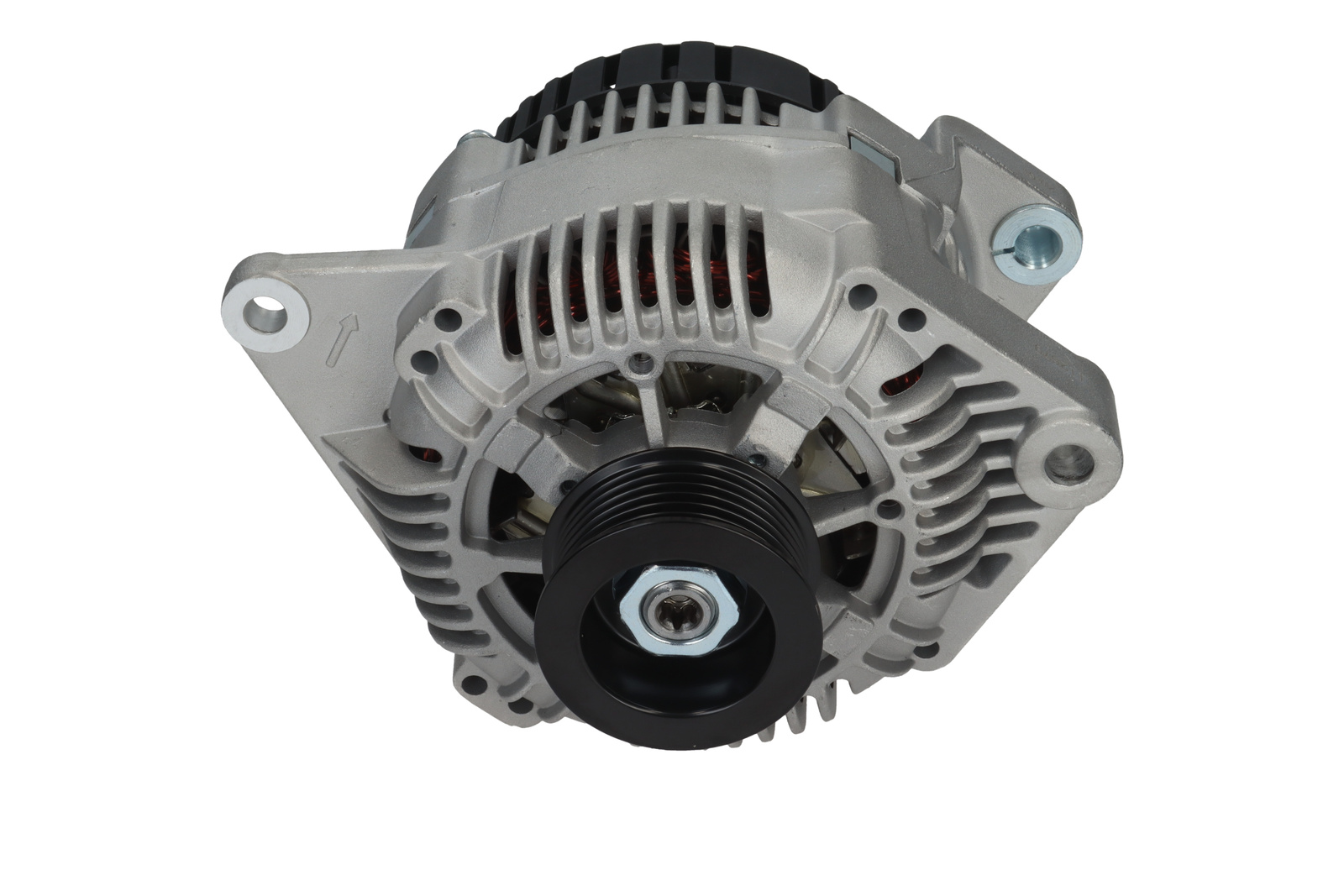

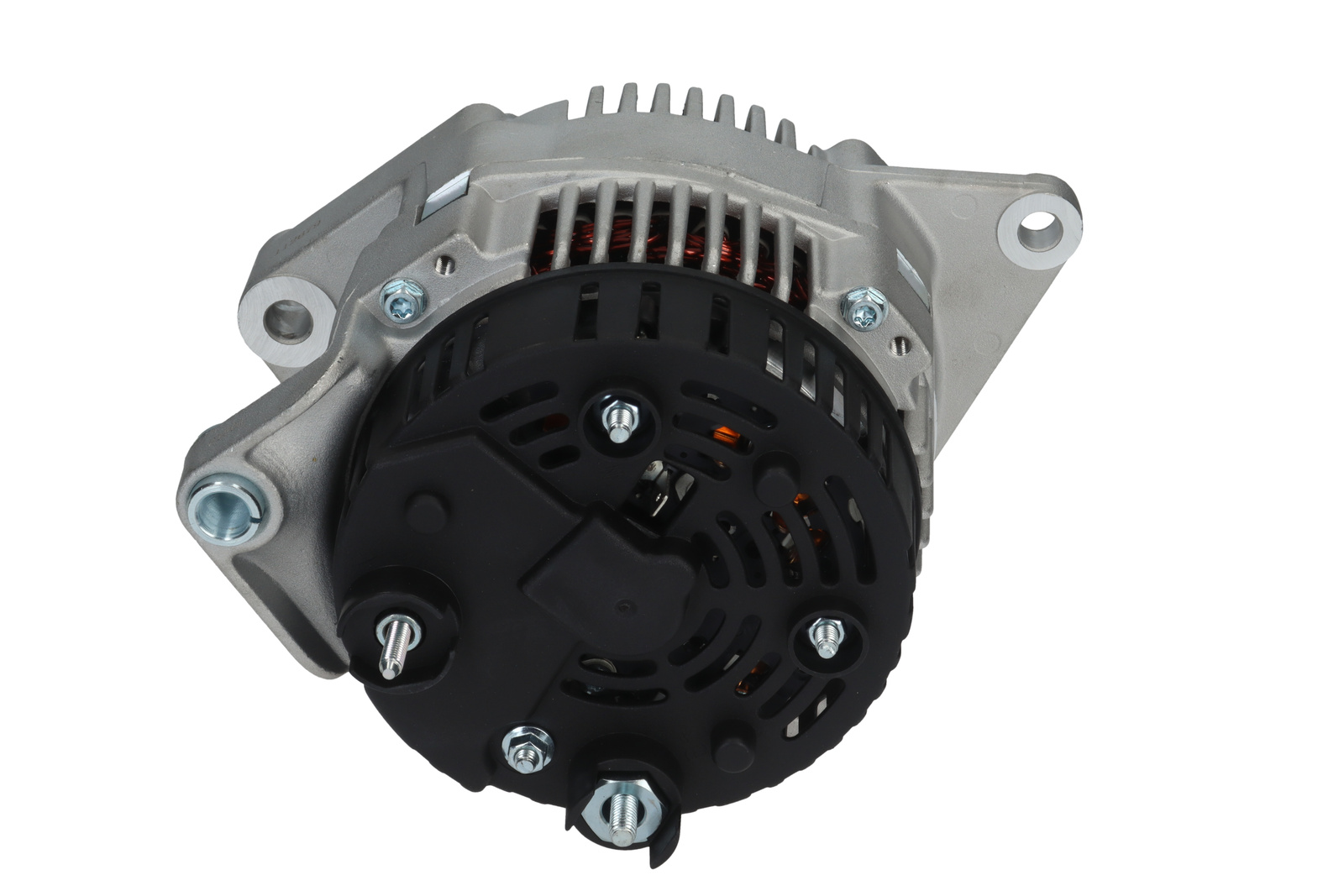

F032112679 - Alternator
Trade number 112679
Replacing and BOMs
OEM number
- 6201811M91AGCO (DEUTZ-ALLIS)
- 7700416985RENAULT
- 7700424582RENAULT
- 7700416958RENAULT
- 7700424595RENAULT
- 7701499611RENAULT
- 7700414371RENAULT
- 7700436626RENAULT
- 7700840260RENAULT
Competitor References
- DRA3357AC DELCO
- DRA3358AC DELCO
- DRA3718AC DELCO
- DRA3726AC DELCO
- DRA3727AC DELCO
- DRA3543AC DELCO
- 301036RIAD KÜHNER
- 301309RIAD KÜHNER
- A3089AUTOSTARTER POLAND
Trade number 112679
Details & description
Voltage 14, Amp 110, Terminal W, Pulley SP, W plug type 6.30, Pulley Diameter 55.00, Prod. info BN, Bracket Hole Size Rear 10.50, D+ Position 28, Pulley Distance 46.50, Servicing Renault, Volvo, Mounting Bracket Distance 66.30, Radius 85.00, Belt Adjustment Bracket Hole 1 8.30, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.20, D+ Size M5, Holder Arm Width 27.70, B+ M6, Radius 2 100.00, Rotation CW, Position 30, B+ Position 15, Belt Adjustment Bracket Hole Position 5, Total Length 190.00
Product information
Electrical information
- Voltage14
- Amp110
- TerminalW
Catalogue information
- Prod. infoBN
- ServicingRenault, Volvo
Physical information
- PulleySP
- W plug type6.30
- Pulley Diameter55.00
- Bracket Hole Size Rear10.50
- D+ Position28
- Pulley Distance46.50
- Mounting Bracket Distance66.30
- Radius85.00
- Belt Adjustment Bracket Hole 18.30
Replacing and BOMs
OEM number
- 6201811M91AGCO (DEUTZ-ALLIS)
- 7700416985RENAULT
- 7700424582RENAULT
- 7700416958RENAULT
- 7700424595RENAULT
- 7701499611RENAULT
- 7700414371RENAULT
- 7700436626RENAULT
- 7700840260RENAULT
Competitor References
- DRA3357AC DELCO
- DRA3358AC DELCO
- DRA3718AC DELCO
- DRA3726AC DELCO
- DRA3727AC DELCO
- DRA3543AC DELCO
- 301036RIAD KÜHNER
- 301309RIAD KÜHNER
- A3089AUTOSTARTER POLAND
