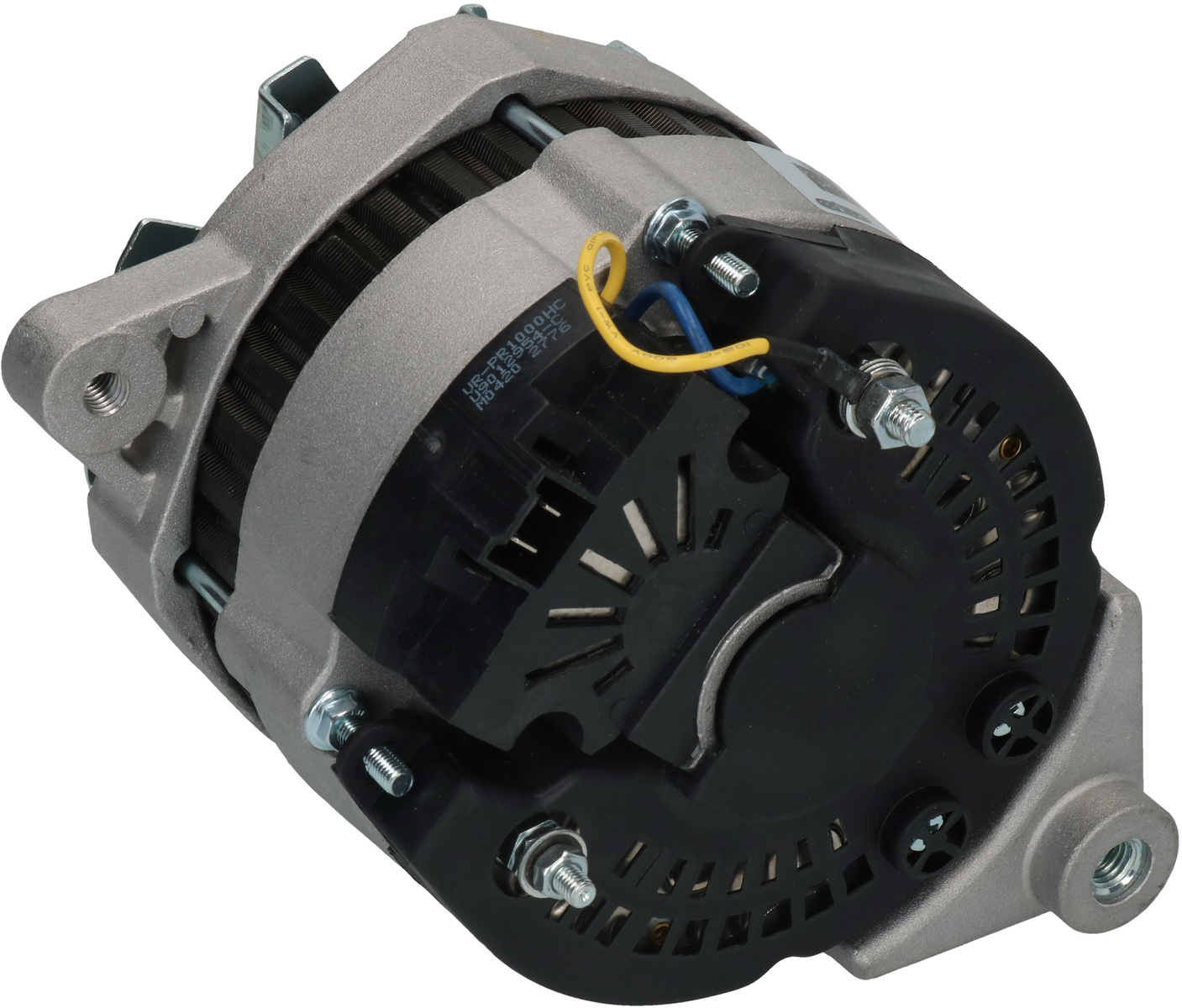

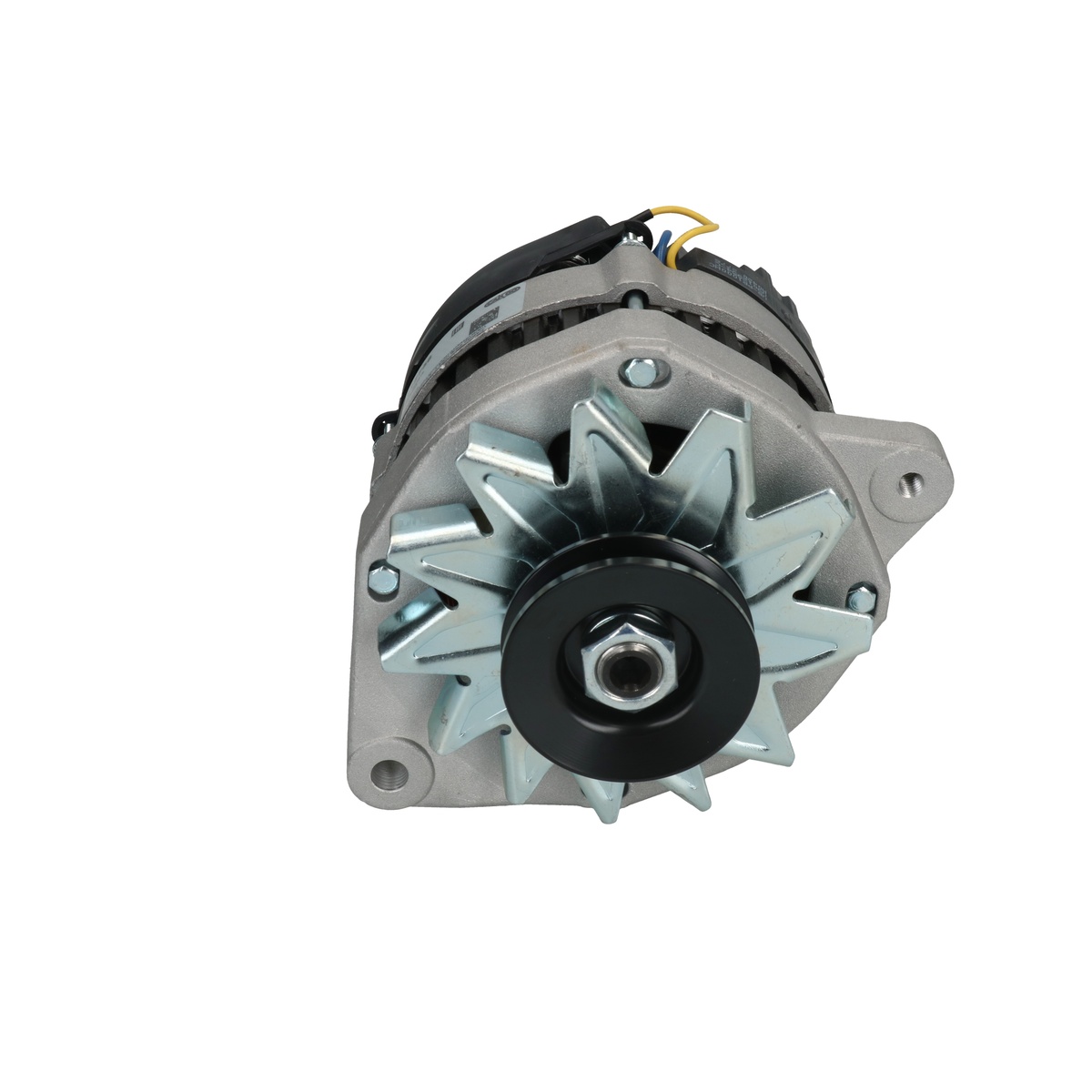

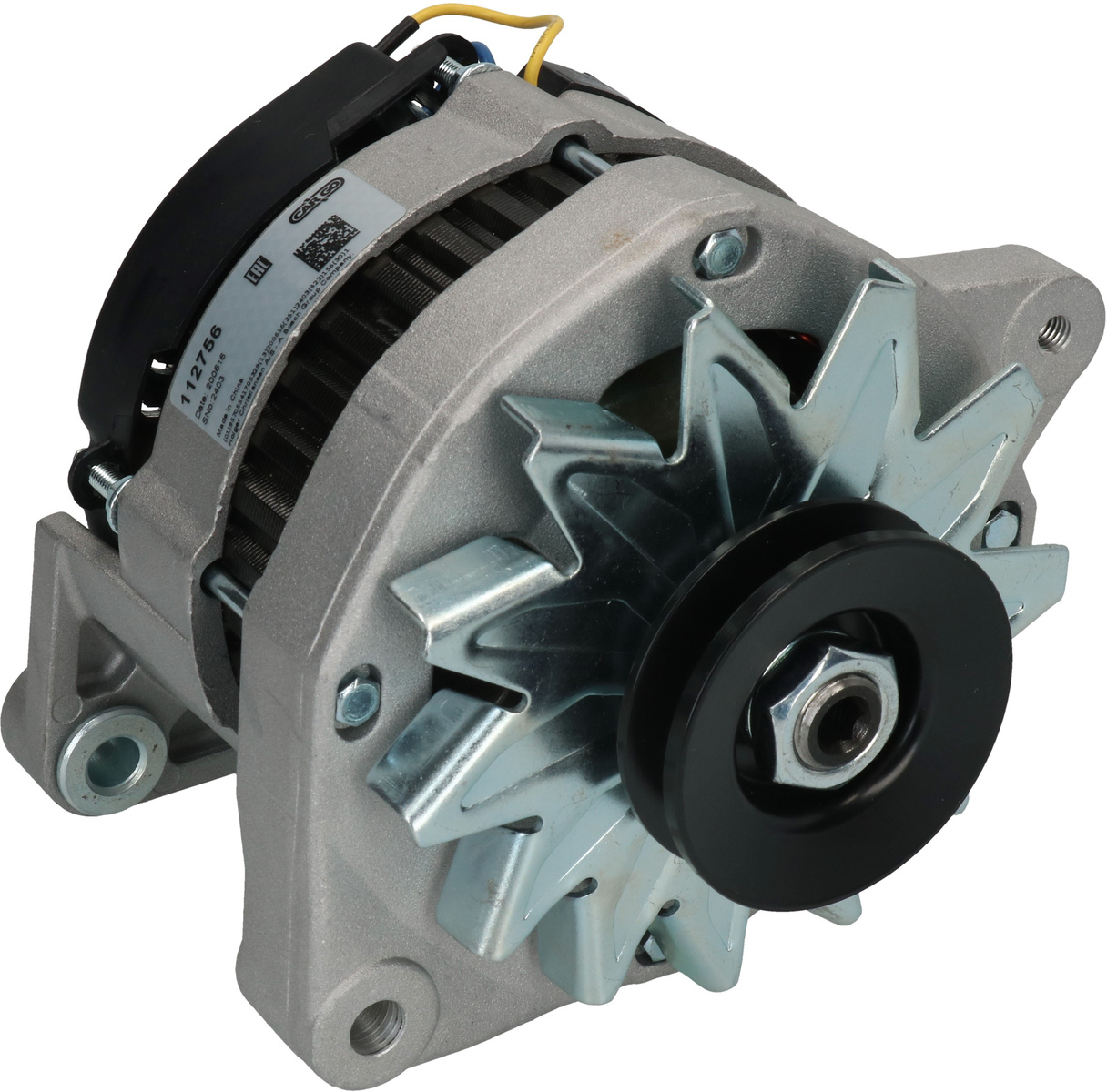

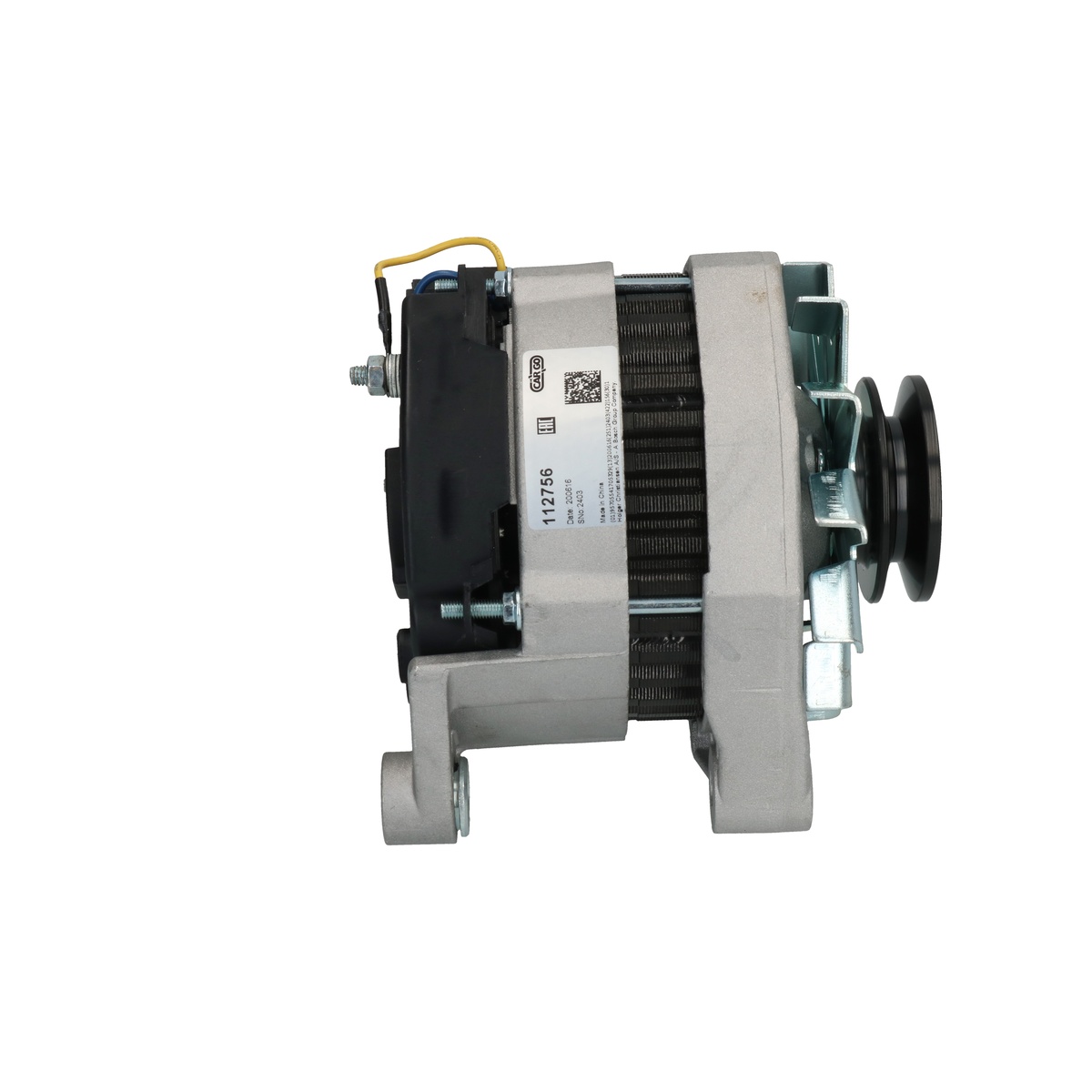

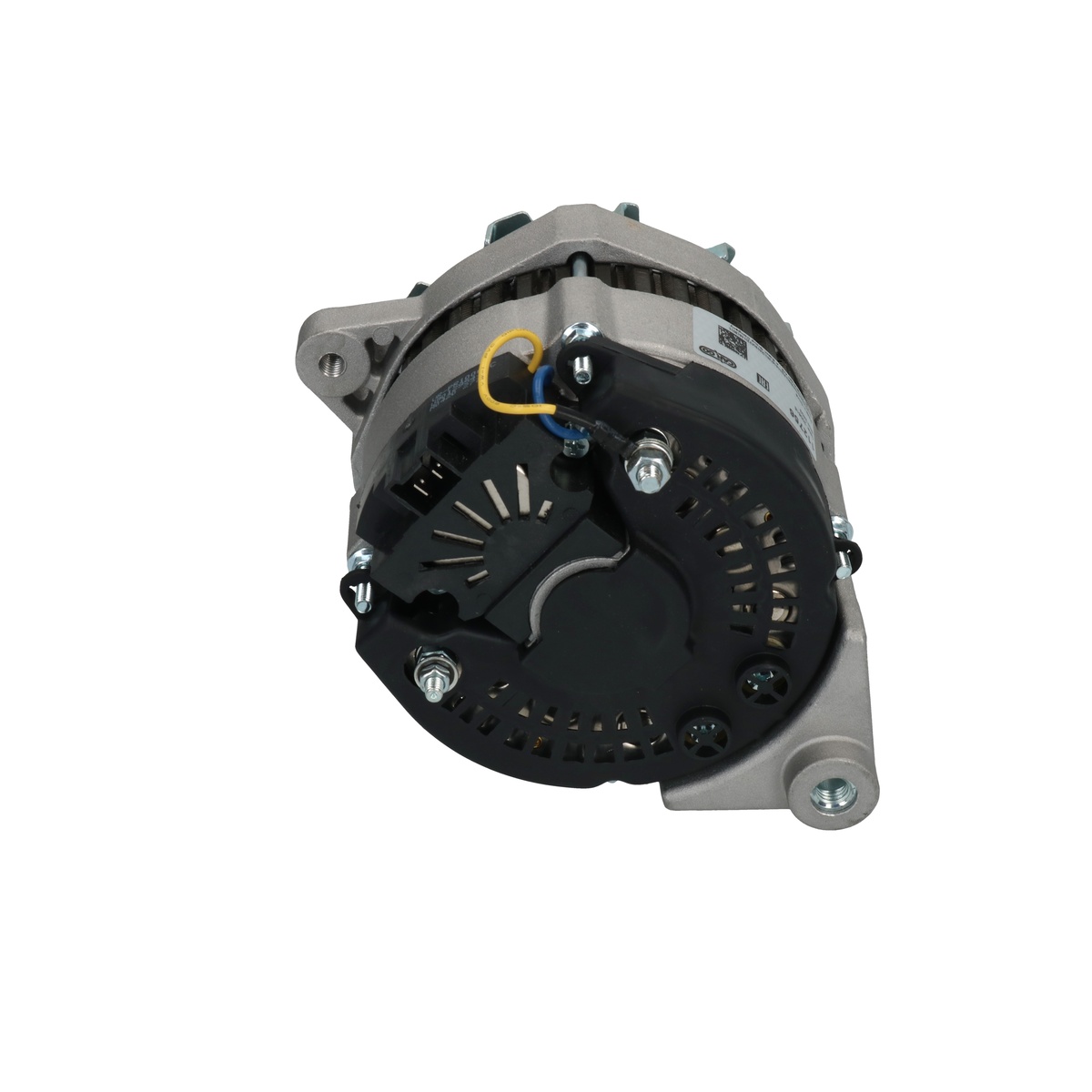

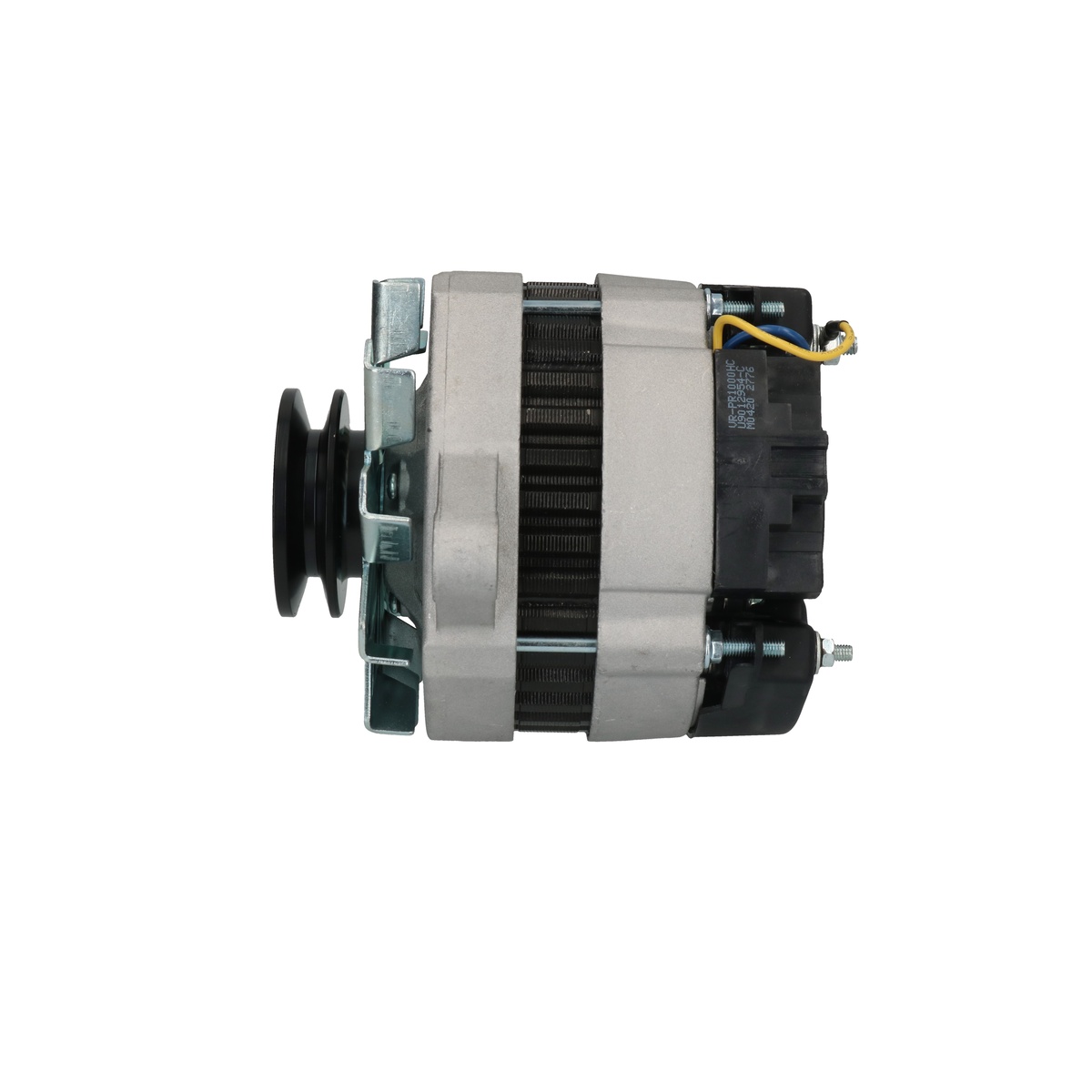

F032112756 - Alternator
Trade number 112756
Trade number 112756
Details & description
Voltage 14, Amp 60, Pulley P, Bracket Hole Size 1 10.00, Pulley Diameter 68.70, Prod. info BN, Bracket Hole Size Rear M10, Holder Arm Width 27.00, Pulley Distance 56.00, Servicing Renault, B+ M6, Radius 2 82.00, Plug no. 1 PL27, Mounting Bracket Distance 65.00, Radius 84.50, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 1, Regulator type IR, Position 60, B+ Position 10, Belt Adjustment Bracket Hole Position 5, Total Length 160.00
Product information
Electrical information
- Voltage14
- Amp60
Catalogue information
- Prod. infoBN
- ServicingRenault
Physical information
- PulleyP
- Bracket Hole Size 110.00
- Pulley Diameter68.70
- Bracket Hole Size RearM10
- Holder Arm Width27.00
- Pulley Distance56.00
- B+M6
- Radius 282.00
- Plug no. 1PL27
