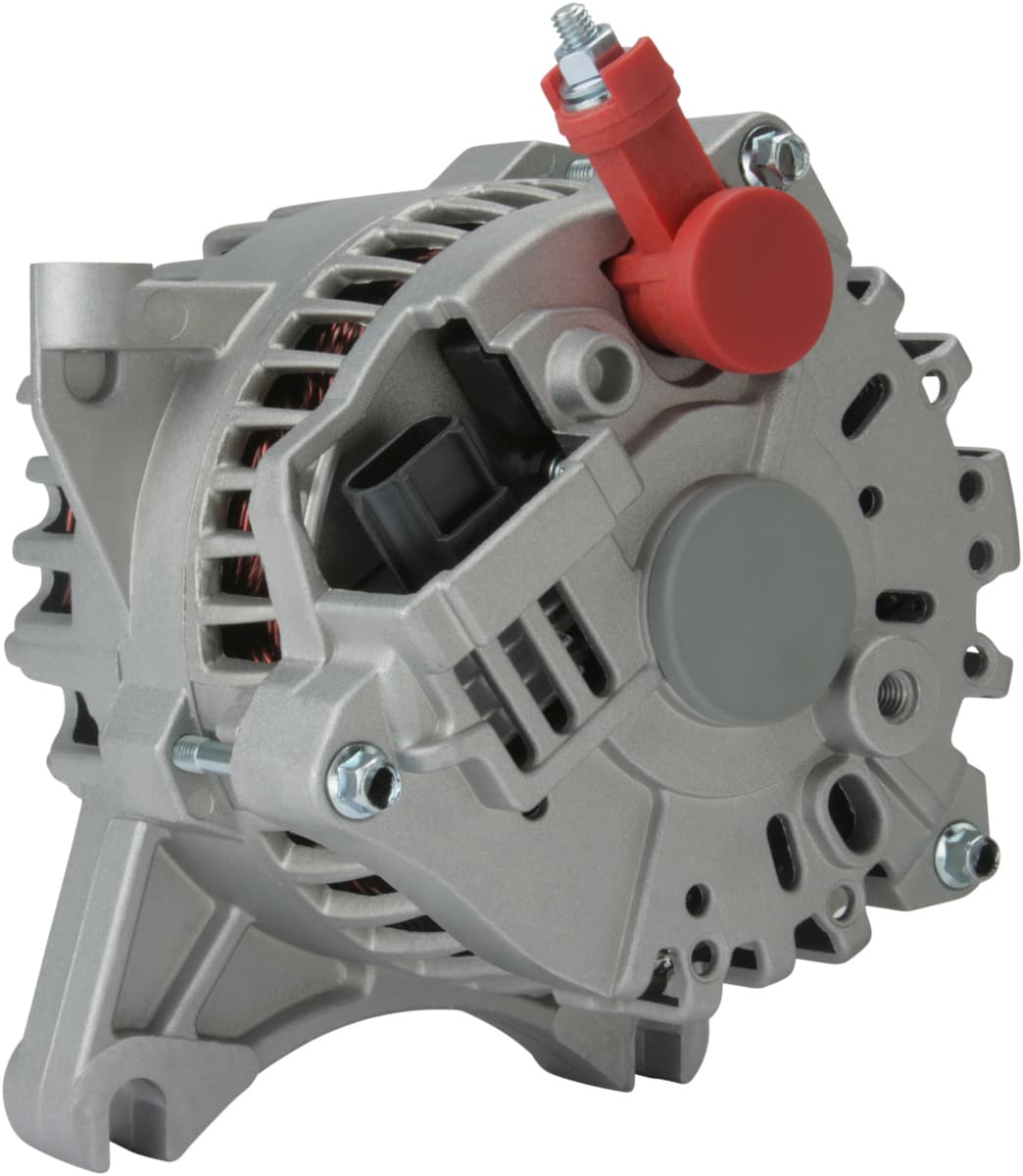

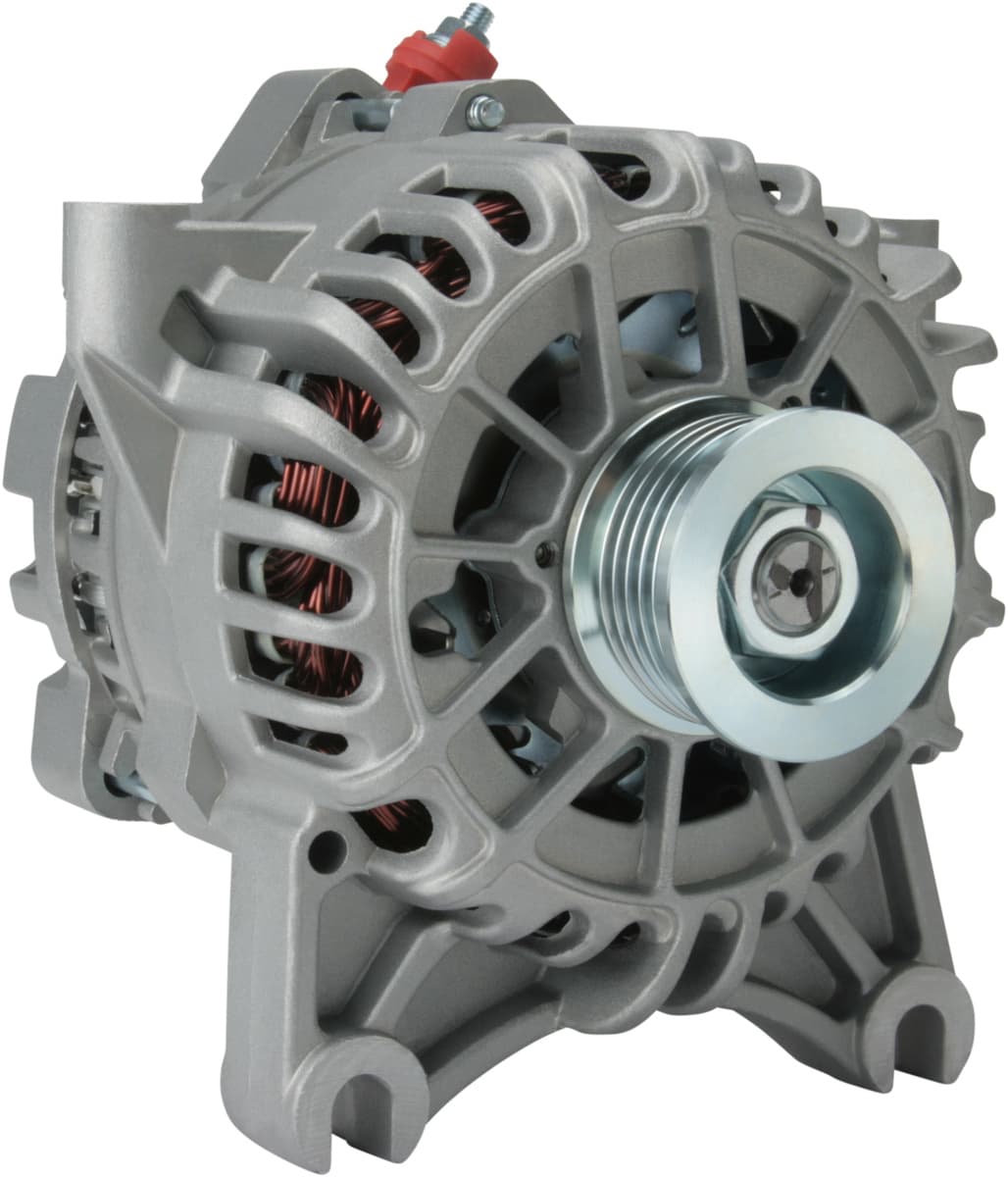

F032112954 - Alternator
Trade number 112954
F032112954 - Alternator
Details & description
Voltage 14, Amp 105, Pulley SP, Pulley Diameter 48.50, Prod. info BN, D+ Position 52, Pulley Distance 50.00, Servicing Ford, Radius 98.00, Belt Adjustment Bracket Hole 1 9.80, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 9.80, D+ Size Plug, Holder Arm Width 25.50, B+ M6, Radius 2 105.50, Plug no. 1 PL117, Rotation CW, Position 48, B+ Position 2, Belt Adjustment Bracket Hole Position 20, Total Length 165.00, Remarks Replacing: 6G series
Product information
Voltage:14
Amp:105
Pulley:SP
Pulley Diameter:48.50
Prod. info:BN
D+ Position:52
Pulley Distance:50.00
Servicing:Ford
Radius:98.00
Belt Adjustment Bracket Hole 1:9.80
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:9.80
D+ Size:Plug
Holder Arm Width:25.50
B+:M6
Radius 2:105.50

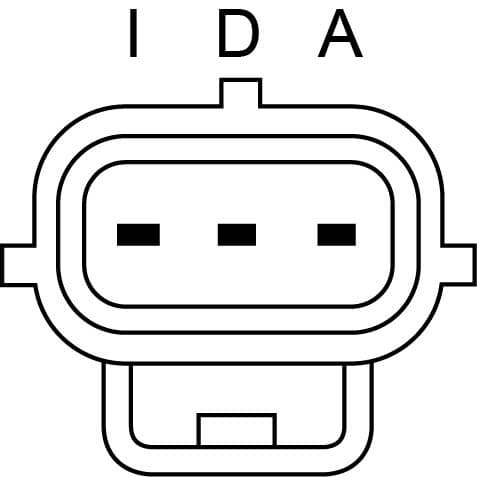

Plug no. 1:PL117
Rotation:CW
Position:48
B+ Position:2
Belt Adjustment Bracket Hole Position:20
Total Length:165.00
Remarks:Replacing: 6G series
