F032113181 - Starter
Trade number 113181
Replacing and BOMs
OEM number
4221711M91ARGO
2913146100ATLAS COPCO
05718064BOMAG
01184176DEUTZ-FAHR
F01183677DEUTZ-FAHR
1285858HAMM
71440369JCB
1182384KHD
1181751KHD
1182382KHD
1182124KHD
01181751KHD
01182124KHD
01182382KHD
01182384KHD
04300007KHD
01184175KHD
01184176KHD
1181751KZKHD
1182384KZKHD
4300006KHD
01181751KZKHD
01182384KZKHD
01183404KHD
01183599KHD
04300006KHD
1183404KHD
1183599KHD
00430006KHD
03050444KHD
0430006KHD
3050444KHD
4300007KHD
1184175KHD
1184176KHD
138859KHD
15170187VOLVO
Competitor References
DRS9820AC DELCO
DRS9820NAC DELCO
254019AD KÜHNER
254897AD KÜHNER
S0101SRAUTOSTARTER POLAND
S9414SAUTOSTARTER POLAND
S0101AUTOSTARTER POLAND
S0101PRAUTOSTARTER POLAND
S0293AUTOSTARTER POLAND
1986S00755BOSCH
F042002148BOSCH
F042200050BOSCH
0986019823BOSCH
0986019820BOSCH
0986019827BOSCH
BSO7257BOWERS
CST10226CASCO SRL
CST10359CASCO SRL
CST21131CASCO SRL
CST21139CASCO SRL
8506CEVAM
510503092CV PSH
510520092CV PSH
510524092CV PSH
510516092CV PSH
DRS9820DELCO REMY
DRS9820NDELCO REMY
688019092DRI
688033092DRI
253324ELSTOCK
254345ELSTOCK
220810ERA SPA
220810AERA SPA
11019820EUROTEC
105081FACROM
106253FACROM
7020479HC-CARGO
113181HC-CARGO
8EA015642481HELLA
8EA015642581HELLA
11131600ISKRA
IS1217ISKRA
AZE6530ISKRA
MS28ISKRA
MS641ISKRA
MS211ISKRA
IS1454ISKRA
AZE4566ISKRA
18951LESTER
LRS01755LUCAS
LES0346LUCAS
LRS02673LUCAS
AZE6555MAHLE
MSN2035MARELLI
063522230160MARELLI
063522230MARELLI
SM2621MITSUBA ELECTRIC
861094PRESTOLITE ELECTRIC
23000BOWAI
18951NWAI
STR22075WOOD AUTO SUPPL

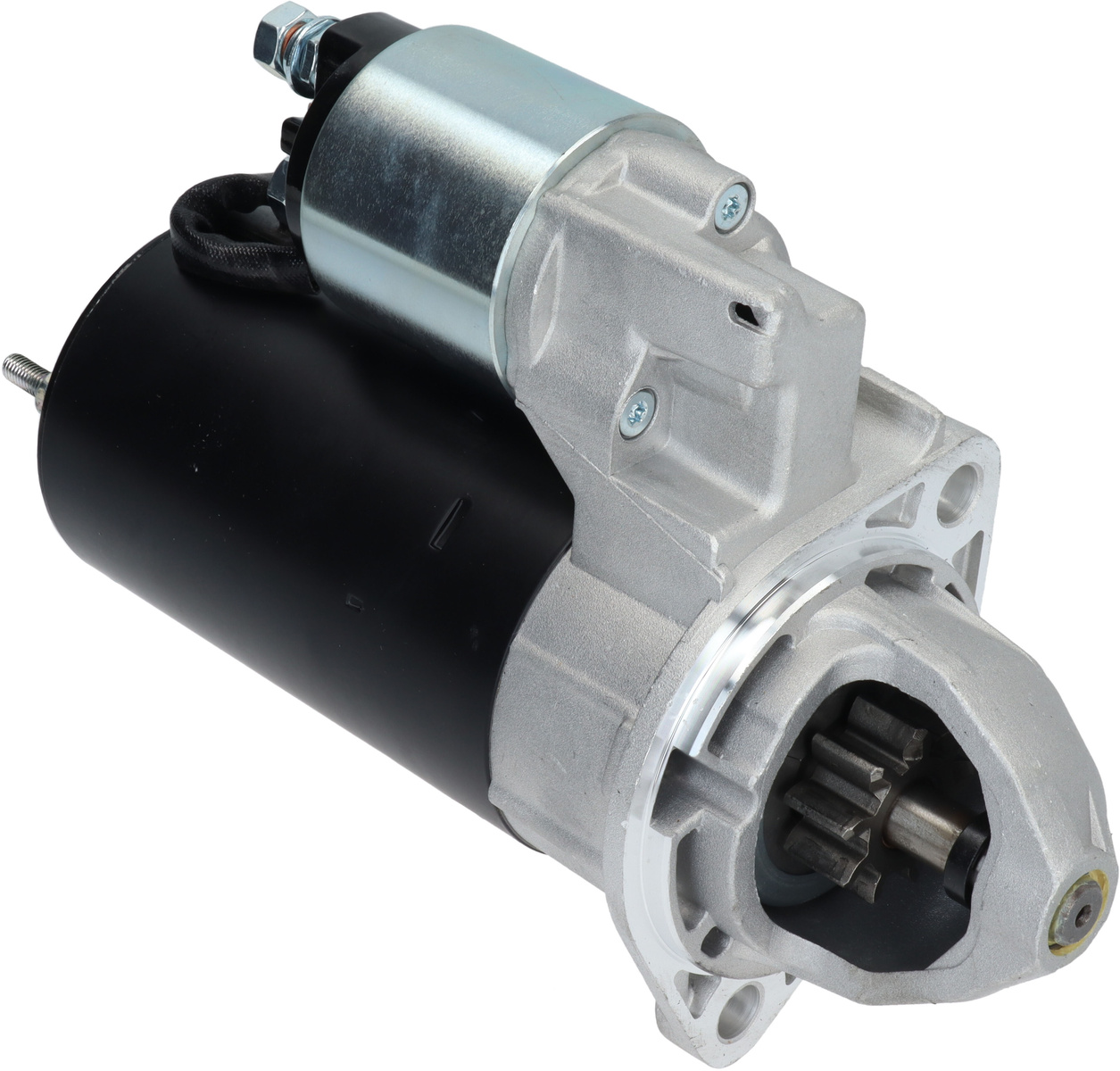

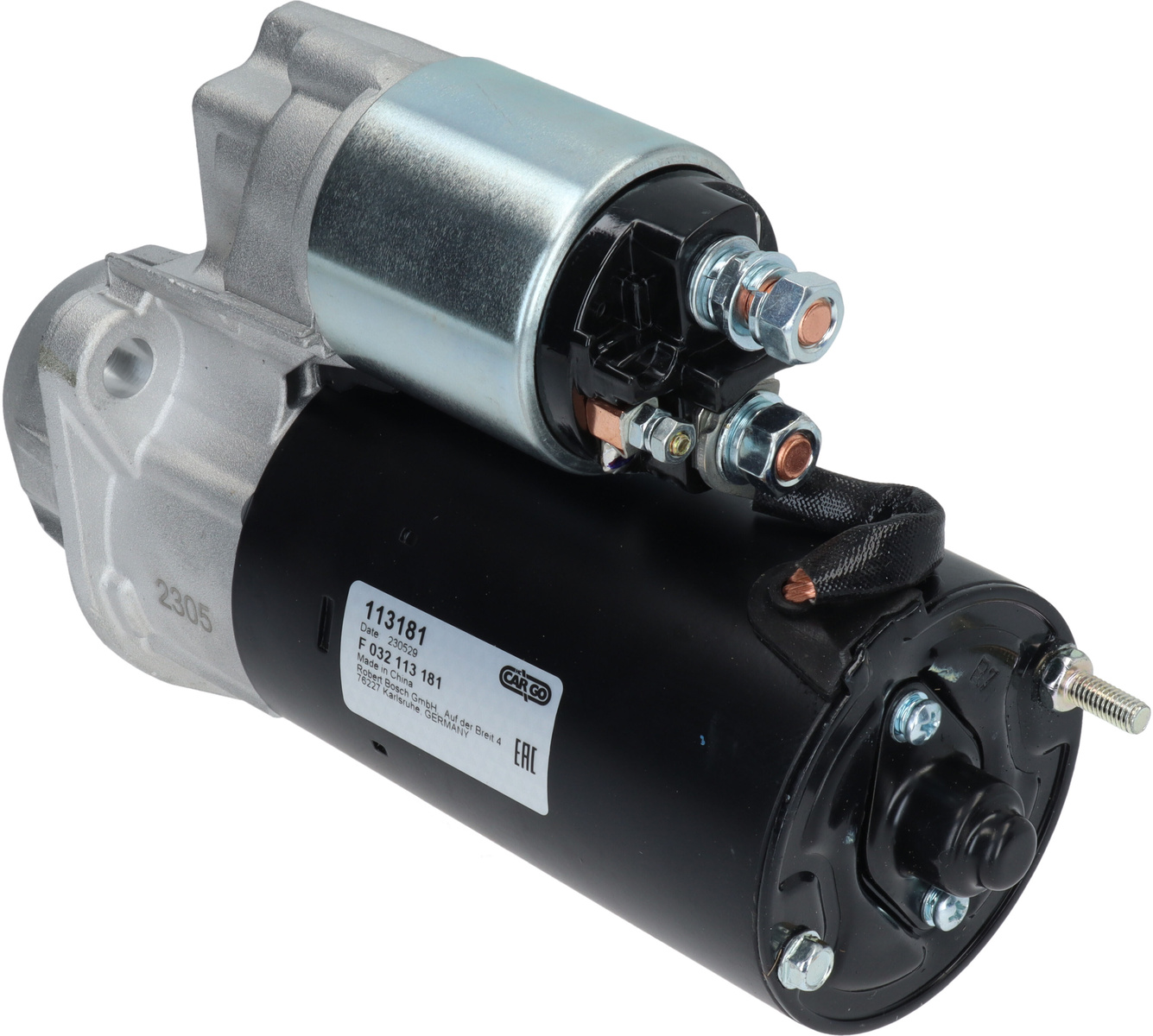

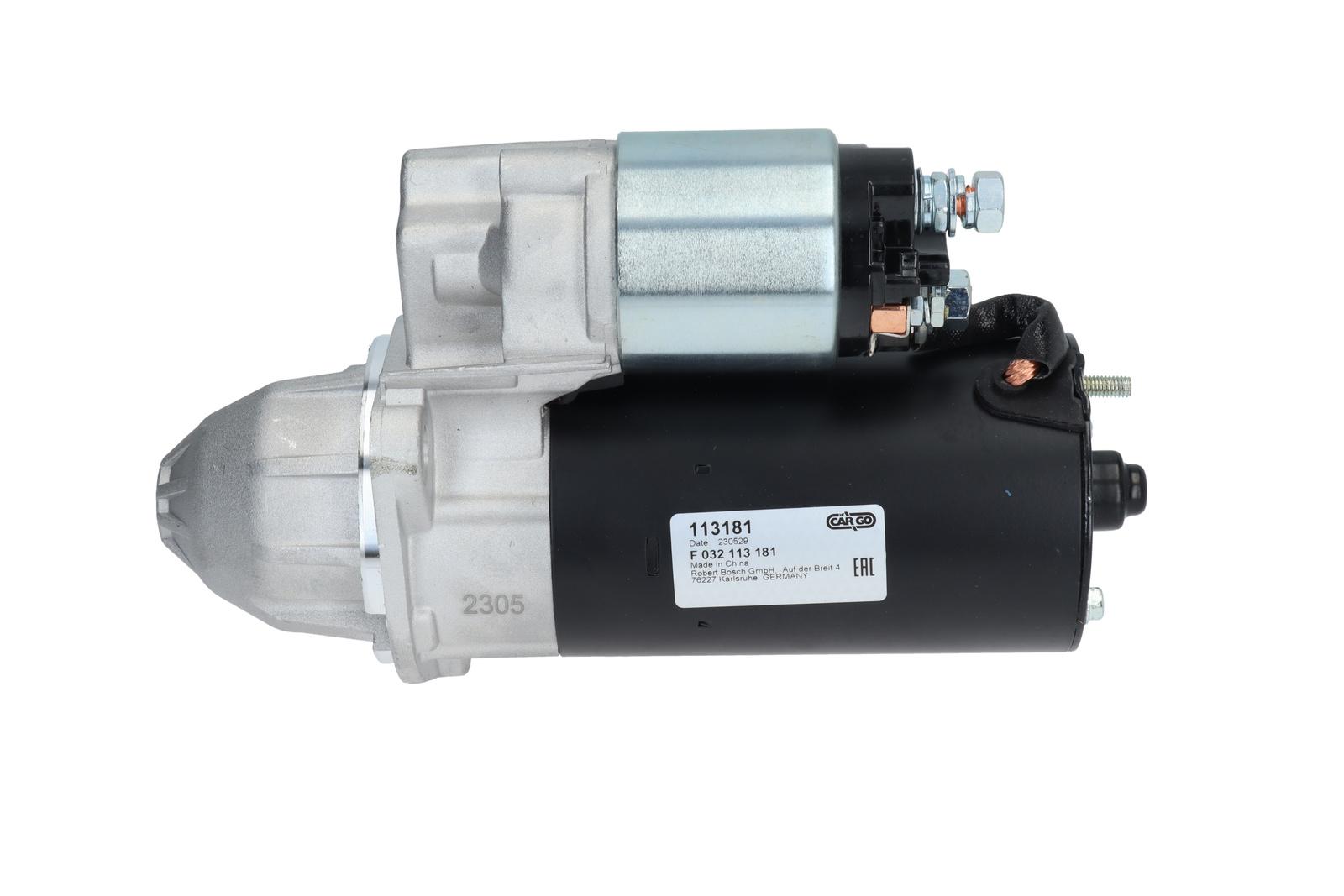

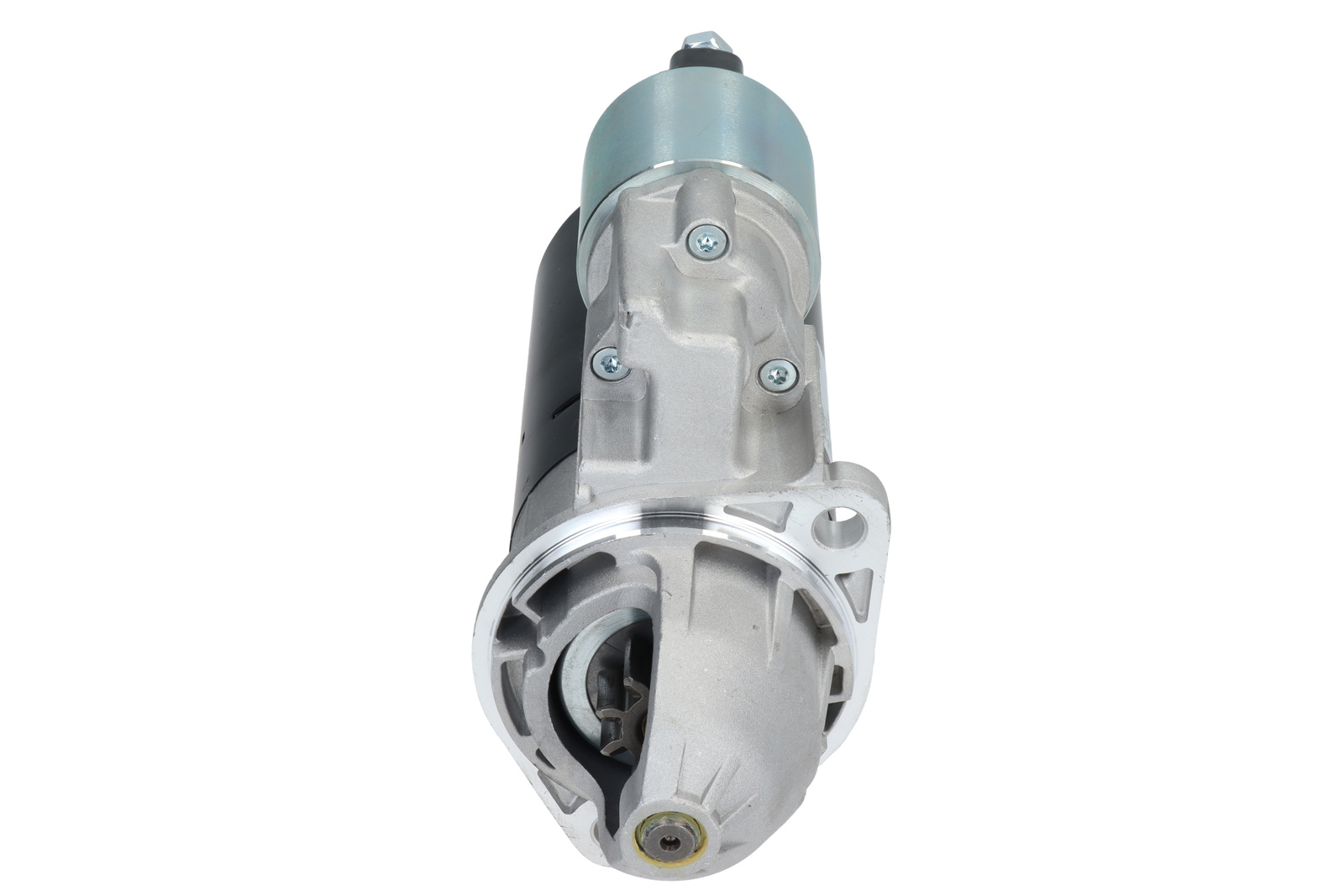

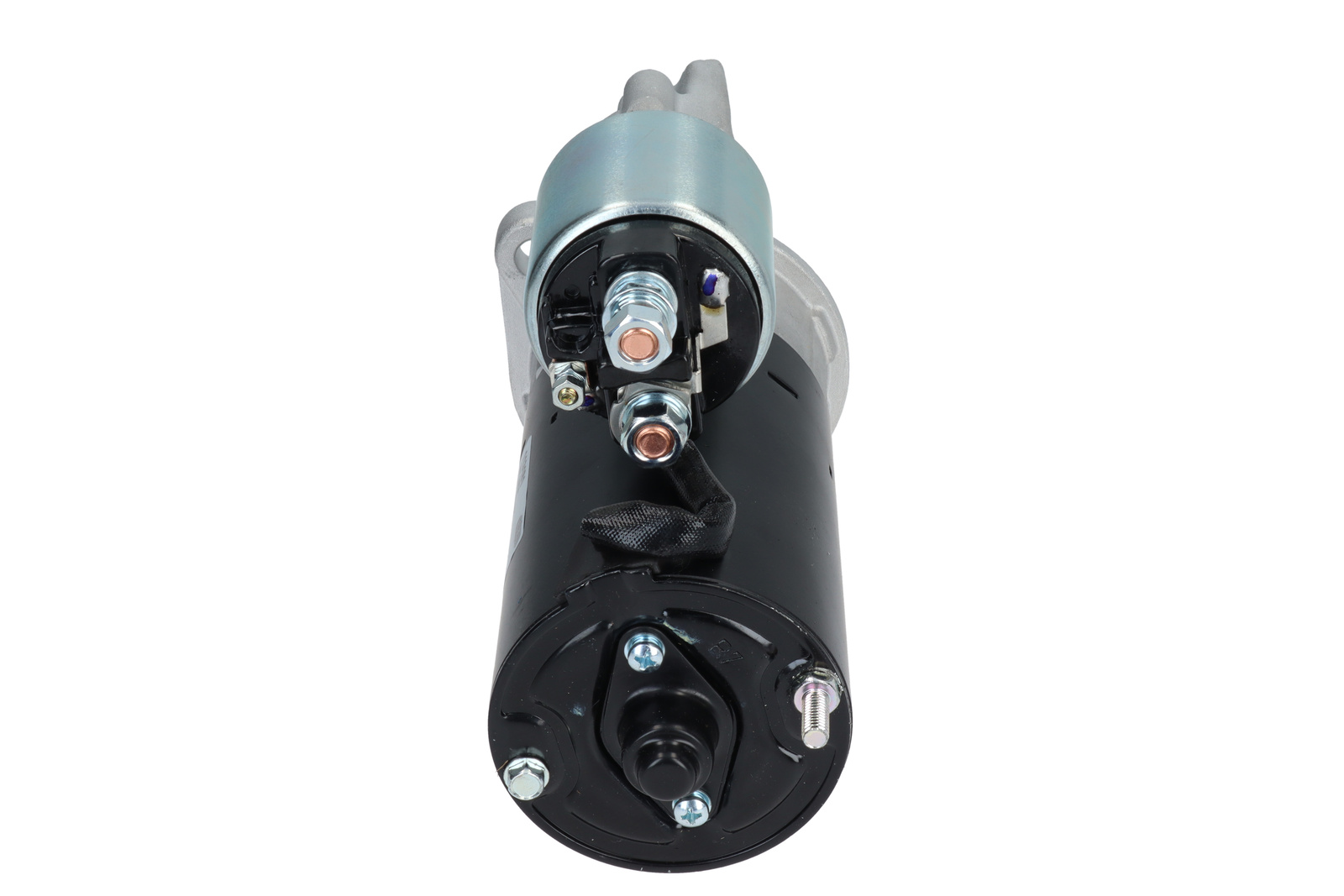

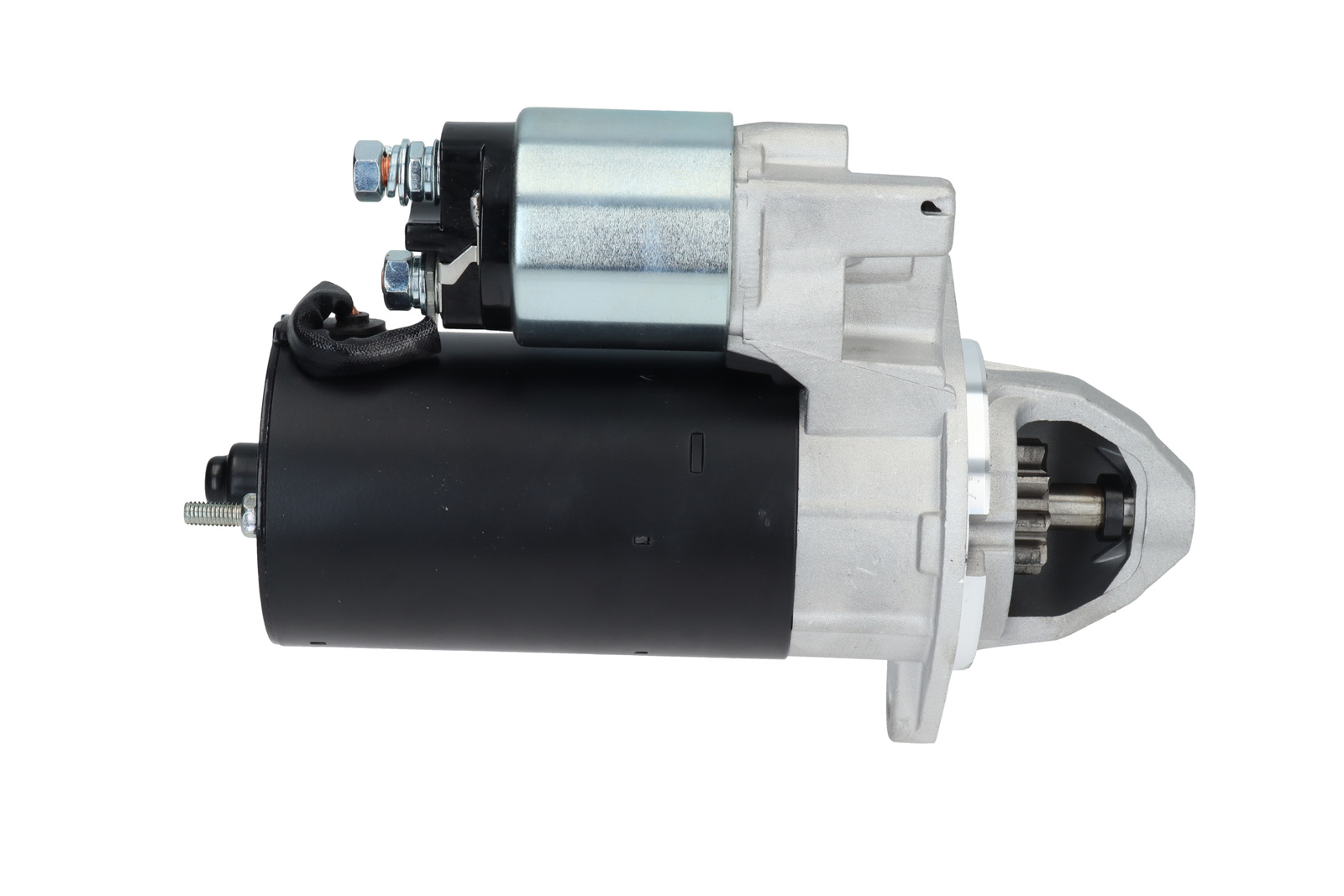

F032113181 - Starter
Details & description
kW 2.3, Voltage 12, Drive type Steel, No./mount. holes 2 (0), Mounting Hole 2 11.00, Rear Distance 177.00, Gear type GR, Prod. info BN, Waterproof No, Front Distance 62.00, Drive Distance 23.00, No./teeth 9, B+ M8, Terminal 50 M4, Mounting Flange 82.50, Distance 101.00, Oil sealed No, Rotation CW, Position 40, Mounting Hole 1 11.00, Amount of Mounting Holes 2 (0), Total Length 258.00
Product information
kW:2.3
Voltage:12
Drive type:Steel
No./mount. holes:2 (0)
Mounting Hole 2:11.00
Rear Distance:177.00
Gear type:GR
Prod. info:BN
Waterproof:No
Front Distance:62.00
Drive Distance:23.00
No./teeth:9
B+:M8
Terminal 50:M4
Mounting Flange:82.50
Distance:101.00
Oil sealed:No
Rotation:CW
Position:40
Mounting Hole 1:11.00
Amount of Mounting Holes:2 (0)
Total Length:258.00
Replacing and BOMs
OEM number
4221711M91ARGO
2913146100ATLAS COPCO
05718064BOMAG
01184176DEUTZ-FAHR
F01183677DEUTZ-FAHR
1285858HAMM
71440369JCB
1182384KHD
1181751KHD
1182382KHD
1182124KHD
01181751KHD
01182124KHD
01182382KHD
01182384KHD
04300007KHD
01184175KHD
01184176KHD
1181751KZKHD
1182384KZKHD
4300006KHD
01181751KZKHD
01182384KZKHD
01183404KHD
01183599KHD
04300006KHD
1183404KHD
1183599KHD
00430006KHD
03050444KHD
0430006KHD
3050444KHD
4300007KHD
1184175KHD
1184176KHD
138859KHD
15170187VOLVO
Competitor References
DRS9820AC DELCO
DRS9820NAC DELCO
254019AD KÜHNER
254897AD KÜHNER
S0101SRAUTOSTARTER POLAND
S9414SAUTOSTARTER POLAND
S0101AUTOSTARTER POLAND
S0101PRAUTOSTARTER POLAND
S0293AUTOSTARTER POLAND
1986S00755BOSCH
F042002148BOSCH
F042200050BOSCH
0986019823BOSCH
0986019820BOSCH
0986019827BOSCH
BSO7257BOWERS
CST10226CASCO SRL
CST10359CASCO SRL
CST21131CASCO SRL
CST21139CASCO SRL
8506CEVAM
510503092CV PSH
510520092CV PSH
510524092CV PSH
510516092CV PSH
DRS9820DELCO REMY
DRS9820NDELCO REMY
688019092DRI
688033092DRI
253324ELSTOCK
254345ELSTOCK
220810ERA SPA
220810AERA SPA
11019820EUROTEC
105081FACROM
106253FACROM
7020479HC-CARGO
113181HC-CARGO
8EA015642481HELLA
8EA015642581HELLA
11131600ISKRA
IS1217ISKRA
AZE6530ISKRA
MS28ISKRA
MS641ISKRA
MS211ISKRA
IS1454ISKRA
AZE4566ISKRA
18951LESTER
LRS01755LUCAS
LES0346LUCAS
LRS02673LUCAS
AZE6555MAHLE
MSN2035MARELLI
063522230160MARELLI
063522230MARELLI
SM2621MITSUBA ELECTRIC
861094PRESTOLITE ELECTRIC
23000BOWAI
18951NWAI
STR22075WOOD AUTO SUPPL
