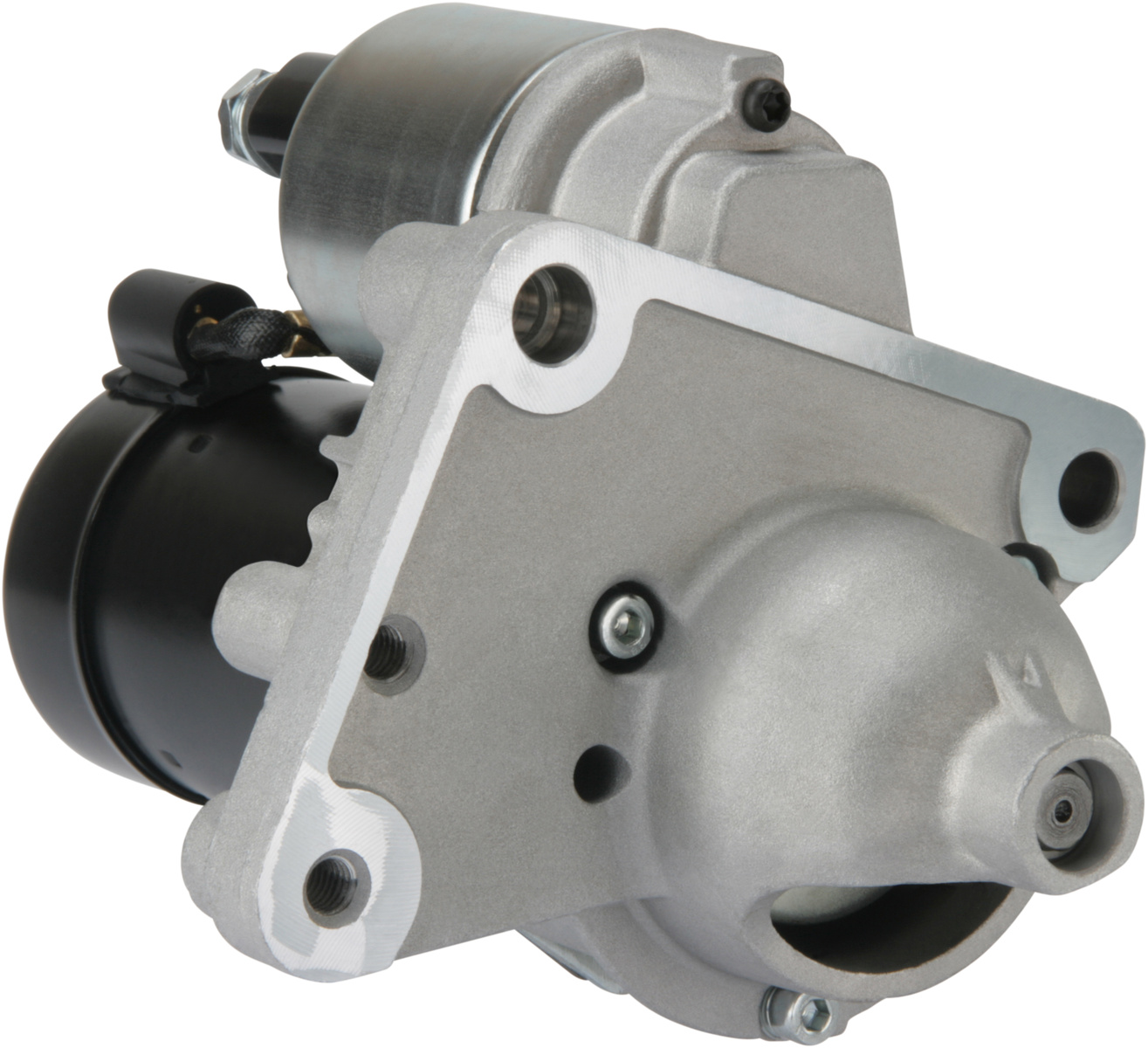

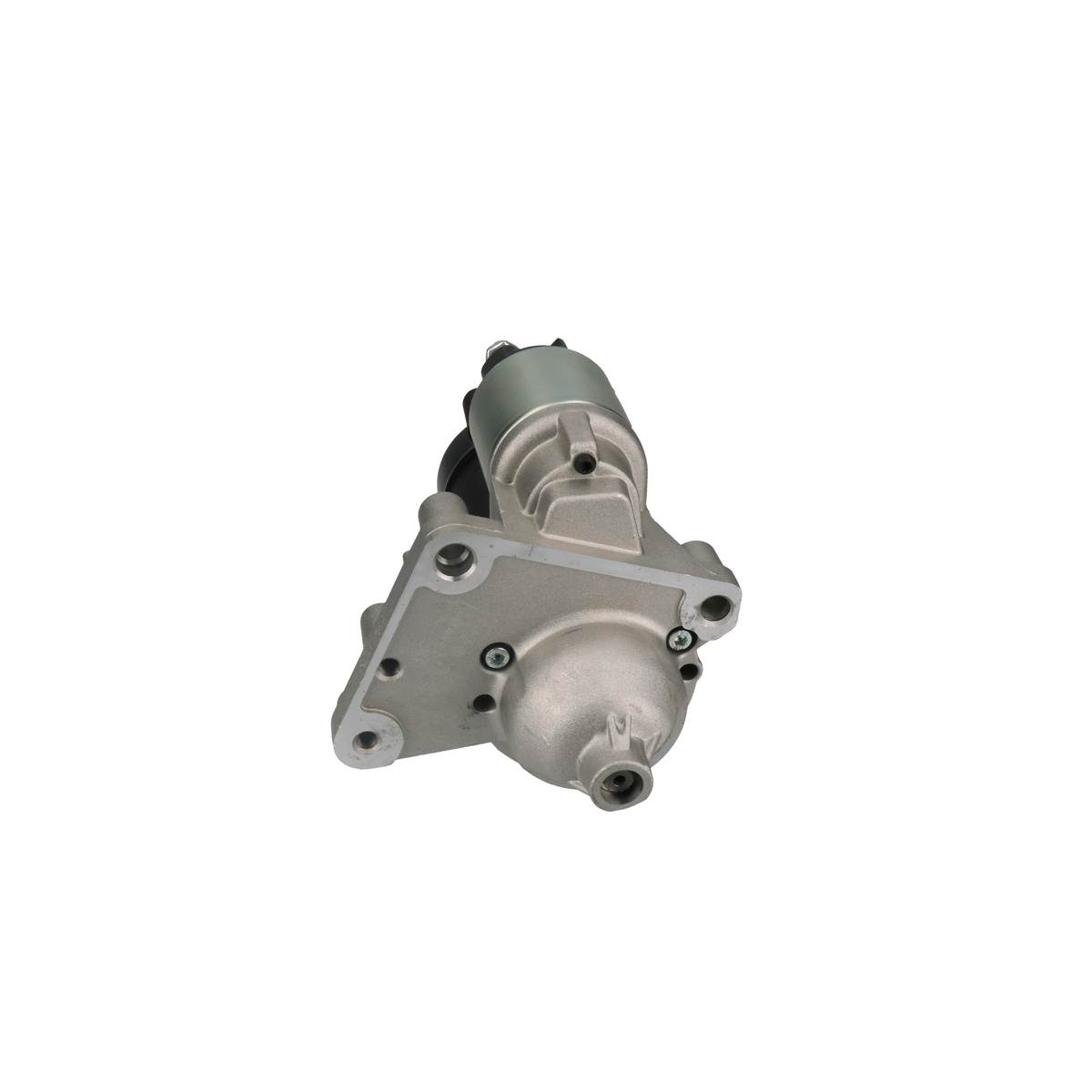

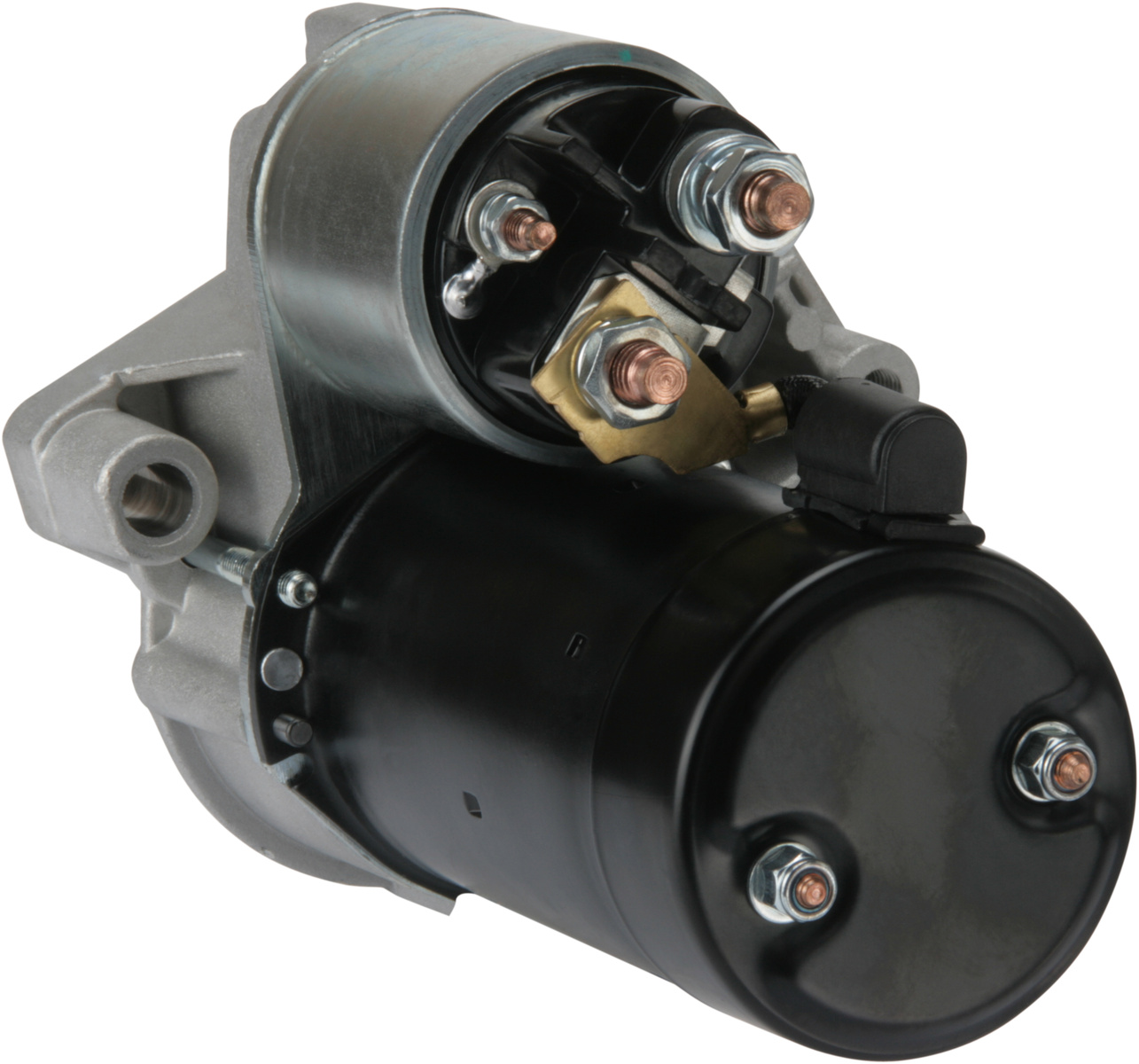

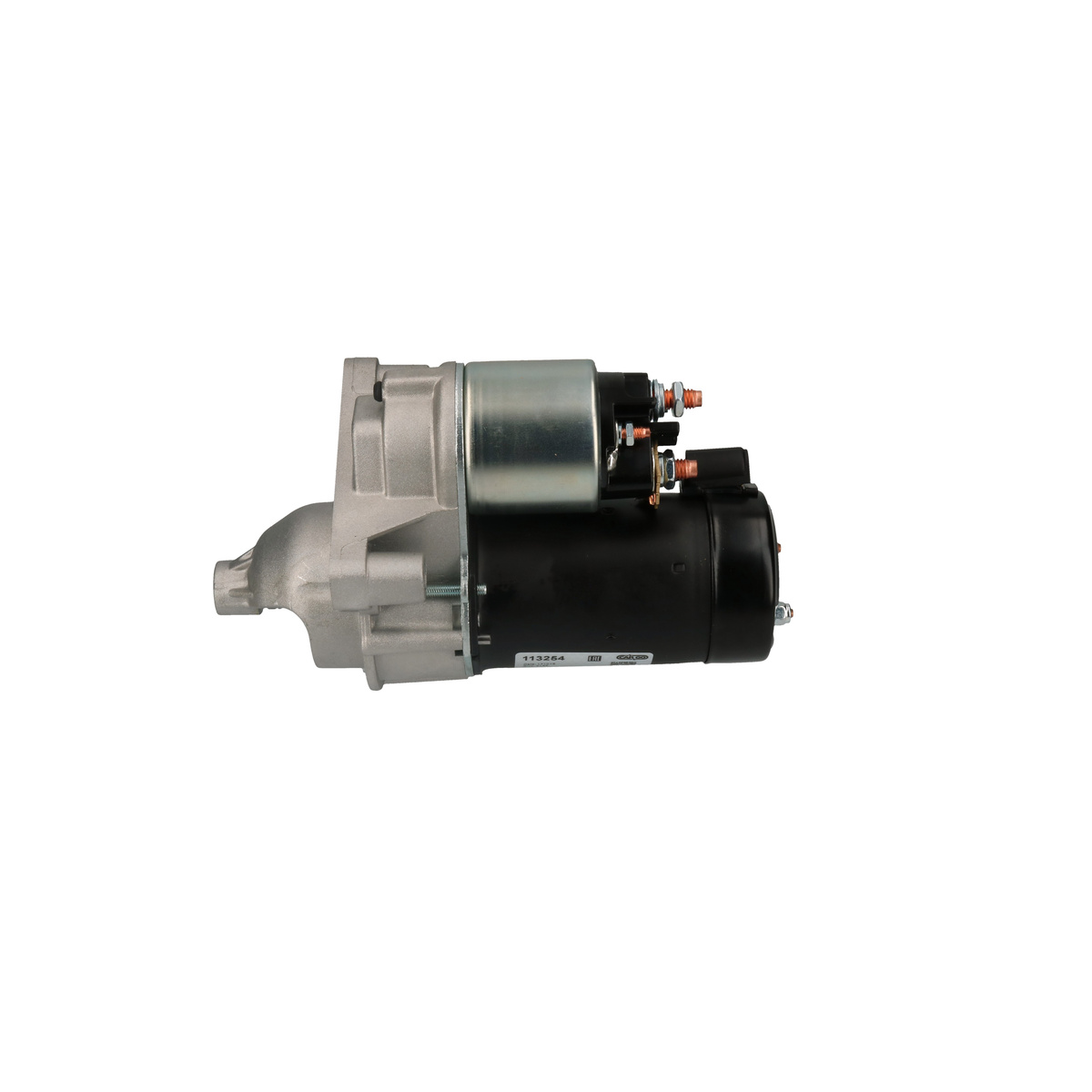

F032113254 - Starter
Trade number 113254
Replacing and BOMs
OEM number
9637813680FIAT
K9637813680FIAT
5802AZPEUGEOT
5802FGPEUGEOT
5802FPPEUGEOT
5802Y4PEUGEOT
5802Y5PEUGEOT
5802Y6PEUGEOT
9637813680PEUGEOT
9640825280PEUGEOT
9646679980PEUGEOT
9664016980PEUGEOT
966401698001PEUGEOT
9688268480PEUGEOT
9688268580PEUGEOT
9801667580PEUGEOT
966401698000PEUGEOT
28100YV010TOYOTA
28100YV011TOYOTA
Competitor References
DRS3903AC DELCO
DRS3903NAC DELCO
DRS3903XAC DELCO
101260AD KÜHNER
101329AD KÜHNER
S3016AUTOSTARTER POLAND
S3016PRAUTOSTARTER POLAND
S3016SRAUTOSTARTER POLAND
S5306PRAUTOSTARTER POLAND
S3016VALEOAUTOSTARTER POLAND
S3227SAUTOSTARTER POLAND
0986021651BOSCH
F032US0065BOSCH
F042S01227BOSCH
F042S07012BOSCH
F042200090BOSCH
1986S00575BOSCH
CST15108CASCO SRL
CST15215CASCO SRL
CST35246CASCO SRL
CST35247CASCO SRL
3006CEVAM
220519114CV PSH
DRS3903NDELCO REMY
DRS3903XDELCO REMY
DRS3903DELCO REMY
329014112DRI
253070ELSTOCK
220068ERA SPA
220068AERA SPA
11090064EUROTEC
11021650EUROTEC
105310FACROM
8080179FRIESEN
GA23110GAUSS INDUSTRIA
113254HC-CARGO
CS1260HC-PARTS
8EA011350041HELLA
8EA011610181HELLA
42455982HERTH U. BUSS
LRS01569LUCAS
063280091MARELLI
MSN8091MARELLI
944280801790MARELLI
943293541MARELLI
943293541010MARELLI
8212391POWER MAX
8080179QUINTON HAZELL
STR4606UNIPOINT
438336VALEO
TS1462VALEO
438133VALEO
455982VALEO
726062VALEO
446514VALEO
726862VALEO
838020VALEO
32570NWAI
STR54045WOOD AUTO SUPPL
MITM0T93582WOOD AUTO SUPPL
F032113254 - Starter
Details & description
Voltage 12, kW 1.4, Drive type Steel, Rear Distance 162.00, Prod. info BN, Distance 4 90.00, Waterproof No, Distance 3 47.00, Drive Distance 14.00, Distance 2 29.50, Mounting Flange 62.00, Distance 125.50, Mounting Hole 3 M8, Oil sealed No, No./mount. holes 4 (2), Gear type GR, Front Distance 49.50, No./teeth 11,12, B+ M8, Terminal 50 M5, Mounting Hole 4 9.00, Clutch type Dry, Rotation CW, Position 47, Mounting Hole 1 9.00, Total Length 206.00, Amount of Mounting Holes 4 (2)
Product information
Voltage:12
kW:1.4
Drive type:Steel
Rear Distance:162.00
Prod. info:BN
Distance 4:90.00
Waterproof:No
Distance 3:47.00
Drive Distance:14.00
Distance 2:29.50
Mounting Flange:62.00
Distance:125.50
Mounting Hole 3:M8
Oil sealed:No
No./mount. holes:4 (2)
Gear type:GR
Front Distance:49.50
No./teeth:11,12
B+:M8
Terminal 50:M5
Mounting Hole 4:9.00
Clutch type:Dry
Rotation:CW
Position:47
Mounting Hole 1:9.00
Total Length:206.00
Amount of Mounting Holes:4 (2)
Replacing and BOMs
OEM number
9637813680FIAT
K9637813680FIAT
5802AZPEUGEOT
5802FGPEUGEOT
5802FPPEUGEOT
5802Y4PEUGEOT
5802Y5PEUGEOT
5802Y6PEUGEOT
9637813680PEUGEOT
9640825280PEUGEOT
9646679980PEUGEOT
9664016980PEUGEOT
966401698001PEUGEOT
9688268480PEUGEOT
9688268580PEUGEOT
9801667580PEUGEOT
966401698000PEUGEOT
28100YV010TOYOTA
28100YV011TOYOTA
Competitor References
DRS3903AC DELCO
DRS3903NAC DELCO
DRS3903XAC DELCO
101260AD KÜHNER
101329AD KÜHNER
S3016AUTOSTARTER POLAND
S3016PRAUTOSTARTER POLAND
S3016SRAUTOSTARTER POLAND
S5306PRAUTOSTARTER POLAND
S3016VALEOAUTOSTARTER POLAND
S3227SAUTOSTARTER POLAND
0986021651BOSCH
F032US0065BOSCH
F042S01227BOSCH
F042S07012BOSCH
F042200090BOSCH
1986S00575BOSCH
CST15108CASCO SRL
CST15215CASCO SRL
CST35246CASCO SRL
CST35247CASCO SRL
3006CEVAM
220519114CV PSH
DRS3903NDELCO REMY
DRS3903XDELCO REMY
DRS3903DELCO REMY
329014112DRI
253070ELSTOCK
220068ERA SPA
220068AERA SPA
11090064EUROTEC
11021650EUROTEC
105310FACROM
8080179FRIESEN
GA23110GAUSS INDUSTRIA
113254HC-CARGO
CS1260HC-PARTS
8EA011350041HELLA
8EA011610181HELLA
42455982HERTH U. BUSS
LRS01569LUCAS
063280091MARELLI
MSN8091MARELLI
944280801790MARELLI
943293541MARELLI
943293541010MARELLI
8212391POWER MAX
8080179QUINTON HAZELL
STR4606UNIPOINT
438336VALEO
TS1462VALEO
438133VALEO
455982VALEO
726062VALEO
446514VALEO
726862VALEO
838020VALEO
32570NWAI
STR54045WOOD AUTO SUPPL
MITM0T93582WOOD AUTO SUPPL
