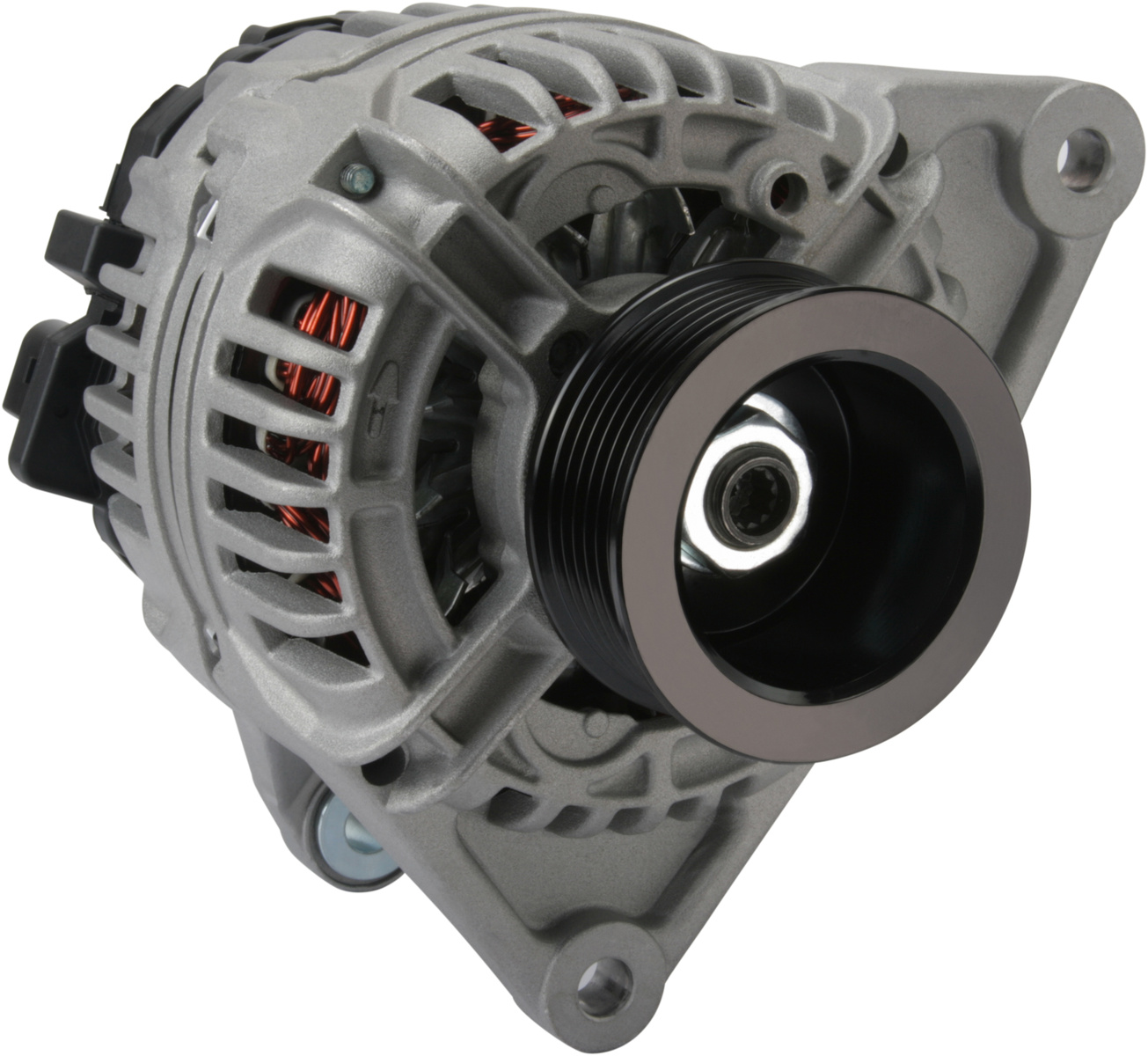

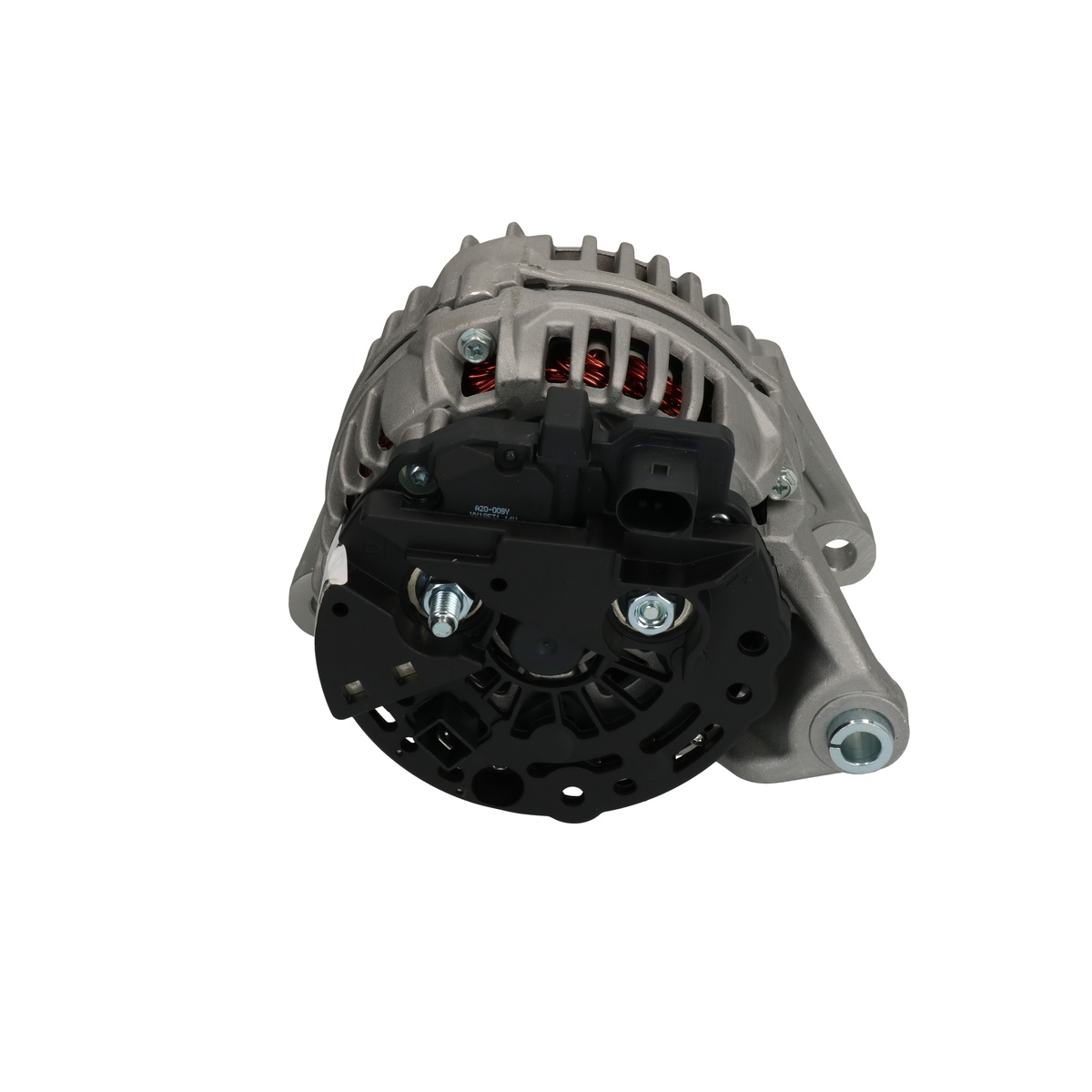

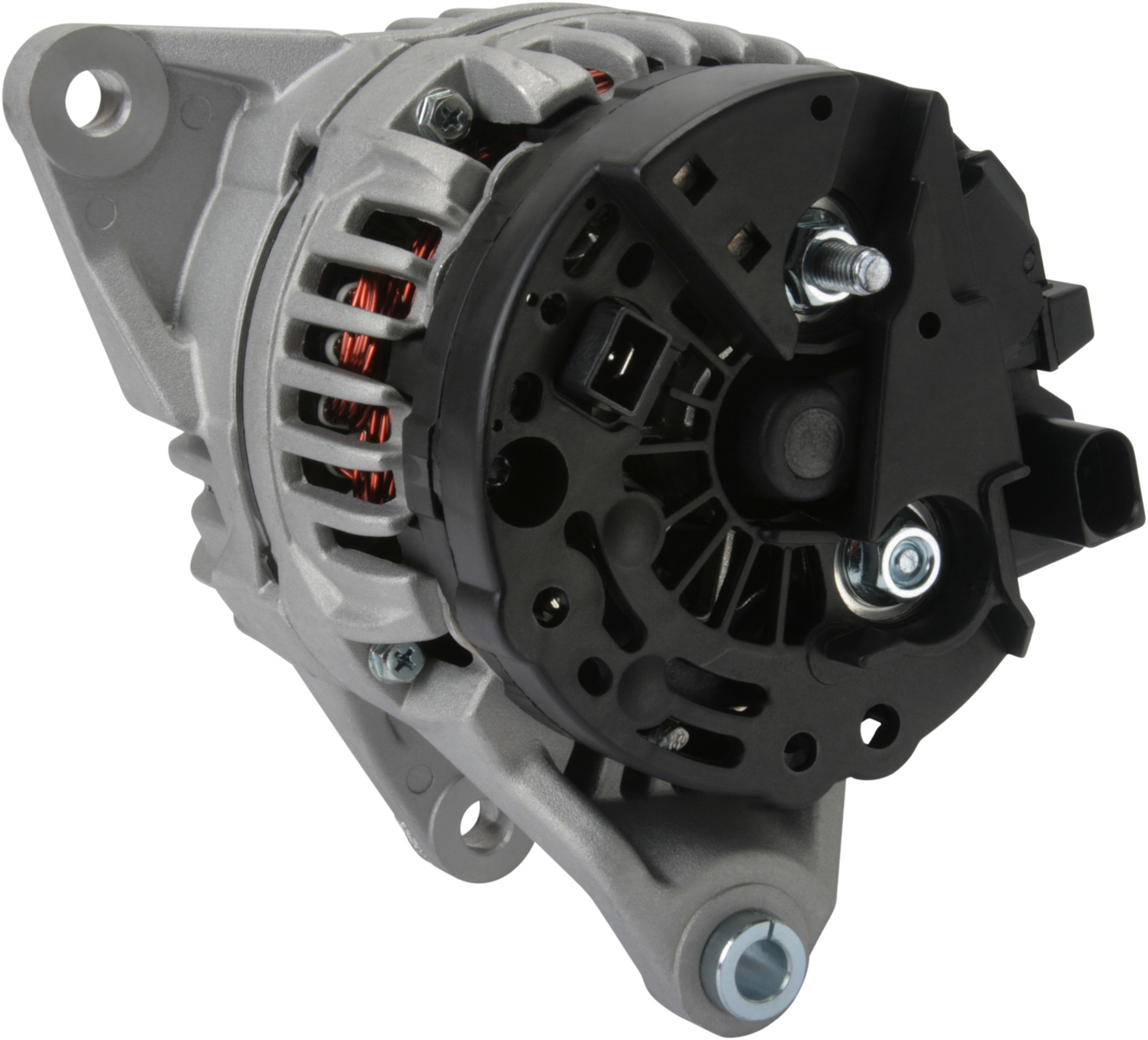

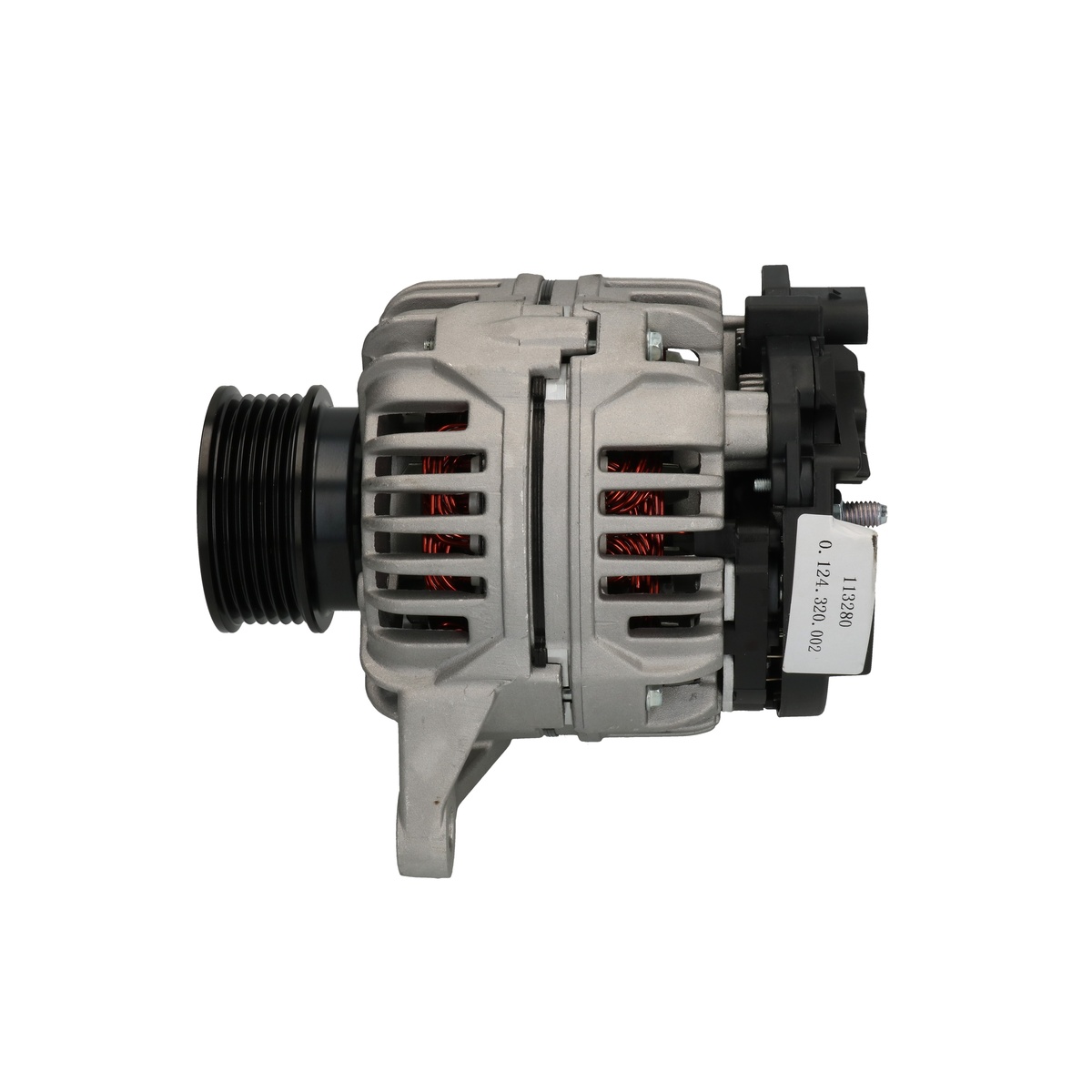

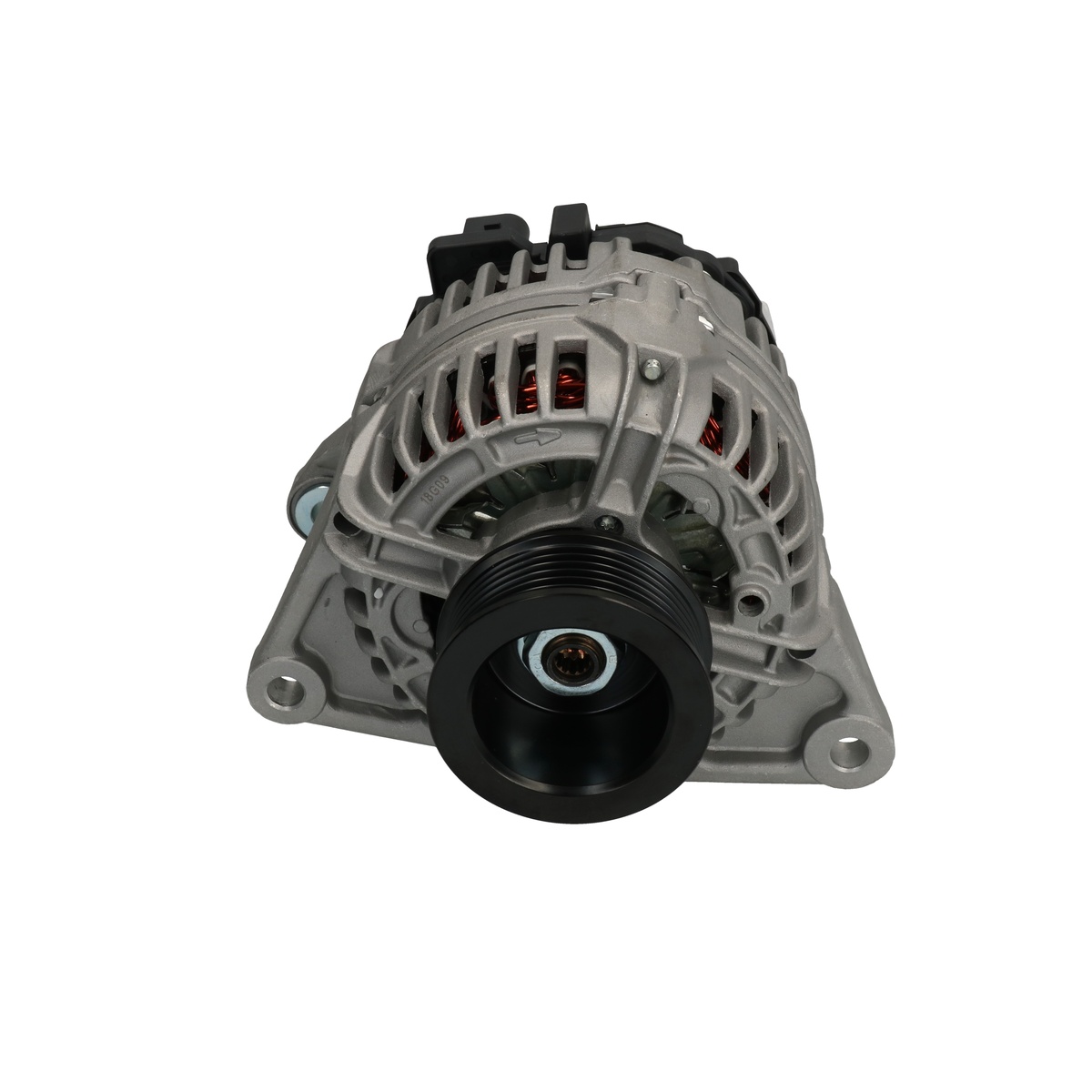

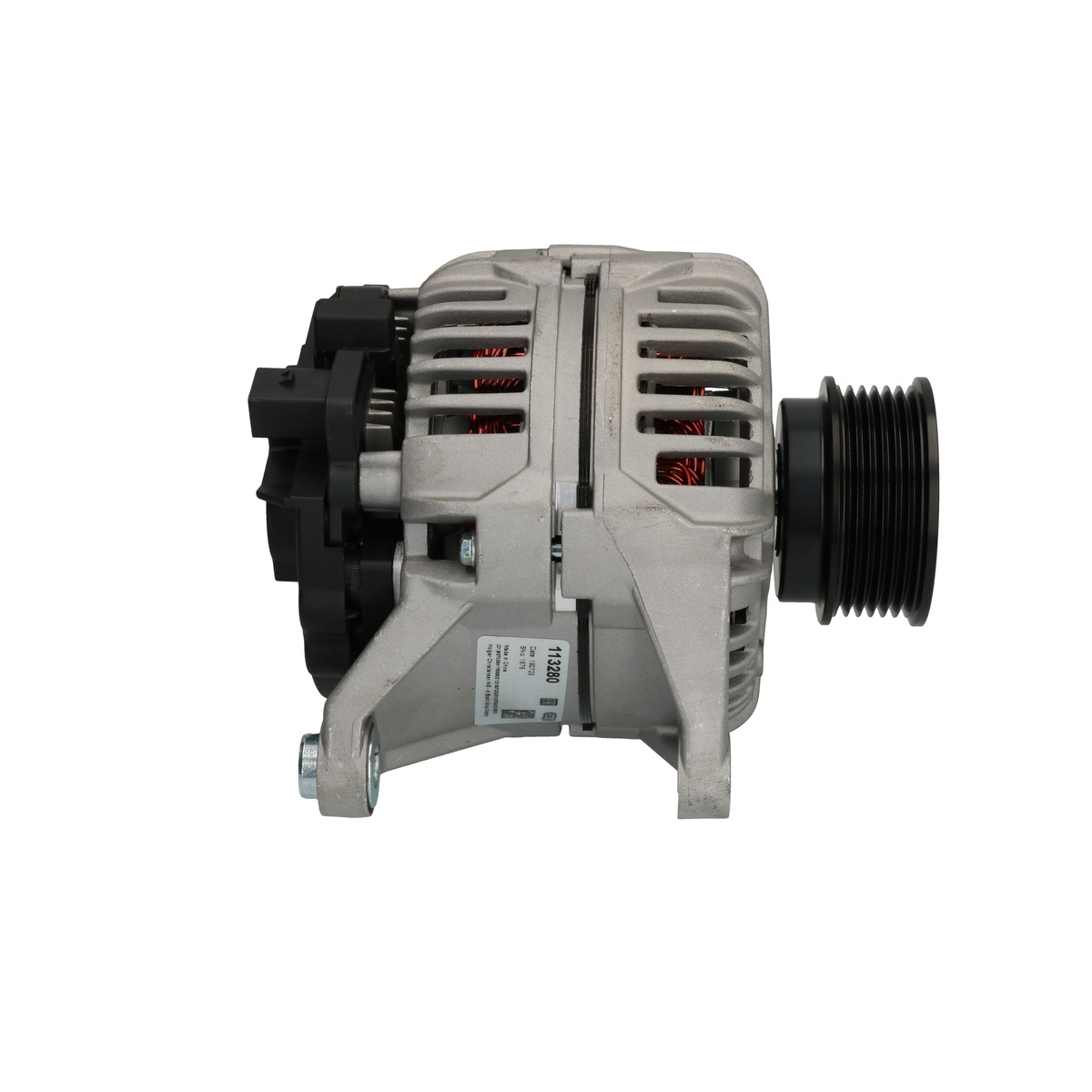

F032113280 - Alternator
Trade number 113280
Replacing and BOMs
OEM number
- 2855975CASE
- C8520046ACHRYSLER
- 504010576HEULIEZ
- 504010576IVECO
- 504225814IVECO
- 2855975NEW HOLLAND
- 7700377092RENAULT
- 38522314FVM (MOTORI/STABILIMENTI MEC.)
- 8520046AVM (MOTORI/STABILIMENTI MEC.)
Trade number 113280
Details & description
Voltage 14, Amp 90, Terminal W, Pulley SP, W plug type 6.30, Pulley Diameter 68.00, Prod. info BN, Bracket Hole Size Rear 10.50, D+ Position 18, Pulley Distance 46.70, Servicing Renault VI, Mounting Bracket Distance 81.00, Radius 91.50, Belt Adjustment Bracket Hole 1 11.20, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.50, D+ Size Plug, Holder Arm Width 13.70, B+ M8, Radius 2 94.00, Plug no. 1 PL87, Rotation CW, Position 13, B+ Position 2, Belt Adjustment Bracket Hole Position 10, Total Length 191.00
Product information
Electrical information
- Voltage14
- Amp90
- TerminalW
Catalogue information
- Prod. infoBN
- ServicingRenault VI
Physical information
- PulleySP
- W plug type6.30
- Pulley Diameter68.00
- Bracket Hole Size Rear10.50
- D+ Position18
- Pulley Distance46.70
- Mounting Bracket Distance81.00
- Radius91.50
- Belt Adjustment Bracket Hole 111.20
Replacing and BOMs
OEM number
- 2855975CASE
- C8520046ACHRYSLER
- 504010576HEULIEZ
- 504010576IVECO
- 504225814IVECO
- 2855975NEW HOLLAND
- 7700377092RENAULT
- 38522314FVM (MOTORI/STABILIMENTI MEC.)
- 8520046AVM (MOTORI/STABILIMENTI MEC.)
