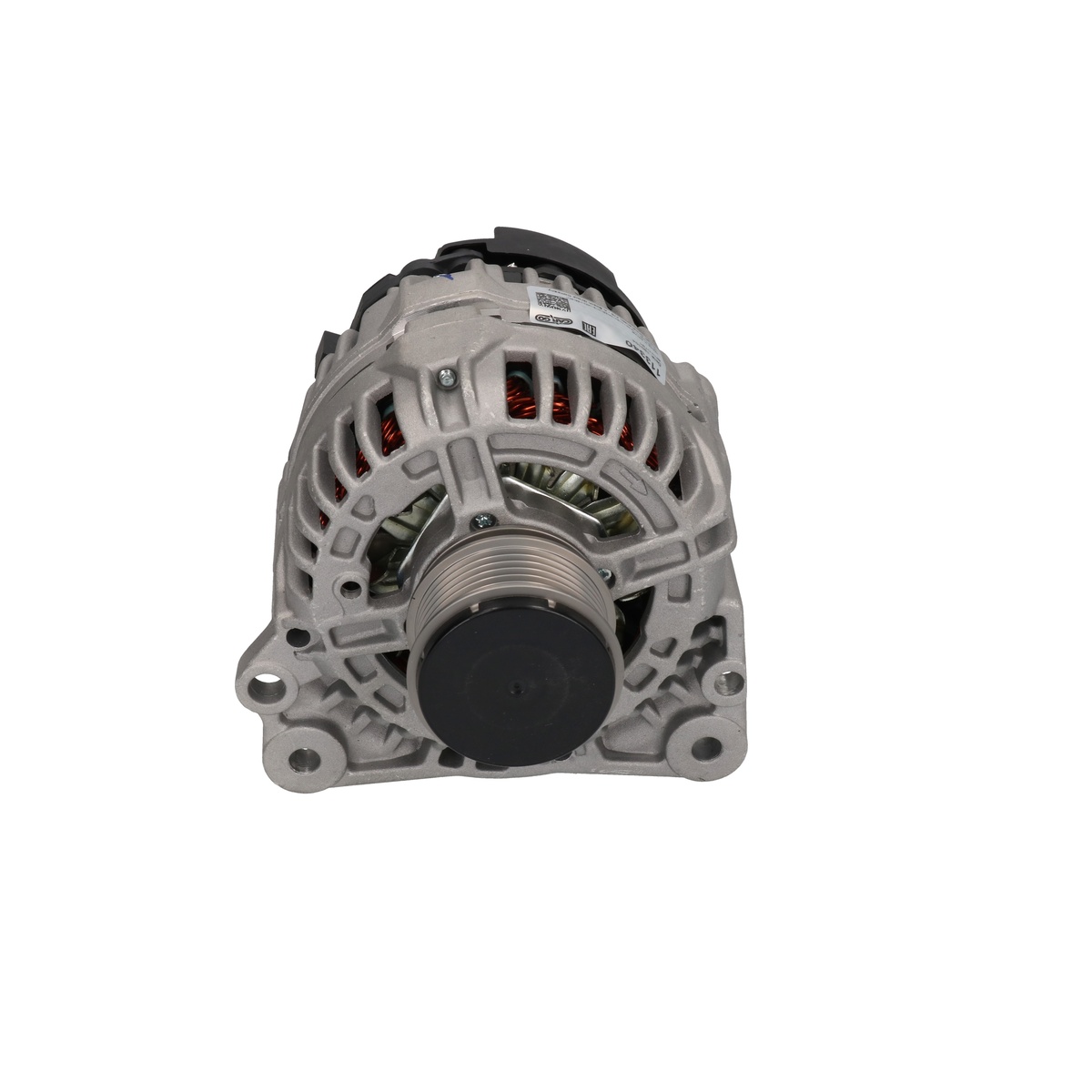

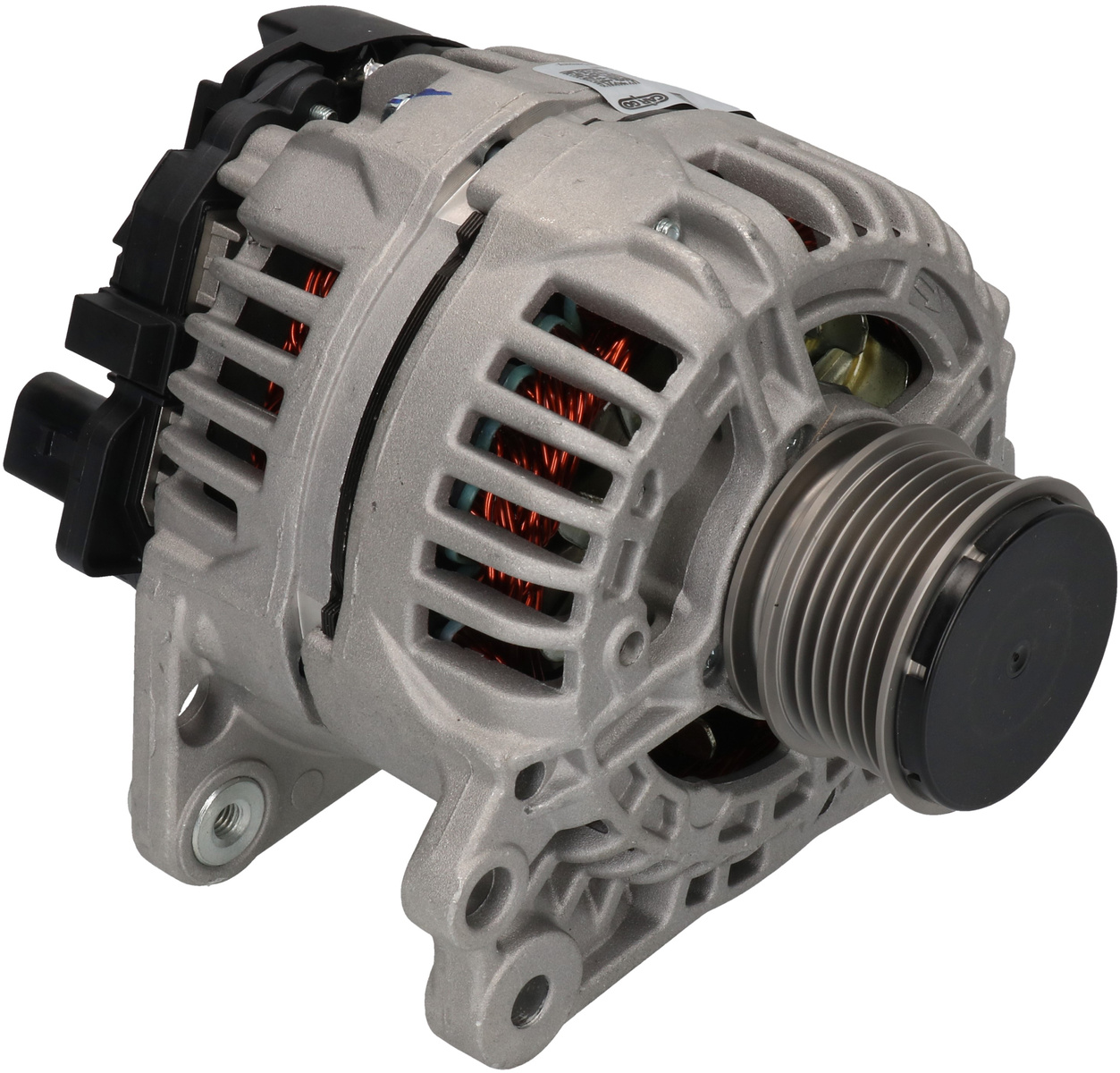

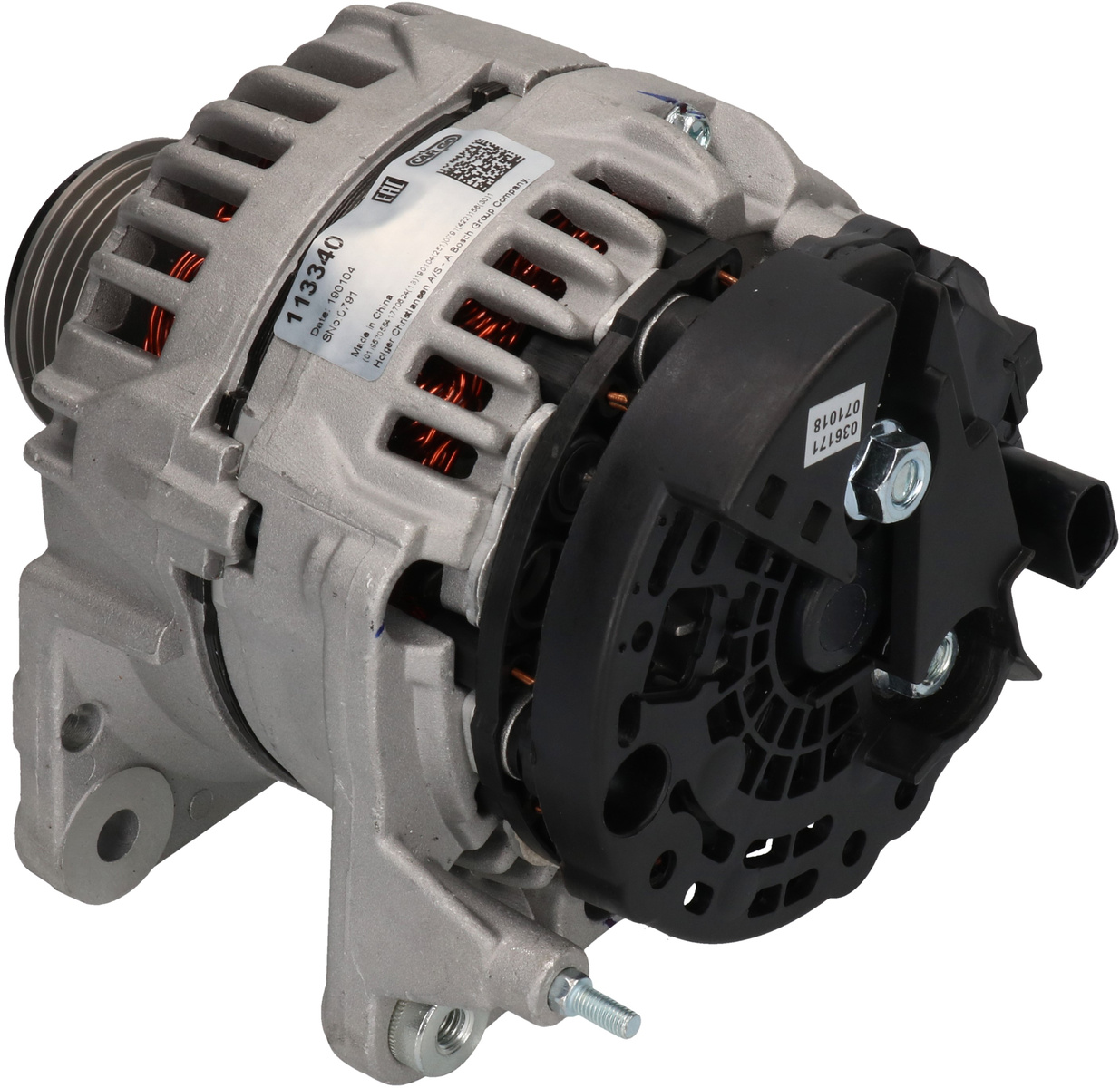

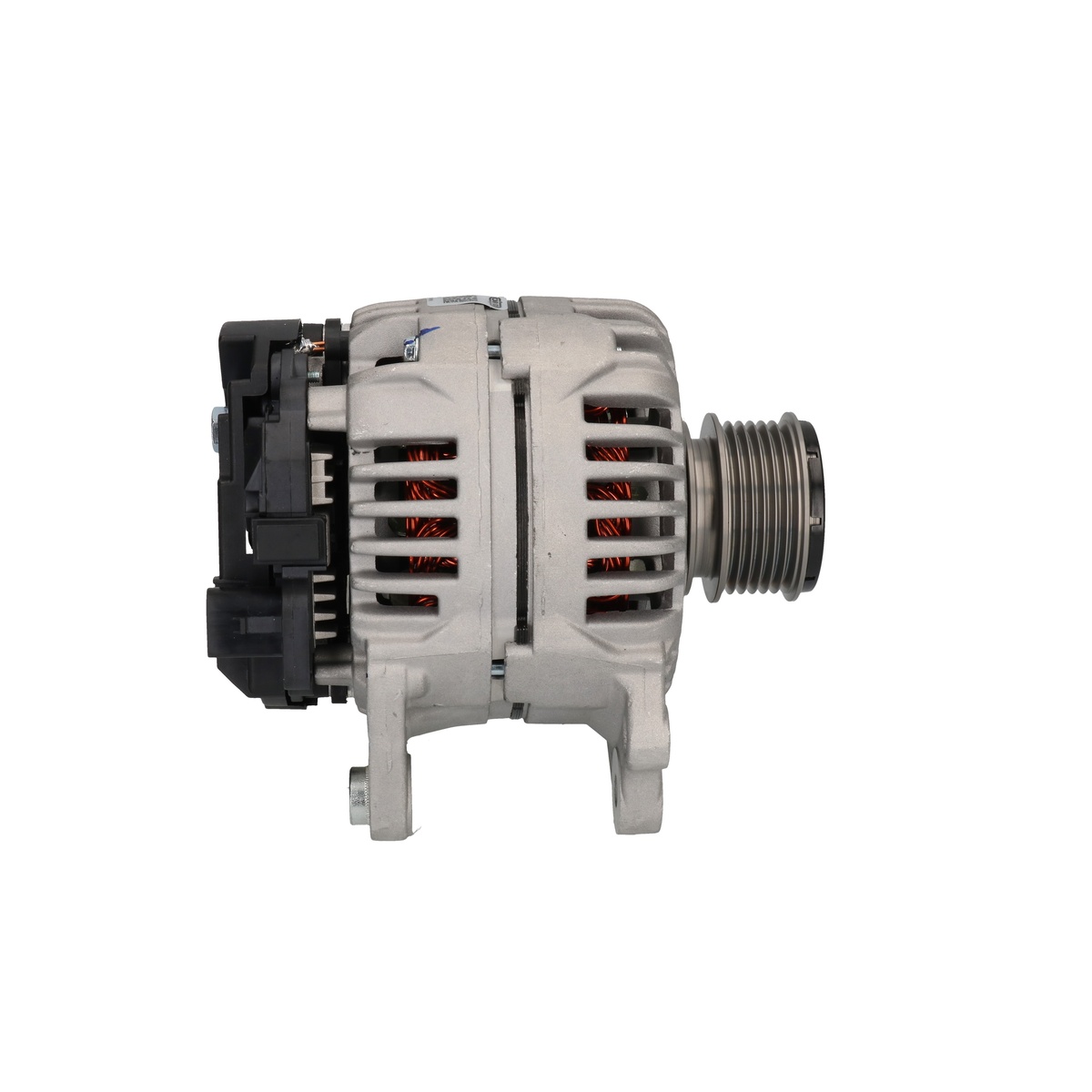

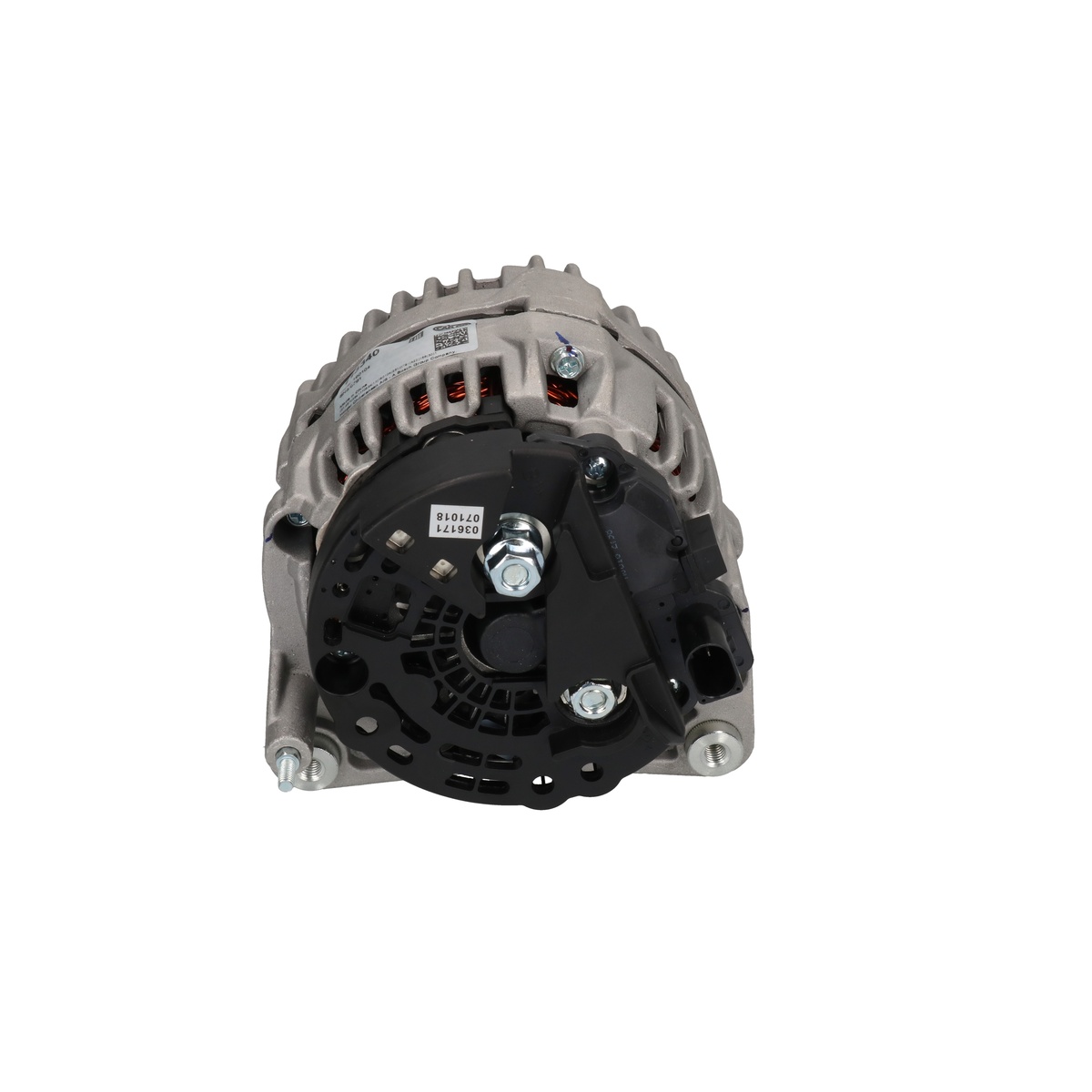

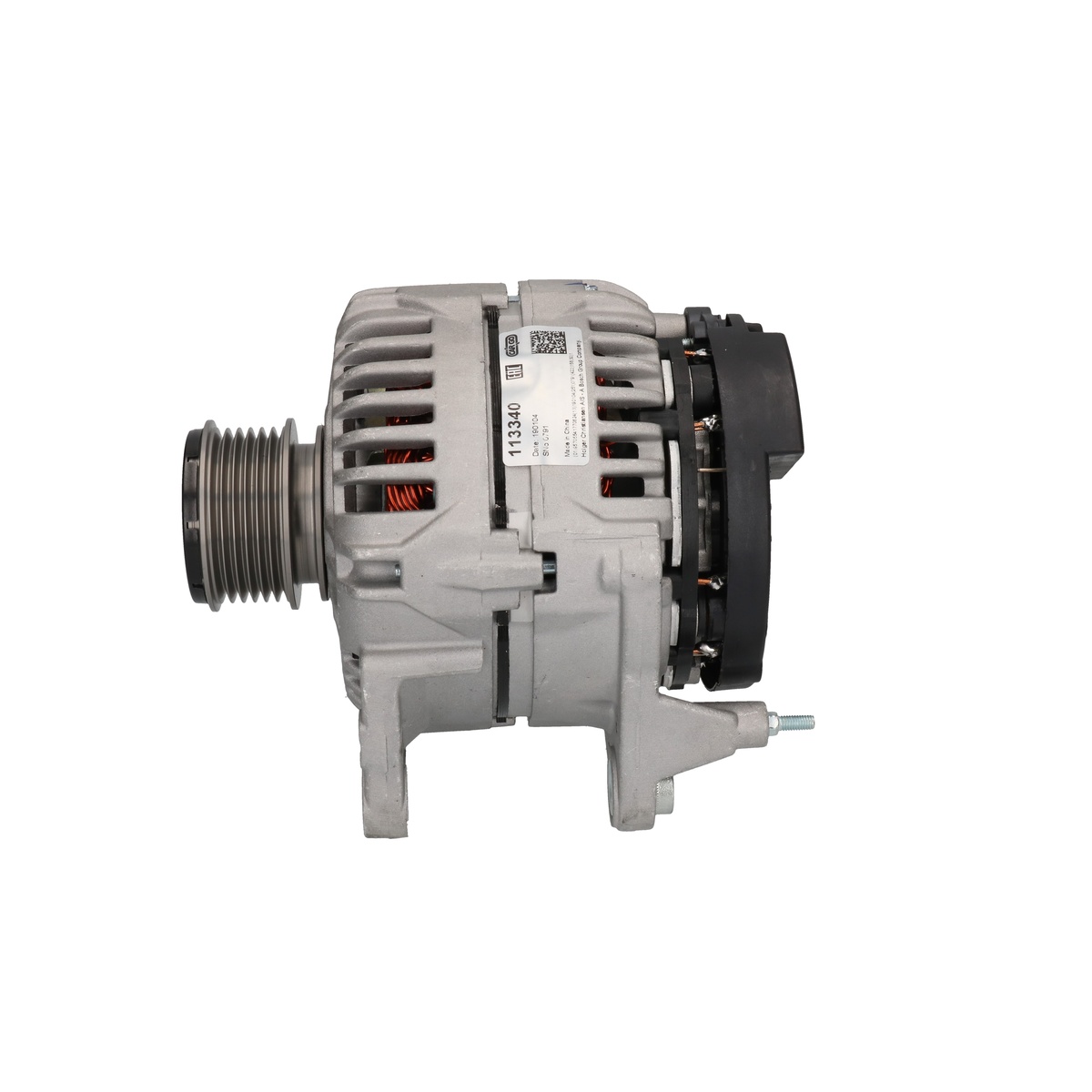

F032113340 - Alternator
Trade number 113340
Replacing and BOMs
OEM number
038903023KVW (VOLKSWAGEN)
038903023QVW (VOLKSWAGEN)
038903023VW (VOLKSWAGEN)
Competitor References
DRB1480AC DELCO
301502RIAD KÜHNER
A0233BOSCHAUTOSTARTER POLAND
A0233RAUTOSTARTER POLAND
A0233PRAUTOSTARTER POLAND
0986041487BOSCH
0986041480BOSCH
1986A01461BOSCH
BAO3297BOWERS
CAL10243CASCO SRL
CAL48106CASCO SRL
4586CEVAM
305518070CV PSH
DRB1480DELCO REMY
211187702DRI
282996ELSTOCK
283996ELSTOCK
210597ERA SPA
210597AERA SPA
12041480EUROTEC
118960FACROM
9041480FRIESEN
9041510FRIESEN
113340HC-CARGO
CA1502IRHC-PARTS
8EL011360981HELLA
8EL012426461HELLA
8EL012430351HELLA
8EL737754001HELLA
32042600HERTH U. BUSS
32041490HERTH U. BUSS
32041480HERTH U. BUSS
AAK5547ISKRA
IA1142ISKRA
IA1147ISKRA
MG559ISKRA
13849LESTER
LRB00473LUCAS
943355059MARELLI
943355059010MARELLI
943355062010MARELLI
944390414MARELLI
944390415MARELLI
MAR5559MARELLI
944390415100MARELLI
944390414800MARELLI
9213694POWER MAX
9041480QUINTON HAZELL
FRA337QUINTON HAZELL
9041510QUINTON HAZELL
437315VALEO
437395VALEO
439310VALEO
439436VALEO
746127VALEO
746927VALEO
839085VALEO
200093VALEO
13851NWAI
13852N6GWAI
13849NWAI
13849RWAI
21473RWAI
F032113340 - Alternator
Details & description
Voltage 14, Amp 70, Pulley SP/FW, Pulley Diameter 56.00, Bracket Hole Size Rear M8, D+ Position 8, Pulley Distance 39.00, Servicing VW, Audi, Skoda, Seat, Mounting Bracket Distance 61.00, Radius 90.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 8.50, Terminal type L-DFM, D+ Size Plug, Holder Arm Width 14.00, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL61, Rotation CW, B+ Position 50, Belt Adjustment Bracket Hole Position 45, Total Length 192.50
Product information
Voltage:14
Amp:70
Pulley:SP/FW
Pulley Diameter:56.00
Bracket Hole Size Rear:M8
D+ Position:8
Pulley Distance:39.00
Servicing:VW, Audi, Skoda, Seat
Mounting Bracket Distance:61.00
Radius:90.00
Belt Adjustment Bracket Hole 1:8.50
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:8.50
Terminal type:L-DFM
D+ Size:Plug
Holder Arm Width:14.00
B+:M8
Fan:IF
Radius 2:90.00
Plug no. 1:PL61
Rotation:CW
B+ Position:50
Belt Adjustment Bracket Hole Position:45
Total Length:192.50
