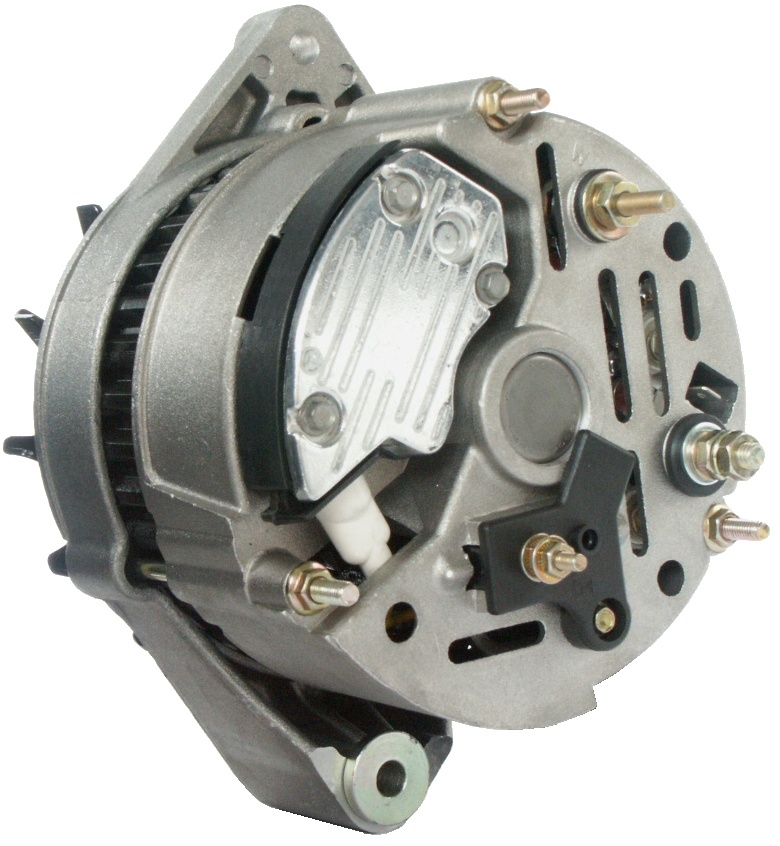

F032113376 - Alternator
Trade number 113376
Replacing and BOMs
OEM number
- 549399ALFA ROMEO
- 692057DAF
- 609194DAF
- 82329714FIAT
- 82378025FIAT
- 82311188FIAT
- V701M10300BAFORD
- 1840010150HANOMAG (RHEINSTAHL AG)
- 1204007OPEL
Trade number 113376
Details & description
Terminal W, Voltage 14, Amp 55, Pulley P, W plug type M5-6.30, Pulley Diameter 70.70, Prod. info BN, D+ Position 50, Pulley Distance 76.50, Servicing Opel, Vauxhall, Lancia, Radius 86.00, Belt Adjustment Bracket Hole 1 8.20, Grooves/pulley 1, Regulator type IR, Bracket Hole Size 1 8.30, D+ Size M4, Holder Arm Width 56.00, B+ M6, Radius 2 88.00, Rotation CW, Position 10, B+ Position 35, Belt Adjustment Bracket Hole Position 60, Total Length 167.50
Product information
Electrical information
- TerminalW
- Voltage14
- Amp55
Catalogue information
- Prod. infoBN
- ServicingOpel, Vauxhall, Lancia
Physical information
- PulleyP
- W plug typeM5-6.30
- Pulley Diameter70.70
- D+ Position50
- Pulley Distance76.50
- Radius86.00
- Belt Adjustment Bracket Hole 18.20
- Grooves/pulley1
- Regulator typeIR
Replacing and BOMs
OEM number
- 549399ALFA ROMEO
- 692057DAF
- 609194DAF
- 82329714FIAT
- 82378025FIAT
- 82311188FIAT
- V701M10300BAFORD
- 1840010150HANOMAG (RHEINSTAHL AG)
- 1204007OPEL
