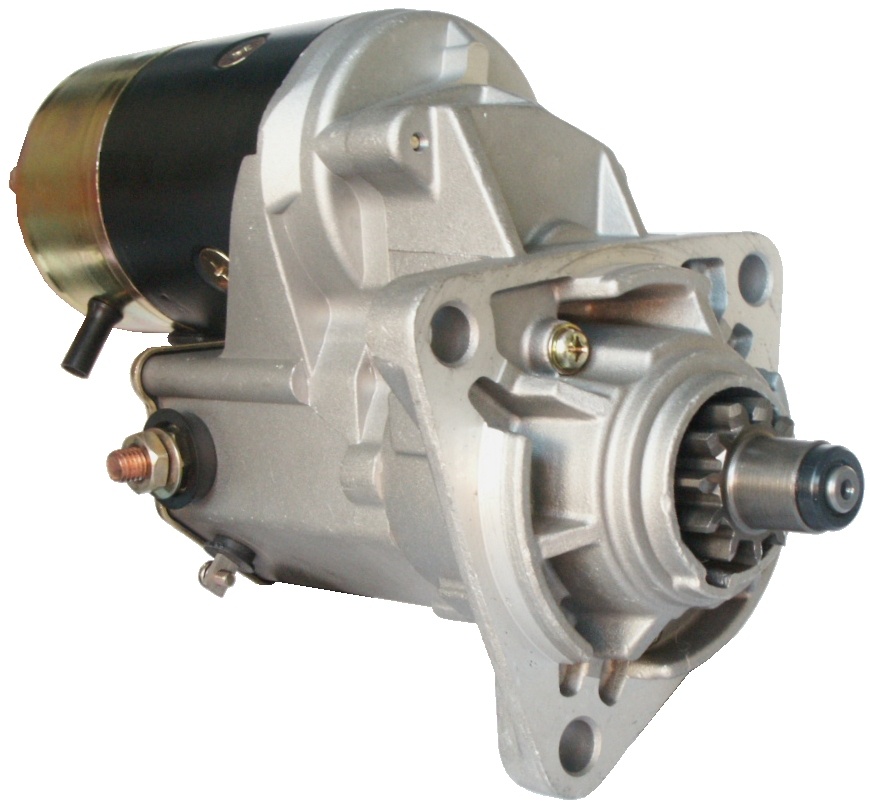

F032113428 - Starter
Trade number 113428Details & description
Voltage 12, kW 2.5, Drive type Steel, Mounting Hole 2 14.00, Rear Distance 228.50, Prod. info BN, Waterproof No, Distance 3 111.50, Drive Distance 41.00, Distance 2 111.50, Mounting Flange 105.00, Distance 135.00, Mounting Hole 3 14.00, Oil sealed No, No./mount. holes 3 (0), Gear type GR, Front Distance 67.50, No./teeth 11, B+ M10, Terminal 50 M5, Rotation CW, Position 25, Mounting Hole 1 14.00, Total Length 297.00, Amount of Mounting Holes 3 (0)
Product information
Voltage:12
kW:2.5
Drive type:Steel
Mounting Hole 2:14.00
Rear Distance:228.50
Prod. info:BN
Waterproof:No
Distance 3:111.50
Drive Distance:41.00
Distance 2:111.50
Mounting Flange:105.00
Distance:135.00
Mounting Hole 3:14.00
Oil sealed:No
No./mount. holes:3 (0)
Gear type:GR
Front Distance:67.50
No./teeth:11
B+:M10
Terminal 50:M5
Rotation:CW
Position:25
Mounting Hole 1:14.00
Total Length:297.00
Amount of Mounting Holes:3 (0)
Replacing and BOMs
OEM number
SN0068RAIM
31713AMPERE
7X0994CATERPILLAR
5811001692ISUZU
5811001690ISUZU
5811001691ISUZU
Competitor References
254270AD KÜHNER
SND0029AKS DASIS
SND0029ARROWHEAD
S6088AUTOSTARTER POLAND
F042S00061BOSCH
F042000061BOSCH
CST40171CASCO SRL
130538113CV PSH
1280007750DENSO
1280007751DENSO
1280007752DENSO
1280007753DENSO
S8348DIXIE ELECTRIC
24625118DIXIE ELECTRIC
643005112DRI
251234ELSTOCK
105064FACROM
113428HC-CARGO
17302LESTER
8213868POWER MAX
STR6055UNIPOINT
21753NDWAI
17302NWAI
91295133WILSON
STR6055WOOD AUTO SUPPL
