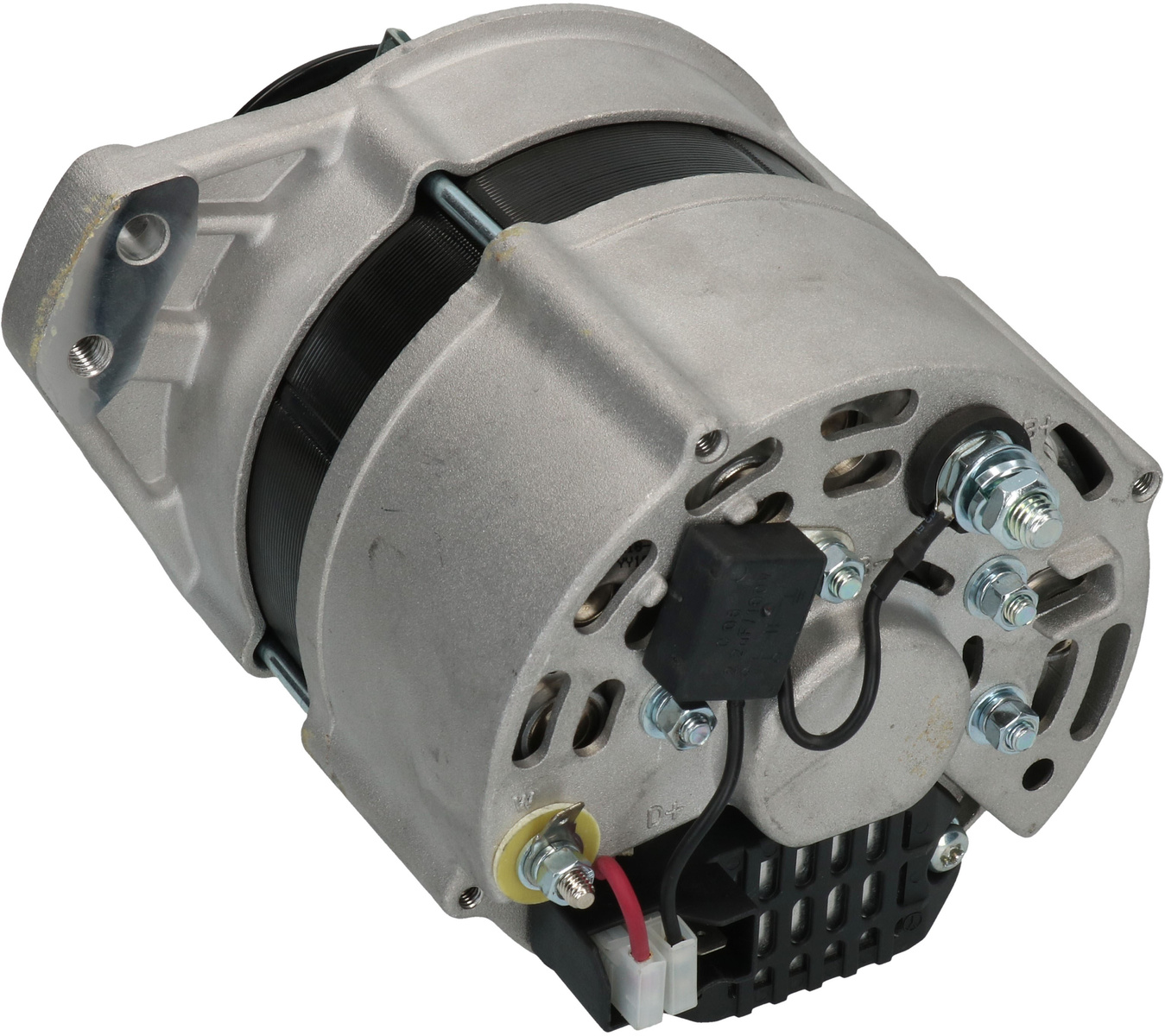

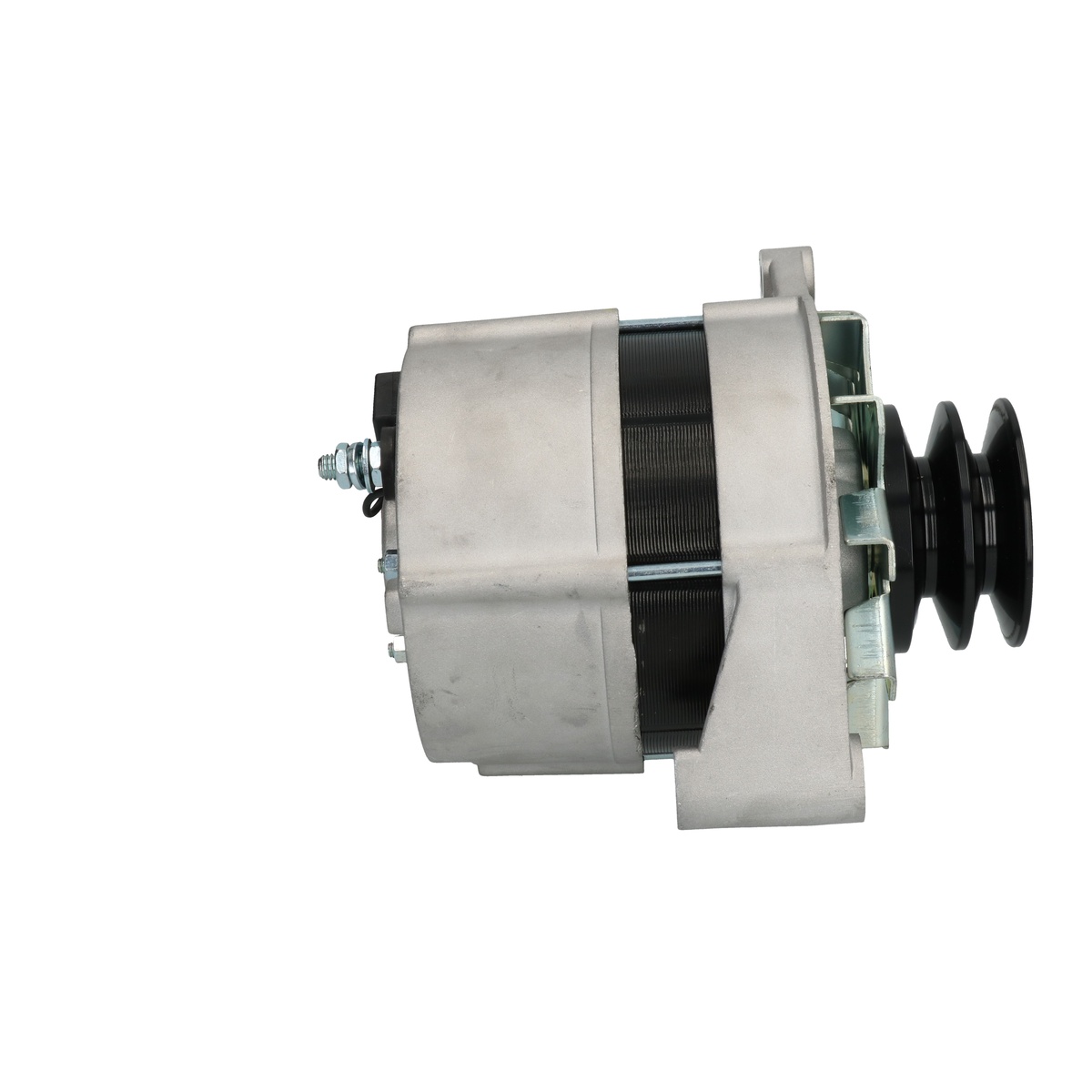

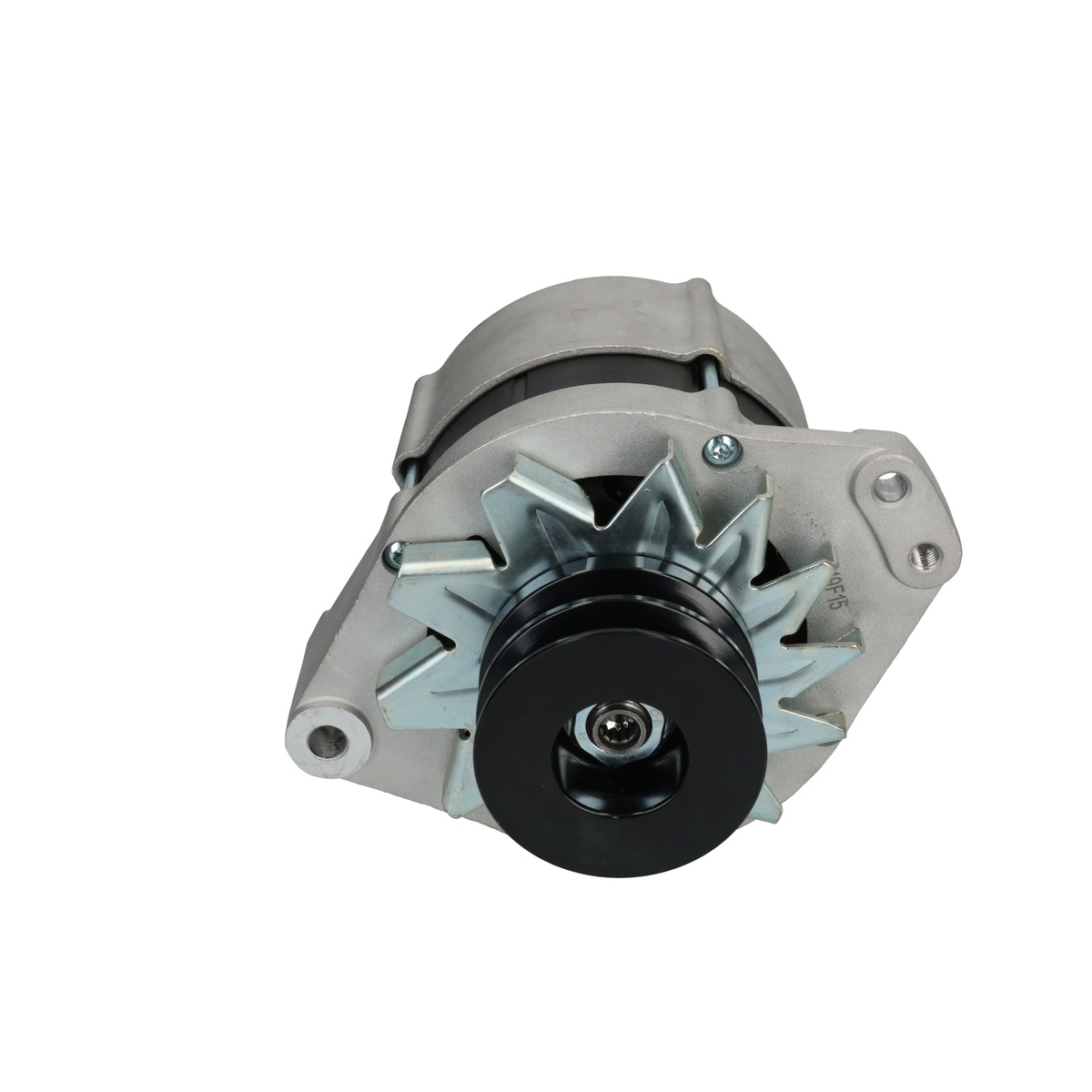

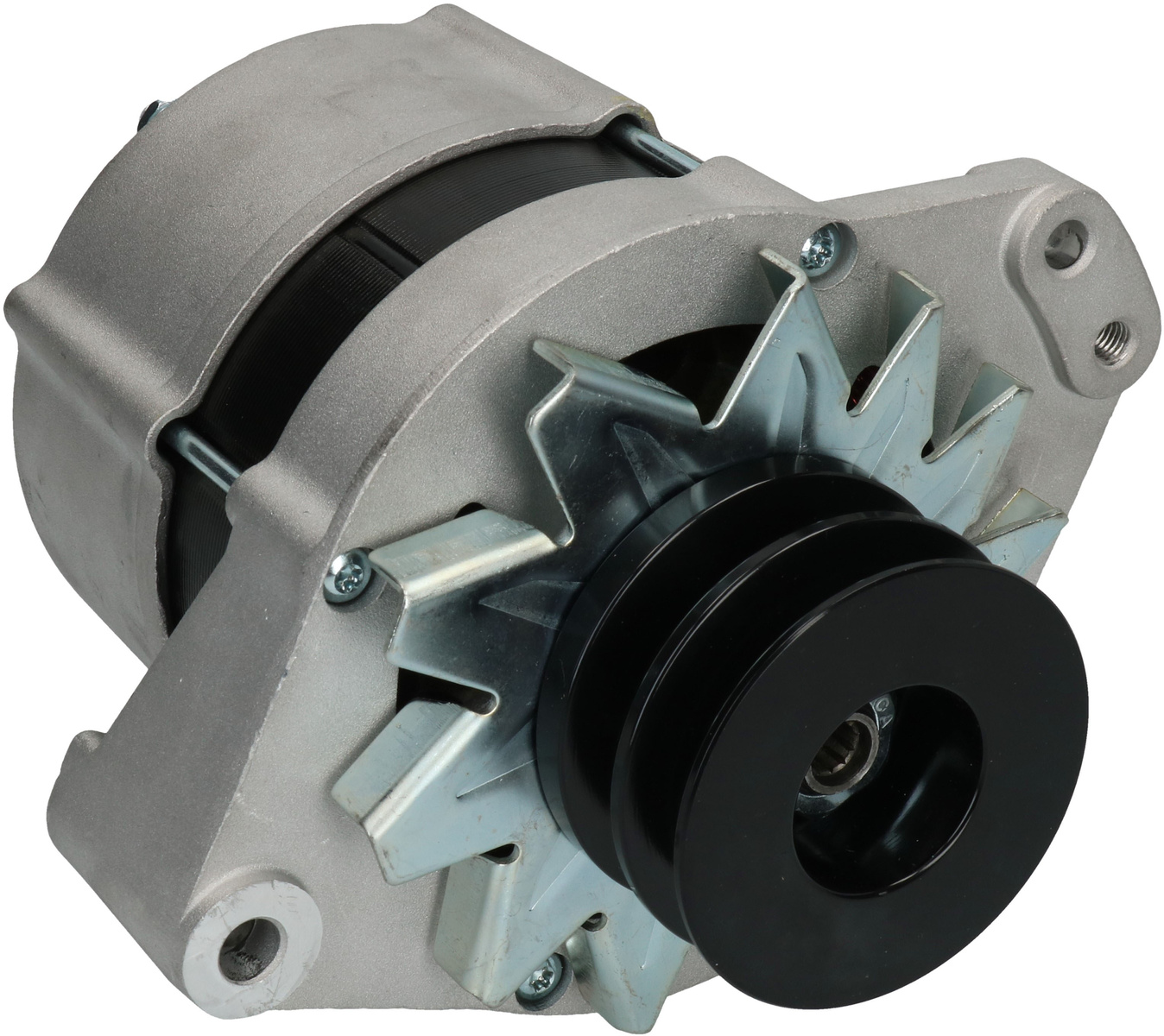

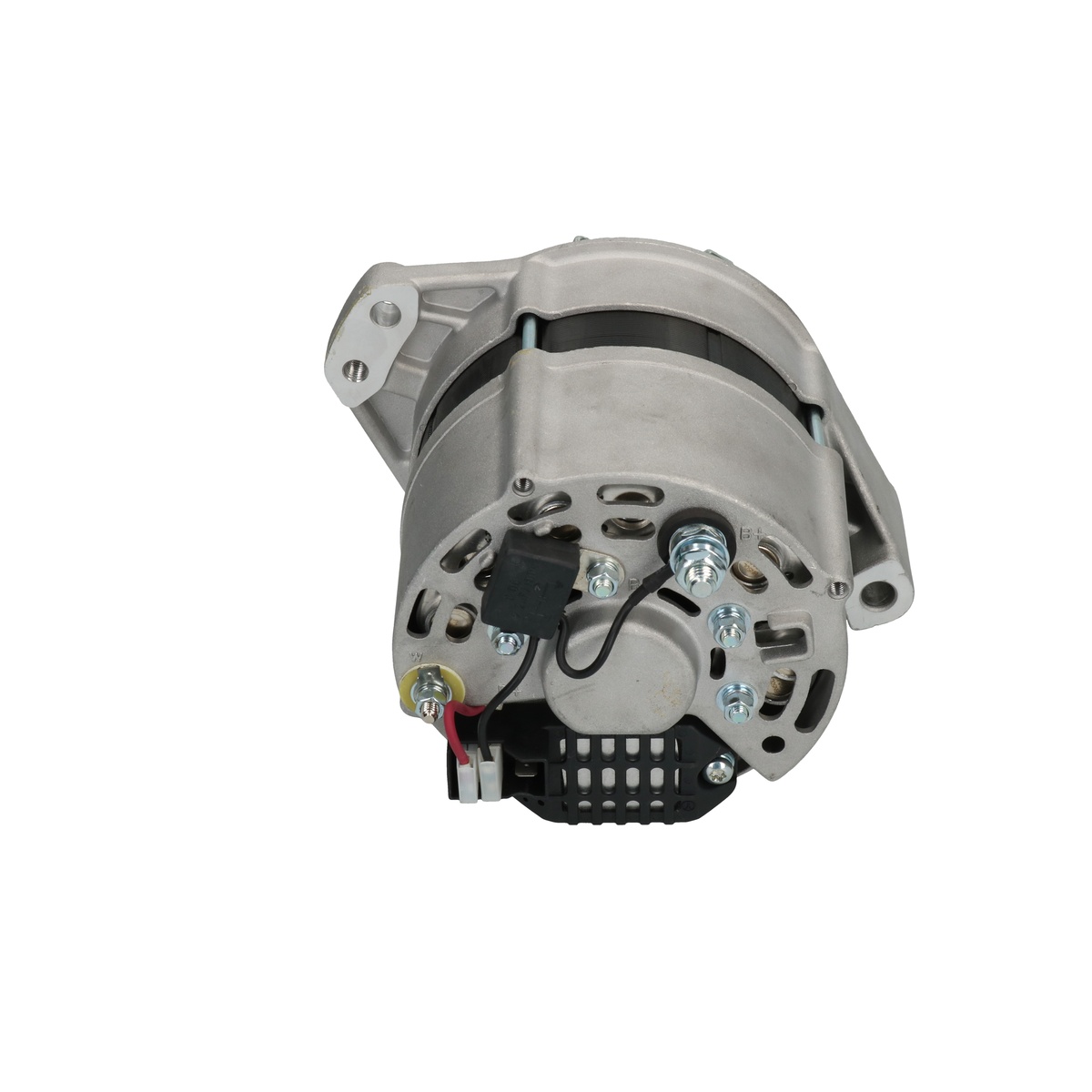

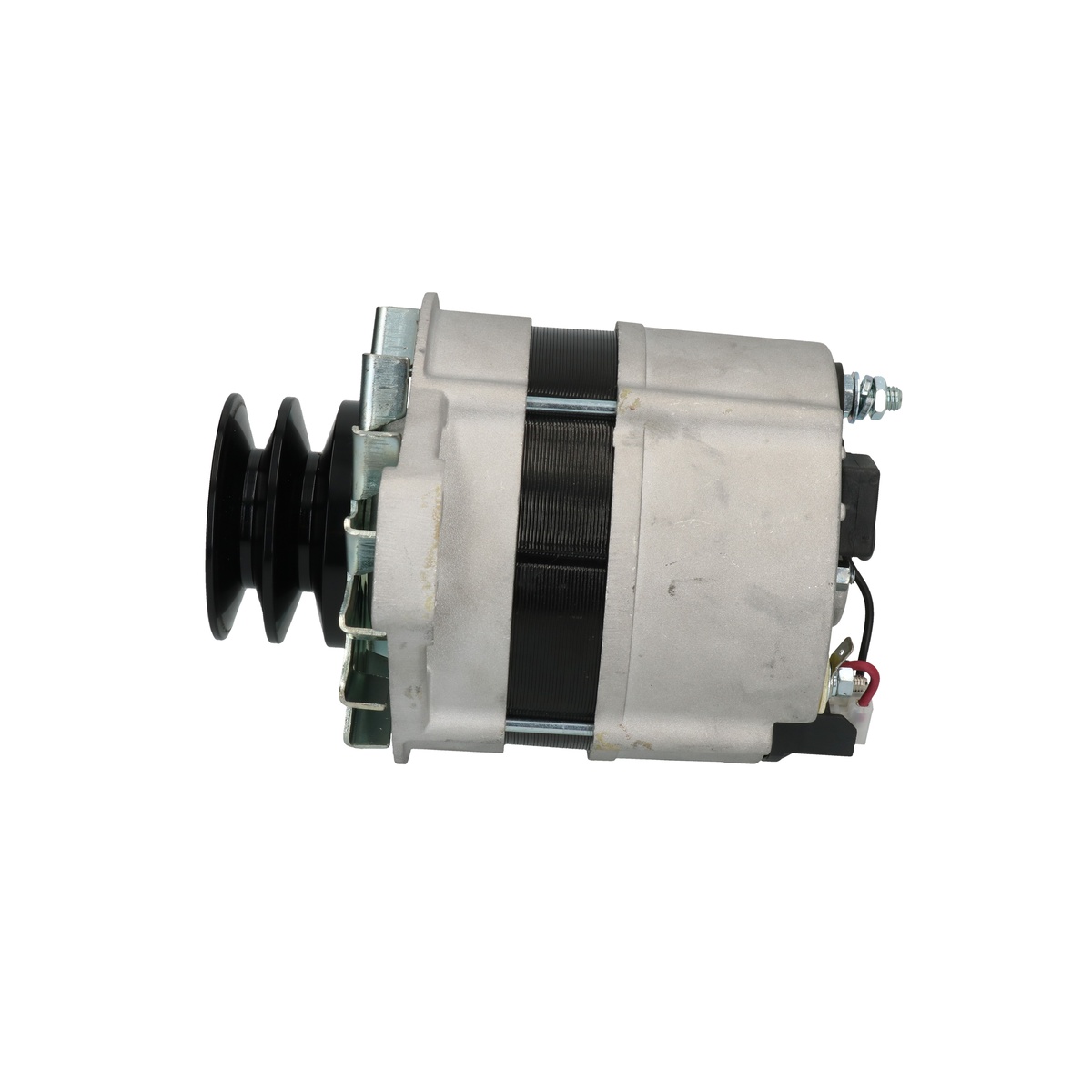

F032113552 - Alternator
Trade number 113552
Replacing and BOMs
OEM number
- 142000090120CASE
- 142000090220CASE
- 162000090120CASE
- 87326219IVECO
Competitor References
- 553320RIAD KÜHNER
- 553321RIAD KÜHNER
- A9031AUTOSTARTER POLAND
- CAL48108CASCO SRL
- 635008095CV PSH
- 635008120CV PSH
- 113552HC-CARGO
- 9515122MAGNETON
- 9515125MAGNETON
Trade number 113552
Details & description
Voltage 14, Amp 120, Terminal W, Pulley DP, W plug type M5, Pulley Diameter 71.50, Prod. info BN, D+ Position 48, Pulley Distance 77.00, Servicing Case, Radius 3 87.00, Radius 86.00, Belt Adjustment Bracket Hole 1 8.00, Grooves/pulley 2, Regulator type IR, Bracket Hole Size 1 10.20, Belt Adjustment Bracket Hole 2 M8, D+ Size 6.30, Holder Arm Width 50.80, B+ M8, Radius 2 87.00, Rotation CW, Position 43, B+ Position 15, Belt Adjustment Bracket Hole Position 58;60, Total Length 198.00
Product information
Electrical information
- Voltage14
- Amp120
- TerminalW
Catalogue information
- Prod. infoBN
- ServicingCase
Physical information
- PulleyDP
- W plug typeM5
- Pulley Diameter71.50
- D+ Position48
- Pulley Distance77.00
- Radius 387.00
- Radius86.00
- Belt Adjustment Bracket Hole 18.00
- Grooves/pulley2
Replacing and BOMs
OEM number
- 142000090120CASE
- 142000090220CASE
- 162000090120CASE
- 87326219IVECO
Competitor References
- 553320RIAD KÜHNER
- 553321RIAD KÜHNER
- A9031AUTOSTARTER POLAND
- CAL48108CASCO SRL
- 635008095CV PSH
- 635008120CV PSH
- 113552HC-CARGO
- 9515122MAGNETON
- 9515125MAGNETON
