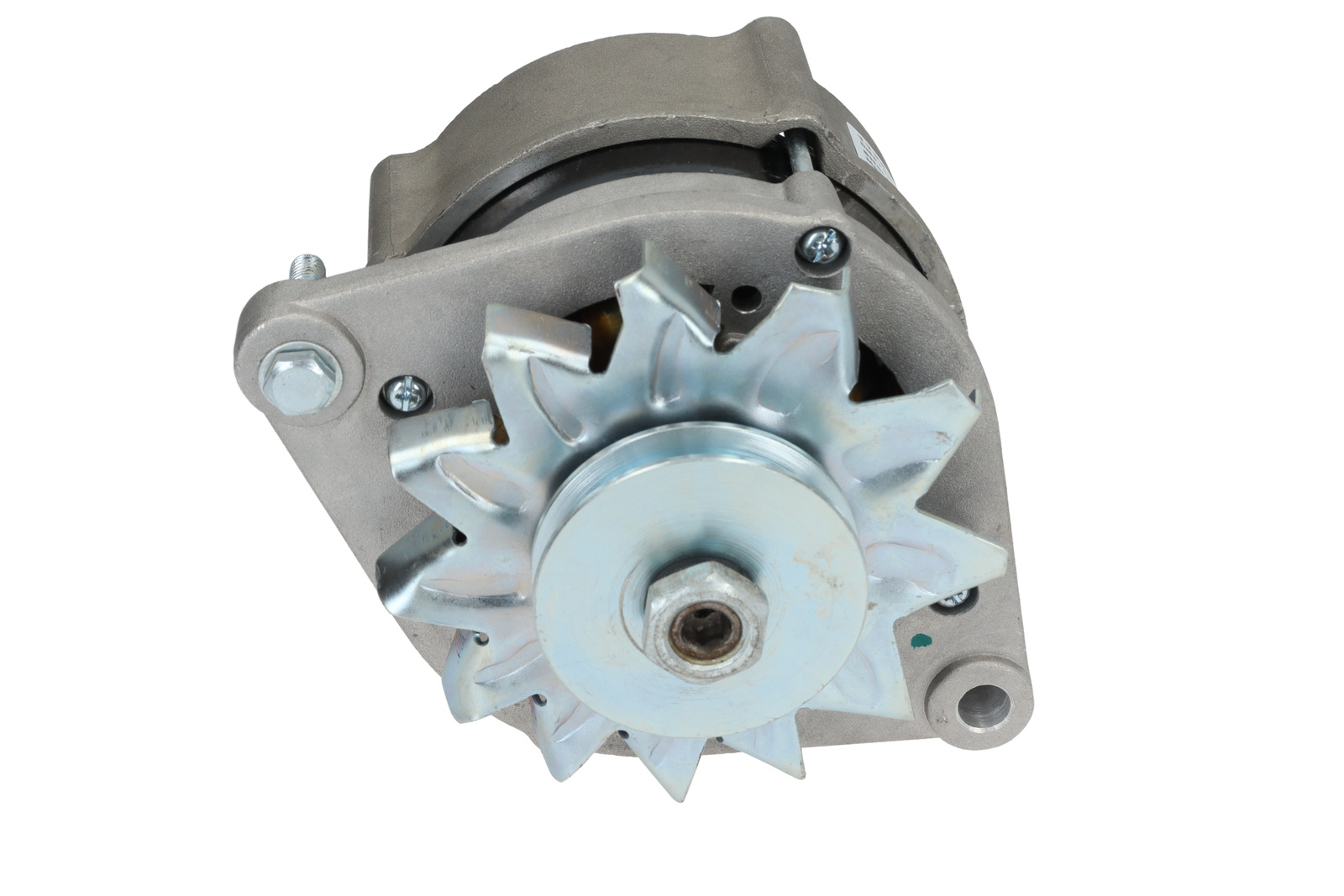

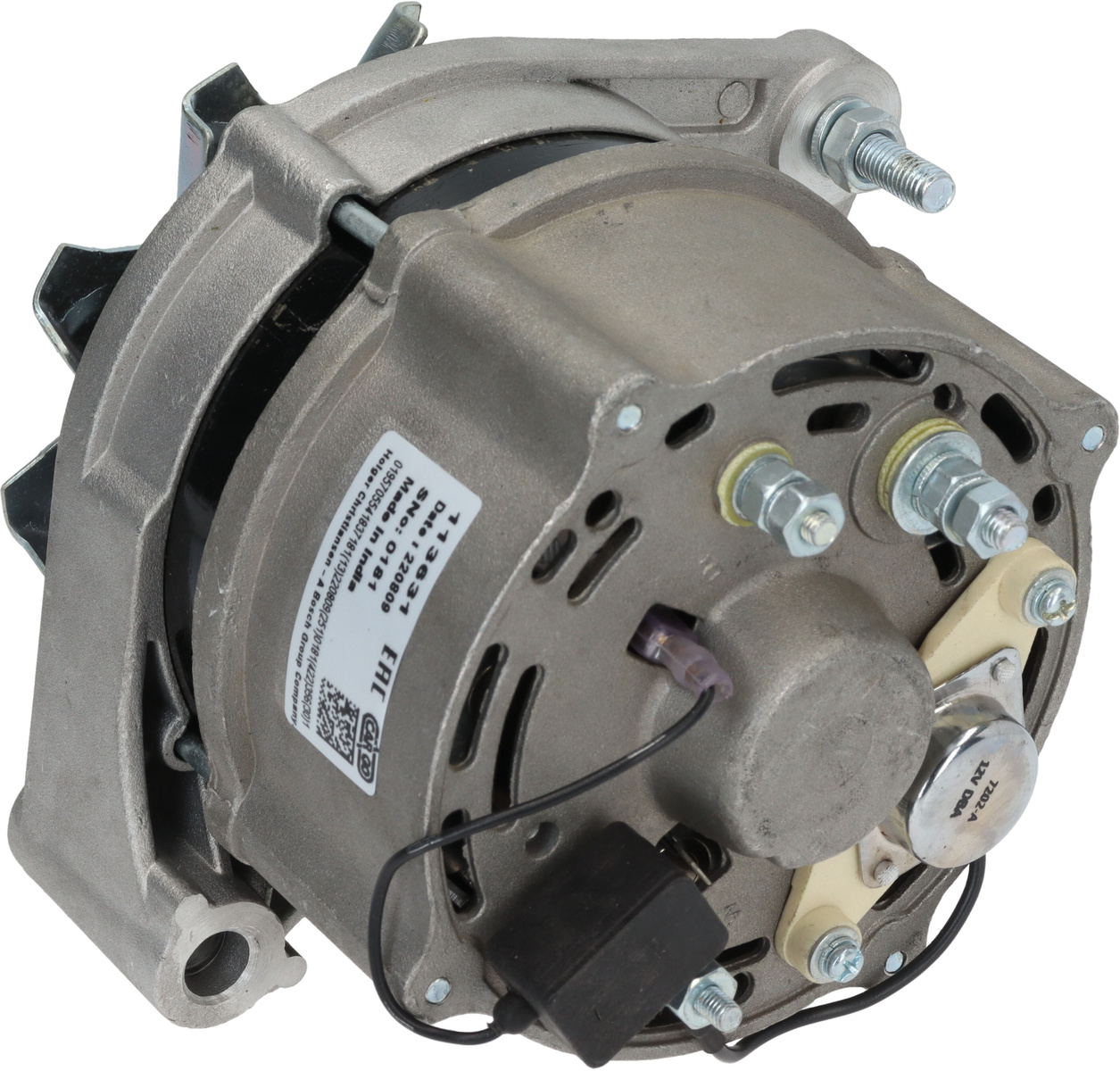

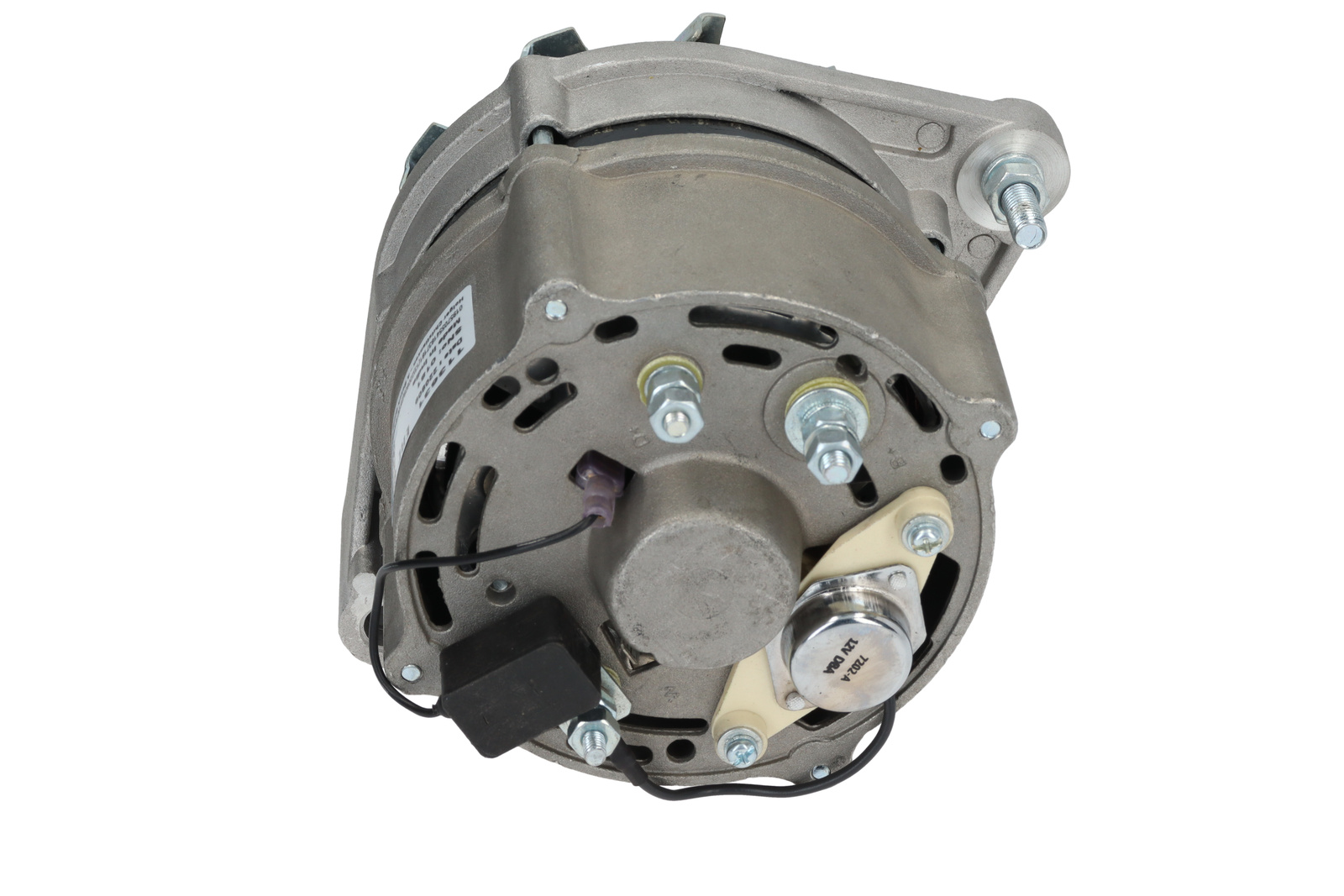

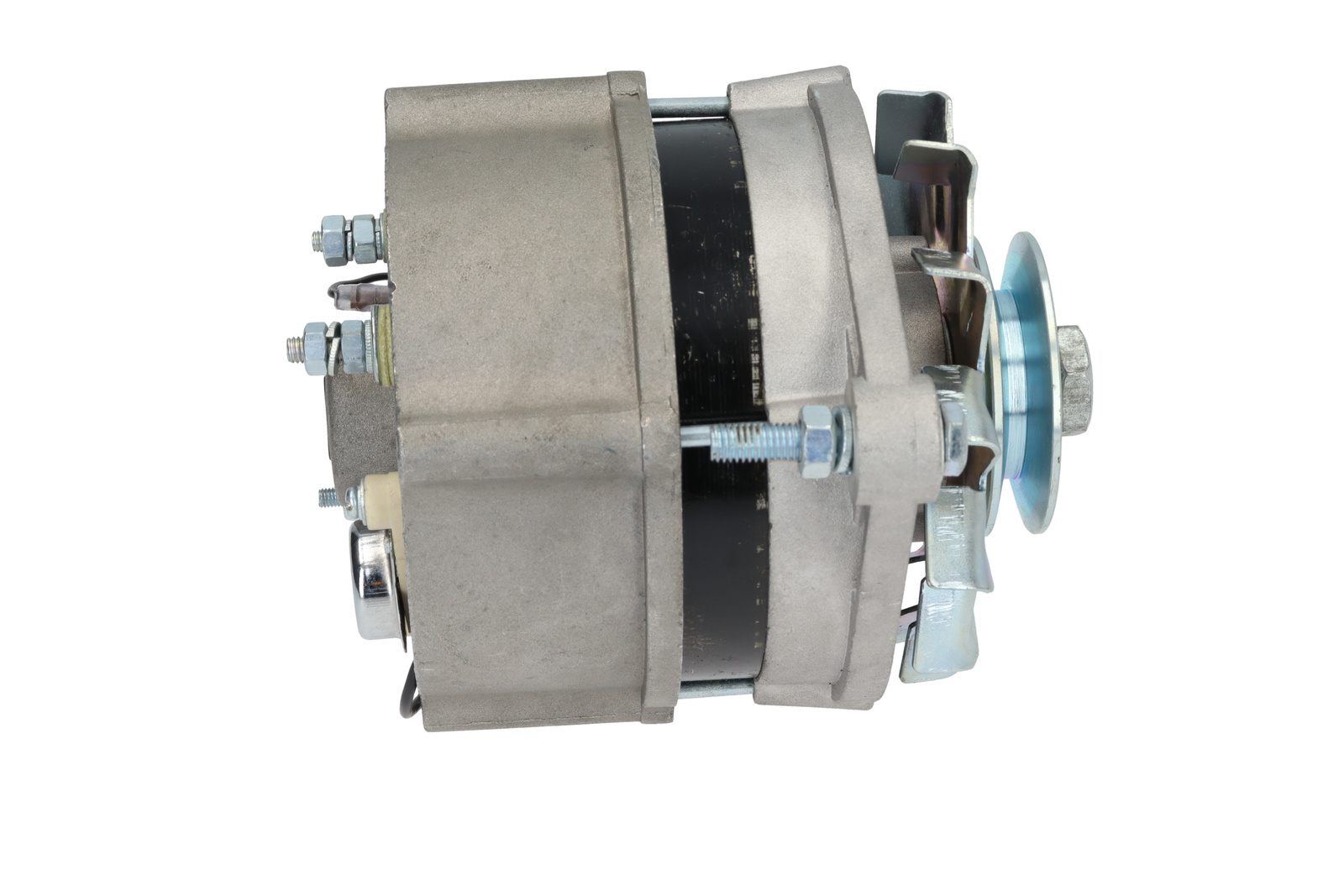

F032113631 - Alternator
Trade number 113631
Replacing and BOMs
OEM number
- 872235VOLVO
Competitor References
- 815019100CV PSH
- 2381621002DRI
- 286813ELSTOCK
- 113639HC-CARGO
- 113631HC-CARGO
- IA1450ISKRA
- 11203416ISKRA
- IA1202ISKRA
- AAK4352ISKRA
Trade number 113631
Details & description
Insulated return Yes, Voltage 14, Amp 90, Terminal W, Pulley P, W plug type 6.30, Pulley Diameter 63.60, Prod. info BN, D+ Position 48, Pulley Distance 79.20, Servicing Volvo Penta, BMW, Bukh, Radius 87.00, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 1, Regulator type IR, Bracket Hole Size 1 11.40, D+ Size M5, Holder Arm Width 51.00, B+ M6, Radius 2 86.00, Rotation CW, Position 15, B+ Position 58, Belt Adjustment Bracket Hole Position 57, Total Length 178.00
Product information
Electrical information
- Insulated returnYes
- Voltage14
- Amp90
- TerminalW
Catalogue information
- Prod. infoBN
- ServicingVolvo Penta, BMW, Bukh
Physical information
- PulleyP
- W plug type6.30
- Pulley Diameter63.60
- D+ Position48
- Pulley Distance79.20
- Radius87.00
- Belt Adjustment Bracket Hole 1M8
- Grooves/pulley1
- Regulator typeIR
Replacing and BOMs
OEM number
- 872235VOLVO
Competitor References
- 815019100CV PSH
- 2381621002DRI
- 286813ELSTOCK
- 113639HC-CARGO
- 113631HC-CARGO
- IA1450ISKRA
- 11203416ISKRA
- IA1202ISKRA
- AAK4352ISKRA
