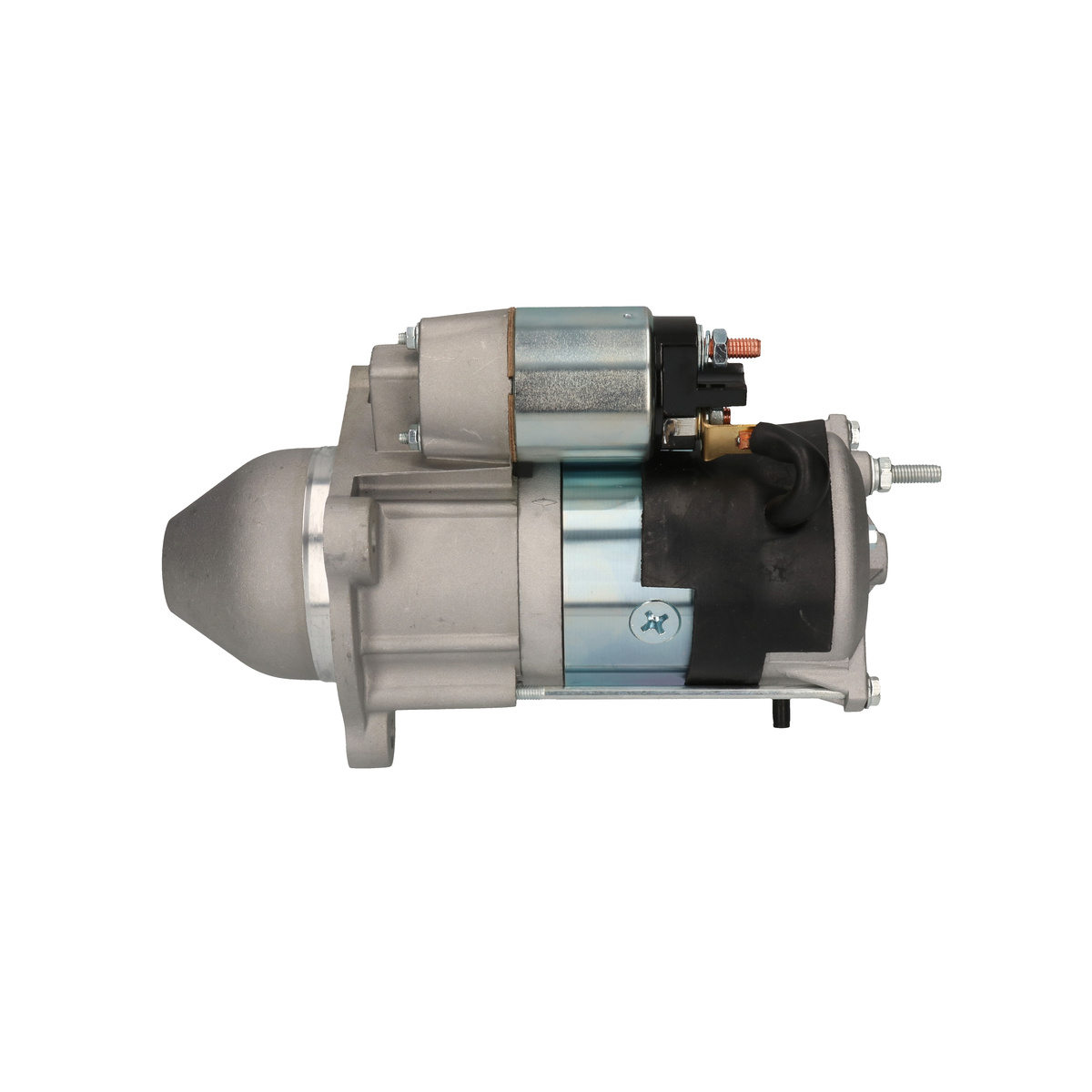

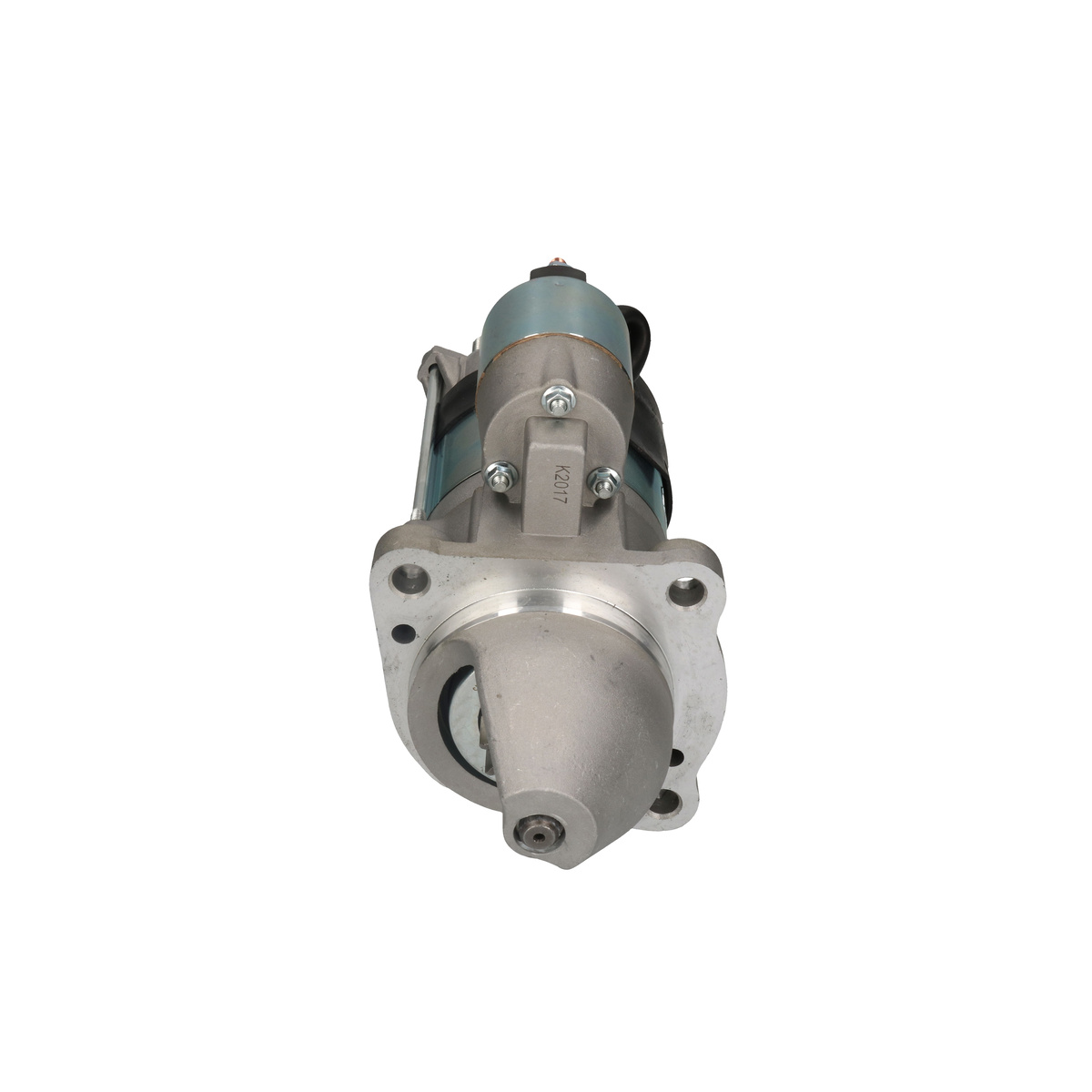

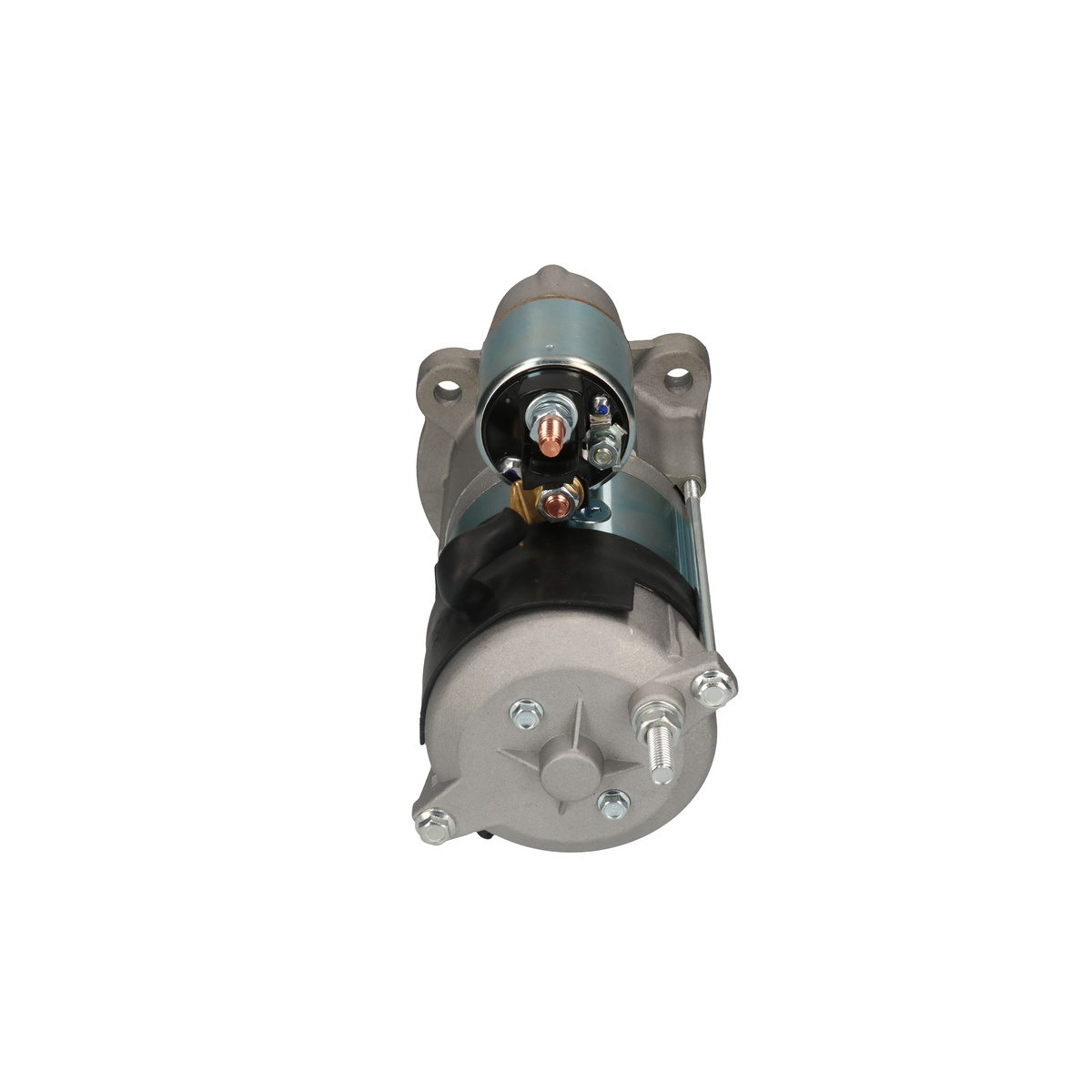

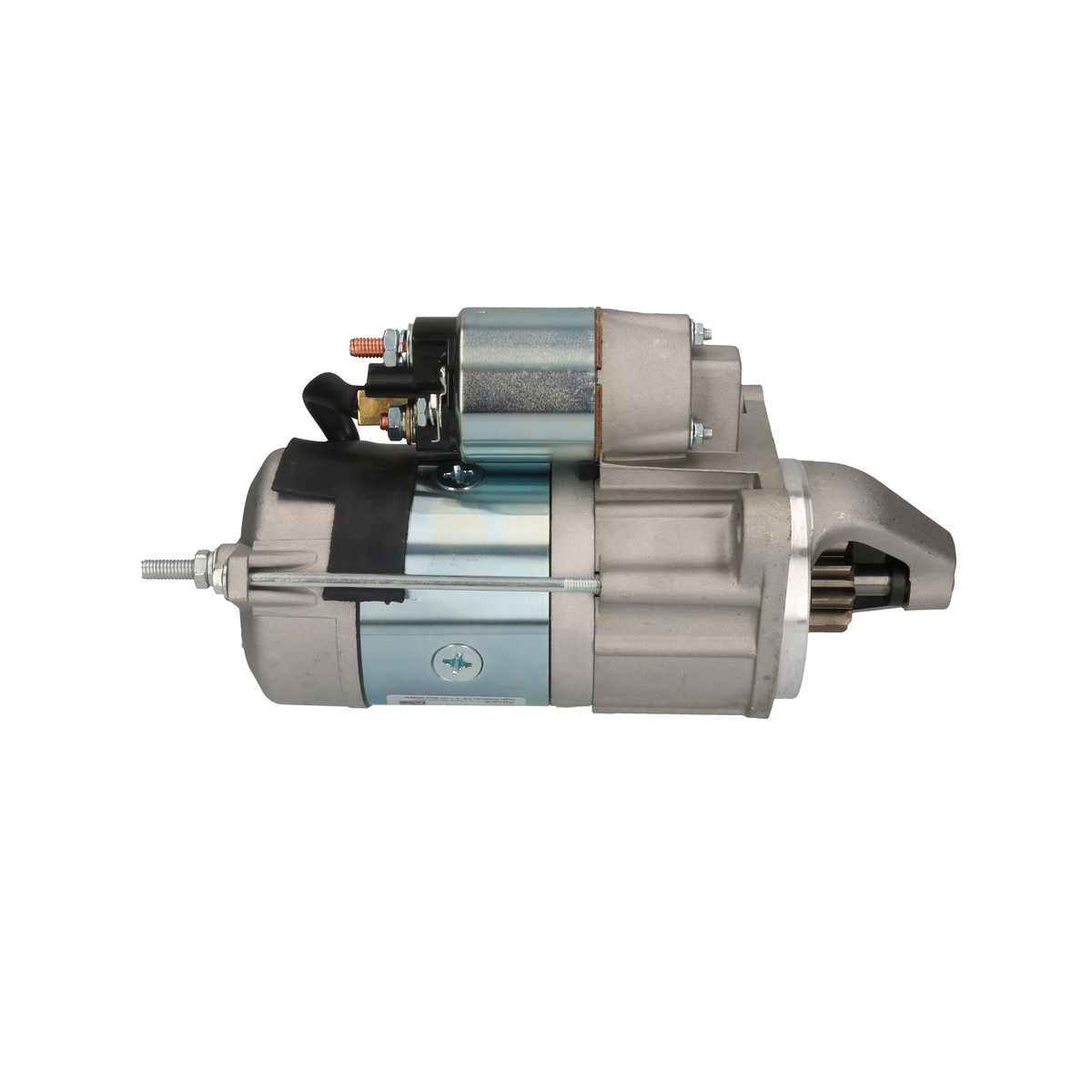

F032113654 - Starter
Trade number 113654Details & description
Voltage 12, kW 3.0, Drive type Steel, Mounting Hole 2 11.00, Rear Distance 194.00, Prod. info BN, Waterproof No, Distance 3 89.50, Drive Distance 30.50, Distance 2 126.50, Mounting Flange 89.00, Distance 89.50, Info HC-CARGO 113654 is a Marelli/Denso version, and cannot replace the Iskra version (HC-CARGO 114387)., Mounting Hole 3 11.00, Oil sealed No, No./mount. holes 3 (0), Thread Length 20.00, Gear type GR, B- M8, Front Distance 68.00, No./teeth 10, B+ M8, Terminal 50 M6, Rotation CW, Position 20;7, Mounting Hole 1 11.00, B+ Position 60, Total Length 292.00, Remarks Optional use HC-CARGO 115389, 4.2 kW., Amount of Mounting Holes 3 (0)
Product information
Voltage:12
kW:3.0
Drive type:Steel
Mounting Hole 2:11.00
Rear Distance:194.00
Prod. info:BN
Waterproof:No
Distance 3:89.50
Drive Distance:30.50
Distance 2:126.50
Mounting Flange:89.00
Distance:89.50
Info:HC-CARGO 113654 is a Marelli/Denso version, and cannot replace the Iskra version (HC-CARGO 114387).
Mounting Hole 3:11.00
Oil sealed:No
No./mount. holes:3 (0)
Thread Length:20.00
Gear type:GR
B-:M8
Front Distance:68.00
No./teeth:10
B+:M8
Terminal 50:M6
Rotation:CW
Position:20;7
Mounting Hole 1:11.00
B+ Position:60
Total Length:292.00
Remarks:Optional use HC-CARGO 115389, 4.2 kW.
Amount of Mounting Holes:3 (0)
Replacing and BOMs
OEM number
3127539CATERPILLAR
702284MANITOU
781742MANITOU
788129MANITOU
2873K404PERKINS
T400267PERKINS
Competitor References
254194AD KÜHNER
S4029AUTOSTARTER POLAND
S9172AUTOSTARTER POLAND
BSO7310BOWERS
CST21106CASCO SRL
CST21107CASCO SRL
CST30161CASCO SRL
700503103CV PSH
700016103CV PSH
DRS0066NDELCO REMY
4280001380DENSO
253377ELSTOCK
220814ERA SPA
220814AERA SPA
11090180EUROTEC
106639FACROM
8818320FRIESEN
113654HC-CARGO
8EA015642001HELLA
18941LESTER
LES0272LUCAS
LRS02206LUCAS
40003AMARELLI
MSN8040MARELLI
8818320QUINTON HAZELL
18941NIKWAI
STR52055WOOD AUTO SUPPL
