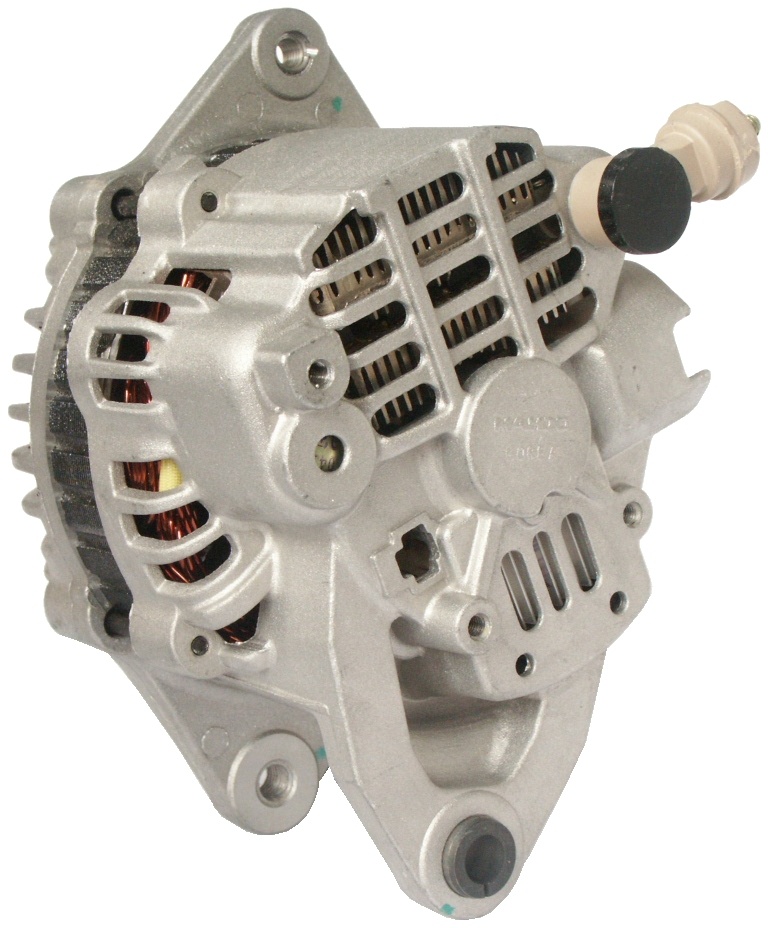

F032113656 - Alternator
Trade number 113656Details & description
Voltage 14, Amp 80, Pulley SP, Pulley Diameter 60.00, Prod. info BN, Bracket Hole Size Rear 10.50, D+ Position 10, Pulley Distance 37.50, Servicing Kia, Mounting Bracket Distance 67.00, Radius 90.00, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 4, Regulator type IR, Bracket Hole Size 1 M10-1.25, Terminal type L-S, D+ Size Plug, Holder Arm Width 13.20, B+ M6, Radius 2 85.00, Plug no. 1 PL07, Rotation CW, Position 22, B+ Position 2, Belt Adjustment Bracket Hole Position 60, Total Length 154.00
Product information
Voltage:14
Amp:80
Pulley:SP
Pulley Diameter:60.00
Prod. info:BN
Bracket Hole Size Rear:10.50
D+ Position:10
Pulley Distance:37.50
Servicing:Kia
Mounting Bracket Distance:67.00
Radius:90.00
Belt Adjustment Bracket Hole 1:M8
Grooves/pulley:4
Regulator type:IR
Bracket Hole Size 1:M10-1.25
Terminal type:L-S
D+ Size:Plug
Holder Arm Width:13.20
B+:M6
Radius 2:85.00
Plug no. 1:PL07
Rotation:CW
Position:22
B+ Position:2
Belt Adjustment Bracket Hole Position:60
Total Length:154.00
Replacing and BOMs
OEM number
AM00106RAIM
0K30C18300HYUNDAI
0K30D18300HYUNDAI
OK30C18300HYUNDAI
OK30D18300HYUNDAI
Competitor References
DRA0156AC DELCO
401785RIAD KÜHNER
A5099AUTOSTARTER POLAND
A9106MANDOAUTOSTARTER POLAND
F042206014BOSCH
F042A0H149BOSCH
0986080520BOSCH
CAL41105CASCO SRL
255502070CV PSH
DRA0156DELCO REMY
A80026DIXIE ELECTRIC
224148802DRI
284939ELSTOCK
210370AERA SPA
210370ERA SPA
12060795EUROTEC
112182FACROM
4860FAE
9090388FRIESEN
113656HC-CARGO
JA1785IRHC-PARTS
8EL738176001HELLA
8EL011711301HELLA
J5110308HERTH U. BUSS
13948LESTER
LEA0405LUCAS
LRA02821LUCAS
063532607010MARELLI
063532607MARELLI
9213374POWER MAX
9090388QUINTON HAZELL
ALT3013UNIPOINT
ALTH149UNIPOINT
600020VALEO
TA000A28801VALEO
444356VALEO
1244601MDWAI
13948NWAI
