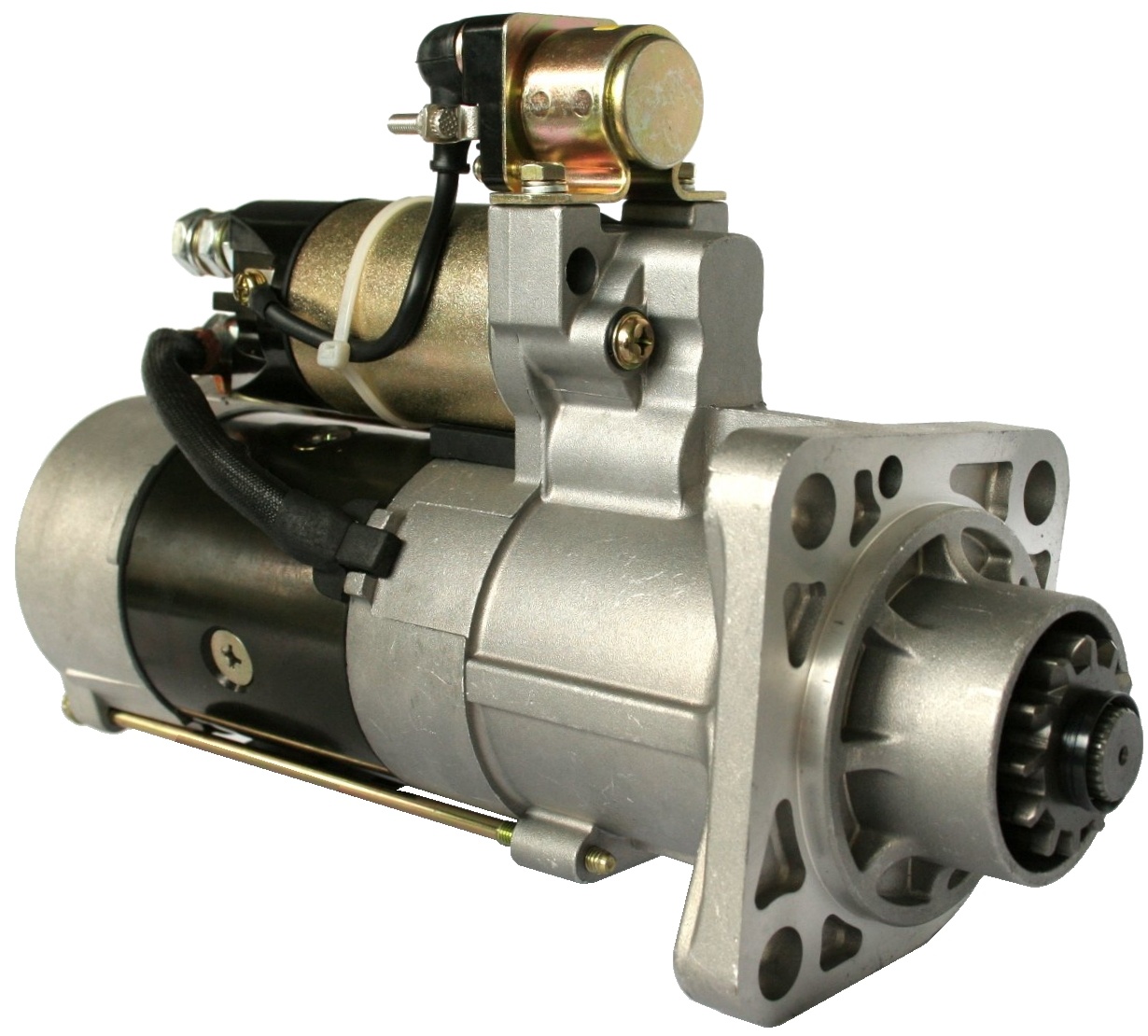

F032113676 - Starter

Trade number 113676
Product image - main
Trade number 113676

Details & description

Voltage 24, kW 5.5, Drive type Steel, Mounting Hole 2 14.00, Rear Distance 272.50, Prod. info BN, Waterproof No, Distance 3 90.00, Drive Distance 40.00, Distance 2 90.00, Mounting Flange 89.00, Distance 127.00, Mounting Hole 3 14.00, Oil sealed No, No./mount. holes 3 (0), Thread Length 30.00, Gear type GR, B- M10, Front Distance 46.50, No./teeth 12, B+ M10, Terminal 50 M5, Clutch type Dry, Rotation CW, Position 37, Mounting Hole 1 14.00, B+ Position 60, Total Length 350.50, Remarks w/ Start relay., Amount of Mounting Holes 3 (0)

Product information

Electrical information

  • Voltage24
  • kW5.5

Catalogue information

  • Prod. infoBN
  • WaterproofNo
  • Oil sealedNo
  • Clutch typeDry
  • Remarksw/ Start relay.

Physical information

  • Drive typeSteel
  • Mounting Hole 214.00
  • Rear Distance272.50
  • Distance 390.00
  • Drive Distance40.00
  • Distance 290.00
  • Mounting Flange89.00
  • Distance127.00
  • Mounting Hole 314.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • M009T60671MITSUBISHIBOM
    • M009T60672MITSUBISHIBOM
    • M9T60671MITSUBISHIBOM
    • M9T60672MITSUBISHIBOM
    • 5001853710RENAULT
    • 5010306777RENAULT
    • 5010508379RENAULT

    Competitor References

    • 101348AD KÜHNER
    • S5055AUTOSTARTER POLAND
    • F042S01195BOSCH
    • F042001195BOSCH
    • CST35614CASCO SRL
    • CST35629CASCO SRL
    • 571201123CV PSH
    • 571516123CV PSH
    • 571519123CV PSH
