F032113718 - Alternator

Trade number 113718

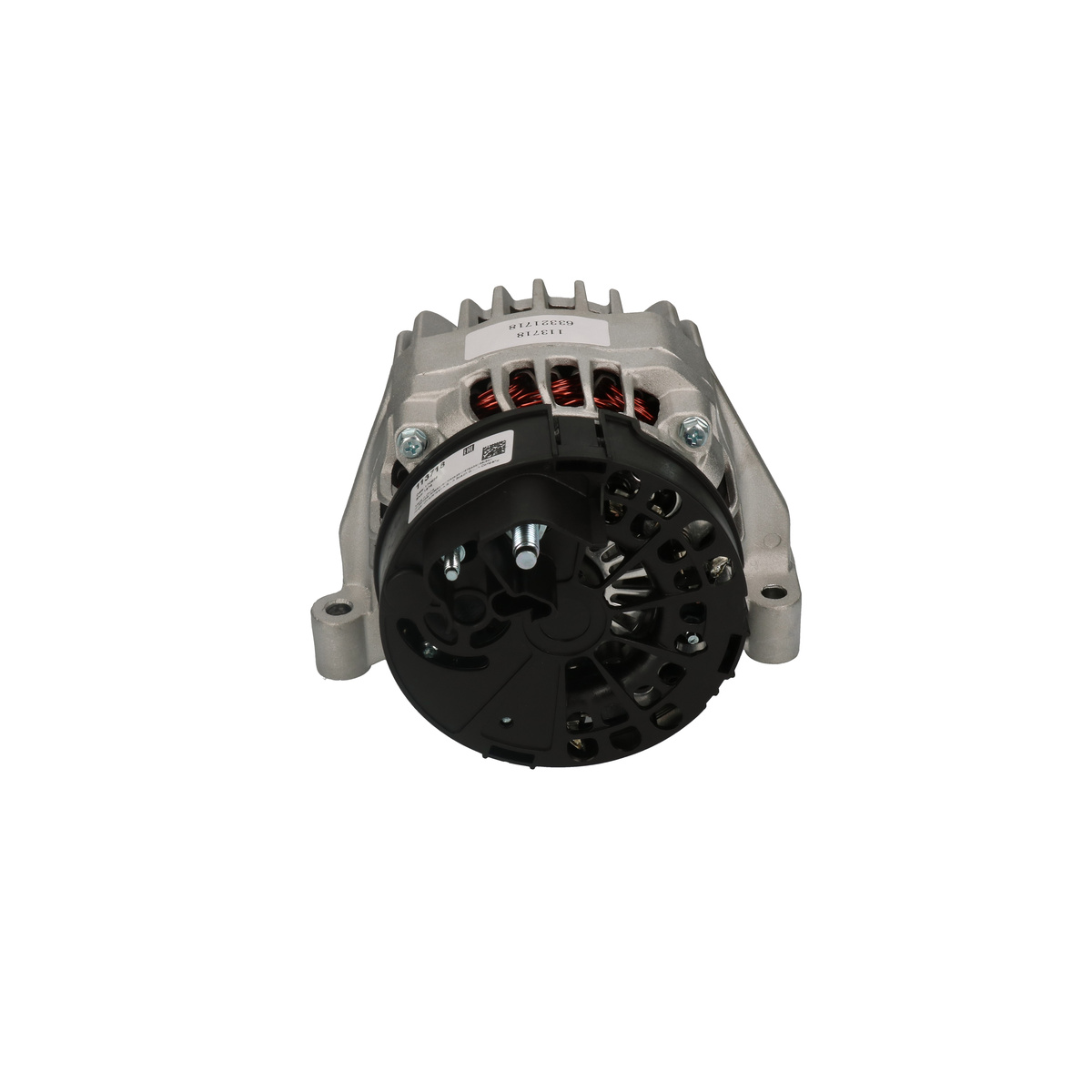

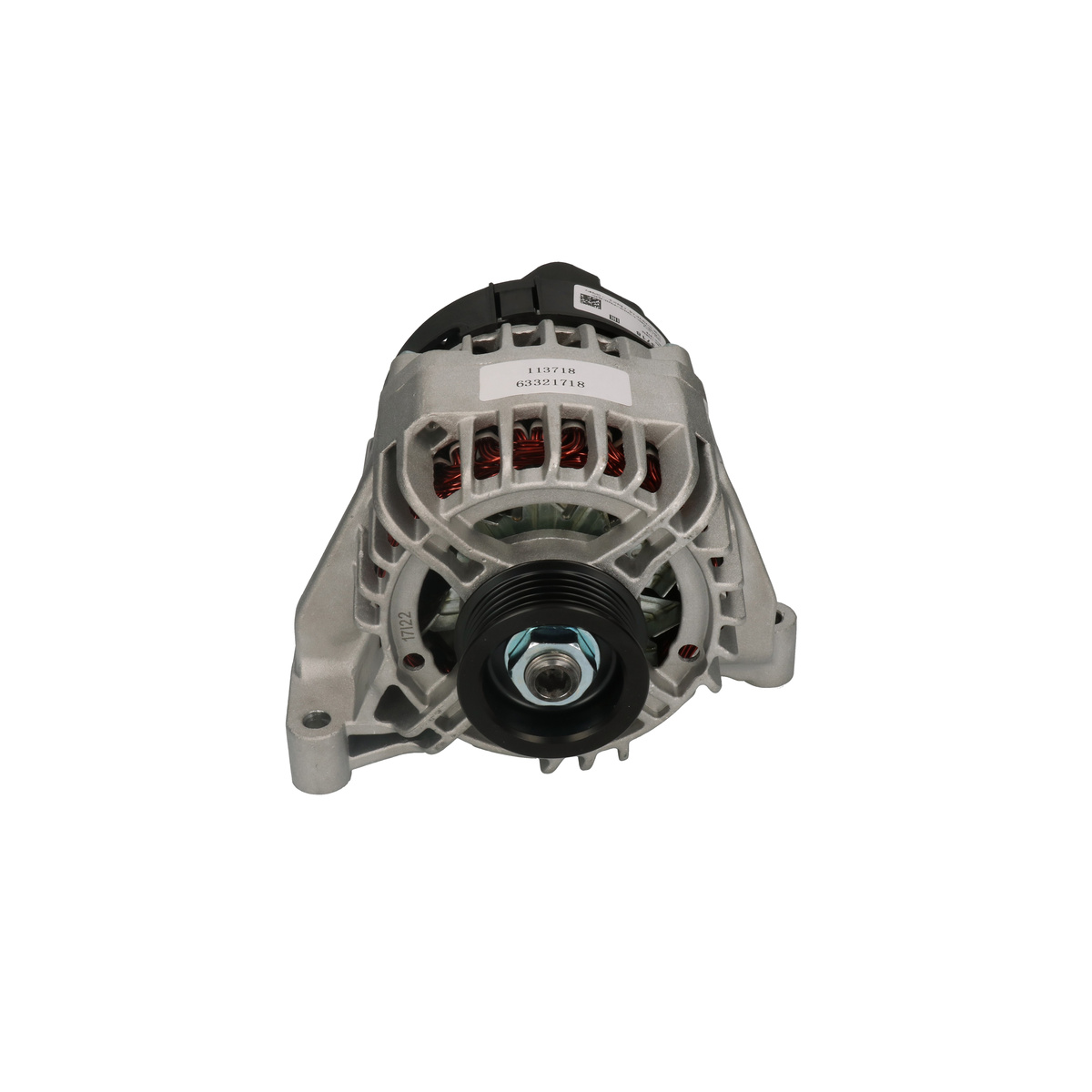

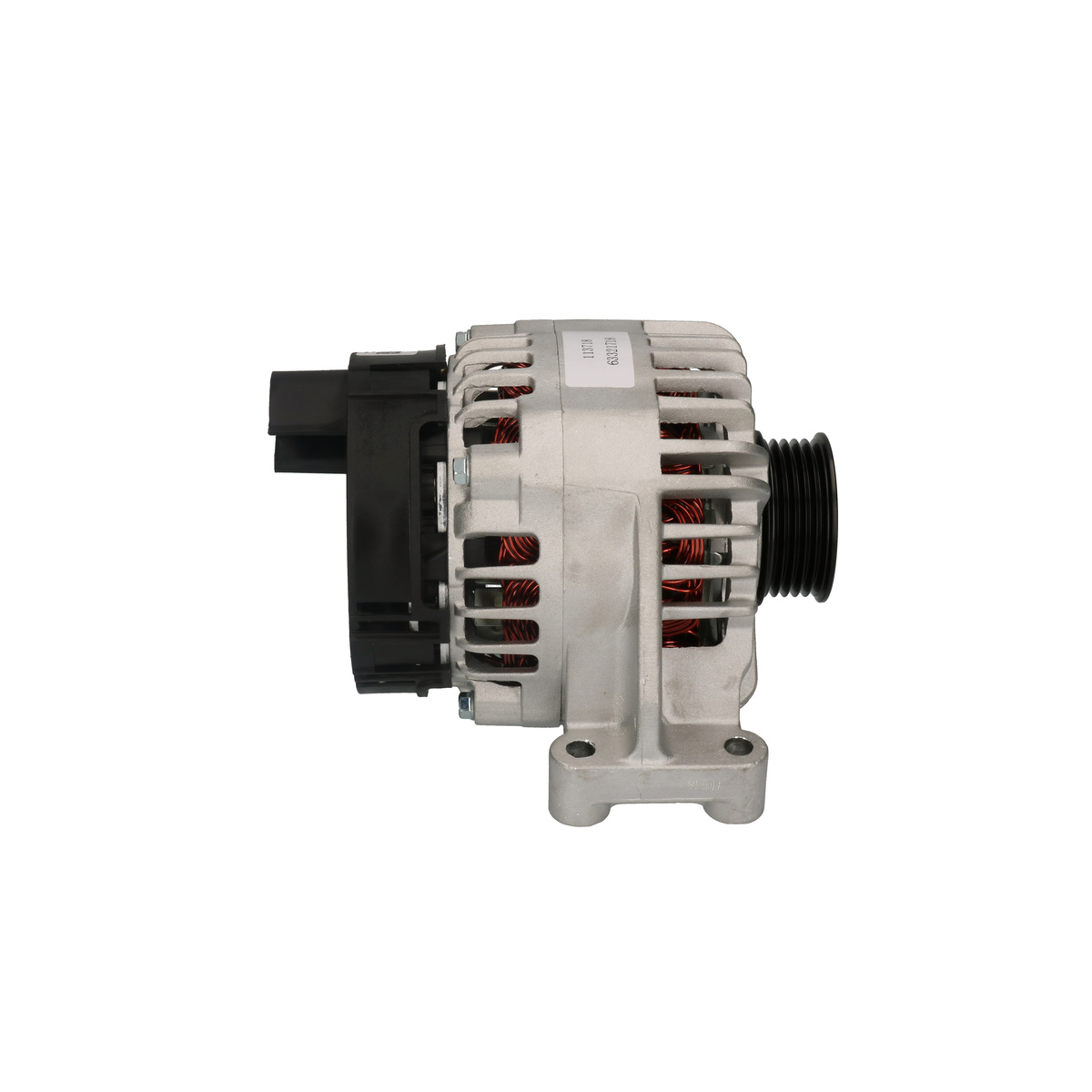

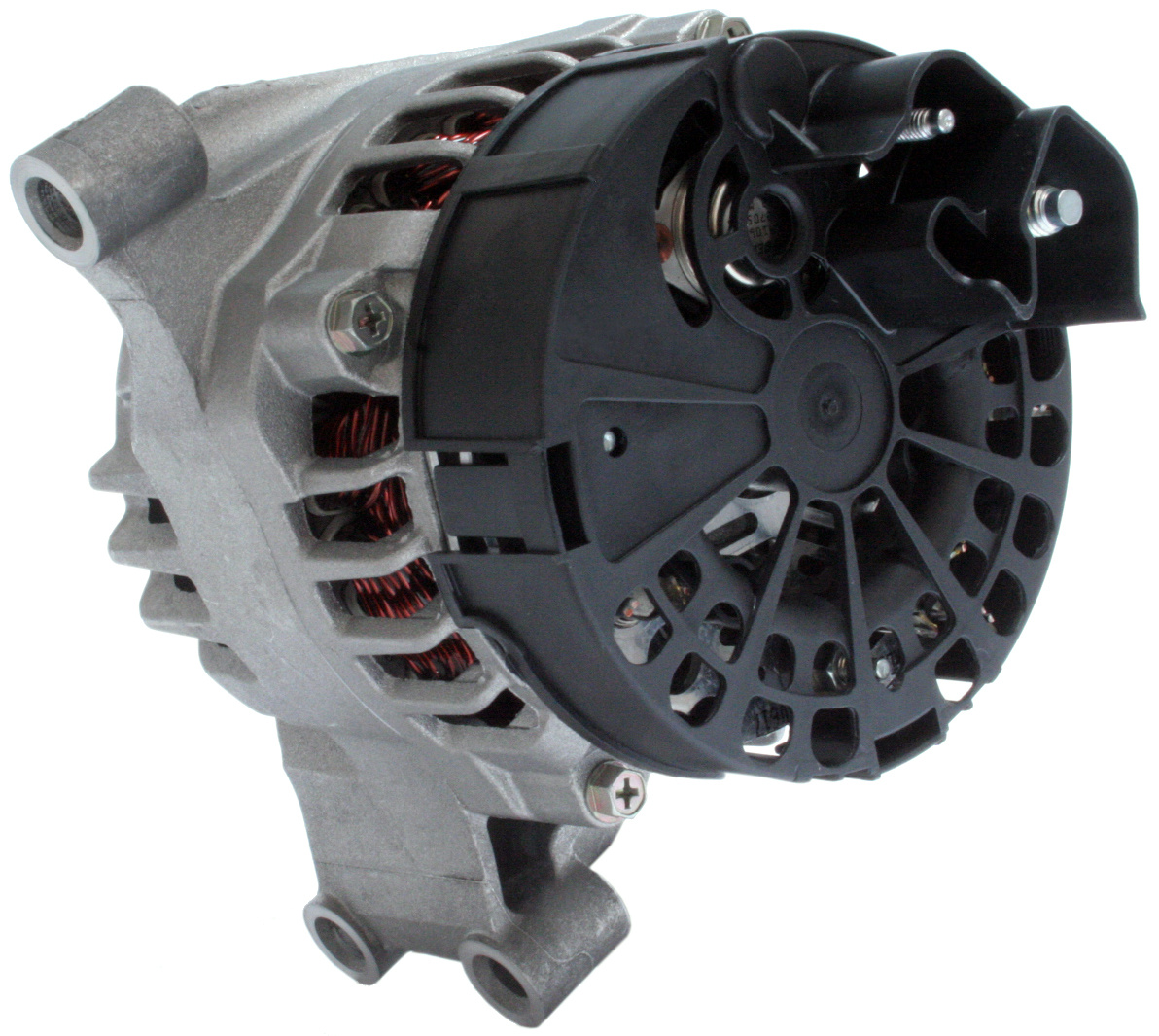

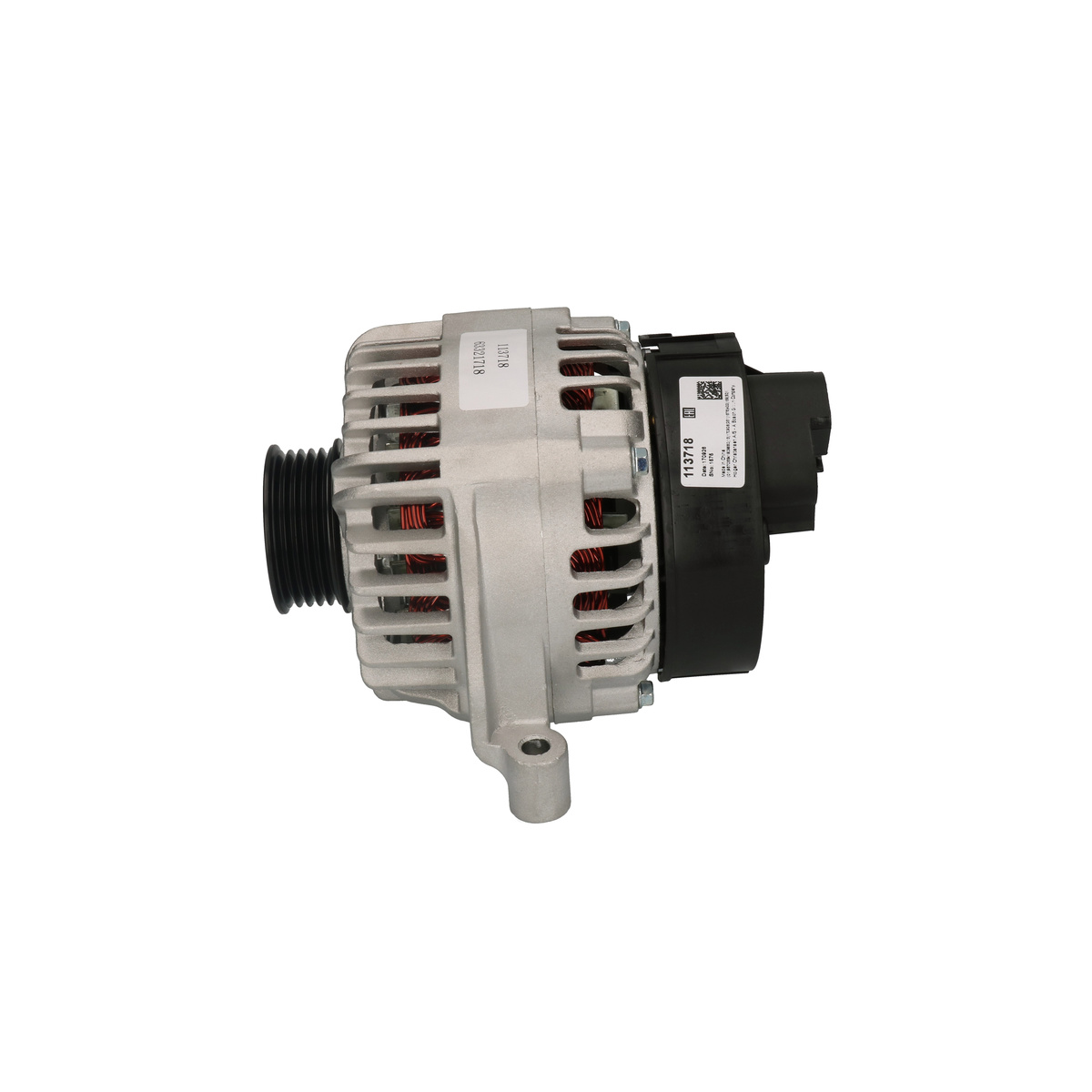

Product image - main
Trade number 113718

Details & description

Voltage 14, Amp 70, Pulley SP, Bracket Hole Size 1 8.50, Pulley Diameter 53.00, Prod. info BN, D+ Size M5, Holder Arm Width 23.50, Pulley Distance 16.50, Servicing Fiat, Lancia, Citroen, B+ M8, Bracket Hole Size 2 8.60, Mounting Bracket Distance 50.00, Rotation CW, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 5, Regulator type IR, Total Length 184.50

Product information

Electrical information

  • Voltage14
  • Amp70

Catalogue information

  • Prod. infoBN
  • ServicingFiat, Lancia, Citroen

Physical information

  • PulleySP
  • Bracket Hole Size 18.50
  • Pulley Diameter53.00
  • D+ SizeM5
  • Holder Arm Width23.50
  • Pulley Distance16.50
  • B+M8
  • Bracket Hole Size 28.60
  • Mounting Bracket Distance50.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 46542889FIAT
    • 46843091FIAT
    • 51709133FIAT
    • 51714794FIAT
    • 51859037FIAT
    • 52003531FIAT
    • 5702F2PEUGEOT
    • 5705FCPEUGEOT

    Competitor References

    • DRA0007AC DELCO
    • DRA0007NAC DELCO
    • 301766RIAD KÜHNER
    • A6269DENSOAUTOSTARTER POLAND
    • A4127PRAUTOSTARTER POLAND
    • A4131SAUTOSTARTER POLAND
    • A6626DENSOAUTOSTARTER POLAND
    • 1986A00584BOSCH
    • F042A07027BOSCH
