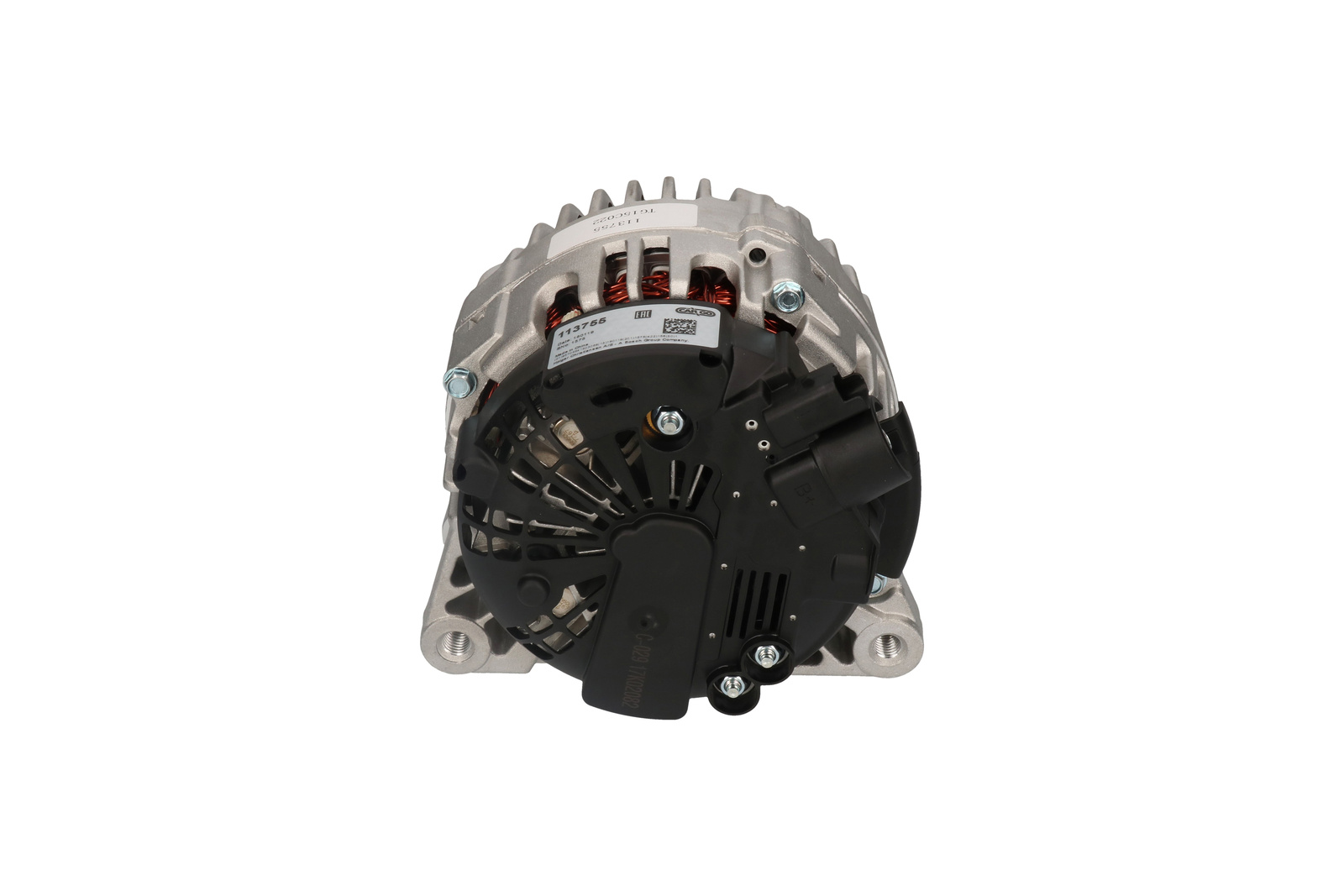

F032113755 - Alternator
Trade number 113755
Replacing and BOMs
OEM number
- 9639396480FIAT
- 9646066880FIAT
- K9639396480FIAT
- K9646066880FIAT
- 9646068880FIAT
- K9646068880FIAT
- 96460668PEUGEOT
- 5705ALPEUGEOT
- 9646476280PEUGEOT
Competitor References
- DRA0191AC DELCO
- DRA4214AC DELCO
- DRA4214XAC DELCO
- 301674RIAD KÜHNER
- 301850RIAD KÜHNER
- A0268BOSCHAUTOSTARTER POLAND
- A3074AUTOSTARTER POLAND
- A0268AUTOSTARTER POLAND
- A3067PRAUTOSTARTER POLAND
Trade number 113755
Details & description
Voltage 14, Amp 150, Pulley SP, Pulley Diameter 54.20, Prod. info BN, Bracket Hole Size Rear M10, D+ Position 17, Pulley Distance 43.00, Servicing Citroen, Peugeot, Mounting Bracket Distance 45.00, Radius 90.00, Belt Adjustment Bracket Hole 1 10.20, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.70, D+ Size Plug, Holder Arm Width 21.00, B+ M8, Radius 2 90.00, Plug no. 1 PL72, Rotation CW, Position 10, B+ Position 20, Belt Adjustment Bracket Hole Position 13, Total Length 175.00
Product information
Electrical information
- Voltage14
- Amp150
Catalogue information
- Prod. infoBN
- ServicingCitroen, Peugeot
Physical information
- PulleySP
- Pulley Diameter54.20
- Bracket Hole Size RearM10
- D+ Position17
- Pulley Distance43.00
- Mounting Bracket Distance45.00
- Radius90.00
- Belt Adjustment Bracket Hole 110.20
- Grooves/pulley6
