F032113923 - Alternator

Trade number 113923

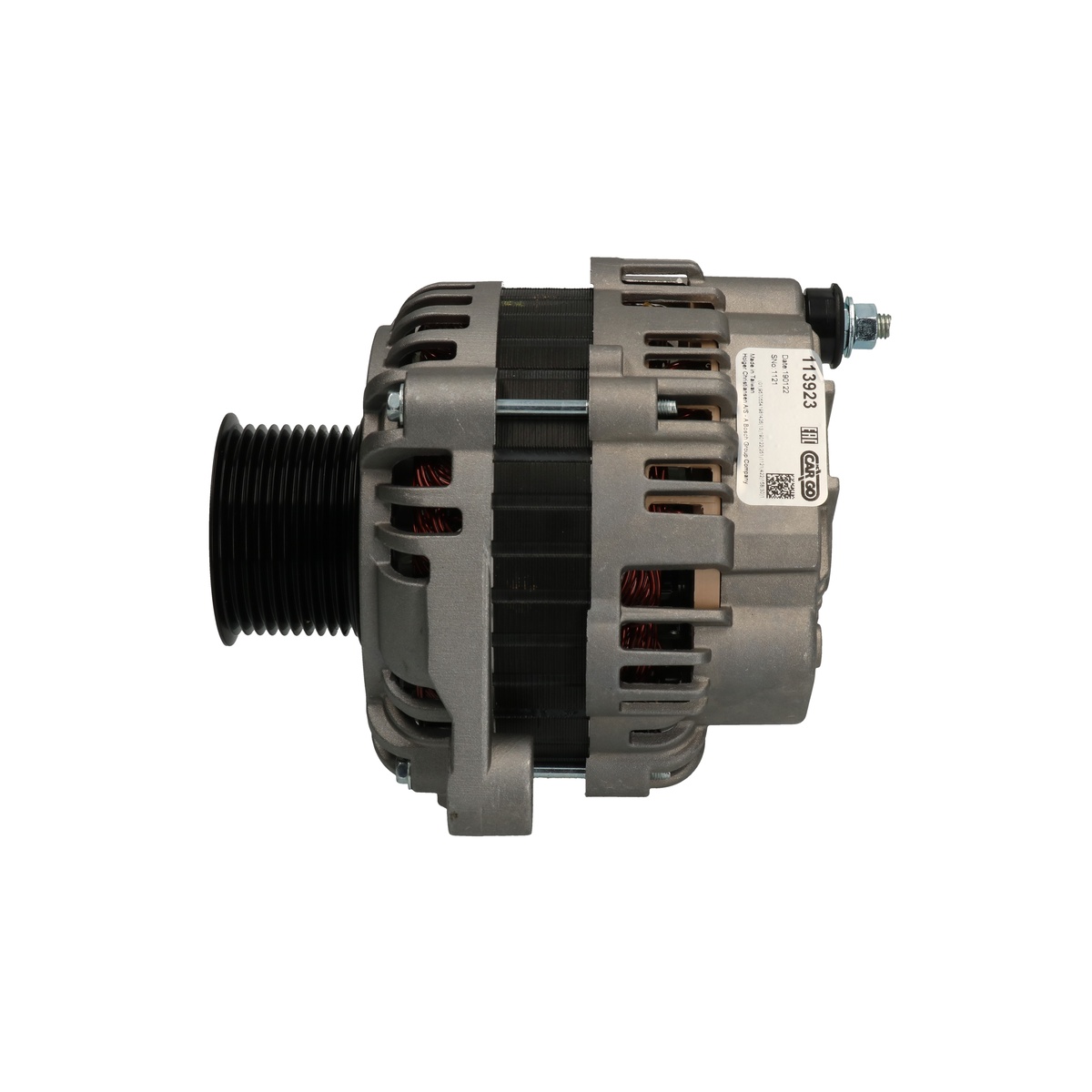

Product image - main
Trade number 113923

Details & description

Voltage 28, Amp 90, Pulley SP, Bracket Hole Size 1 10.50, Pulley Diameter 62.00, Prod. info BN, D+ Size Plug, D+ Position 12, Holder Arm Width 58.00, Pulley Distance 90.00, B+ M8, Radius 2 90.00, Plug no. 1 PL42, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 10, Regulator type IR, Position 12, B+ Position 58, Belt Adjustment Bracket Hole Position 7, Total Length 213.00

Product information

Electrical information

  • Voltage28
  • Amp90

Catalogue information

  • Prod. infoBN

Physical information

  • PulleySP
  • Bracket Hole Size 110.50
  • Pulley Diameter62.00
  • D+ SizePlug
  • D+ Position12
  • Holder Arm Width58.00
  • Pulley Distance90.00
  • B+M8
  • Radius 290.00
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 1516506RDAF
    • 500331736HEULIEZ
    • 500337394HEULIEZ
    • 504065776HEULIEZ
    • 504286394HEULIEZ
    • 99477271HEULIEZ
    • 500331736IVECO
    • 500337394IVECO
    • 504065776IVECO
  • Competitor References

    • DRB5170XAC DELCO
    • DRA4134AC DELCO
    • DRB5170AC DELCO
    • DRB5170NAC DELCO
    • DRA1357AC DELCO
    • 301633RIAD KÜHNER
    • A5379SAUTOSTARTER POLAND
    • A5041MITSUBISHIAUTOSTARTER POLAND
    • A0320AUTOSTARTER POLAND
