F032113941 - Alternator

Trade number 113941

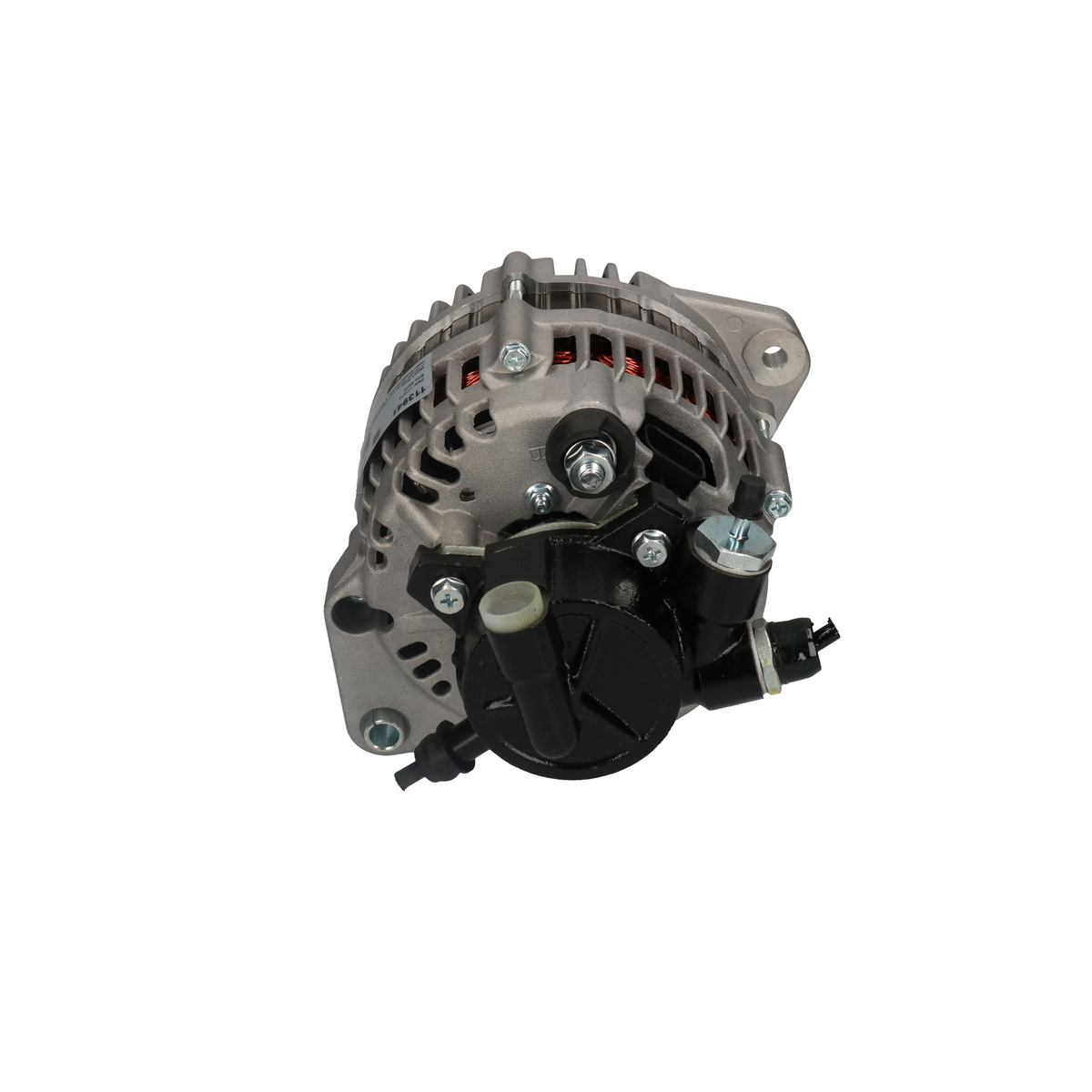

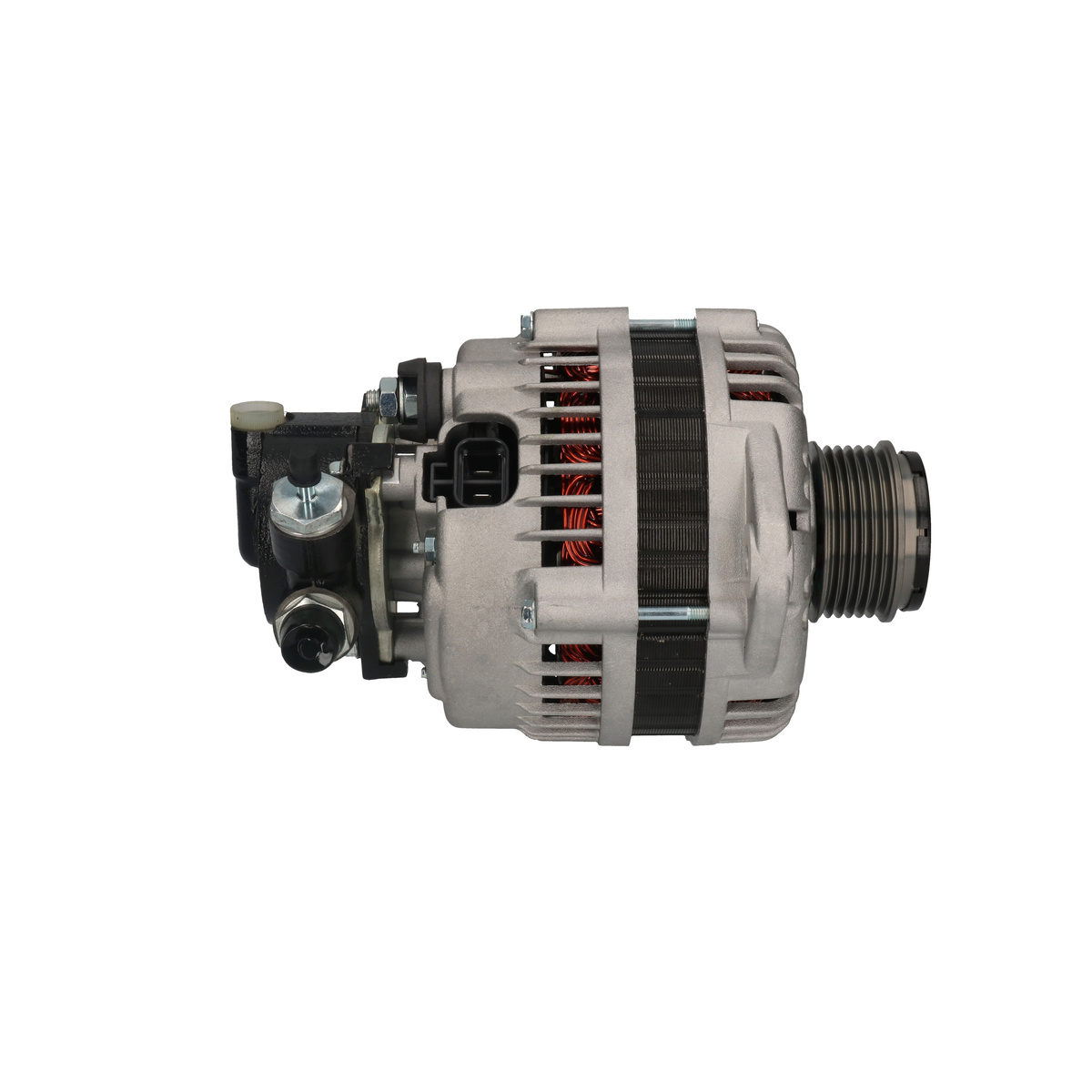

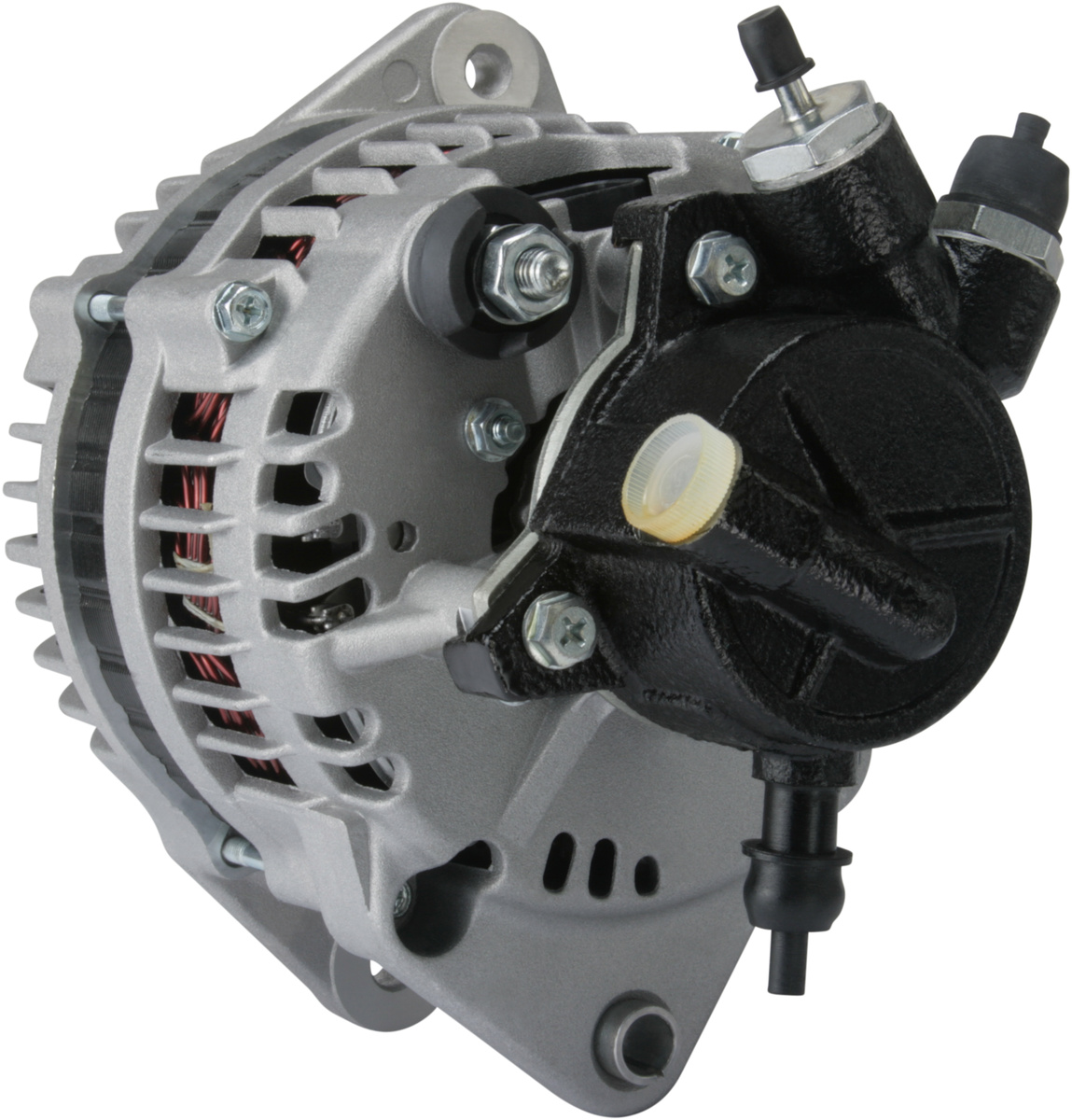

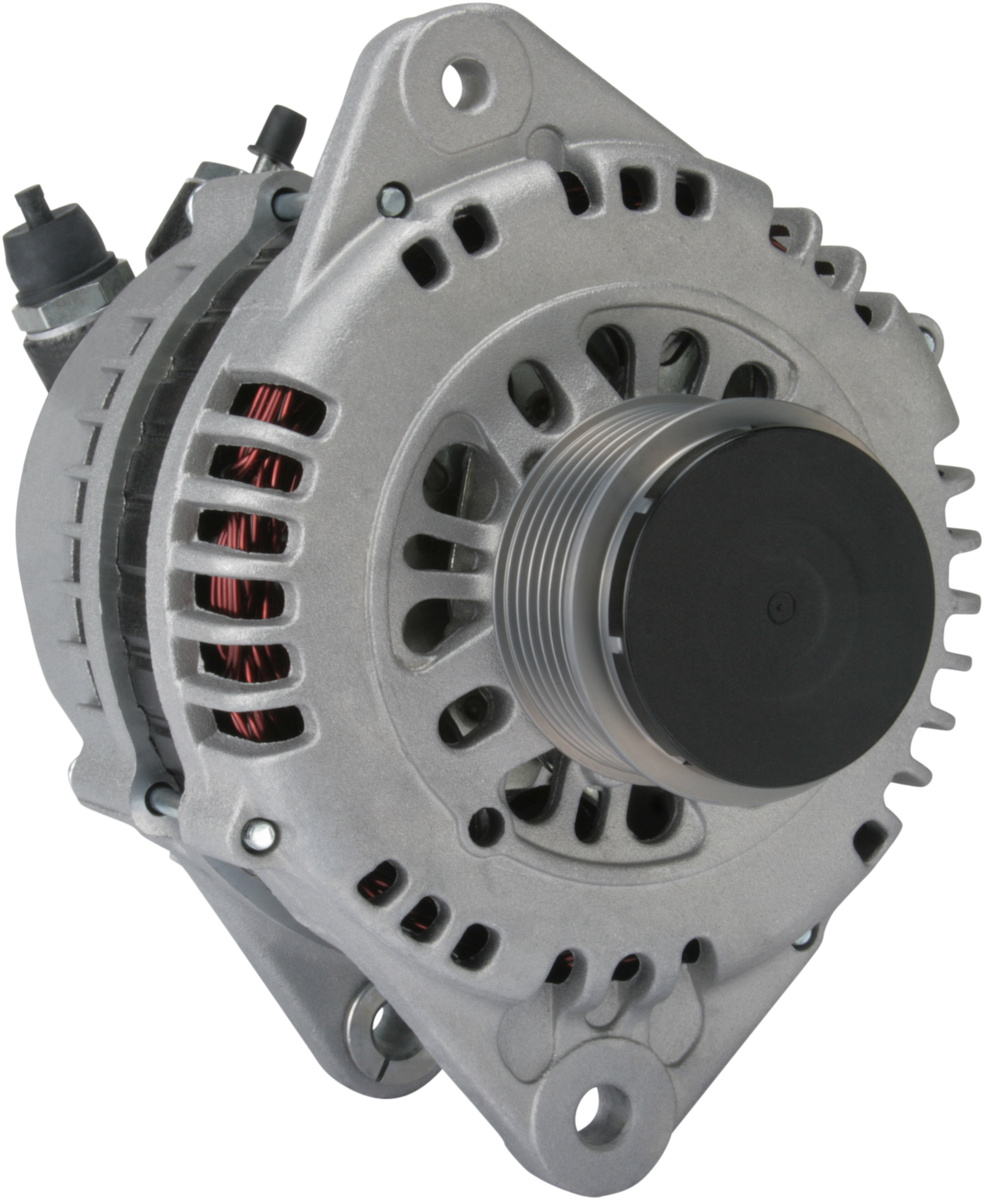

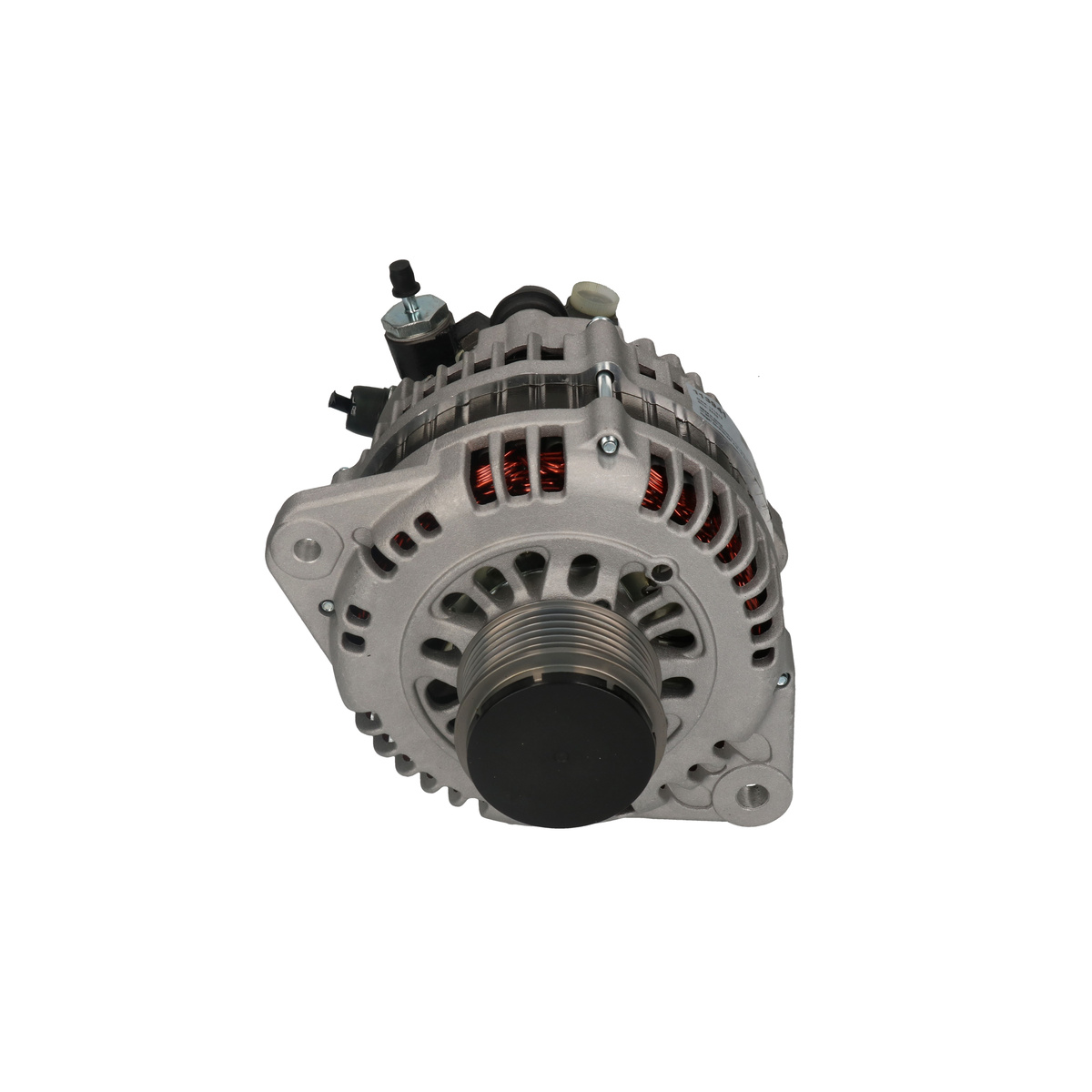

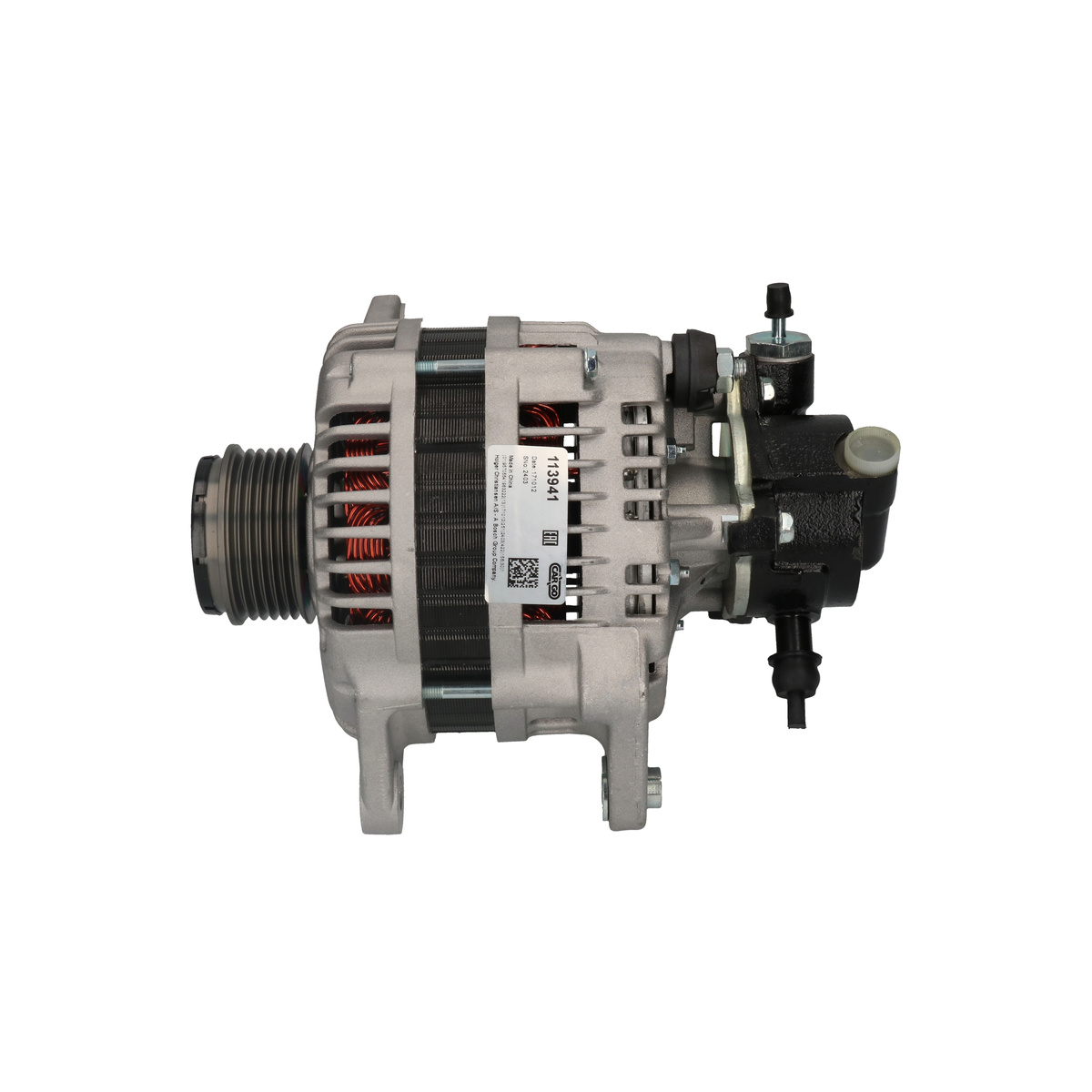

Product image - main
Trade number 113941

Details & description

Voltage 14, Amp 100, Terminal W, Pulley SP/FW, W plug type Plug, Pulley Diameter 59.50, Prod. info BN, Bracket Hole Size Rear 10.50, D+ Position 57, Nipple Vaccum Pump Position 30, Pulley Distance 35.50, Vac. pump Yes, Mounting Bracket Distance 66.50, Radius 90.00, Belt Adjustment Bracket Hole 1 8.20, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.30, Vacumm Pump Position 60, D+ Size Plug, Holder Arm Width 13.00, B+ M8, Fan IF, Radius 2 85.00, Plug no. 1 PL50, Rotation CW, Position 8, B+ Position 53, Belt Adjustment Bracket Hole Position 57, Total Length 224.00

Product information

Electrical information

  • Voltage14
  • Amp100
  • TerminalW

Catalogue information

  • Prod. infoBN
  • Vac. pumpYes

Physical information

  • PulleySP/FW
  • W plug typePlug
  • Pulley Diameter59.50
  • Bracket Hole Size Rear10.50
  • D+ Position57
  • Nipple Vaccum Pump Position30
  • Pulley Distance35.50
  • Mounting Bracket Distance66.50
  • Radius90.00
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 8973551980ISUZUBOM
    • 8973551981ISUZUBOM
    • 8973551982ISUZUBOM
    • 8973554981ISUZUBOM
    • 8980564430ISUZUBOM
    • 6204183OPELBOM
    • 6204251OPELBOM
    • 93189495OPELBOM
    • 95520887OPEL
  • Competitor References

    • DRA0182XAC DELCO
    • DRA0182AC DELCO
    • 401901RIAD KÜHNER
    • A2038AUTOSTARTER POLAND
    • A2038PINAAUTOSTARTER POLAND
    • 0986048340BOSCH
    • 0986048343BOSCH
    • F042A05044BOSCH
    • F042305044BOSCH
  • Compatible products
