F032113989 - Alternator

Trade number 113989

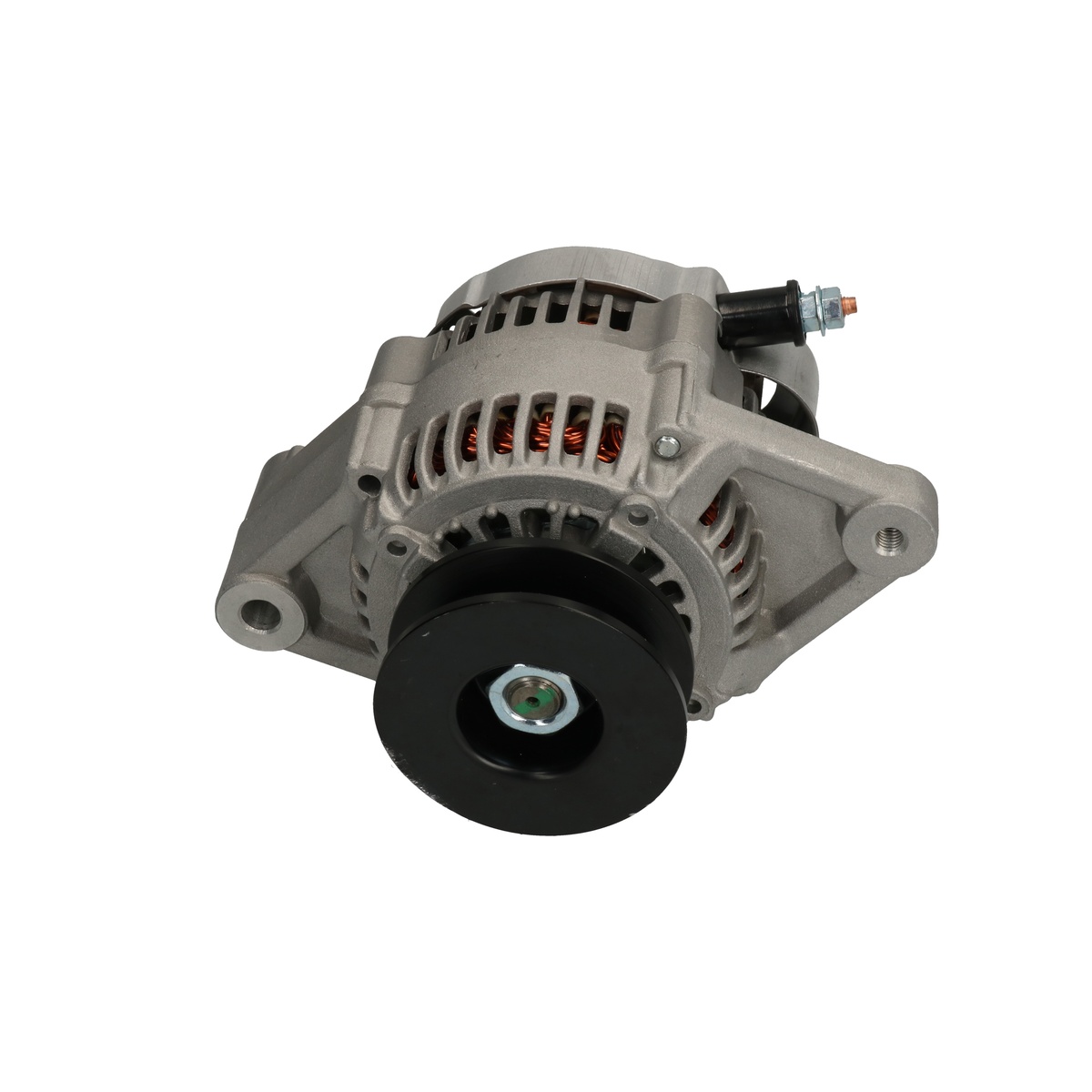

Product image - main
Trade number 113989

Details & description

Voltage 14, Amp 50, Pulley P, Bracket Hole Size 1 10.50, Pulley Diameter 75.00, Prod. info BN, D+ Size Plug, D+ Position 60, Holder Arm Width 58.00, Pulley Distance 99.00, Servicing Toyota, B+ M6, Radius 2 85.00, Plug no. 1 PL42, Radius 80.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 1, Regulator type IR, B+ Position 3, Belt Adjustment Bracket Hole Position 60, Total Length 152.00

Product information

Electrical information

  • Voltage14
  • Amp50

Catalogue information

  • Prod. infoBN
  • ServicingToyota

Physical information

  • PulleyP
  • Bracket Hole Size 110.50
  • Pulley Diameter75.00
  • D+ SizePlug
  • D+ Position60
  • Holder Arm Width58.00
  • Pulley Distance99.00
  • B+M6
  • Radius 285.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 2706078156TOYOTA
    • 270607820371TOYOTABOM
    • 270607815671TOYOTA
    • 27060UC020TOYOTA

    Competitor References

    • 553570RIAD KÜHNER
    • A6215AUTOSTARTER POLAND
    • F042A02003BOSCH
    • F042302003BOSCH
    • CAL40168CASCO SRL
    • 195581055CV PSH
    • 195579050CV PSH
    • 1012113860DENSOBOM
    • 1012118580DENSOBOM

    • Compatible products
