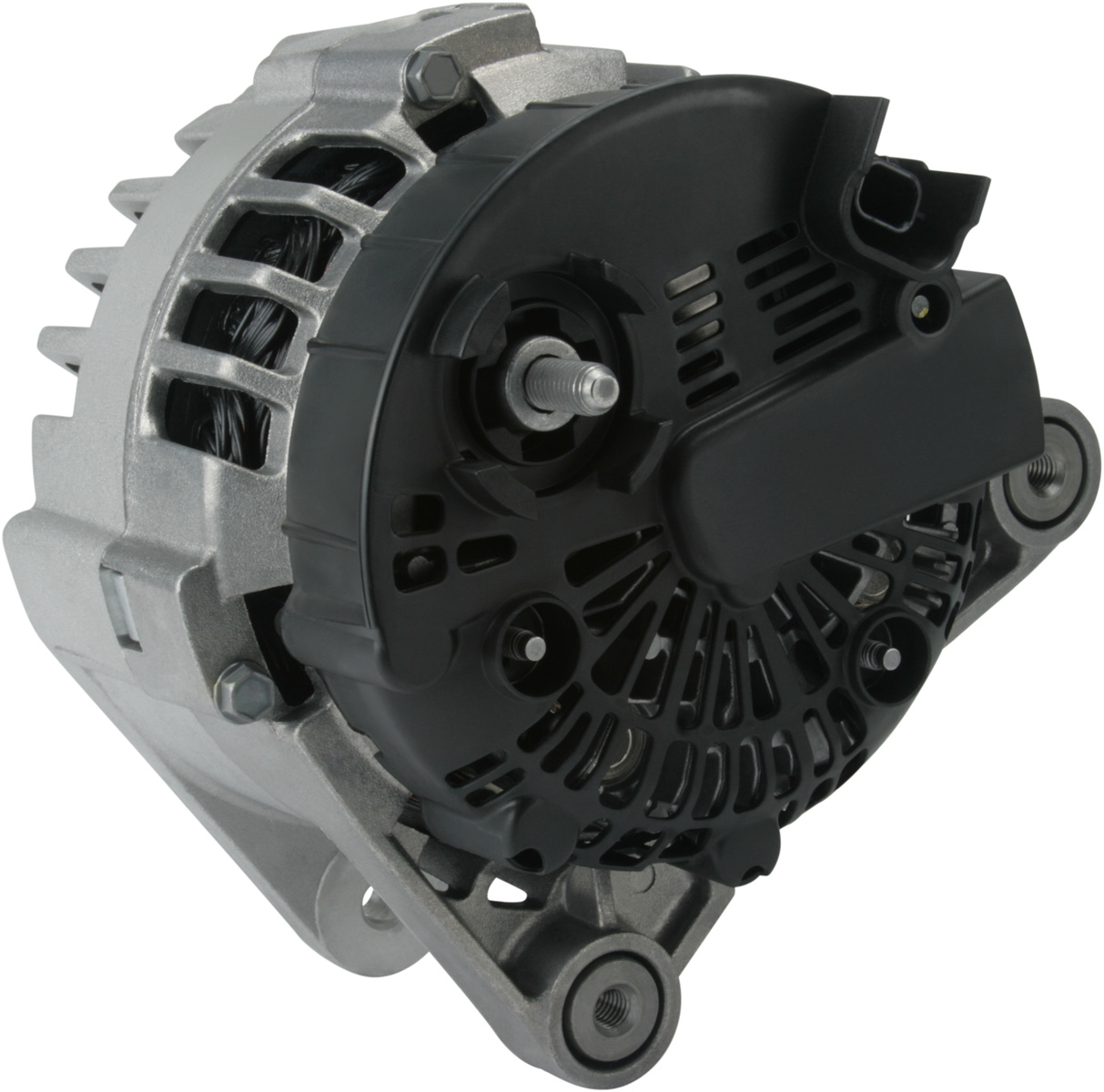

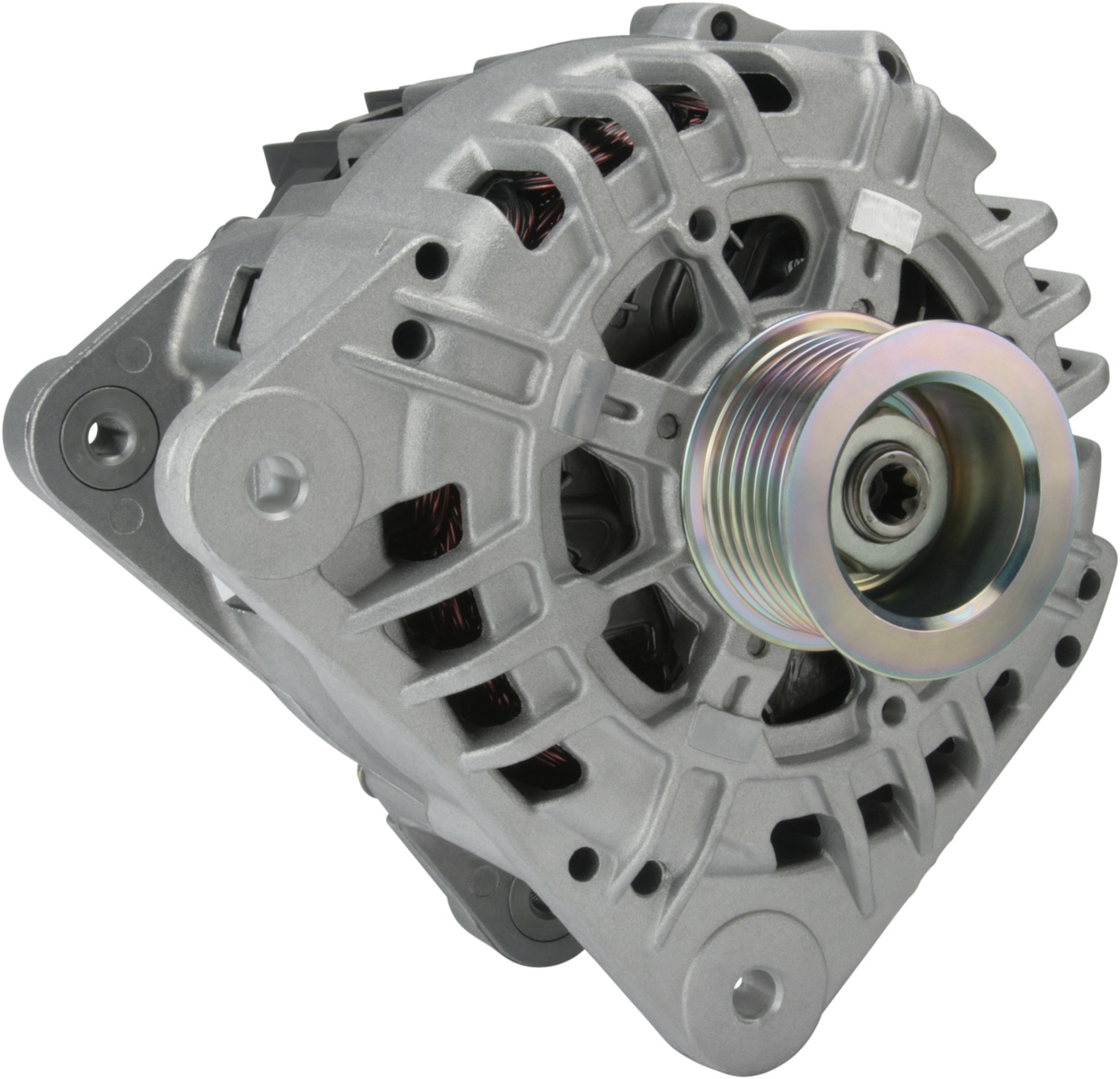

F032114039 - Alternator
Trade number 114039
Replacing and BOMs
OEM number
- 8200410674RENAULT
- 8200667611RENAULT
- 7711368603RENAULT
Competitor References
- DRA0552AC DELCO
- 553149RIAD KÜHNER
- A3170AUTOSTARTER POLAND
- A3170VALEOAUTOSTARTER POLAND
- A3313VALEOAUTOSTARTER POLAND
- 0986084100BOSCH
- CAL15369CASCO SRL
- 575542120CV PSH
- DRA0552DELCO REMY
Trade number 114039
Details & description
Voltage 14, Amp 120, Communication BSS, Pulley SP, Pulley Diameter 49.20, Bracket Hole Size Rear M8, Pulley Distance 33.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Source Valeo, Mounting Bracket Distance 60.00, Radius 90.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 7, Regulator type IR, Bracket Hole Size 1 8.50, Terminal type COM, Holder Arm Width 13.70, B+ M8, Radius 2 90.00, Plug no. 1 PL131, Rotation CW, Position 60, B+ Position 48, Belt Adjustment Bracket Hole Position 45, Total Length 180.00
Product information
Electrical information
- Voltage14
- Amp120
Catalogue information
- Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Physical information
- CommunicationBSS
- PulleySP
- Pulley Diameter49.20
- Bracket Hole Size RearM8
- Pulley Distance33.00
- SourceValeo
- Mounting Bracket Distance60.00
- Radius90.00
- Belt Adjustment Bracket Hole 18.50
Suggested Products
Replacing and BOMs
OEM number
- 8200410674RENAULT
- 8200667611RENAULT
- 7711368603RENAULT
Competitor References
- DRA0552AC DELCO
- 553149RIAD KÜHNER
- A3170AUTOSTARTER POLAND
- A3170VALEOAUTOSTARTER POLAND
- A3313VALEOAUTOSTARTER POLAND
- 0986084100BOSCH
- CAL15369CASCO SRL
- 575542120CV PSH
- DRA0552DELCO REMY
