F032114073 - Starter

Trade number 114073

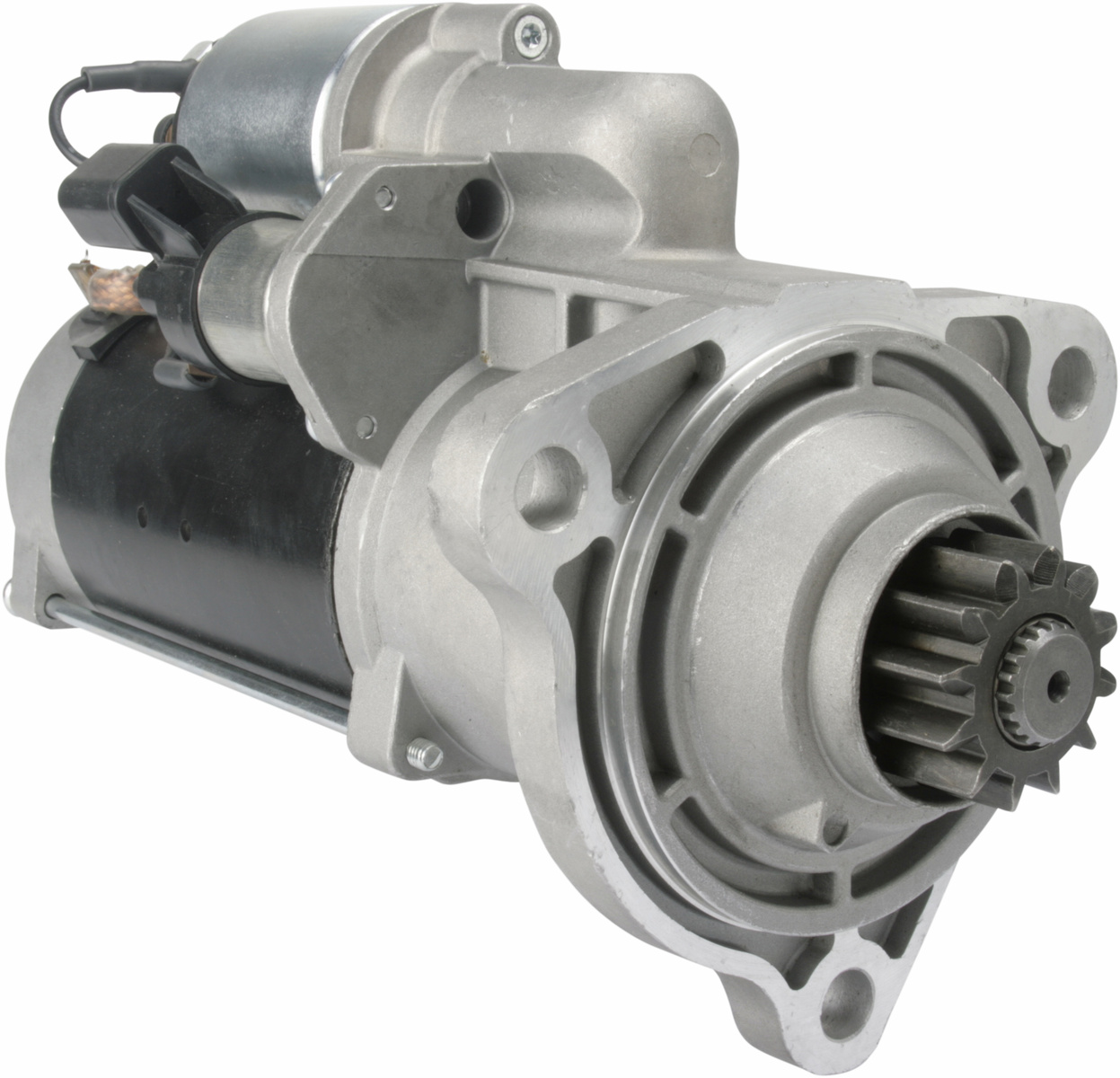

Product image - main
Trade number 114073

Details & description

Voltage 24, kW 5.5, Drive type Steel, Mounting Hole 2 13.50, Rear Distance 256.00, Prod. info BN, Distance 3 126.50, Drive Distance 47.00, Distance 2 126.50, Mounting Flange 110.00, Distance 126.50, Mounting Hole 3 13.50, No./mount. holes 3 (0), Gear type DD/GR, Front Distance 53.00, No./teeth 12, B+ M10, Terminal 50 Plug, Rotation CW, Position 20, Mounting Hole 1 13.50, Total Length 319.00, Remarks w/ start relay, Amount of Mounting Holes 3 (0)

Product information

Electrical information

  • Voltage24
  • kW5.5

Catalogue information

  • Prod. infoBN
  • Remarksw/ start relay

Physical information

  • Drive typeSteel
  • Mounting Hole 213.50
  • Rear Distance256.00
  • Distance 3126.50
  • Drive Distance47.00
  • Distance 2126.50
  • Mounting Flange110.00
  • Distance126.50
  • Mounting Hole 313.50

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 1688625DAF
    • 1739935DAF
    • 1826121DAF
    • 1843852DAF
    • 1876369DAF
    • 1956090DAF
    • 2015153DAF
    • STD1418RDAF
    • 1667425DAF

    • Competitor References

    • DRT2260AC DELCO
    • DRT2260XAC DELCO
    • 101420AD KÜHNER
    • S0882SAUTOSTARTER POLAND
    • S0194AUTOSTARTER POLAND
    • S0261AUTOSTARTER POLAND
    • 0001241015BOSCHBOM
    • 0001241020BOSCHBOM
    • 0001261007BOSCHBOM
