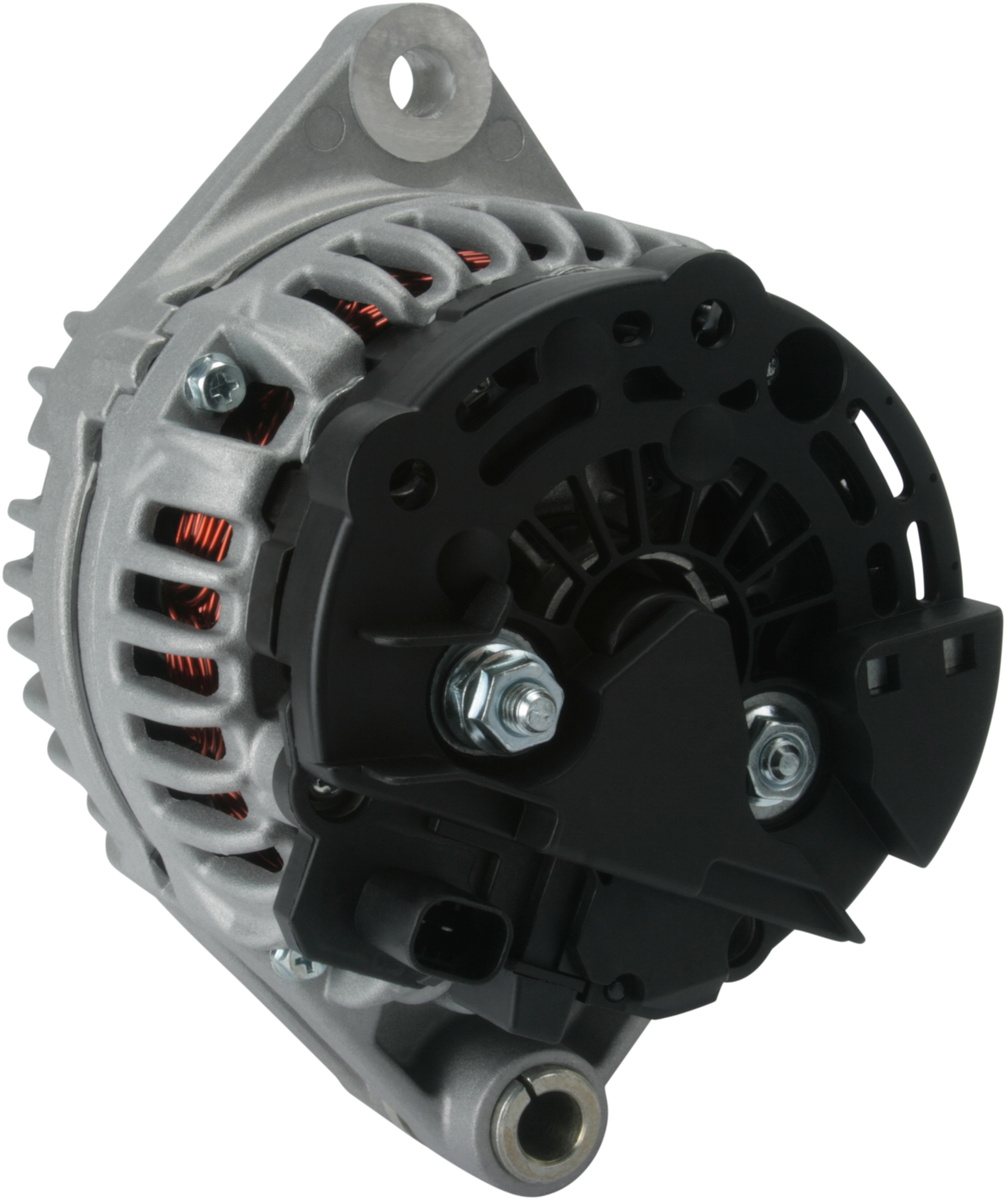

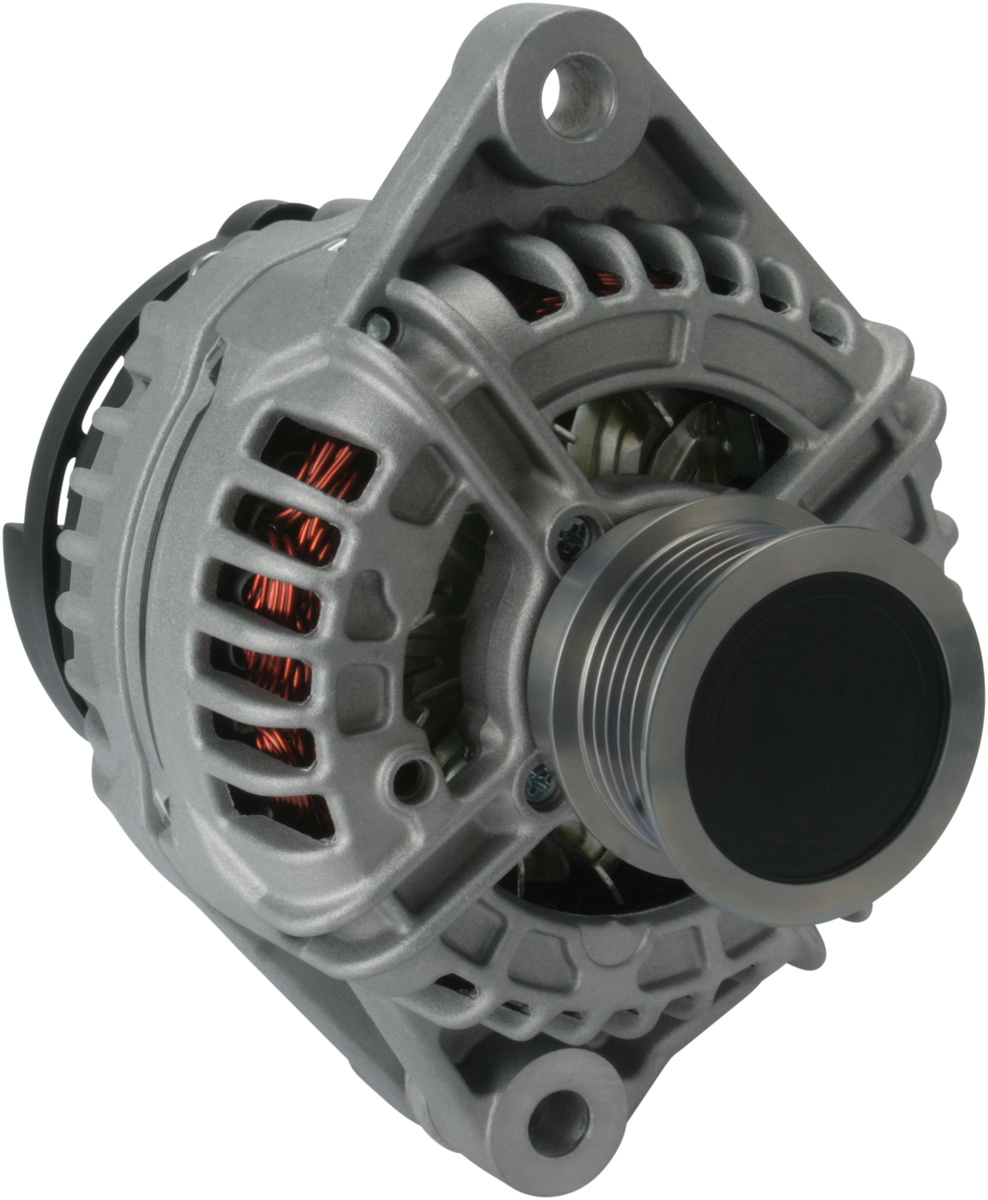

F032114088 - Alternator
Trade number 114088
Trade number 114088
Details & description
Voltage 14, Amp 140, Pulley SP/FW, Bracket Hole Size 1 12.70, Pulley Diameter 55.80, Prod. info BN, Holder Arm Width 61.00, Pulley Distance 112.00, B+ M8, Radius 2 88.00, Plug no. 1 PL75, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 12.30, Grooves/pulley 6, B+ Position 45, Belt Adjustment Bracket Hole Position 60, Total Length 193.00
Product information
Electrical information
- Voltage14
- Amp140
Catalogue information
- Prod. infoBN
Physical information
- PulleySP/FW
- Bracket Hole Size 112.70
- Pulley Diameter55.80
- Holder Arm Width61.00
- Pulley Distance112.00
- B+M8
- Radius 288.00
- Plug no. 1PL75
- Radius90.00
