F032114121 - Alternator

Trade number 114121

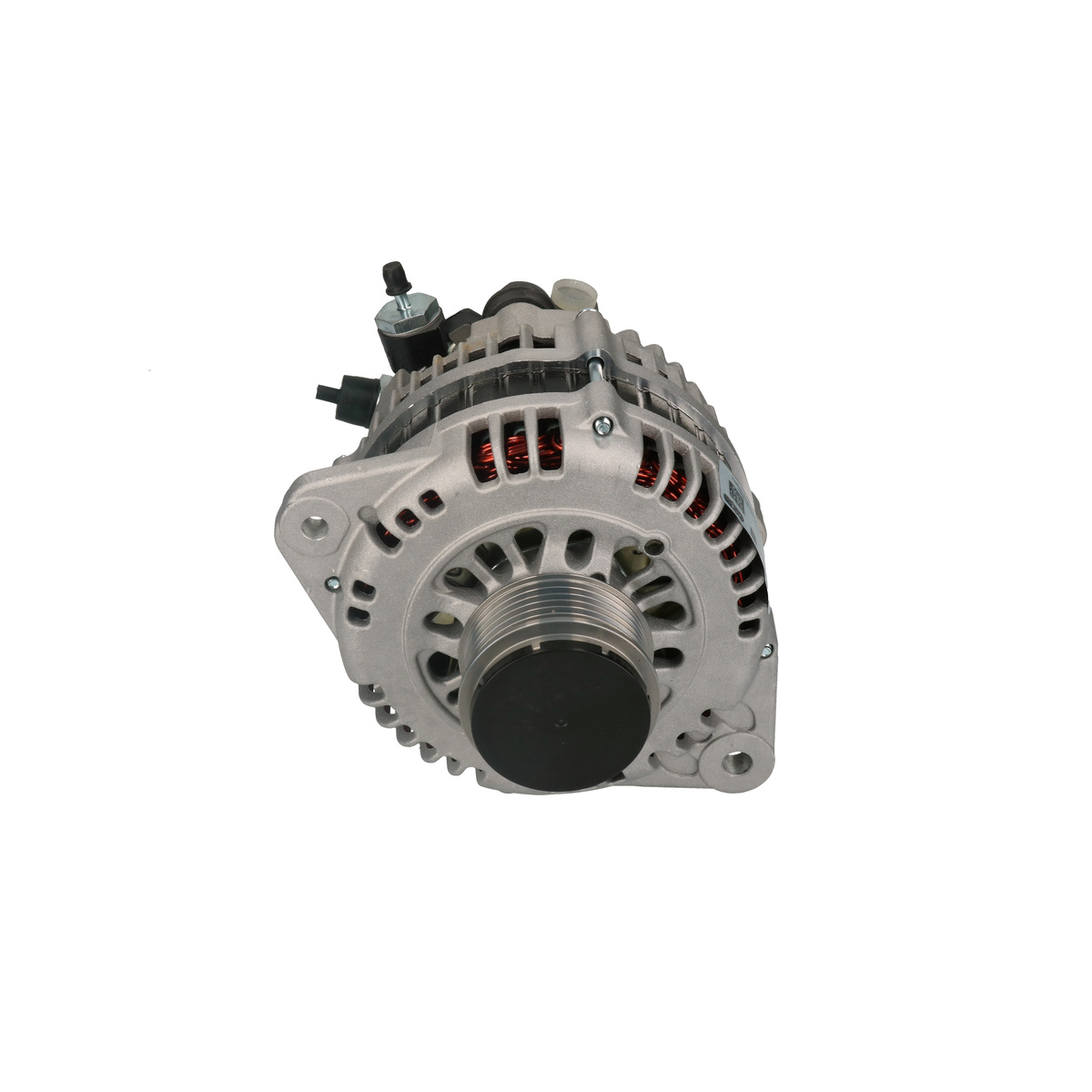

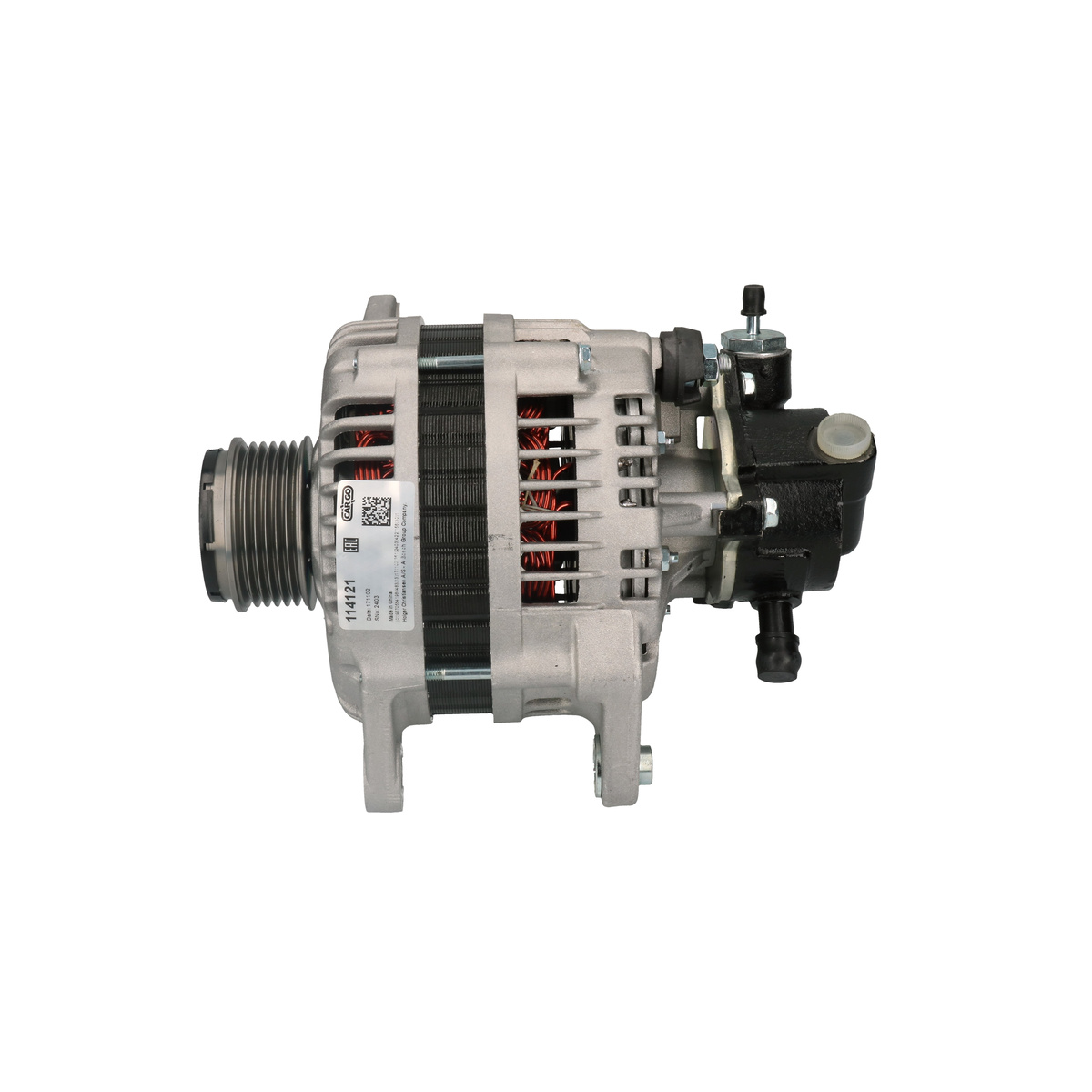

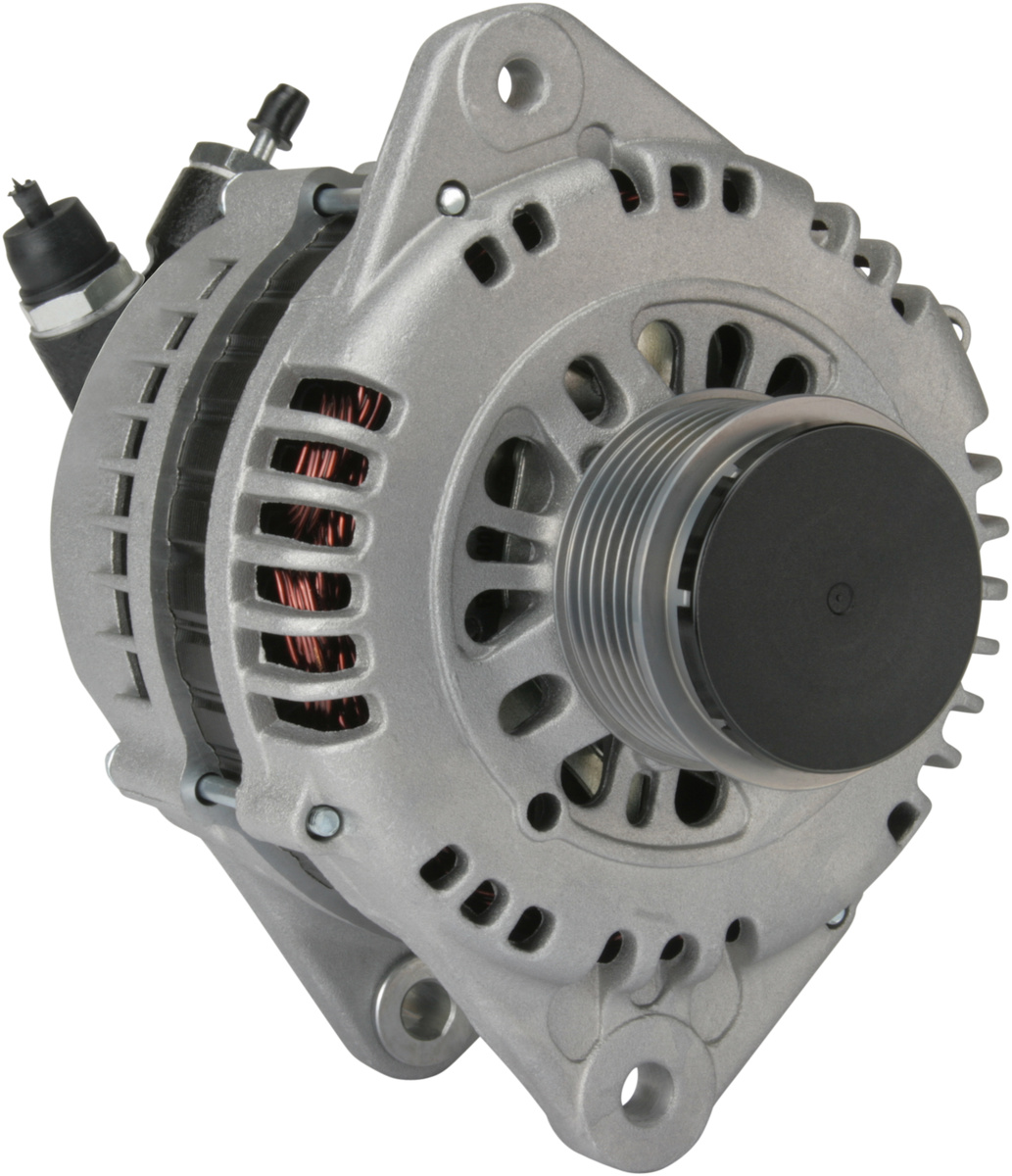

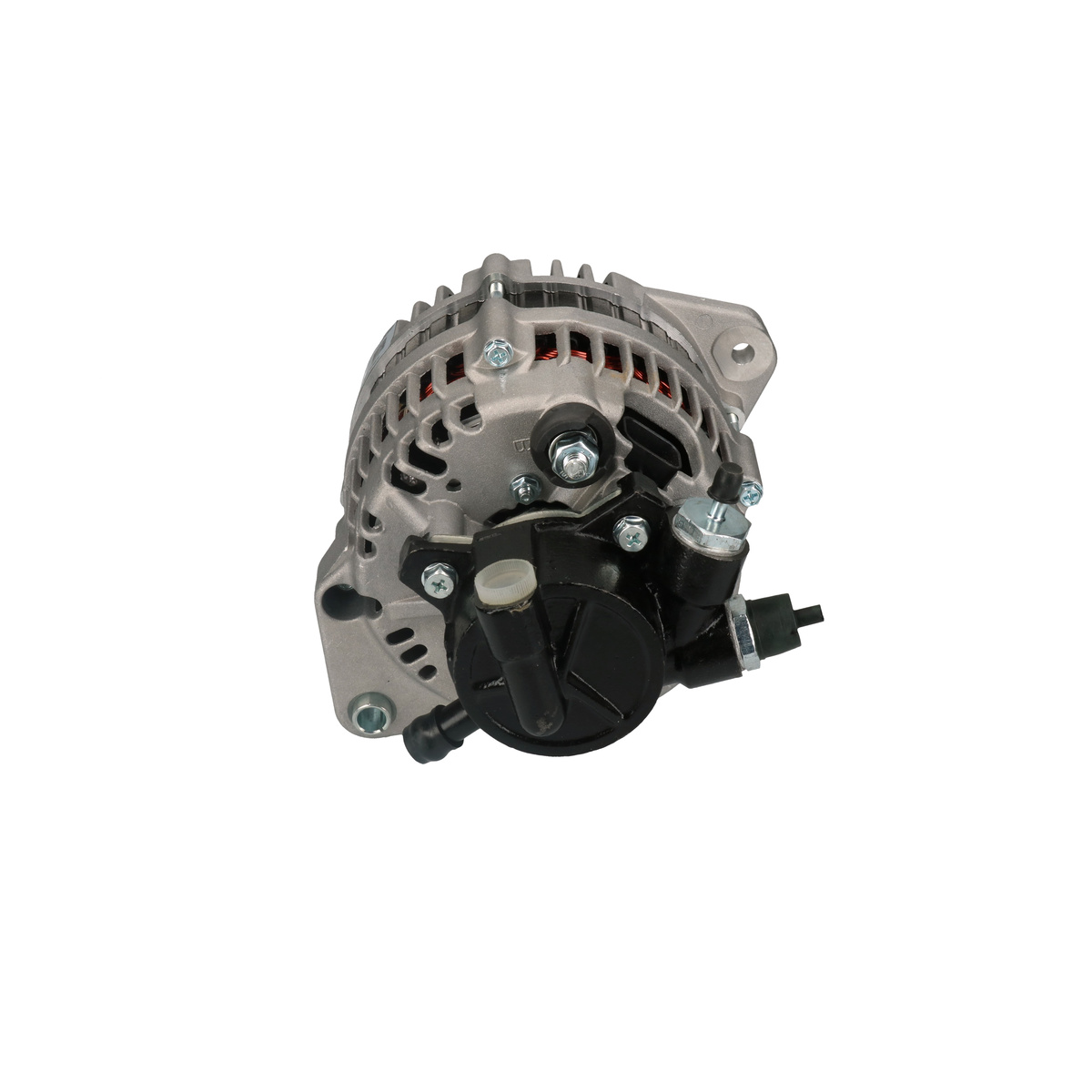

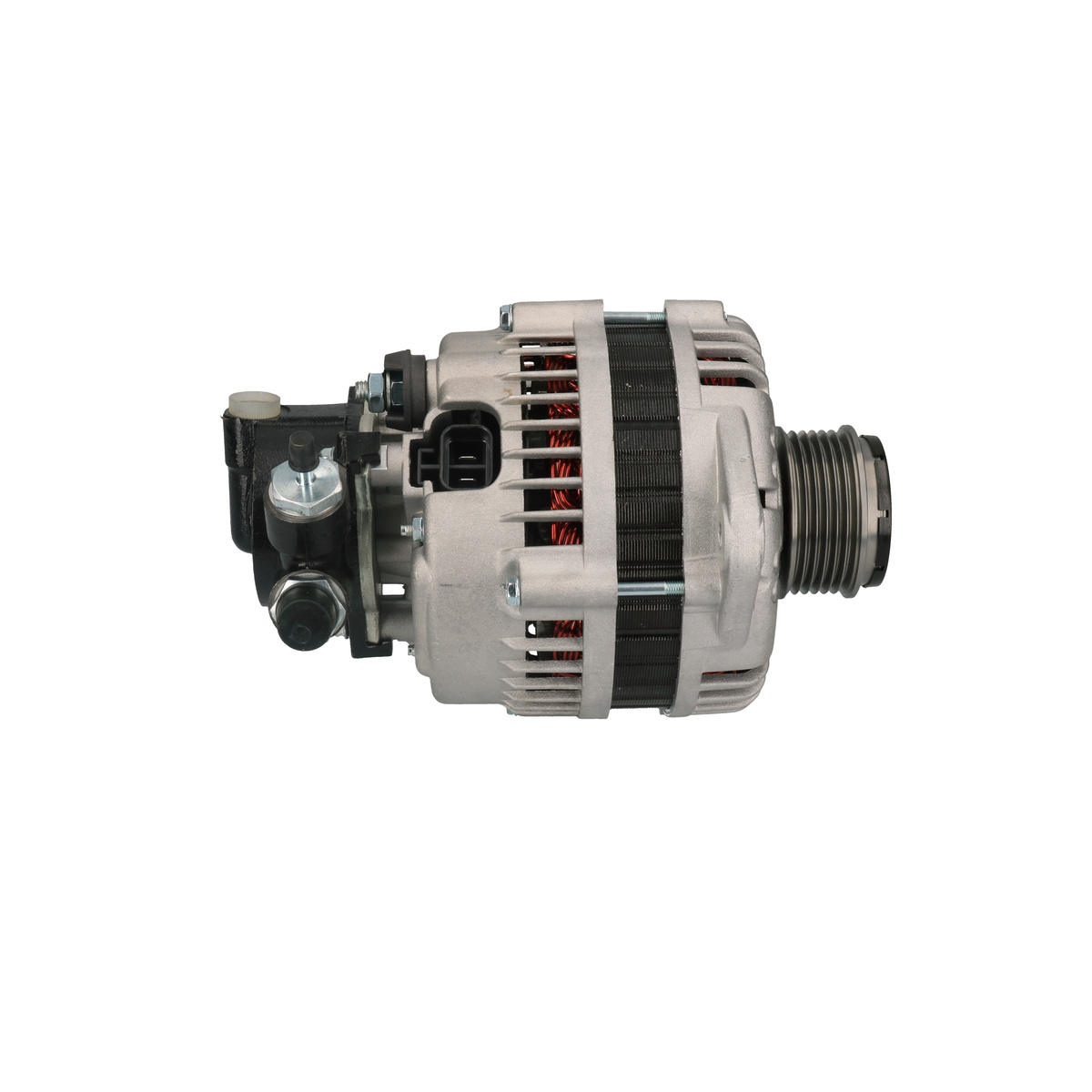

Product image - main
Trade number 114121

Details & description

Voltage 14, Amp 110, Pulley SP/FW, Pulley Diameter 60.00, Prod. info BN, Bracket Hole Size Rear 10.30, D+ Position 58, Nipple Vaccum Pump Position 30, Pulley Distance 35.00, Vac. pump Yes, Mounting Bracket Distance 66.50, Radius 90.00, Belt Adjustment Bracket Hole 1 8.30, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.30, Terminal type L-F, Vacumm Pump Position 60, D+ Size Plug, Holder Arm Width 12.60, B+ M8, Radius 2 85.00, Plug no. 1 PL127, Rotation CW, Position 10, B+ Position 53, Belt Adjustment Bracket Hole Position 57, Total Length 235.00

Product information

Electrical information

  • Voltage14
  • Amp110

Catalogue information

  • Prod. infoBN
  • Vac. pumpYes

Physical information

  • PulleySP/FW
  • Pulley Diameter60.00
  • Bracket Hole Size Rear10.30
  • D+ Position58
  • Nipple Vaccum Pump Position30
  • Pulley Distance35.00
  • Mounting Bracket Distance66.50
  • Radius90.00
  • Belt Adjustment Bracket Hole 18.30
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 8980564390ISUZUBOM
    • 8973638322ISUZUBOM
    • 8973638321ISUZUBOM
    • 8973638323ISUZUBOM
    • 8973638320ISUZUBOM
    • 8973638330ISUZUBOM
    • 98056439OPELBOM
    • 6204197OPELBOM
    • 97363832OPELBOM
  • Competitor References

    • DRA0434AC DELCO
    • 401899RIAD KÜHNER
    • A0426AUTOSTARTER POLAND
    • A2066AUTOSTARTER POLAND
    • 0986048303BOSCH
    • 1986A01188BOSCH
    • 0986048301BOSCH
    • F042A0H196BOSCH
    • CAL20209CASCO SRL
  • Compatible products
