F032114131 - Alternator

Trade number 114131

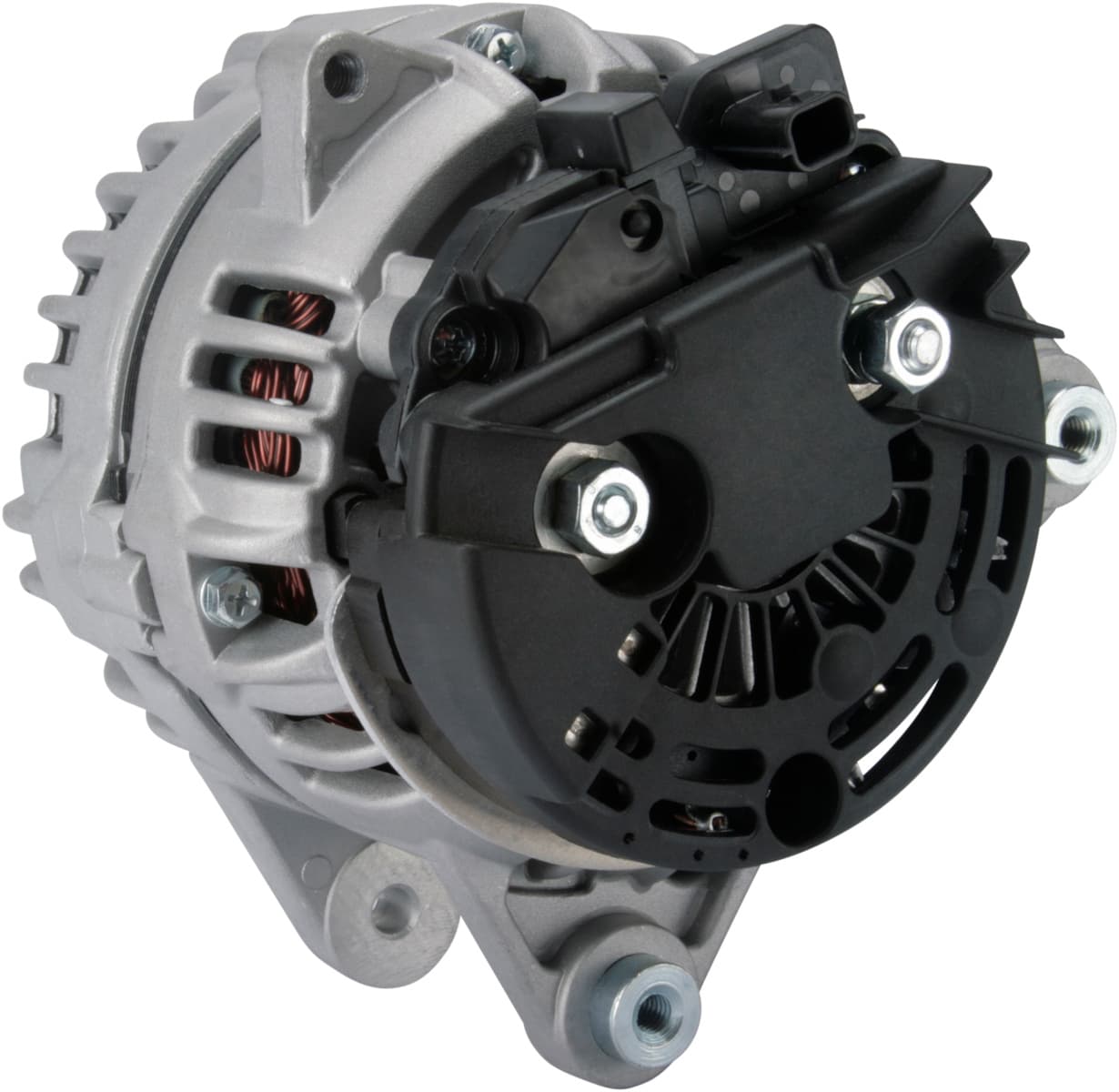

Product image - main
Trade number 114131

Details & description

Voltage 14, Amp 90, Communication BSS, Pulley SP, Pulley Diameter 57.00, Bracket Hole Size Rear M8, Pulley Distance 32.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 61.00, Radius 90.00, Belt Adjustment Bracket Hole 1 8.70, Grooves/pulley 7, Regulator type IR, Bracket Hole Size 1 8.70, Terminal type COM, Holder Arm Width 14.20, B+ M8, Radius 2 90.00, Plug no. 1 PL124, Rotation CW, Position 55, B+ Position 10, Belt Adjustment Bracket Hole Position 45, Total Length 182.00

Product information

Electrical information

  • Voltage14
  • Amp90

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationBSS
  • PulleySP
  • Pulley Diameter57.00
  • Bracket Hole Size RearM8
  • Pulley Distance32.00
  • Mounting Bracket Distance61.00
  • Radius90.00
  • Belt Adjustment Bracket Hole 18.70
  • Grooves/pulley7
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 8200429898RENAULT
    • 8200660037RENAULT
    • 8200406207RENAULT
    • 8200323138RENAULT
    • 8200406270RENAULT
    • 8200634135RENAULT
    • 8200269448RENAULT

    Competitor References

    • DRB6440AC DELCO
    • DRB6440XAC DELCO
    • 301866RIAD KÜHNER
    • A3139VALEOAUTOSTARTER POLAND
    • A3139AUTOSTARTER POLAND
    • A3139PRAUTOSTARTER POLAND
    • A3139SAUTOSTARTER POLAND
    • 0124325139BOSCHBOM
    • 0124325186BOSCHBOM
  • Compatible products
