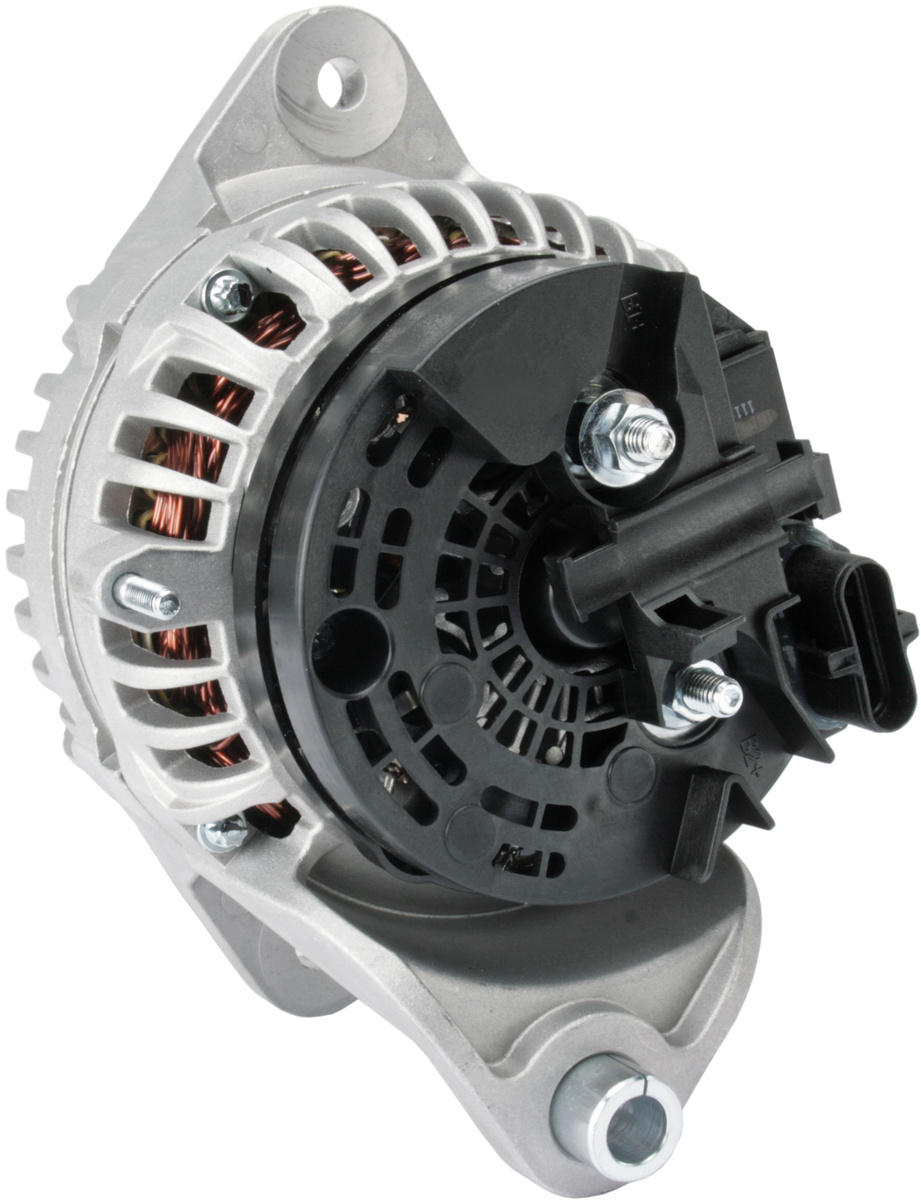

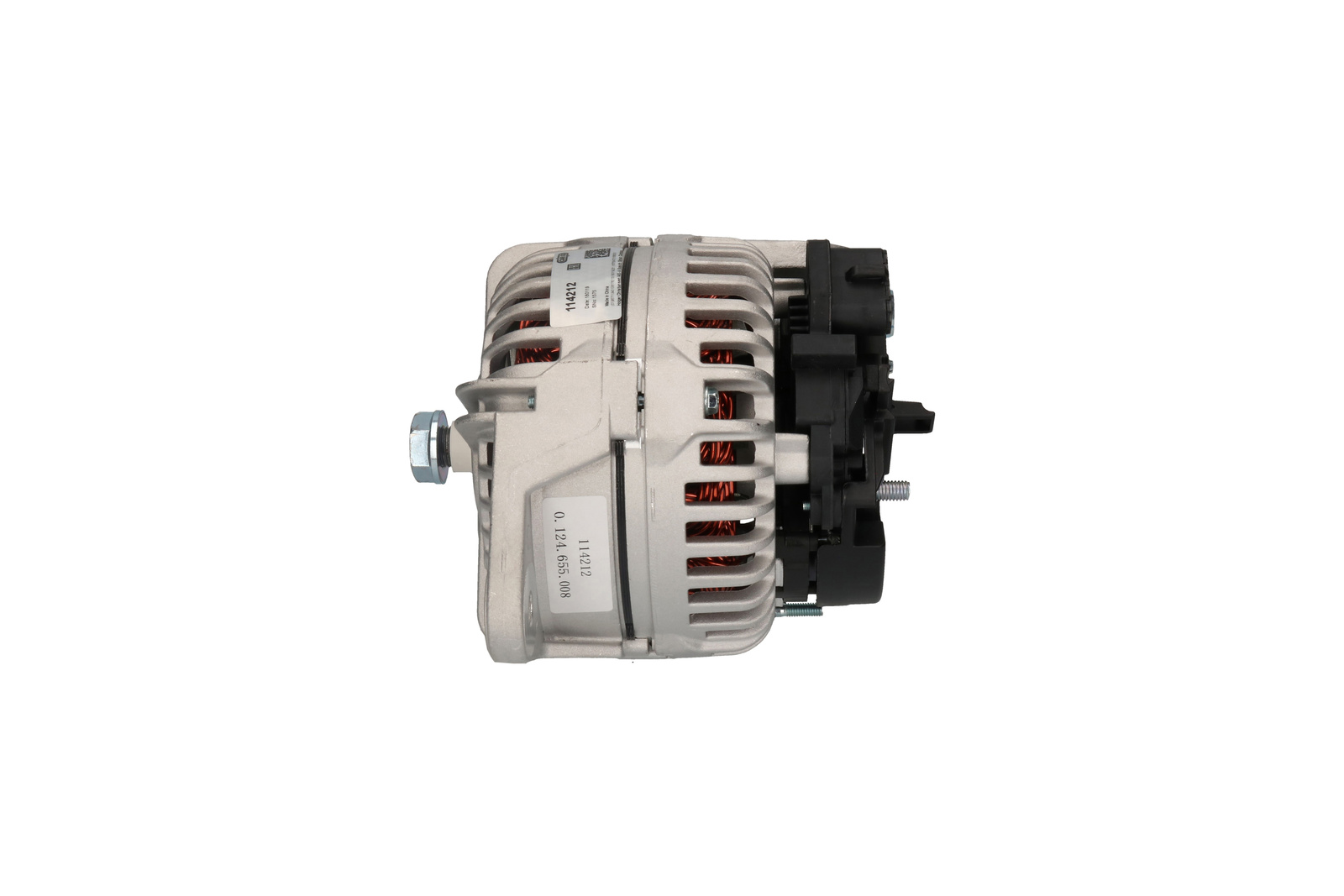

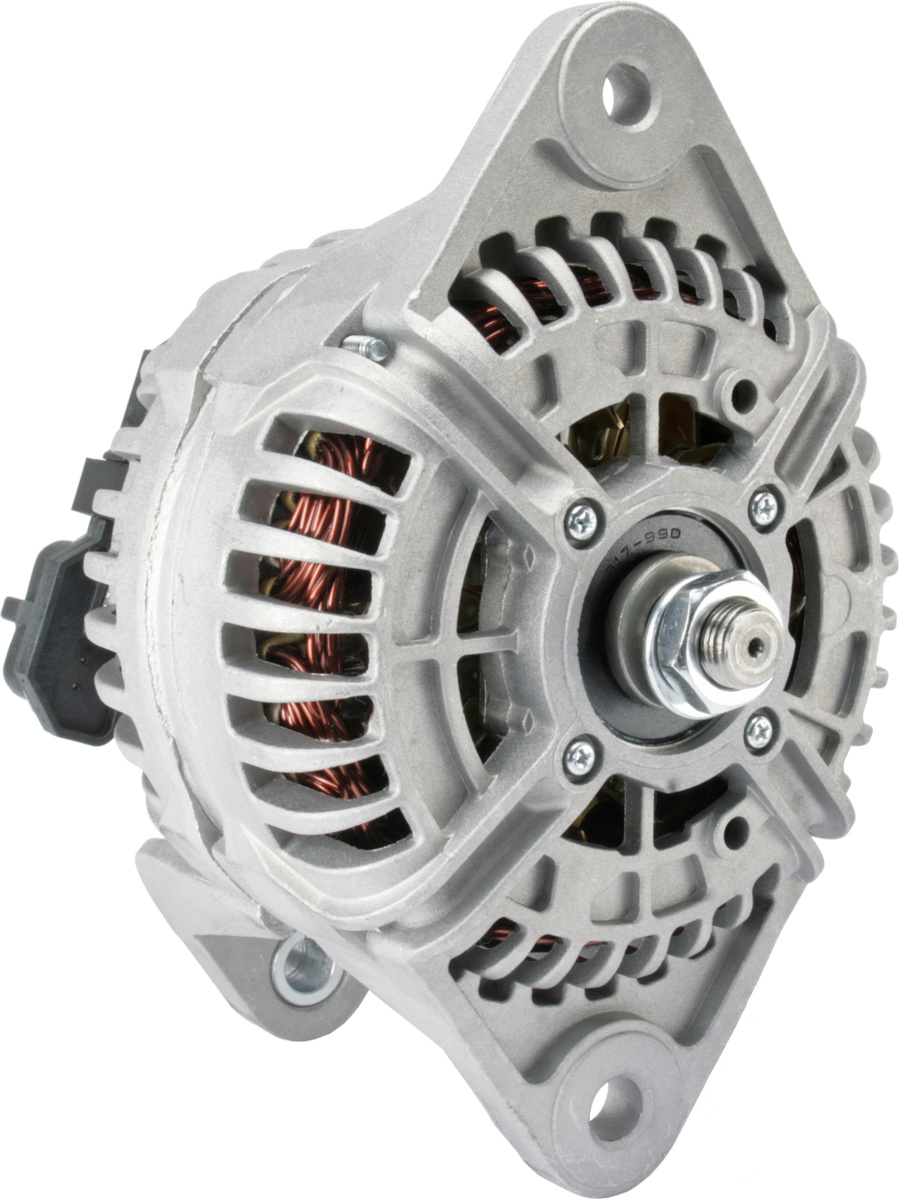

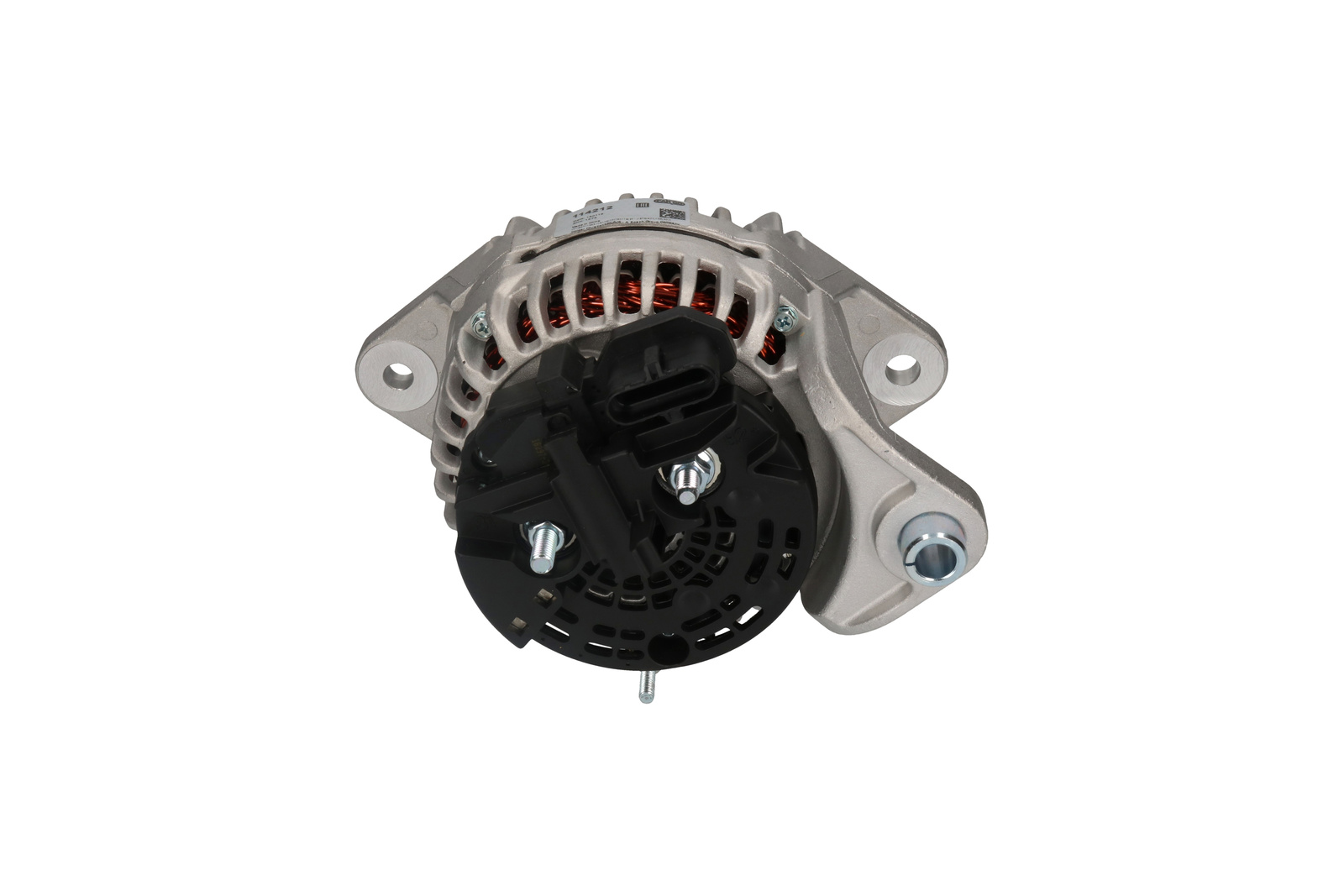

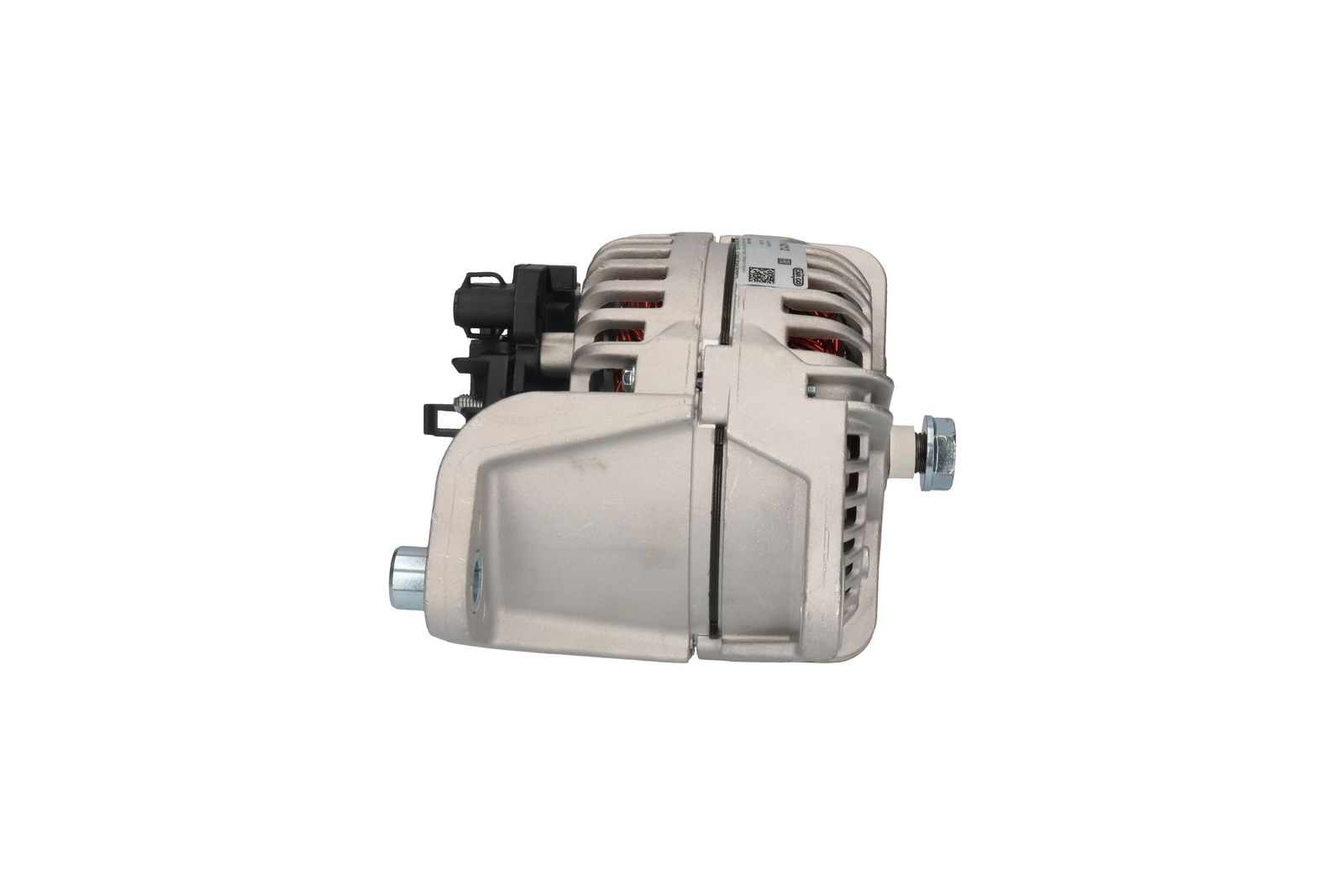

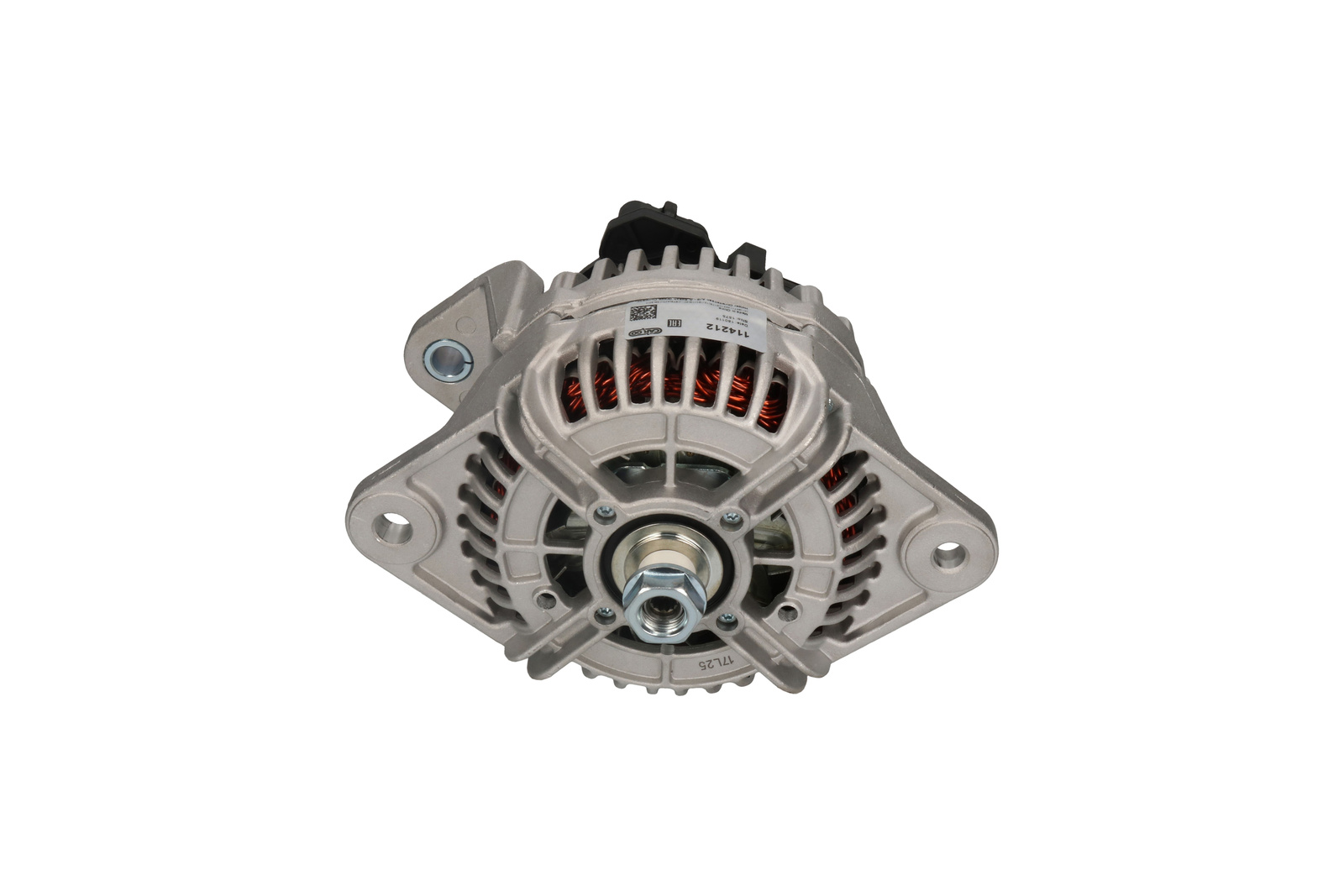

F032114212 - Alternator
Trade number 114212
Replacing and BOMs
OEM number
- 1524012RDAF
- 0910378DAF
- AT387573JOHN DEERE
- AT303320JOHN DEERE
- AT330320JOHN DEERE
- SE501833JOHN DEERE
- JDAT387574JOHN DEERE
- 01183408KZKHD
- 1182771KHD
Competitor References
- DRA0844AC DELCO
- DRB0002AC DELCO
- DRB0003AC DELCO
- DRB7440AC DELCO
- DRA0111AC DELCO
- DRB6290AC DELCO
- DRB6290XAC DELCO
- 301853RIAD KÜHNER
- 301883RIAD KÜHNER
Trade number 114212
Details & description
Voltage 28, Amp 110, Pulley w/o, Bracket Hole Size 1 12.00, Bracket Hole Size Rear 12.00, D+ Size Plug, D+ Position 15, Holder Arm Width 13.50, B+ M8, Radius 2 99.00, Plug no. 1 PL82, Mounting Bracket Distance 106.00, Radius 99.00, Rotation CW, Belt Adjustment Bracket Hole 1 10.40, Regulator type IR, B+ Position 25, Belt Adjustment Bracket Hole Position 60, Total Length 202.00
Product information
Electrical information
- Voltage28
- Amp110
Physical information
- Pulleyw/o
- Bracket Hole Size 112.00
- Bracket Hole Size Rear12.00
- D+ SizePlug
- D+ Position15
- Holder Arm Width13.50
- B+M8
- Radius 299.00
- Plug no. 1PL82
Replacing and BOMs
OEM number
- 1524012RDAF
- 0910378DAF
- AT387573JOHN DEERE
- AT303320JOHN DEERE
- AT330320JOHN DEERE
- SE501833JOHN DEERE
- JDAT387574JOHN DEERE
- 01183408KZKHD
- 1182771KHD
Competitor References
- DRA0844AC DELCO
- DRB0002AC DELCO
- DRB0003AC DELCO
- DRB7440AC DELCO
- DRA0111AC DELCO
- DRB6290AC DELCO
- DRB6290XAC DELCO
- 301853RIAD KÜHNER
- 301883RIAD KÜHNER
