F032114726 - Alternator

Trade number 114726

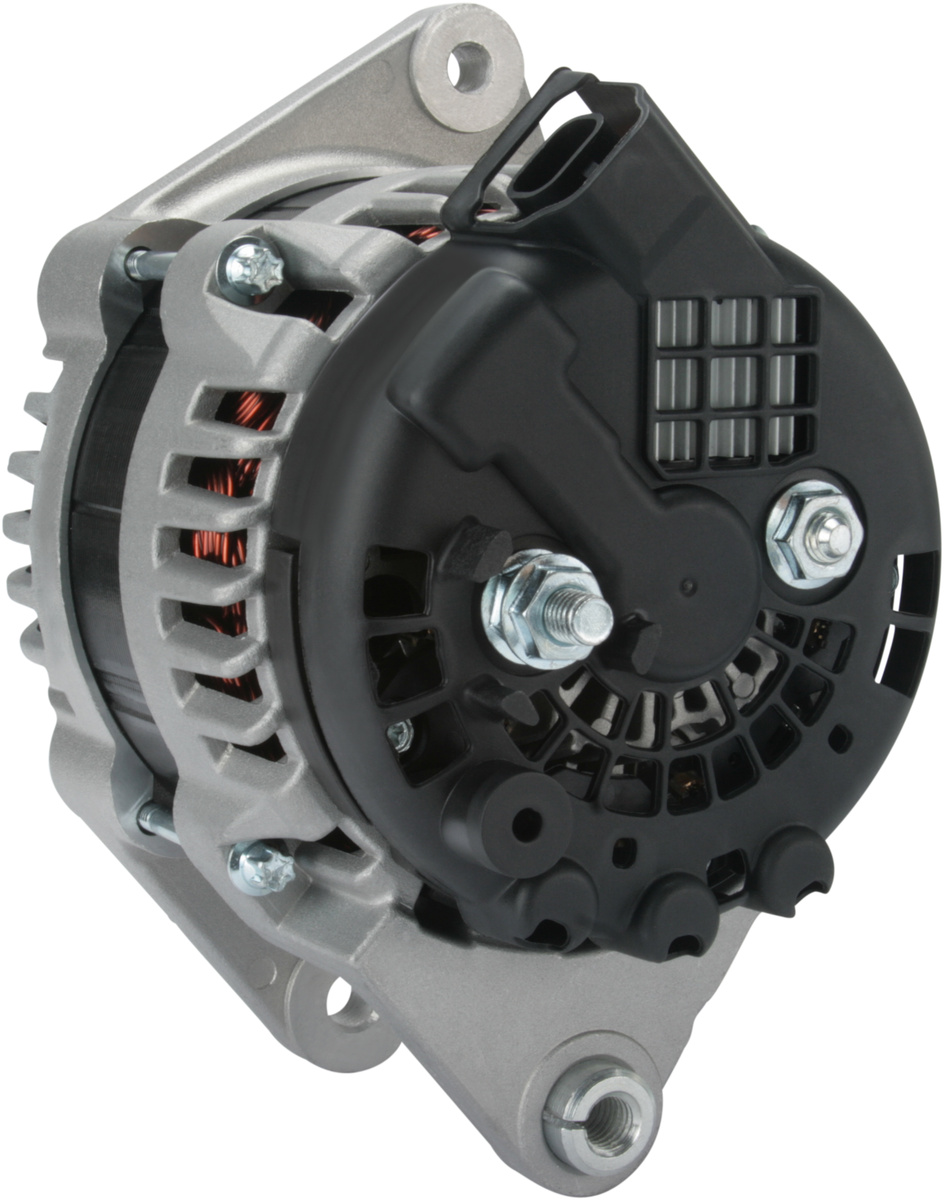

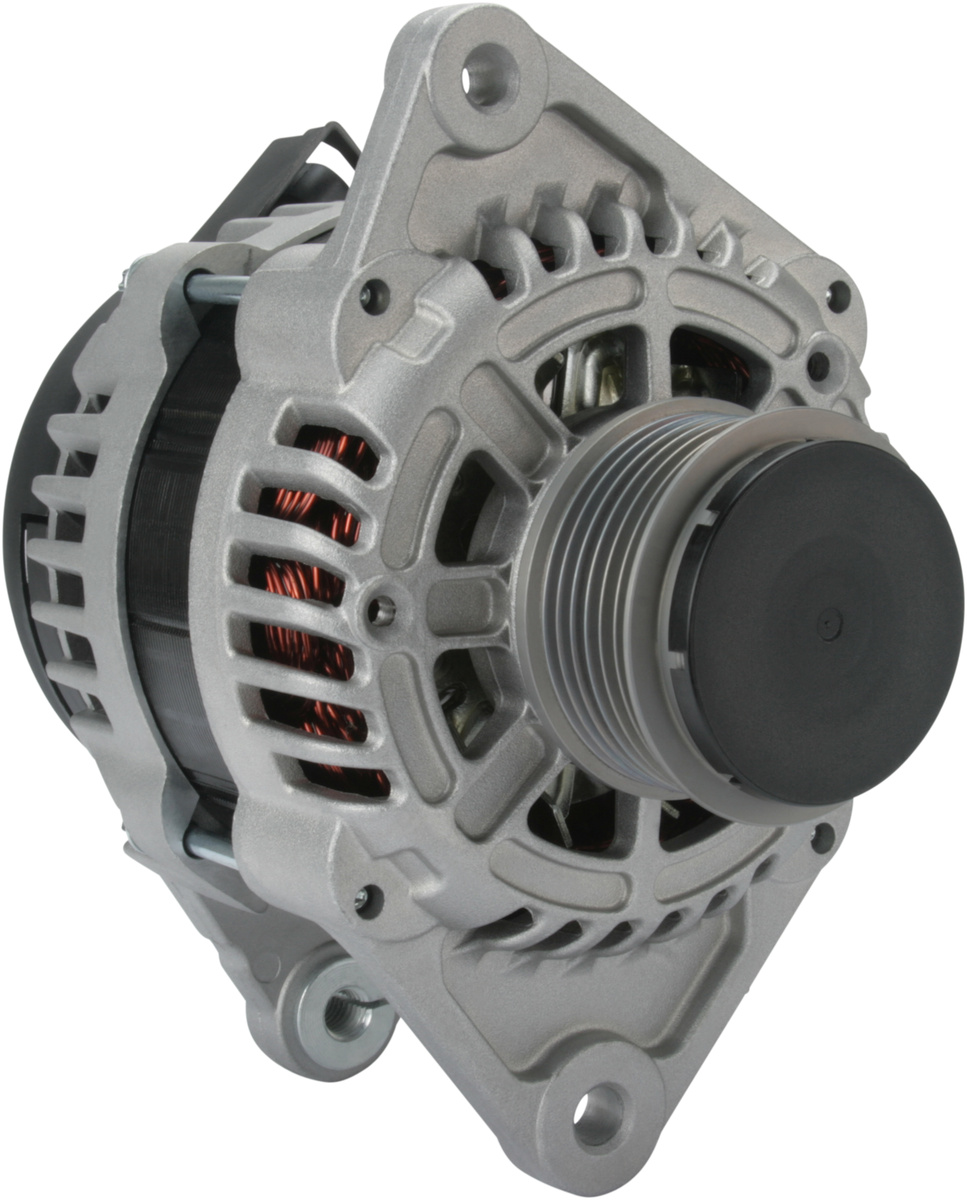

Product image - main
Trade number 114726

Details & description

Voltage 14, Amp 100, Communication PWM, Pulley SP/FW, Pulley Diameter 60.00, Prod. info BN, Bracket Hole Size Rear M10, Pulley Distance 35.00, Remarks 3 This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 66.00, Radius 88.00, Belt Adjustment Bracket Hole 1 8.00, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.00, Terminal type L-F, Holder Arm Width 13.00, B+ M8, Radius 2 85.00, Plug no. 1 PL180, Rotation CW, Position 60, B+ Position 45, Belt Adjustment Bracket Hole Position 57, Total Length 187.00

Product information

Voltage:14
Amp:100
Communication:PWM
Pulley:SP/FW
Pulley Diameter:60.00
Prod. info:BN
Bracket Hole Size Rear:M10
Pulley Distance:35.00
Remarks 3:This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Mounting Bracket Distance:66.00
Radius:88.00
Belt Adjustment Bracket Hole 1:8.00
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:10.00
Terminal type:L-F
Holder Arm Width:13.00
B+:M8
Radius 2:85.00
Plug no. 1:PL180
Rotation:CW
Position:60
B+ Position:45
Belt Adjustment Bracket Hole Position:57
Total Length:187.00

Replacing and BOMs

OEM number

13500186OPEL
13579662OPEL
1202117OPEL
1202261OPEL
1202427OPEL
95519864OPEL

Competitor References

DRA1127AC DELCO
DRA1127NAC DELCO
553496RIAD KÜHNER
A1025AUTOSTARTER POLAND
A1025PAUTOSTARTER POLAND
0986083610BOSCH
CAL42106CASCO SRL
135581100CV PSH
DRA1127DELCO REMY
DRA1127NDELCO REMY
2281871002DRI
286530ELSTOCK
209388ERA SPA
209388AERA SPA
12090465EUROTEC
113296FACROM
114726HC-CARGO
32083610HERTH U. BUSS
LRA03418LUCAS
440955VALEO
20046NWAI
